Product Description

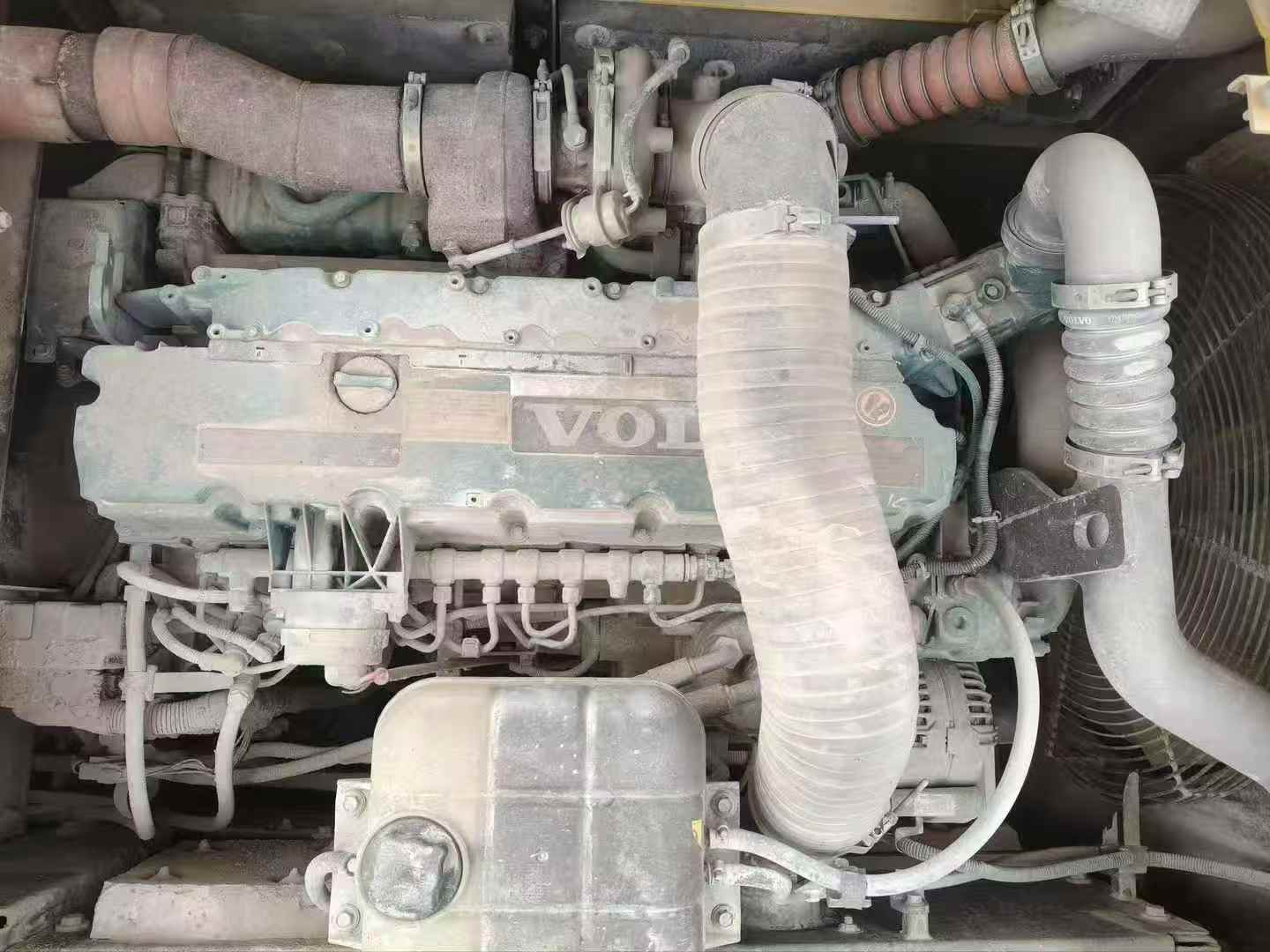

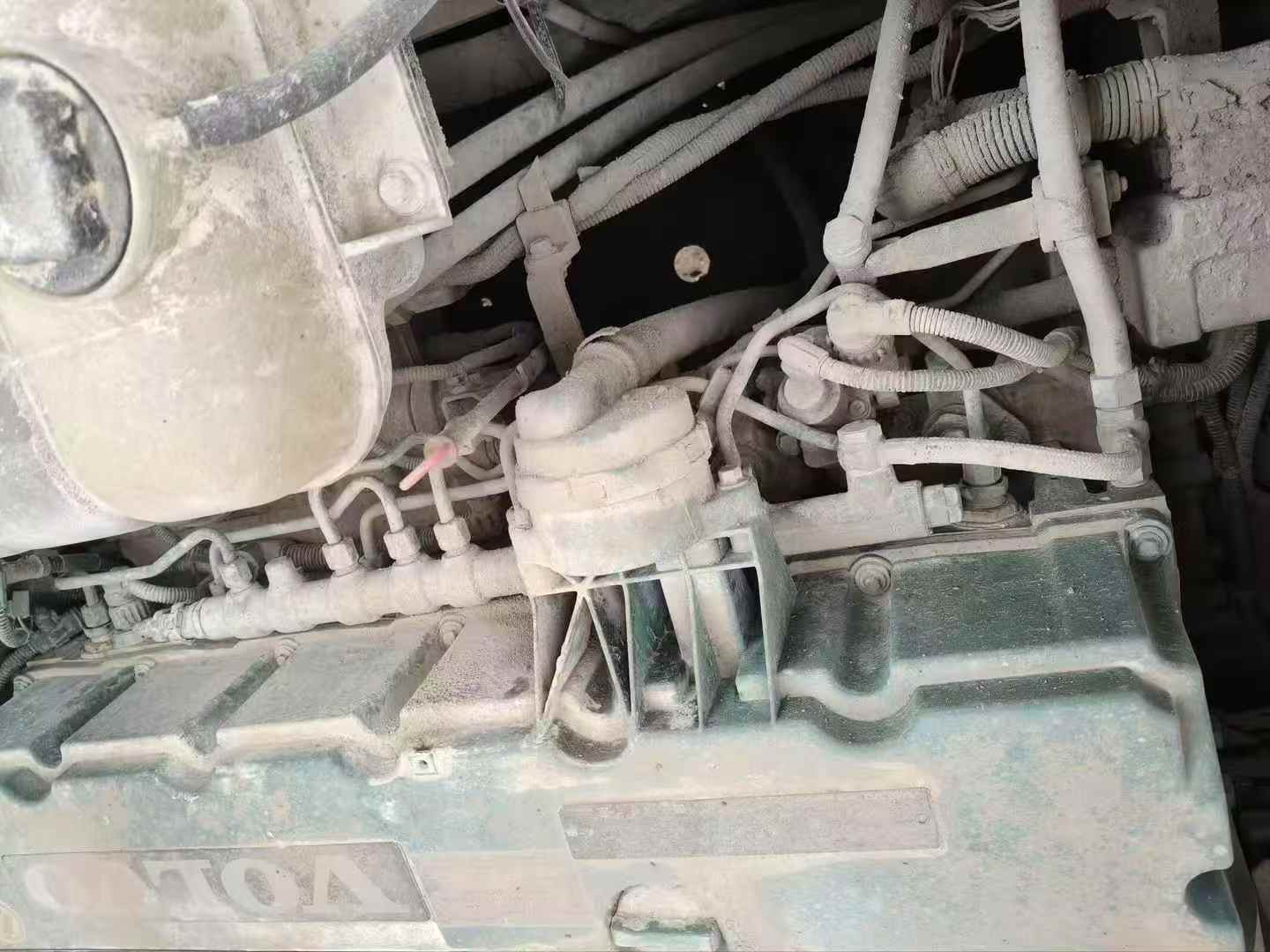

Maximize your equipment budget with this 2019 Volvo EW50 wheeled excavator, currently located in Guizhou. Delivering professional-grade performance at a fraction of new equipment costs, this 5-ton machine combines proven reliability with impressive operational capabilities. Powered by a 33.7kW engine with 2.2L displacement, it offers the versatility your projects demand without the premium price tag of new machinery.

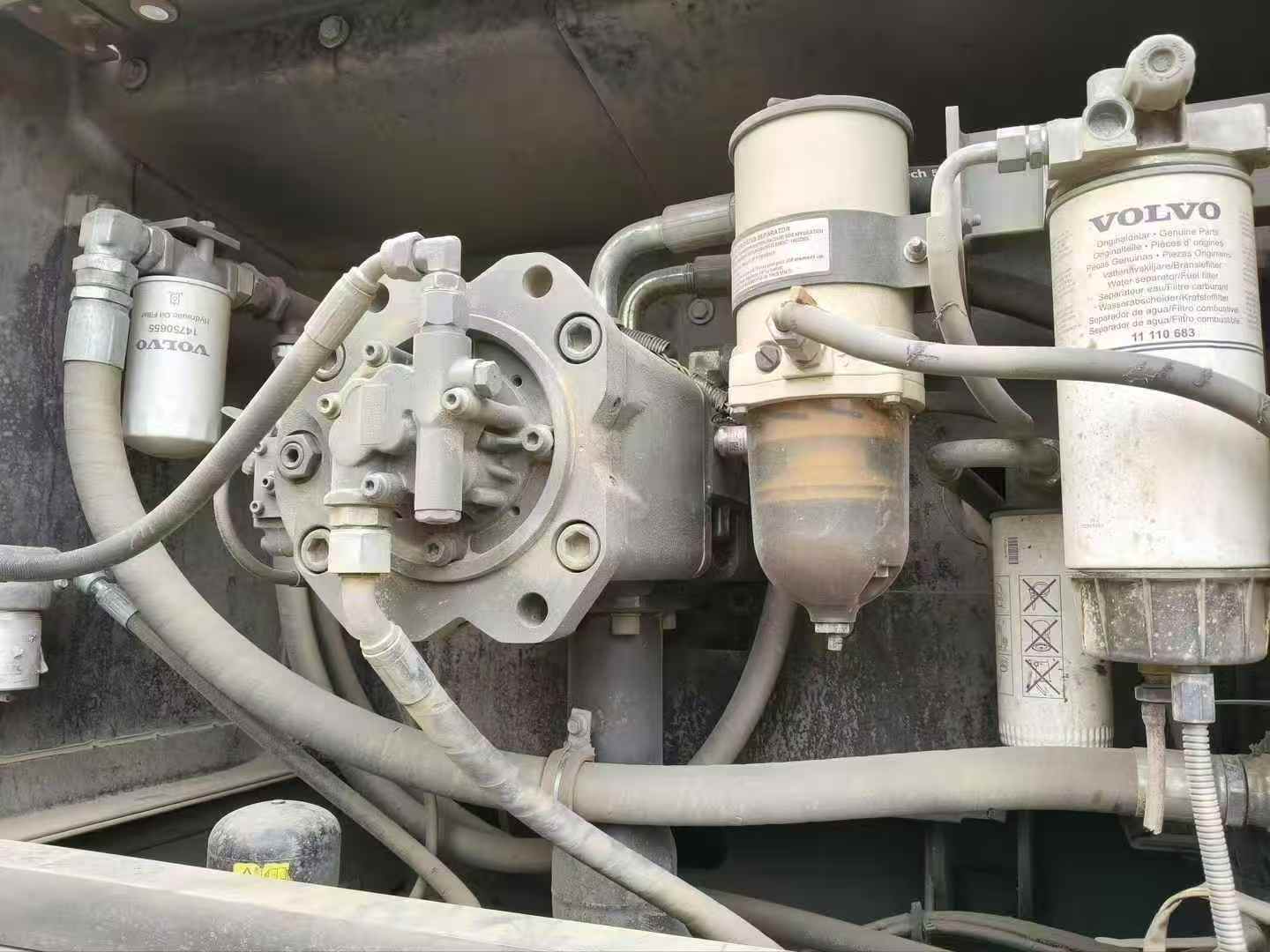

Engineered for productivity, this compact excavator features a maximum digging depth of 3,133mm and an excavation radius reaching 5,450mm. With a working weight of 5,190kg and multiple bucket configurations (0.14/0.07/0.23m³), it adapts seamlessly to diverse applications. Forward speeds up to 18km/h ensure efficient site mobility, while the 70L hydraulic system and 25Mpa overflow pressure deliver consistent digging force.
- Compact dimensions: 5,279mm length × 2,164mm width × 2,875mm height
- Maximum unloading height: 3,987mm for efficient truck loading
- 80L fuel tank for extended operation
- Joint venture/Import quality construction
- Proven 2019 model year reliability
Invest smart. Acquire established performance without new equipment depreciation.
| Specifications | Value |
|---|---|
| No. | 1007417 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5190 |
| Bucket capacity (m³) | 0.14/0.07/0.23 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rated power (kw/rpm) | 33.7/2500 |
| Total displacement (L) | 2.2 |
| Forward speed (Km/h) | 18 |
| Rotation speed (rpm) | 10 |
| Main overflow set pressure (Mpa) | 25 |
| Fuel Tank (L) | 80 |
| Engine Oil changes (L) | 8 |
| Coolant (L) | 8 |
| Hydraulic System (L) | 70 |
| Total transport length (mm) | 5279 |
| Total transport width (mm) | 2164 |
| Total transport height (mm) | 2875 |
| Full cab height (mm) | 2875 |
| Counterweight ground clearance (mm) | 1025 |
| Wheelbase (mm) | 2050 |
| Total tire outside width (mm) | 2164 |
| Minimum ground clearance (mm) | 291 |
| Back end turning radius (mm) | 1482 |
| Maximum excavation radius (mm) | 5450 |
| Maximum digging depth (mm) | 3133 |
| Maximum excavation height (mm) | 5437 |
| Maximum unloading height (mm) | 3987 |
| Maximum vertical digging depth (mm) | 2026 |
