Product Description

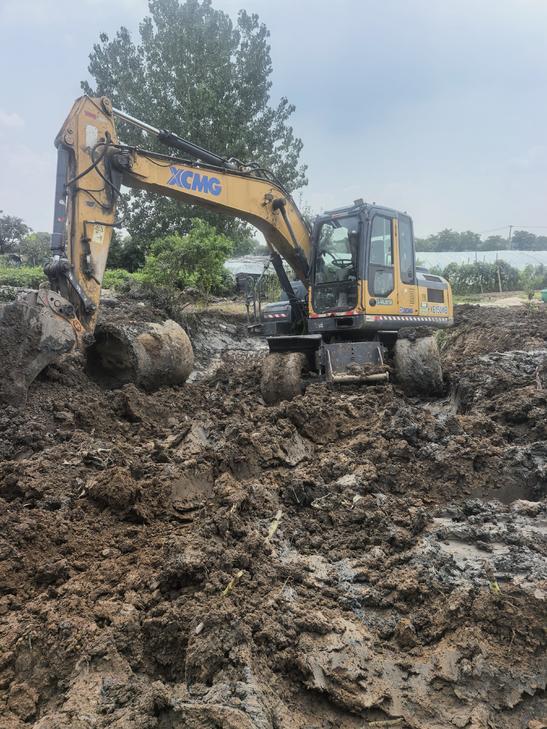

Discover the reliability and efficiency of the 2019 XCMG 150D wheeled excavator, currently available in Jiangsu, China. This robust machine has been meticulously maintained by a single owner and has accumulated 8,200 operational hours, showcasing its durability and performance in various construction environments. The XCMG 150D is known for its versatility and maneuverability, making it an ideal choice for a wide range of applications including excavation, grading, and loading tasks.
- Year: 2019
- Brand: XCMG
- Model: 150D
- Operational Hours: 8,200
- Location: Jiangsu, China
| Specifications | Value |
|---|---|
| No. | 1132525 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14000 |
| Bucket capacity (m³) | 0.58 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB4.5 |
| Rated power (kw/rpm) | 104/2000 |
| Total displacement (L) | 4.5 |
| Maximum torque (N.m) | 586 |
| Forward speed (Km/h) | 30/11 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 95 |
| Rod digging force (kN) | 72 |
| Minimum turning radius (m) | 6.5 |
| Maximum flow of main pump (l/min) | 2 x 160 |
| Main pump type | Two plunger pumps |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 135 |
| Total transport length (mm) | 7778 |
| Total transport width (mm) | 2495 |
| Total transport height (mm) | 3305 |
| Full cab height (mm) | 2430 |
| Counterweight ground clearance (mm) | 1230 |
| Wheelbase (mm) | 2800 |
| Wheel base (mm) | 1920 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 2300 |
| Maximum digging radius (mm) | 7780 |
| Maximum excavation radius (mm) | 7570 |
| Maximum digging depth (mm) | 4630 |
| Maximum excavation height (mm) | 8190 |
| Maximum unloading height (mm) | 5855 |
| Maximum vertical digging depth (mm) | 4150 |
| Bulldozer lift or depth (mm) | 503 x 105 |
| Dodging plate width × height (mm) | 2495 x 564 |
