Product Description

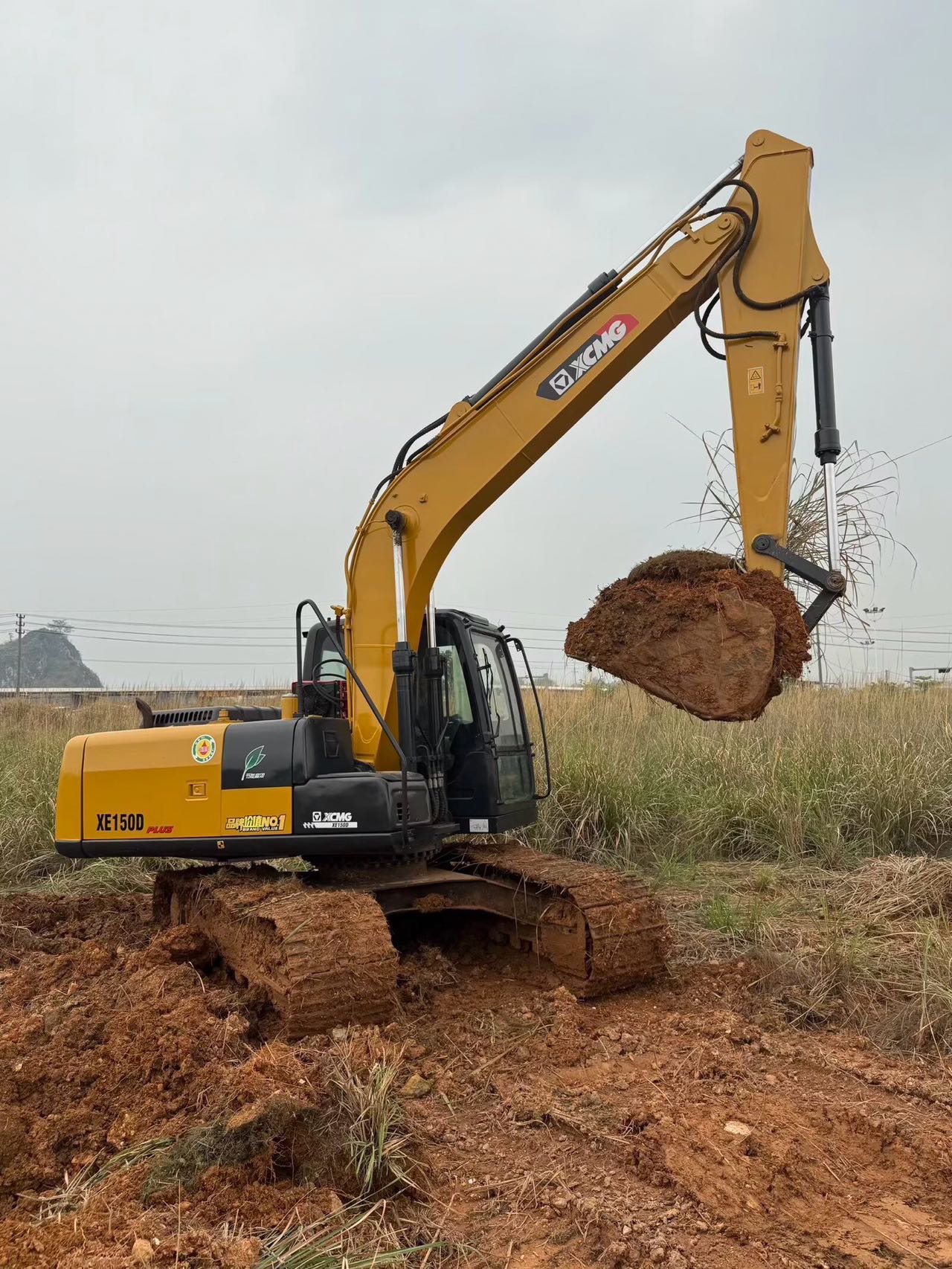

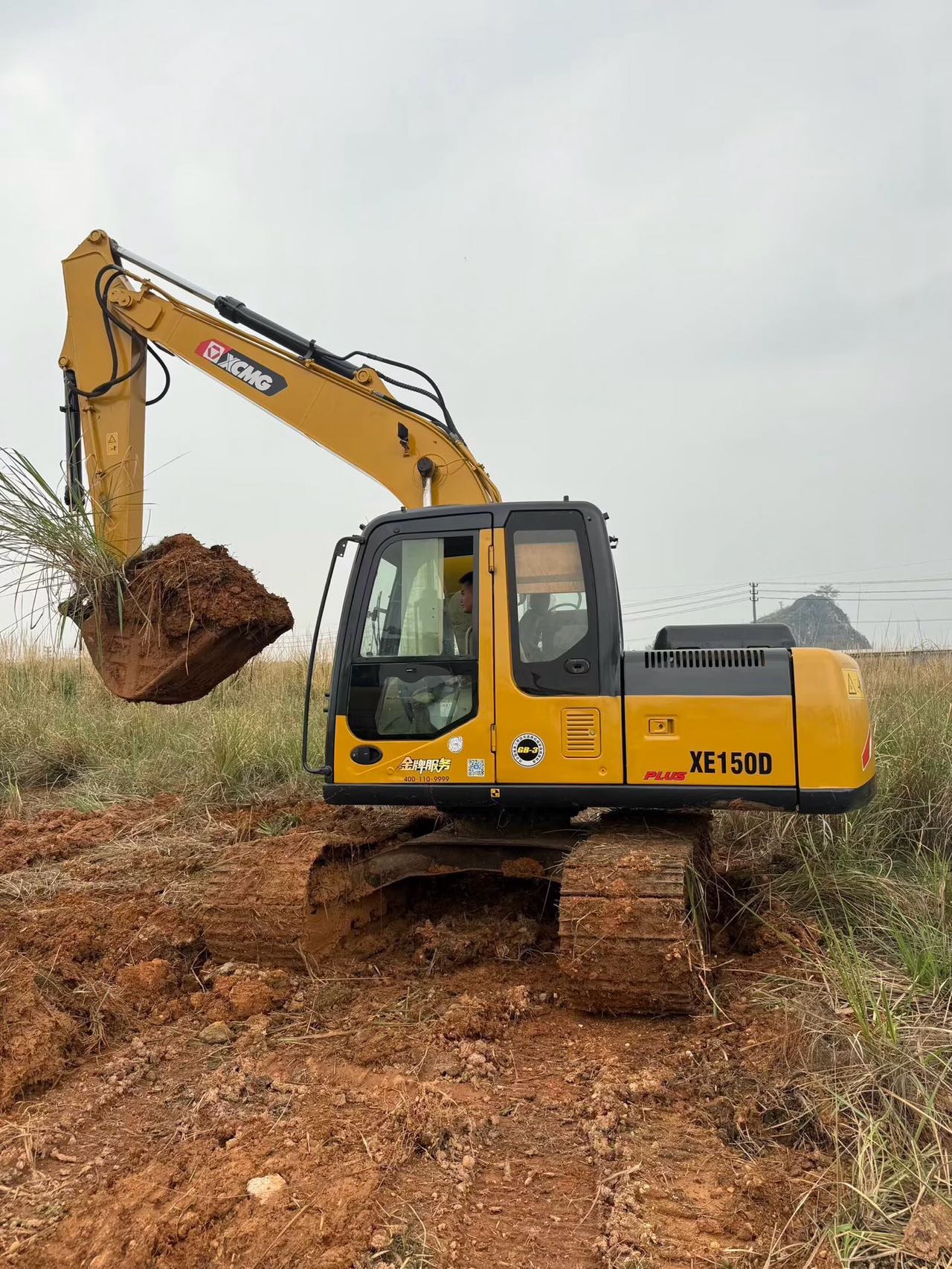

This 2020 XCMG 150D excavator represents solid value in the mid-size equipment segment. Currently located in Guangxi, China, this machine offers dependable performance for earthmoving, trenching, and general excavation work. XCMG's 150D model is known for its robust construction and straightforward operation, making it suitable for contractors seeking reliable equipment without unnecessary complexity.
- Year of Manufacture: 2020
- Brand: XCMG
- Model: 150D
- Current Location: Guangxi, China
- Documentation and operational video available upon request
This excavator has been maintained in working condition and is available for immediate inspection. The unit's service history and visual documentation can be provided to qualified buyers. Suitable for construction sites, infrastructure projects, and material handling applications throughout the region.
| Specifications | Value |
|---|---|
| No. | 1104302 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.71 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

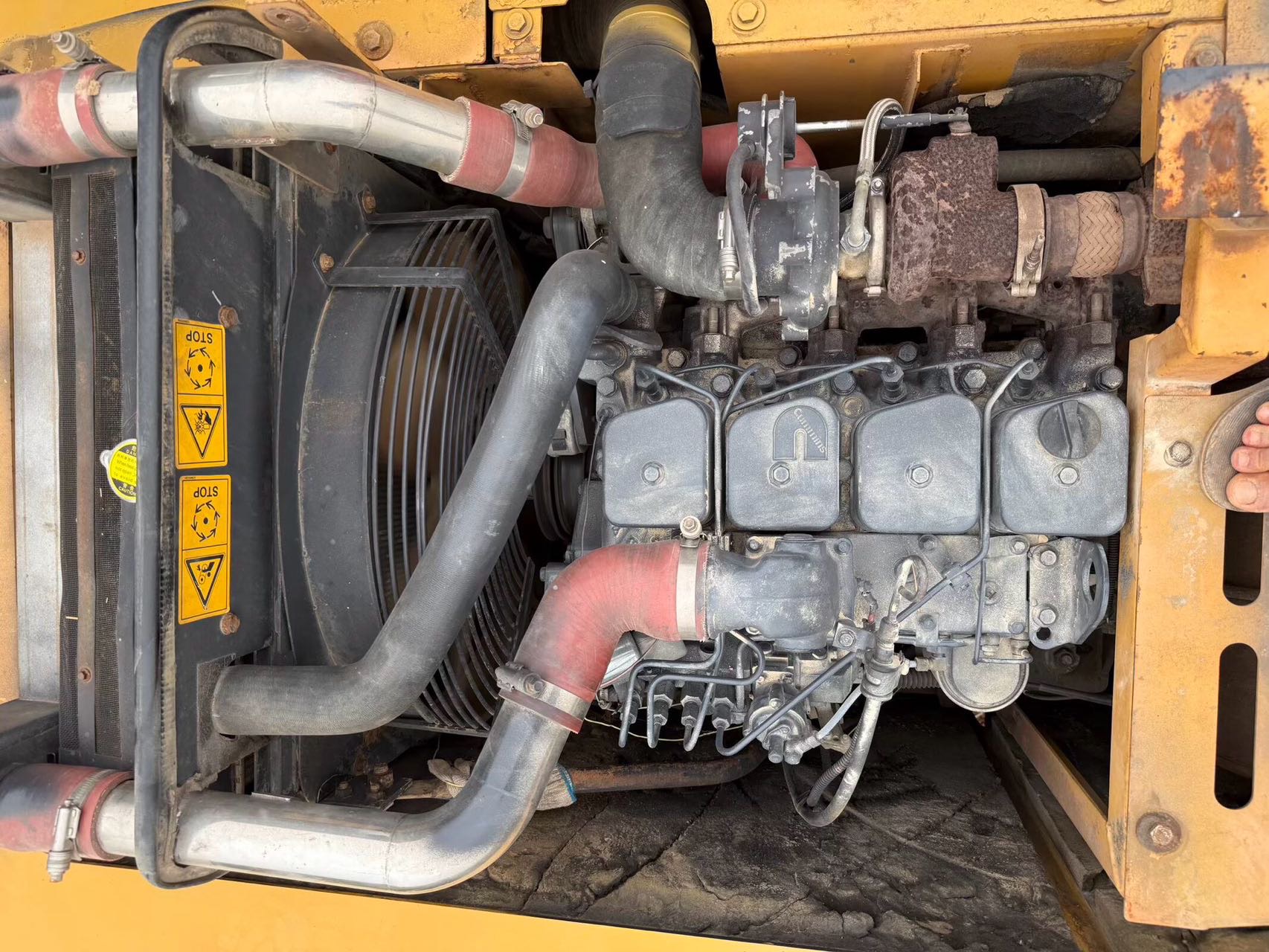

| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.3/3.2 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 2 x 123.5 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
