Product Description

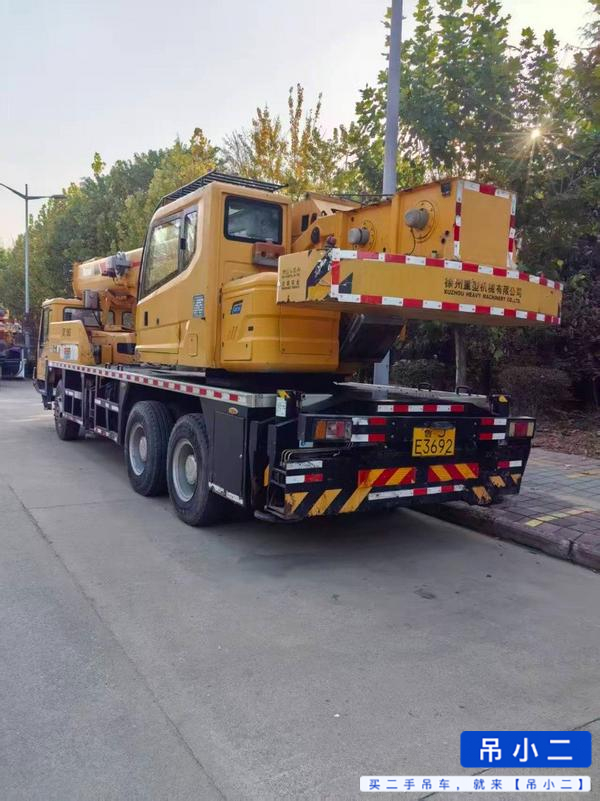

Engineered with XCMG's proven hydraulic architecture, this 2015 20K5 delivers consistent lifting performance across its full operational envelope. The model series integrates a high-torque diesel engine with precision load-moment indicators, ensuring reliable power delivery under demanding site conditions. Hydraulic components meet international pressure and flow standards, providing smooth boom extension and precise load positioning throughout the 20-ton capacity range.
- Year: 2015
- Manufacturer: XCMG
- Model: 20K5
- Current Location: Huai'an, Jiangsu, China
Built on XCMG's modular chassis platform, the 20K5 combines field-proven mechanical systems with straightforward maintenance protocols. Structural components utilize reinforced steel fabrication techniques standard across XCMG's crane portfolio. Currently positioned in Huai'an, this unit represents established Chinese engineering focused on operational uptime and serviceable design. Suitable for infrastructure development, industrial construction, and material handling applications requiring certified lifting capacity.
| Specifications | Value |
|---|---|
| No. | 1018809 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
