Product Description

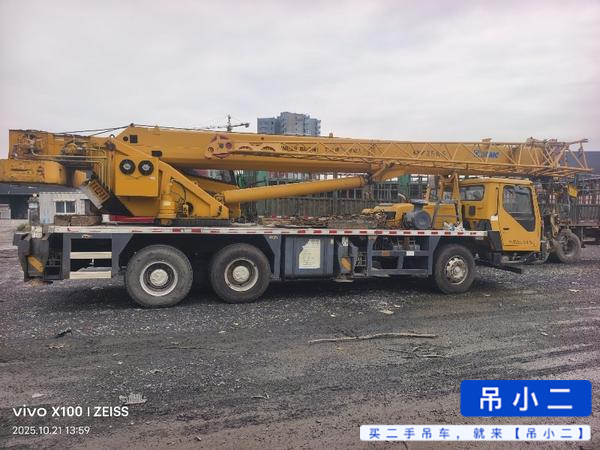

Operators gain immediate command with the 2017 XCMG 20K5, engineered for precision control and all-day productivity. Hydraulic response mirrors operator input through refined joystick calibration, delivering smooth load transitions and consistent lift performance across the 20-ton capacity range. Cabin design prioritizes visibility with expansive glazing and strategically positioned pillars, enabling clear sightlines to attachment points and ground-level operations.
- Ergonomic control layout reduces fatigue during extended shifts
- Enhanced cab suspension system absorbs vibration on uneven terrain
- Multi-angle mirrors and low hood profile improve spatial awareness
- Intuitive instrument cluster provides real-time load and system diagnostics
Stability remains consistent whether navigating tight job sites in Handan, Hebei or managing variable ground conditions. Outrigger deployment follows straightforward sequences, while the chassis geometry maintains balanced weight distribution throughout the operational envelope. This unit combines XCMG's proven mechanical reliability with operator-centric features that translate directly to worksite efficiency.
| Specifications | Value |
|---|---|
| No. | 1023788 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
