Product Description

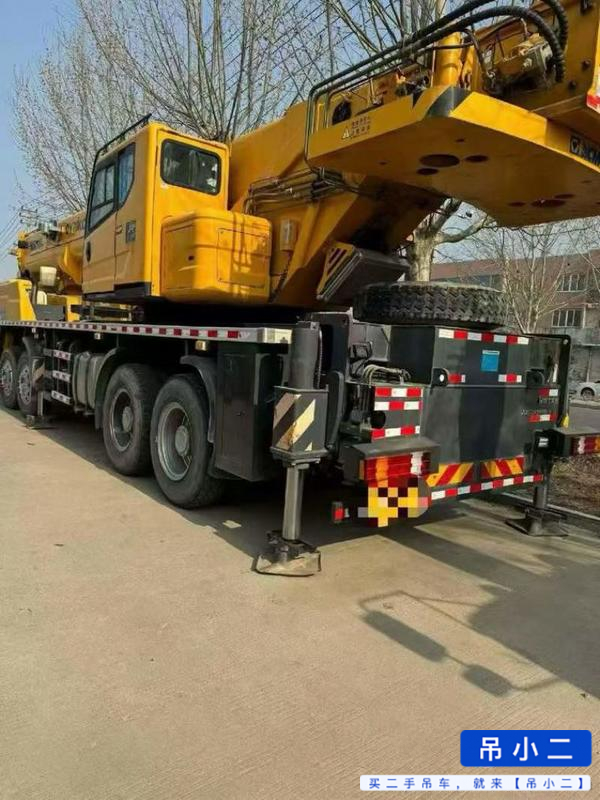

Cut factory wait times and accelerate your project timeline with this 2020 XCMG 70KC, ready for immediate dispatch from 江苏淮安 (Huai'an, Jiangsu). Positioned in one of China's key logistics hubs with direct access to major highways and inland ports, this crane reaches job sites across Asia, Africa, and beyond with minimal delay. Skip months of manufacturing queues—this unit is inspected, documented, and available now for fast deployment to your operation.
- Year: 2020
- Brand: XCMG
- Model: 70KC
- Location: 江苏淮安 (Huai'an, Jiangsu Province, China)
- Status: In stock and ready for immediate shipment
- Logistics Advantage: Strategic location enables rapid container loading and export processing
Secure this machine today and move directly to mobilization. Contact Fair Trade Machinery for shipping quotes, technical specifications, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1015523 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 26500 |
| Bucket capacity (m³) | 1.1-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Maximum torque (N.m) | 825/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 52.1 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 220 |
| Travel speed (km/h) | 6.1/3.8 |
| Maximum flow of main pump (l/min) | 2*259 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3175 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6925 |
| Maximum excavation height (mm) | 10095 |
| Maximum unloading height (mm) | 7170 |
| Maximum vertical digging depth (mm) | 5620 |
