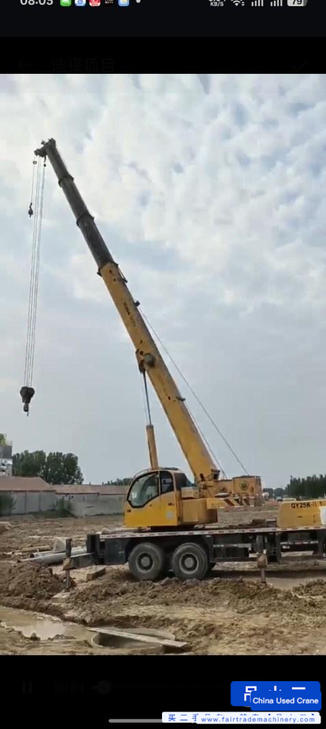

Product Description
Engineered with XCMG's proven hydraulic system, this 2011 K model delivers consistent lifting performance across demanding industrial applications. The machine features a robust powertrain designed to meet intensive operational requirements, backed by XCMG's established manufacturing standards in heavy equipment production.
- Year: 2011
- Manufacturer: XCMG
- Model: K
- Current Location: Binzhou, Shandong, China
Built during XCMG's period of advanced engineering development, this unit incorporates refined hydraulic circuitry for precise load control and operational stability. The K series represents a focused approach to reliability, utilizing quality components throughout critical systems. Currently positioned in Binzhou, Shandong, this machine offers international buyers access to proven Chinese manufacturing expertise. Structural integrity and systematic engineering make this model suitable for contractors requiring dependable lifting capacity without unnecessary complexity.
| Specifications | Value |
|---|---|
| No. | 1018553 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14600 |
| Bucket capacity (m³) | 0.32-0.72 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 93/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 500/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 106.9 |
| Rod digging force (kN) | 73.4 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.3/3.2 |
| Maximum flow of main pump (l/min) | 123.5*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 34.3/37 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2672 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 948 |
| Minimum ground clearance (mm) | 477 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3658 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5535 |
| Maximum excavation height (mm) | 8649 |
| Maximum unloading height (mm) | 6185 |
| Maximum vertical digging depth (mm) | 4697 |
| Maximum effective digging depth (mm) | 5324 |
