Product Description

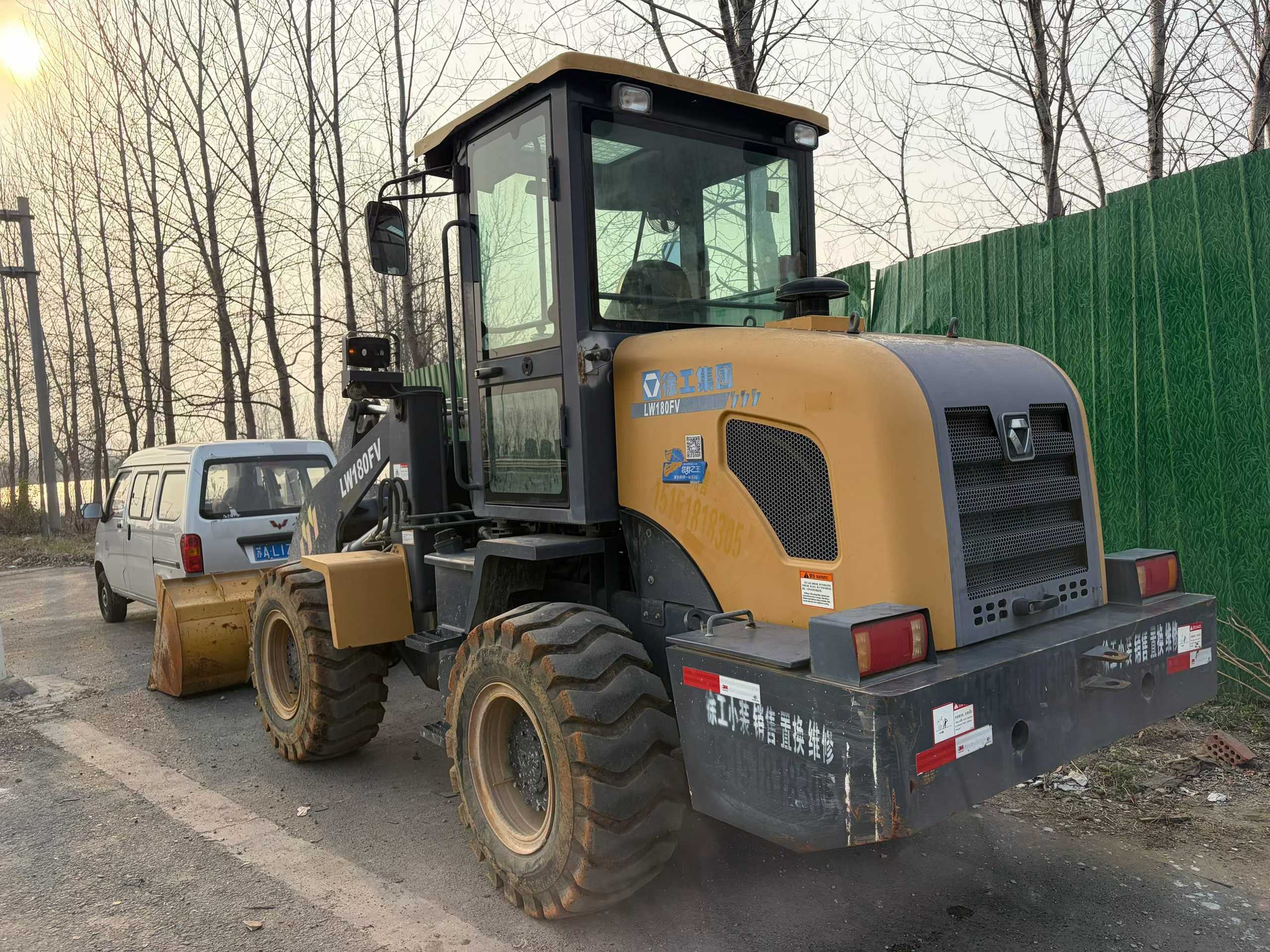

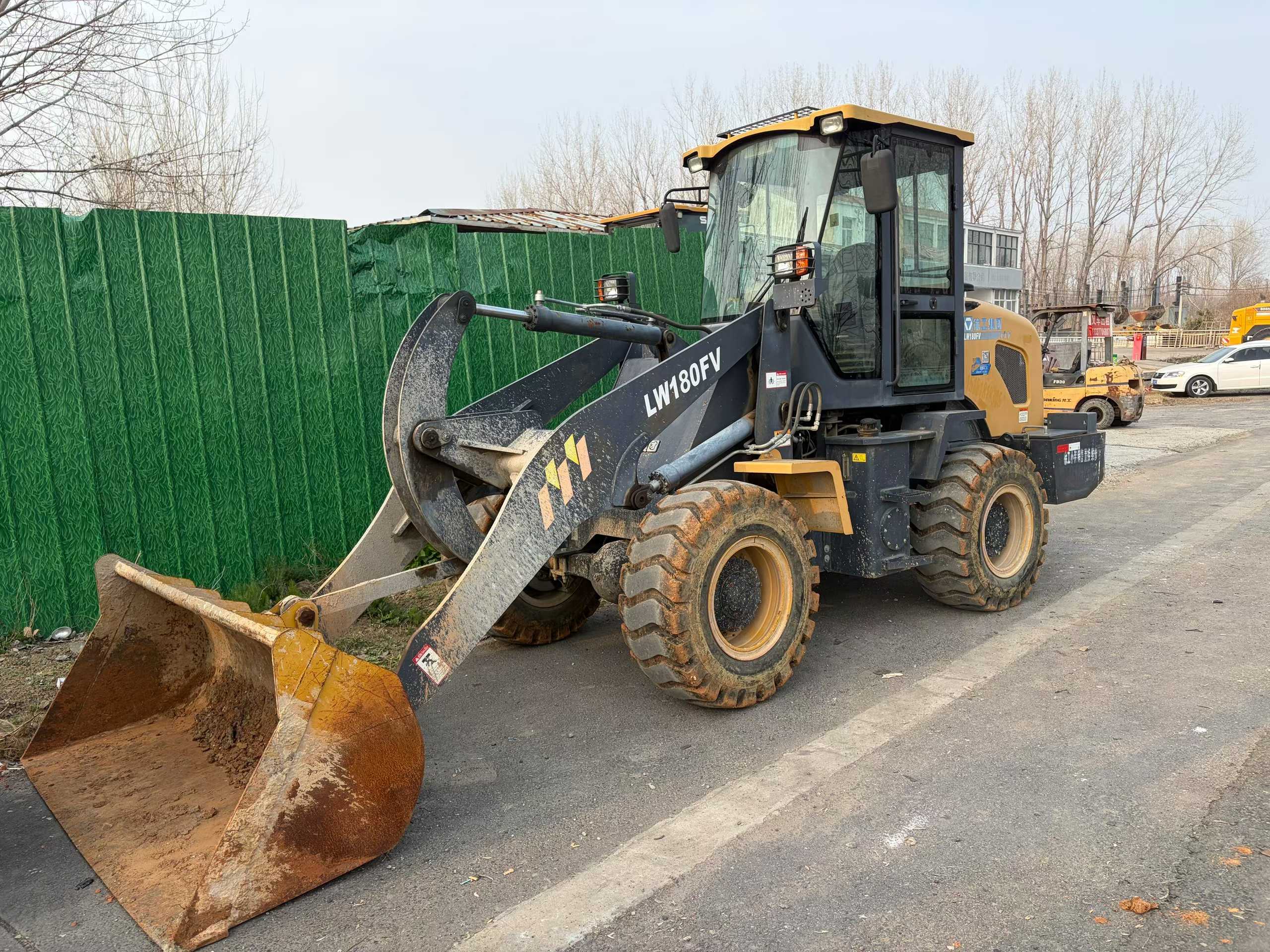

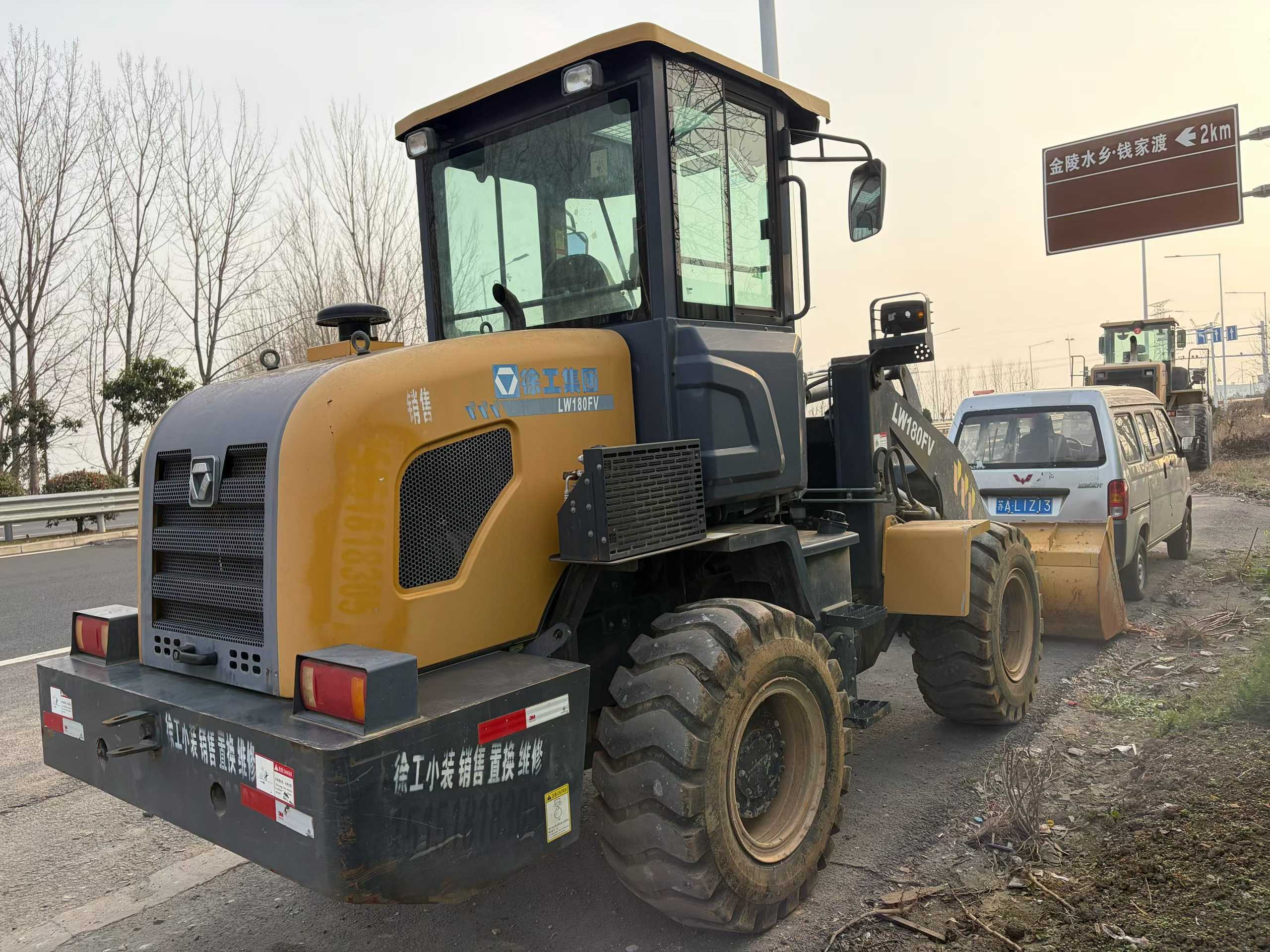

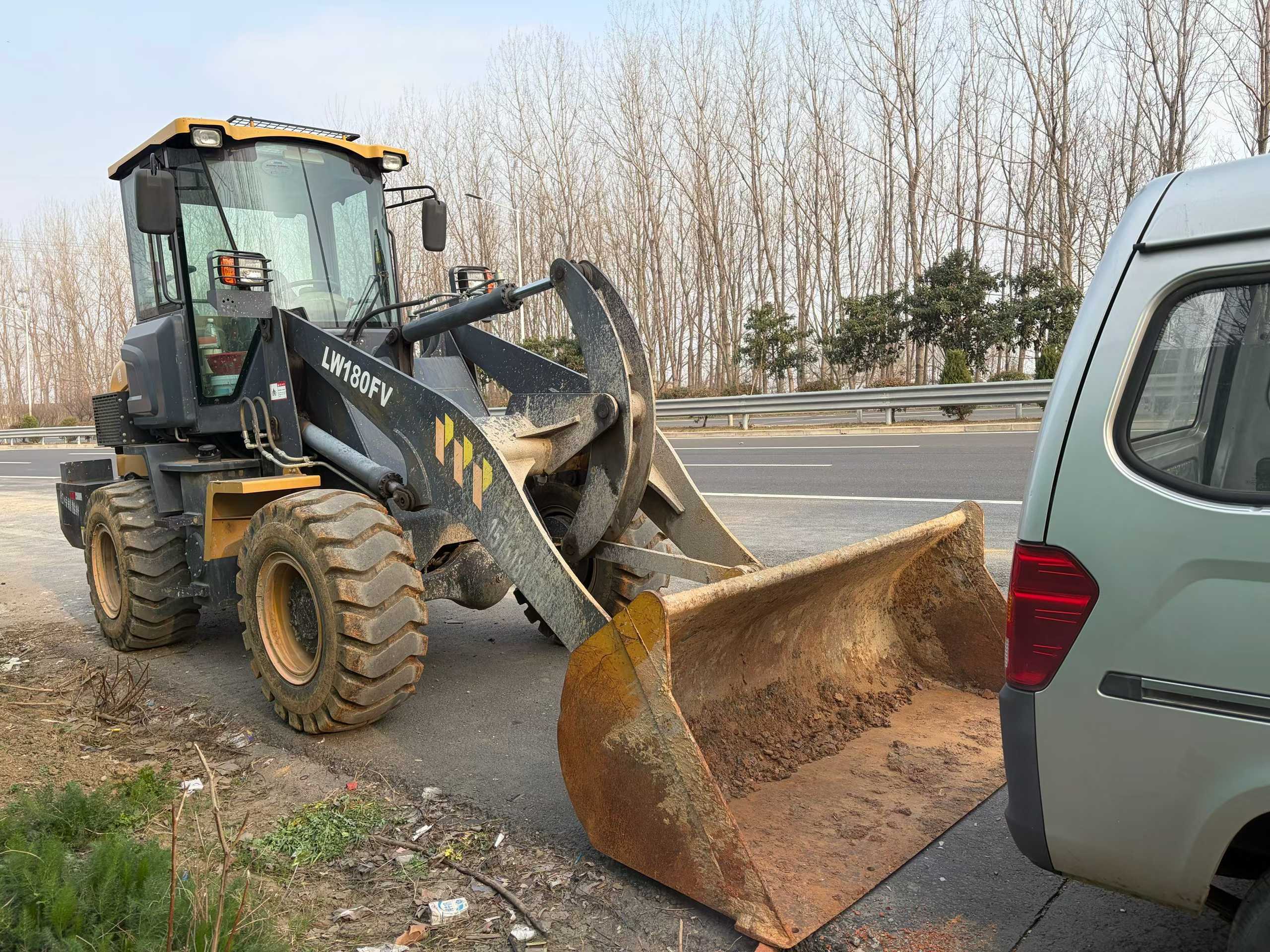

Engineered with a robust 60kW/2400rpm power unit, this 2021 XCMG LW180FV wheel loader delivers consistent performance across demanding material handling operations. The hydraulic system generates 44kN of digging force while maintaining precise control during loading cycles, supported by a rated load capacity of 1,400kg and a 1m³ bucket configuration. Operating weight ranges from 5,200-5,500kg, providing stability without compromising maneuverability on confined job sites.
Technical specifications demonstrate XCMG's commitment to operational efficiency:
- Maximum unloading height: 3,050-3,880mm with 715-865mm reach
- Ternary cycle time: 9-11 seconds for rapid material turnover
- Transport speed: 22km/h on 16/70-20 tires
- Compact dimensions: 6,150-6,800mm length × 2,060mm width × 3,010mm height
Currently located in Nanjing, Jiangsu, this machine represents proven Chinese manufacturing standards with low operational hours. Ideal for aggregate yards, construction logistics, and industrial facilities requiring dependable front-end loading capacity.
| Specifications | Value |
|---|---|
| No. | 1027746 |
| Rated power (kw/rpm) | 60/2400 |
| Bucket capacity (m³) | 1 |
| Rated load (tons) | |
| Rated load (kg) | 1400~1200 |
| Digging force (lifting force) (kN) | 44 |
| Machine operating weight (kg) | 5200~5500 |
| Max - Unloading height (mm) | 3050~3880 |
| Unloading distance (mm) | 715~865 |
| Tyre specification | 16/70-20 |
| Ternary sum (s) | 9~11 |
| Maximum speed (km/h) | 22 |
| Machine length (mm) | 6150/6600/6800 |
| Machine width (mm) | 2060 |
| Machine height (mm) | 3010 |
