Product Description

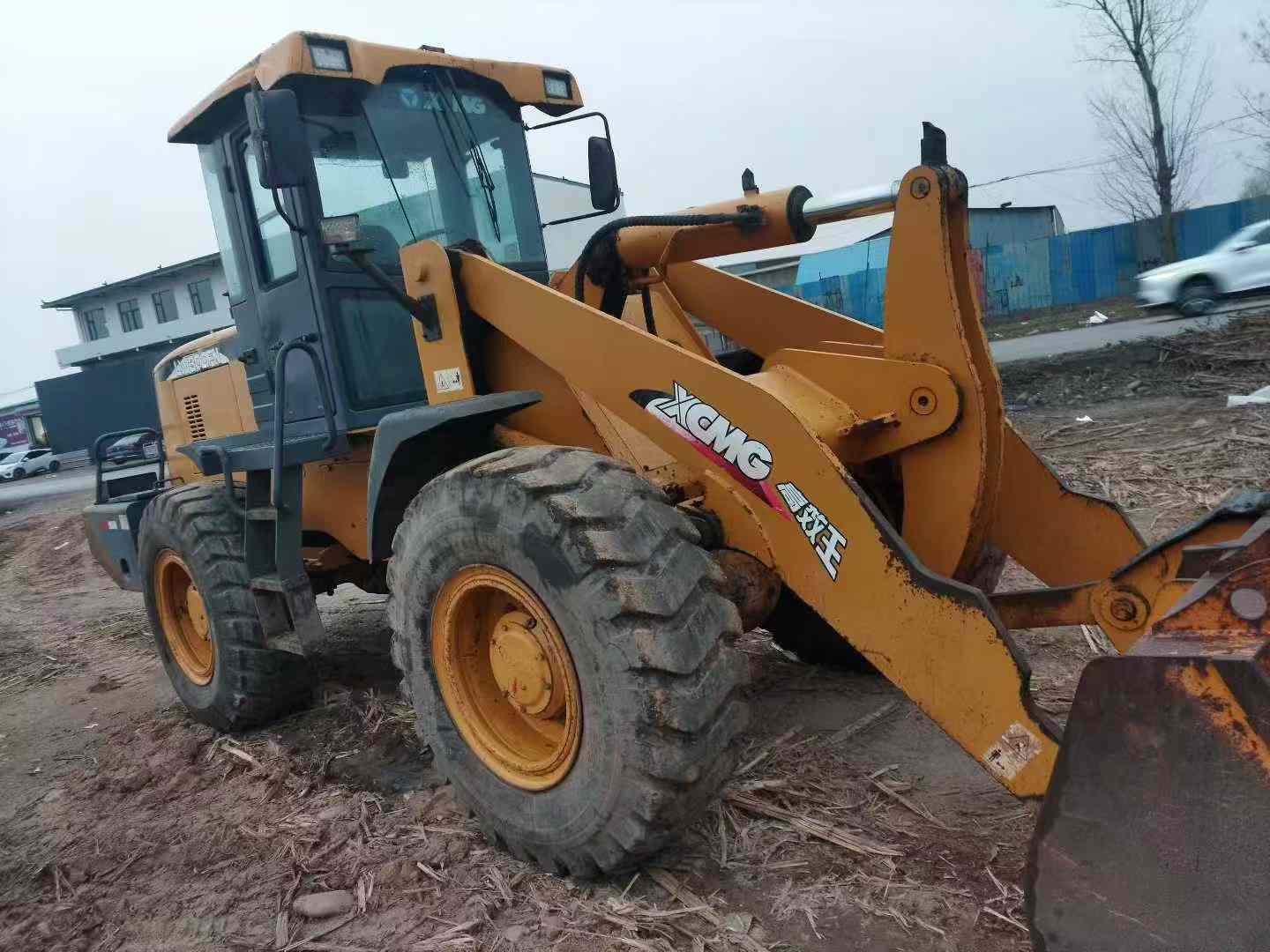

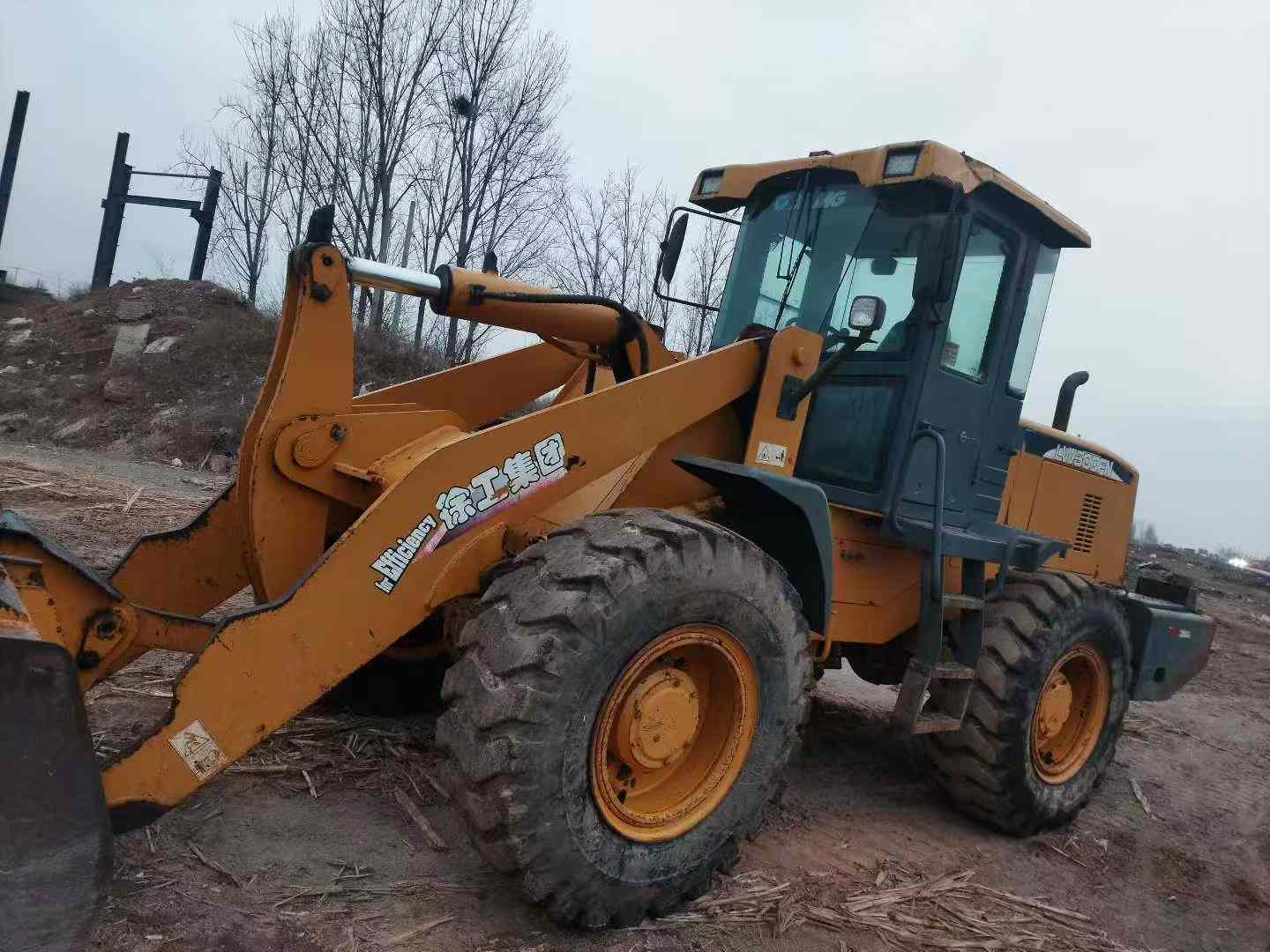

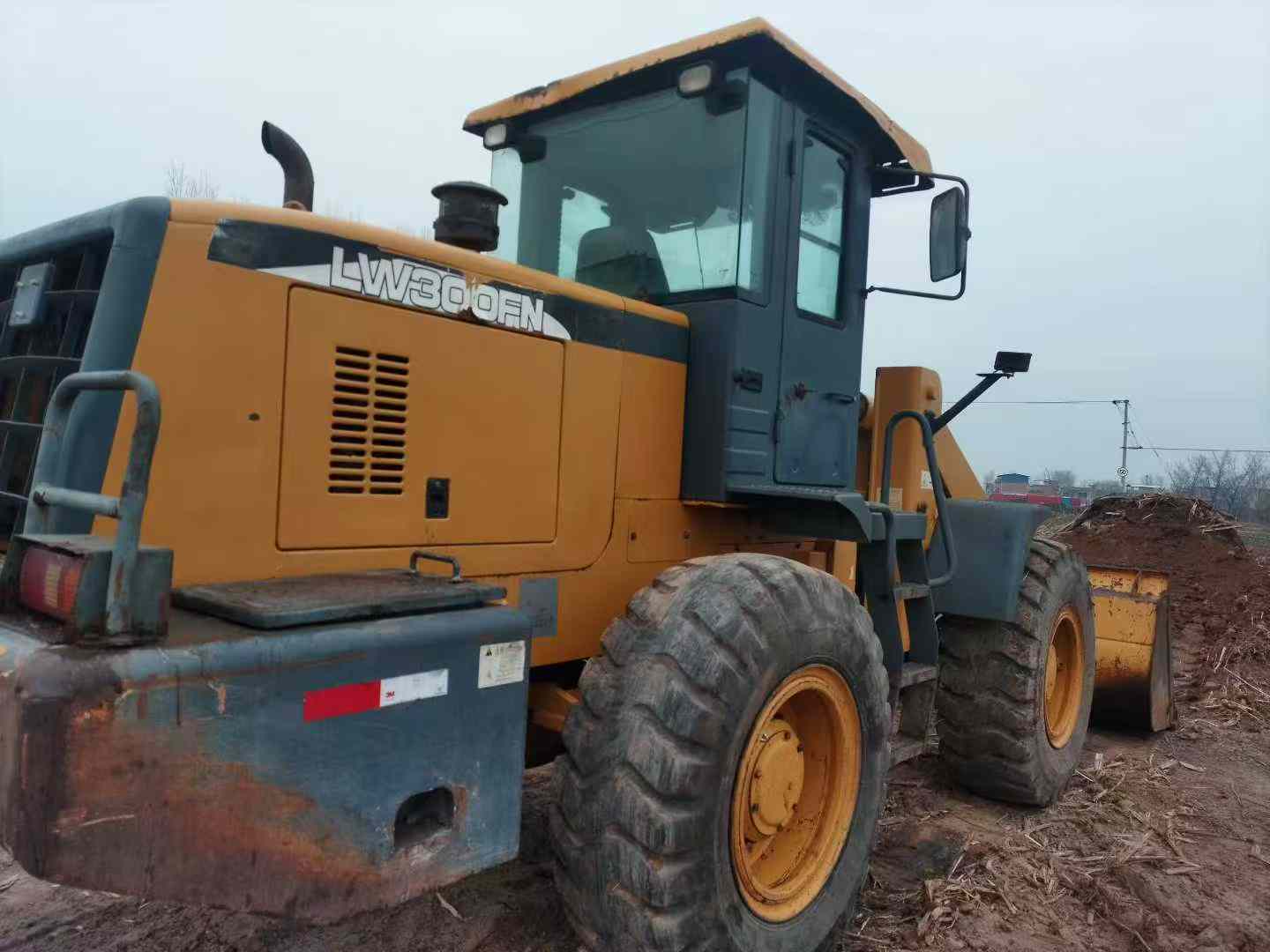

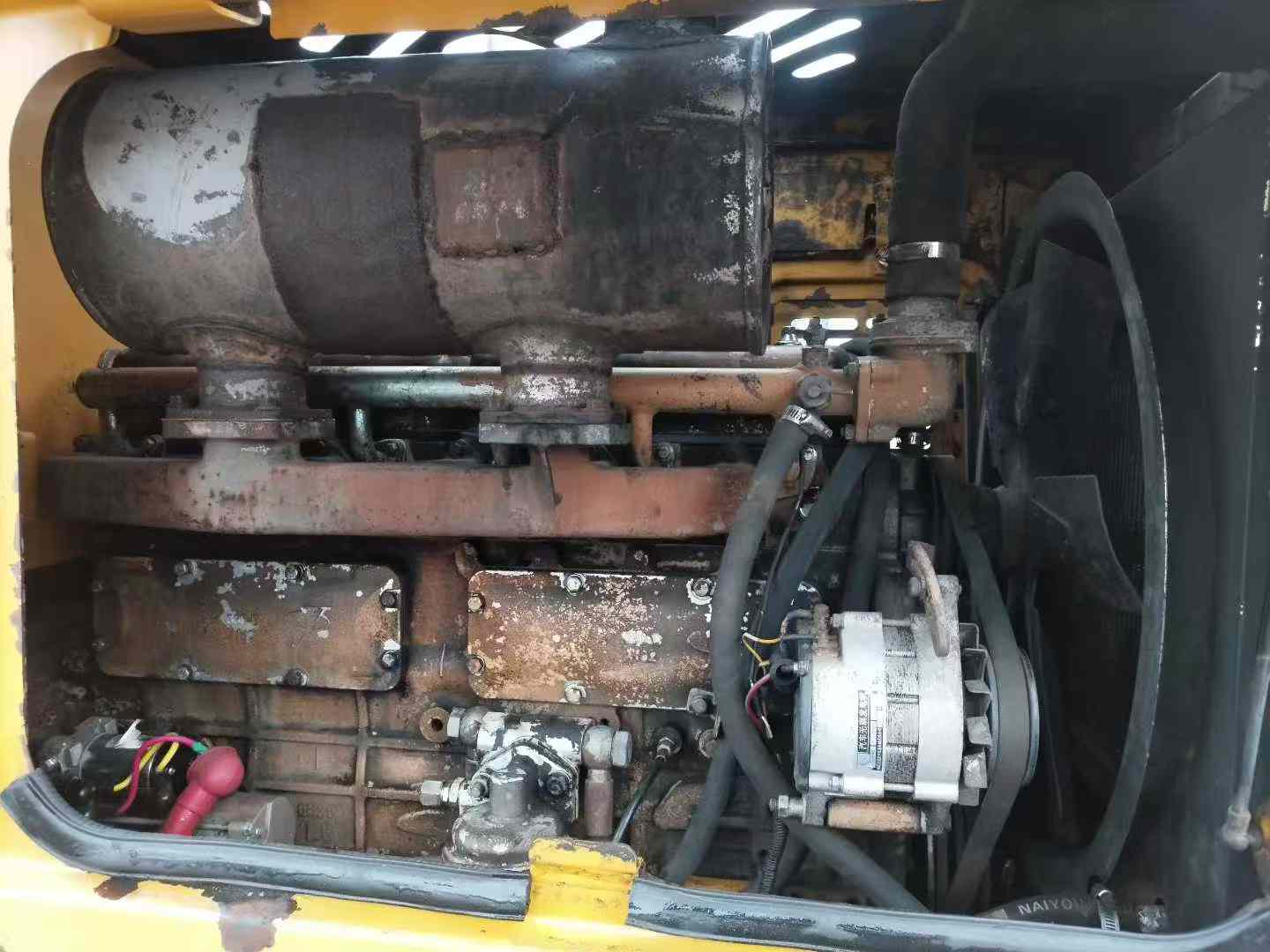

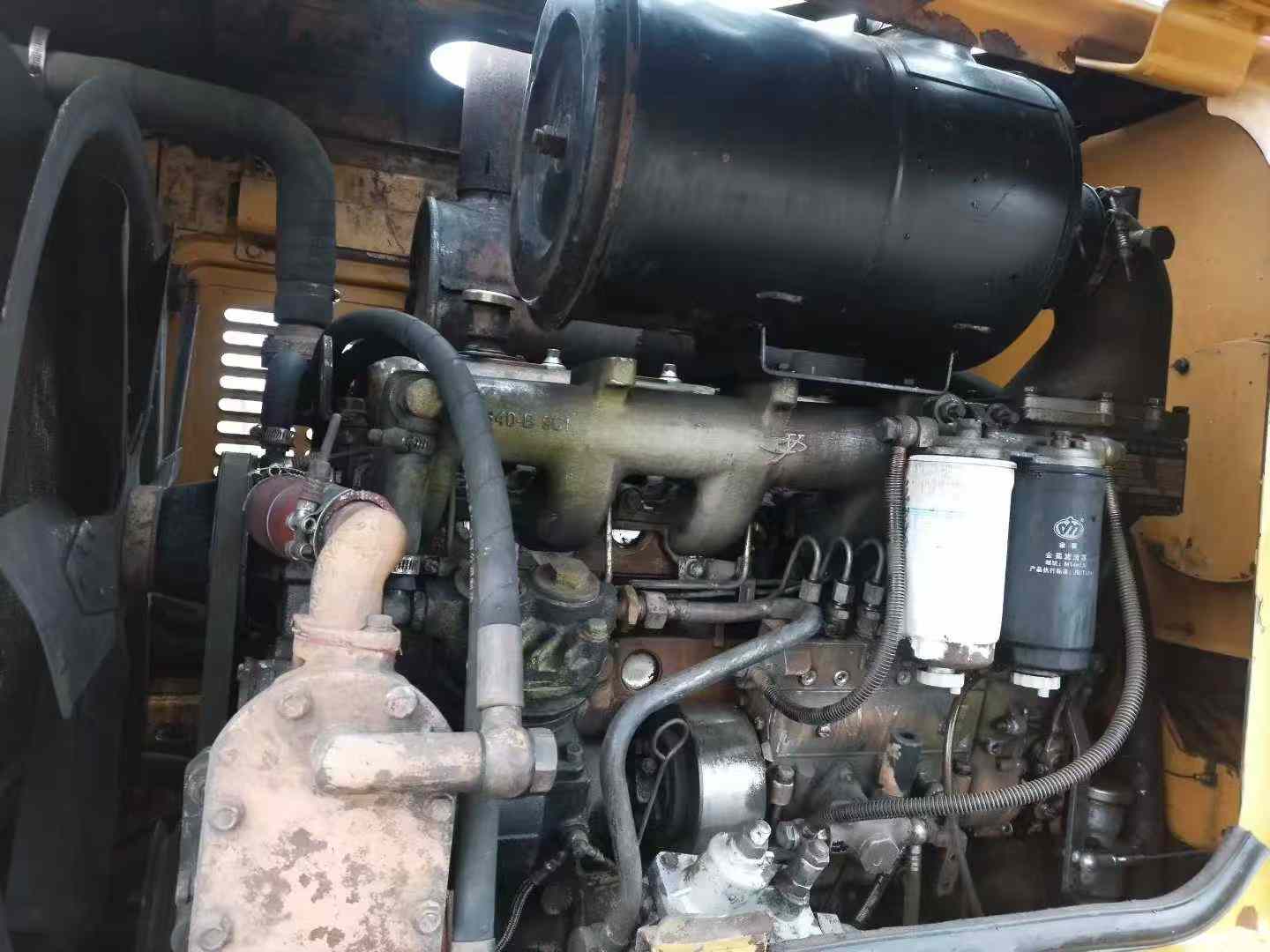

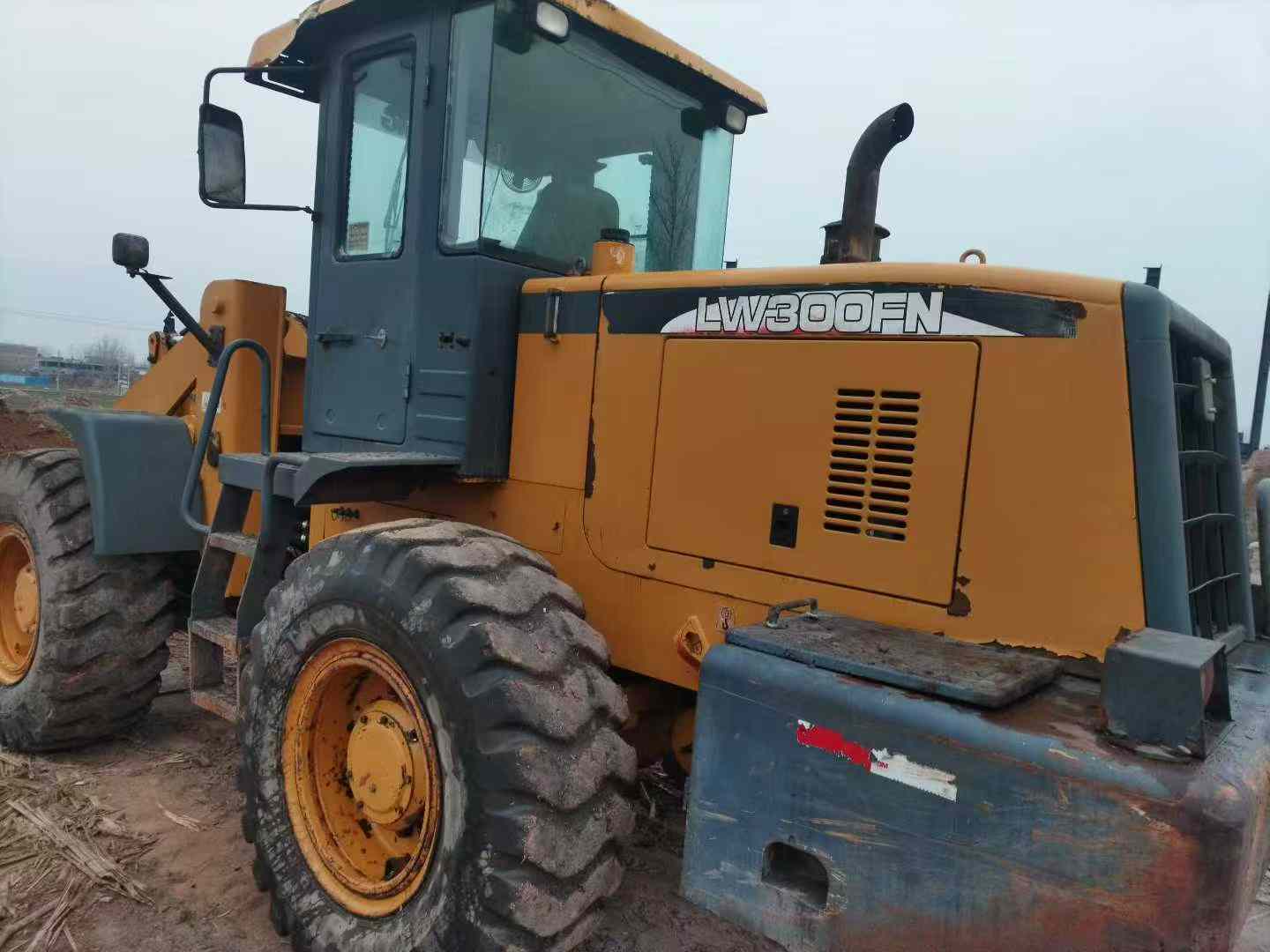

Built for immediate deployment on demanding job sites, this 2013 XCMG LW300FN wheel loader delivers reliable performance where it counts. Powered by a YC6B125-T21 engine generating 92kW at 2300 rpm, this machine handles a rated load of 3000kg with consistent efficiency across loading, grading, and material handling operations.
Engineered for versatility and productivity, key specifications include:
- 3000kg rated load capacity for heavy-duty material handling
- Compact 2600mm wheelbase with 35° transaxle swing for tight-space maneuverability
- 5.1-second lift cycle and 11-second total cycle time maximize productivity
- Maximum speed of 35km/h for efficient site-to-site transit
- 28° maximum climbing ability tackles challenging terrain
- 17.5-25-12PR tires provide stable traction on varied surfaces
- Overall dimensions: 7050mm (L) × 2482mm (W) × 3025mm (H)
Currently located in Baoding, Hebei, this loader is ready for grading operations, material stockpiling, and general construction tasks. Four forward speeds deliver operational flexibility from precision work to rapid repositioning.
| Specifications | Value |
|---|---|
| No. | 1008433 |
| Engine type | YC6B125-T21 |
| Rated power (kw/rpm) | 92/2300 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 3000 |
| Digging force (lifting force) (kN) | |
| Machine operating weight (kg) | |
| Unloading height - Unloading Angle 45°(mm) | |
| Unloading distance - Unloading Angle 45°(mm) | |
| Wheelbase (mm) | 2600 |
| Wheel base (mm) | 1850 |
| Machine length (mm) | 7050 |
| Machine width (mm) | 2482 |
| Machine height (mm) | 3025 |
| Transaxle swing Angle (°) | 35 |
| Tyre specification | 17.5-25-12PR |
| Minimum turning radius of outer wheel center line | |
| Lift (s) | 5.1 |
| Ternary sum (s) | 11 |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | 16/25 |
| Speed 3 (km/h) | 21 |
| Speed 4 (km/h) | 35 |
| Maximum speed (km/h) | 35 |
| Maximum climbing ability (°) | 28 |
