Product Description

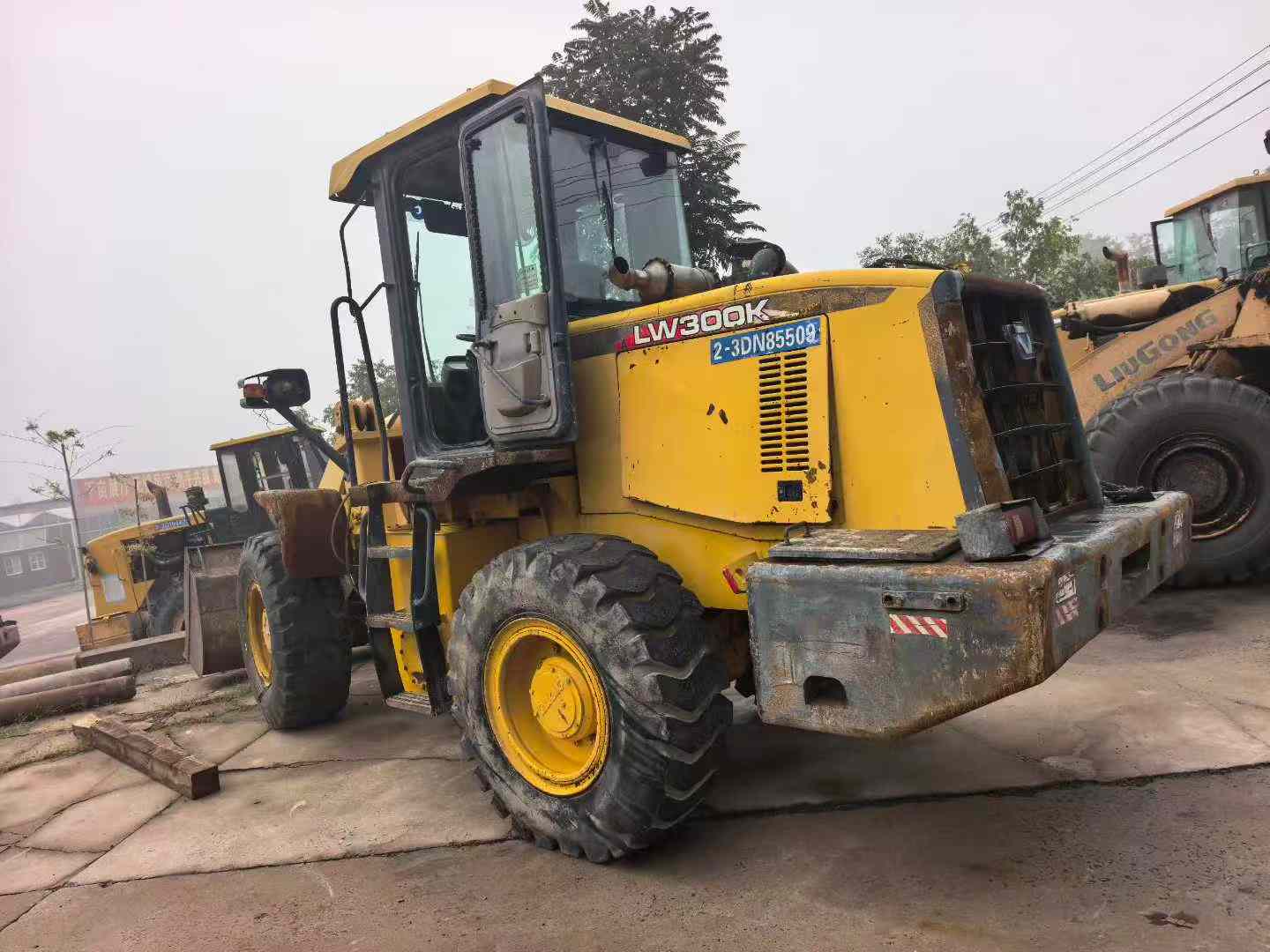

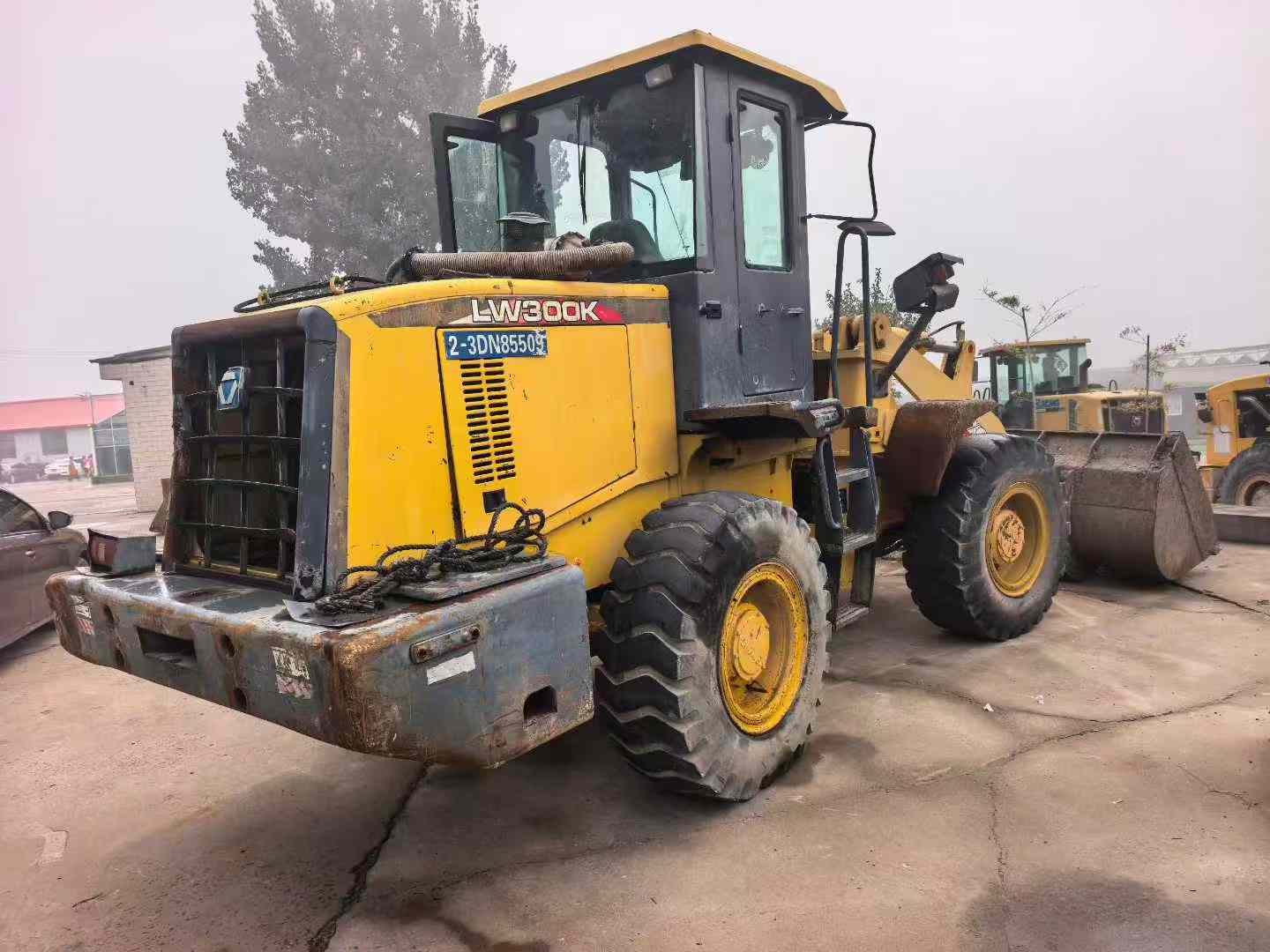

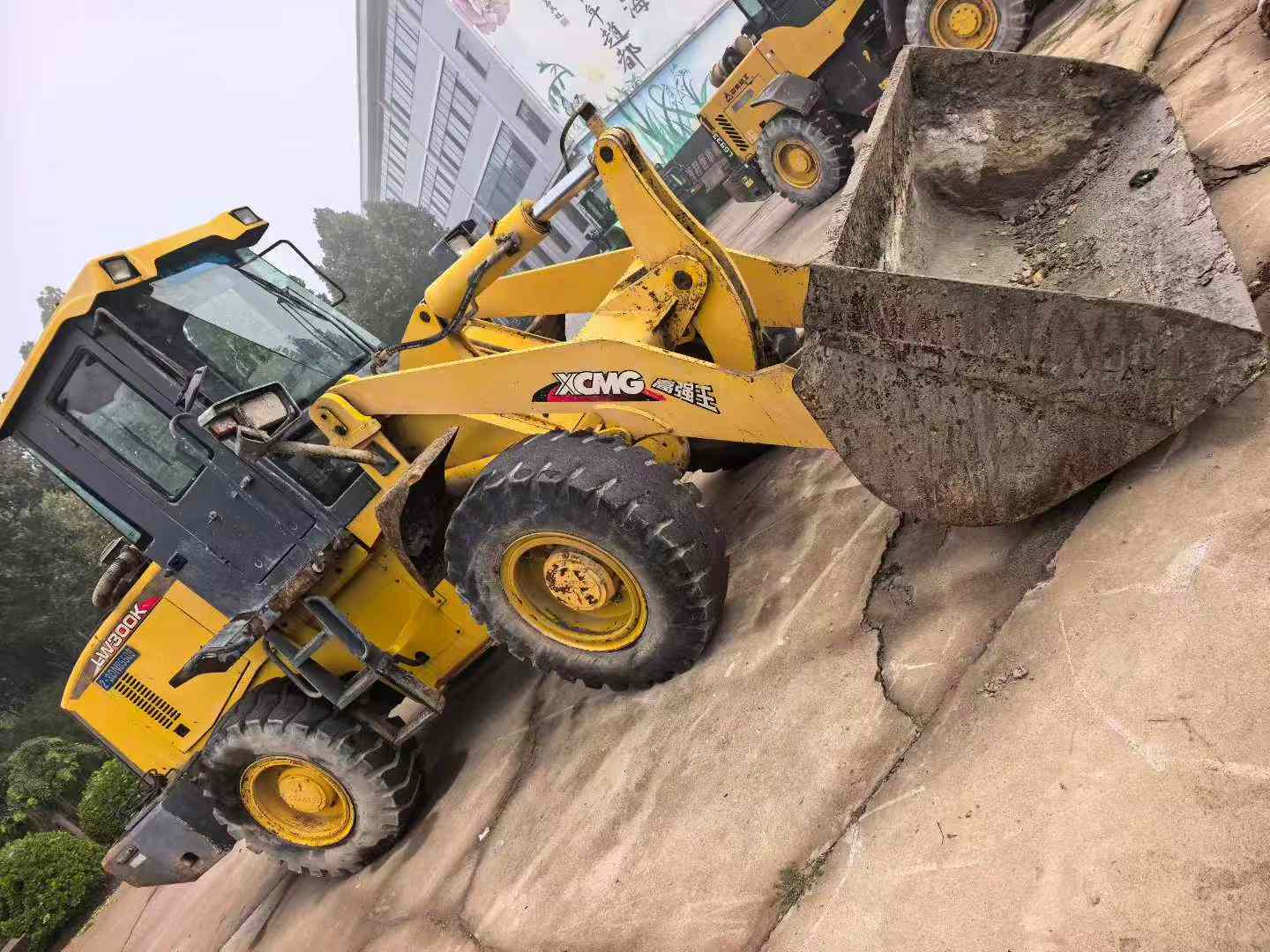

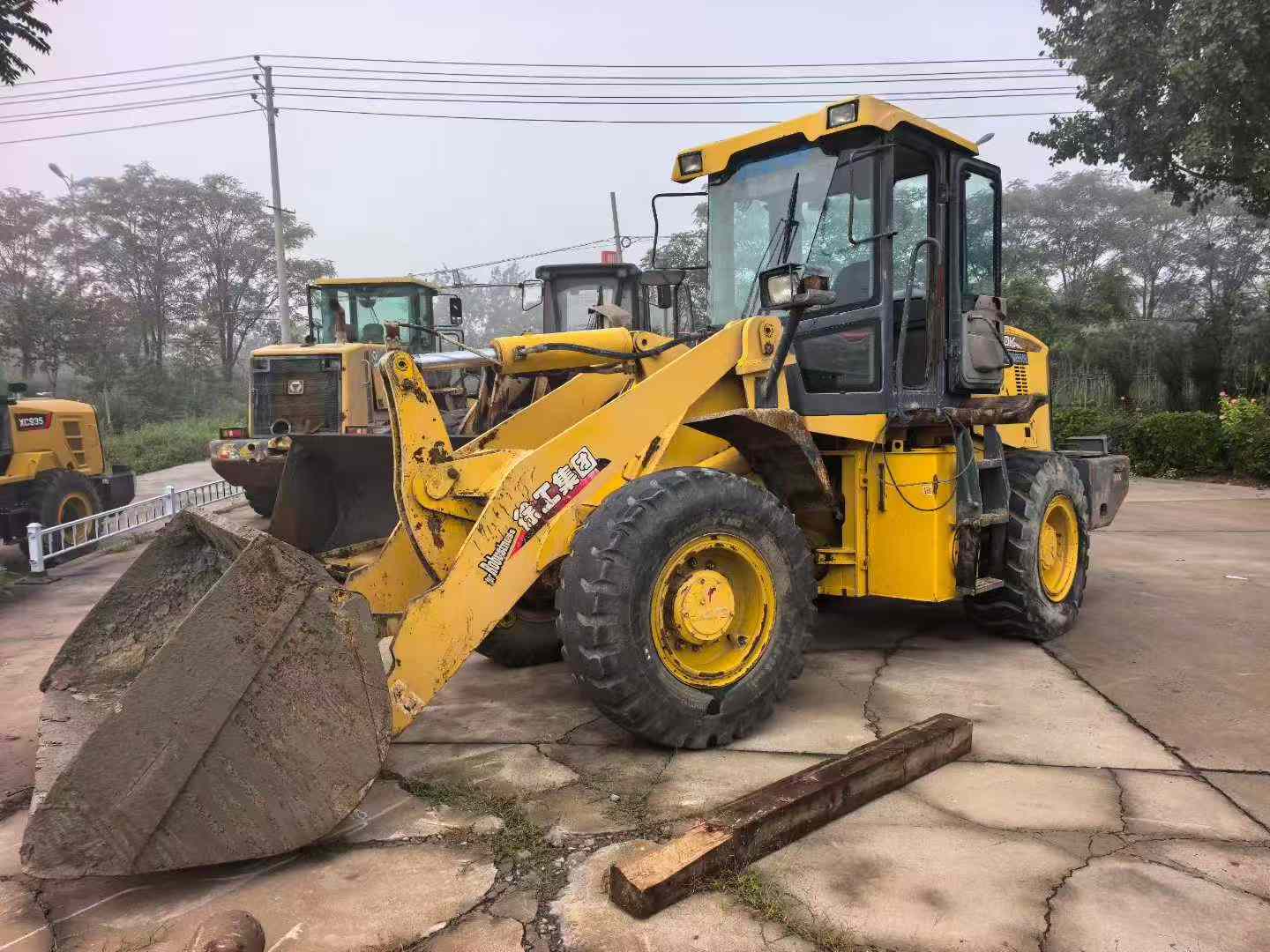

Built for demanding worksite conditions, this 2012 XCMG LW300K wheel loader delivers immediate productivity with a proven 92kW power plant and 3000kg rated load capacity. Currently located in Baoding, Hebei, this machine combines robust construction with practical specifications designed for material handling, loading operations, and site preparation tasks.
Engineered with a 1.8m³ bucket capacity and 120kN digging force, this loader tackles grading, stockpiling, and truck loading with consistent performance. The 10,600kg operating weight provides stability during heavy-duty cycles, while the 2930mm unloading height and 1000mm reach at 45° ensure efficient material placement. Maximum tractive force of 90kN powers through challenging terrain and dense materials.

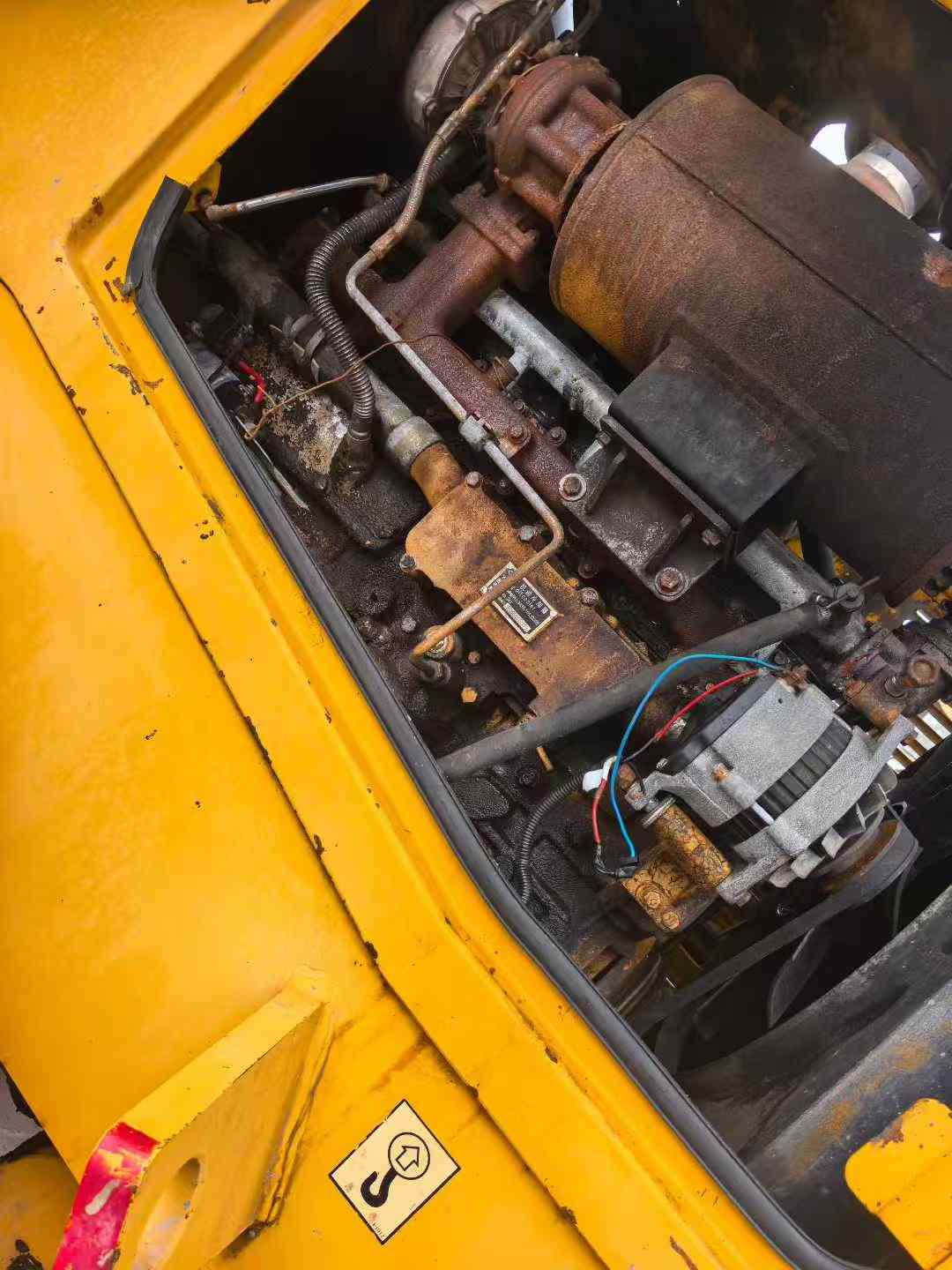

- Rated Power: 92kW at 2300rpm for sustained operation

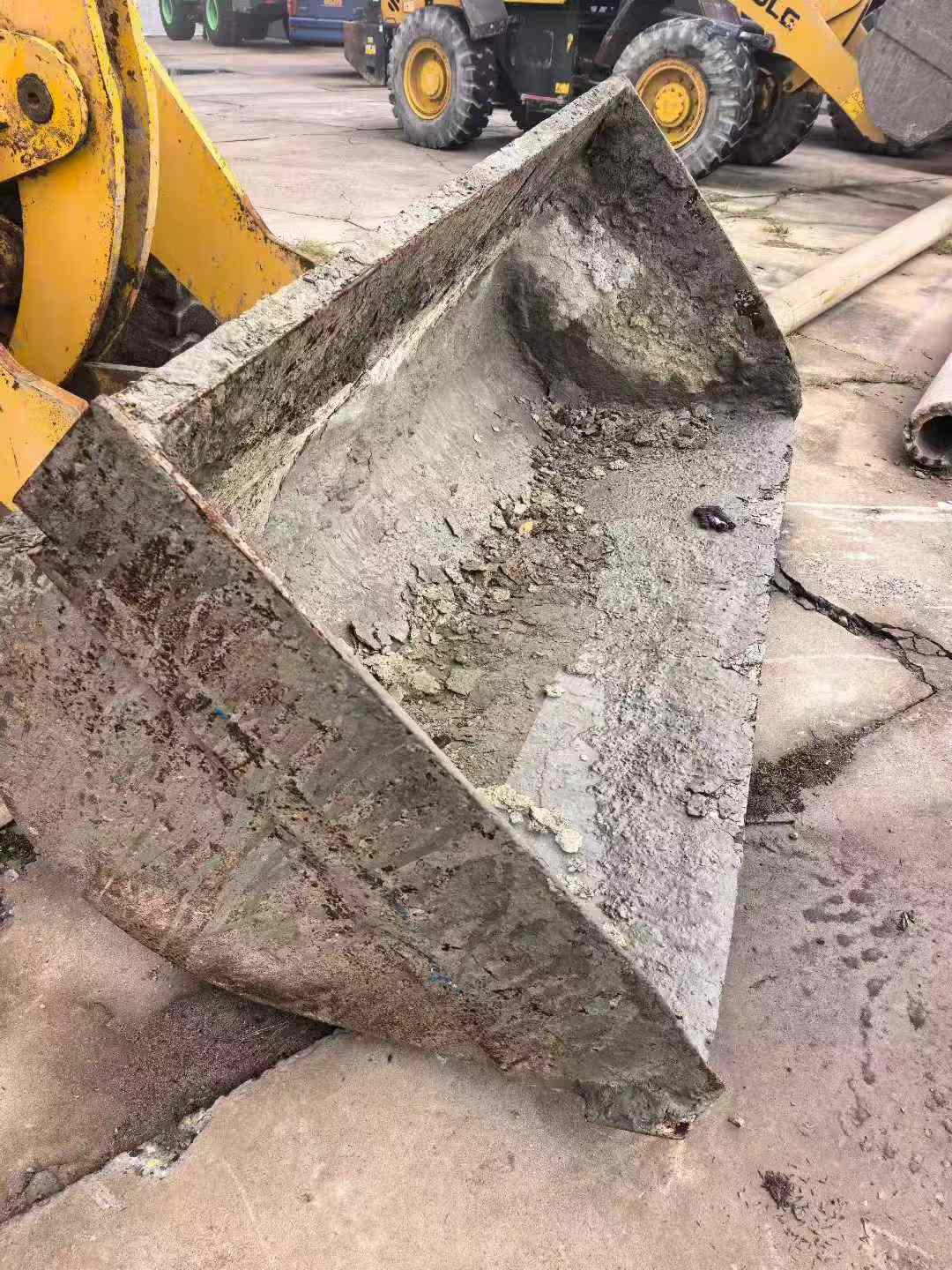

- Bucket Capacity: 1.8m³ with 2580mm width
- Cycle Times: 5.68s lift, 10.3s total cycle
- Maneuverability: 6067mm turning radius, 30° steering angle
- Travel Speed: Up to 37km/h for rapid repositioning
Ready to deploy on your next project with proven XCMG reliability and straightforward operation.
| Specifications | Value |
|---|---|
| No. | 1006992 |
| Engine type | |
| Rated power (kw/rpm) | 92/2300 |
| Working form | |
| Bucket capacity (m³) | 1.8 |
| Rated load (tons) | |
| Rated load (kg) | 3000 |
| Digging force (lifting force) (kN) | 120 |
| Machine operating weight (kg) | 10600 |
| Unloading height - Unloading Angle 45°(mm) | 2930 |
| Unloading distance - Unloading Angle 45°(mm) | 1000 |
| Maximum tractive force (kN) | 90 |
| Distance from rear axle to hinge point (mm) | 1550 |
| Loading position height (mm) | 3839 |
| Wheelbase (mm) | 2900 |
| Minimum ground clearance (mm) | 370 |
| Machine length (mm) | 7250 |
| Machine width (mm) | 2580 |
| Machine height (mm) | 3290 |
| Bucket width (mm) | 25800 |
| Steering Angle | 30 |
| Minimum turning radius of outer wheel center line | 5170 |
| Turning radius - Outside of bucket (mm) | 6067 |
| Lift (s) | 5.68 |
| Ternary sum (s) | 10.3 |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | 14/16 |
| Speed 3 (km/h) | 35/37 |
