Product Description

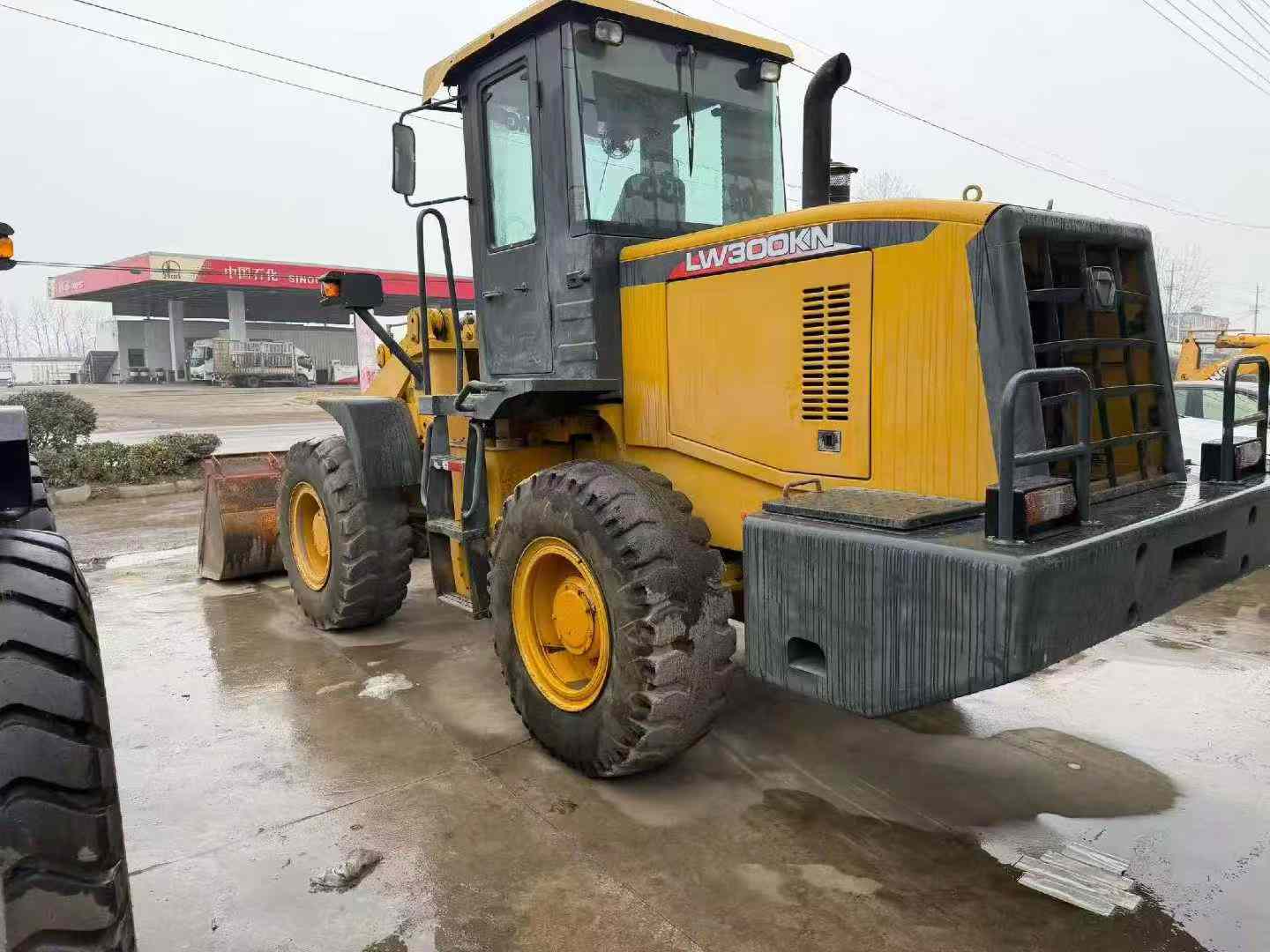

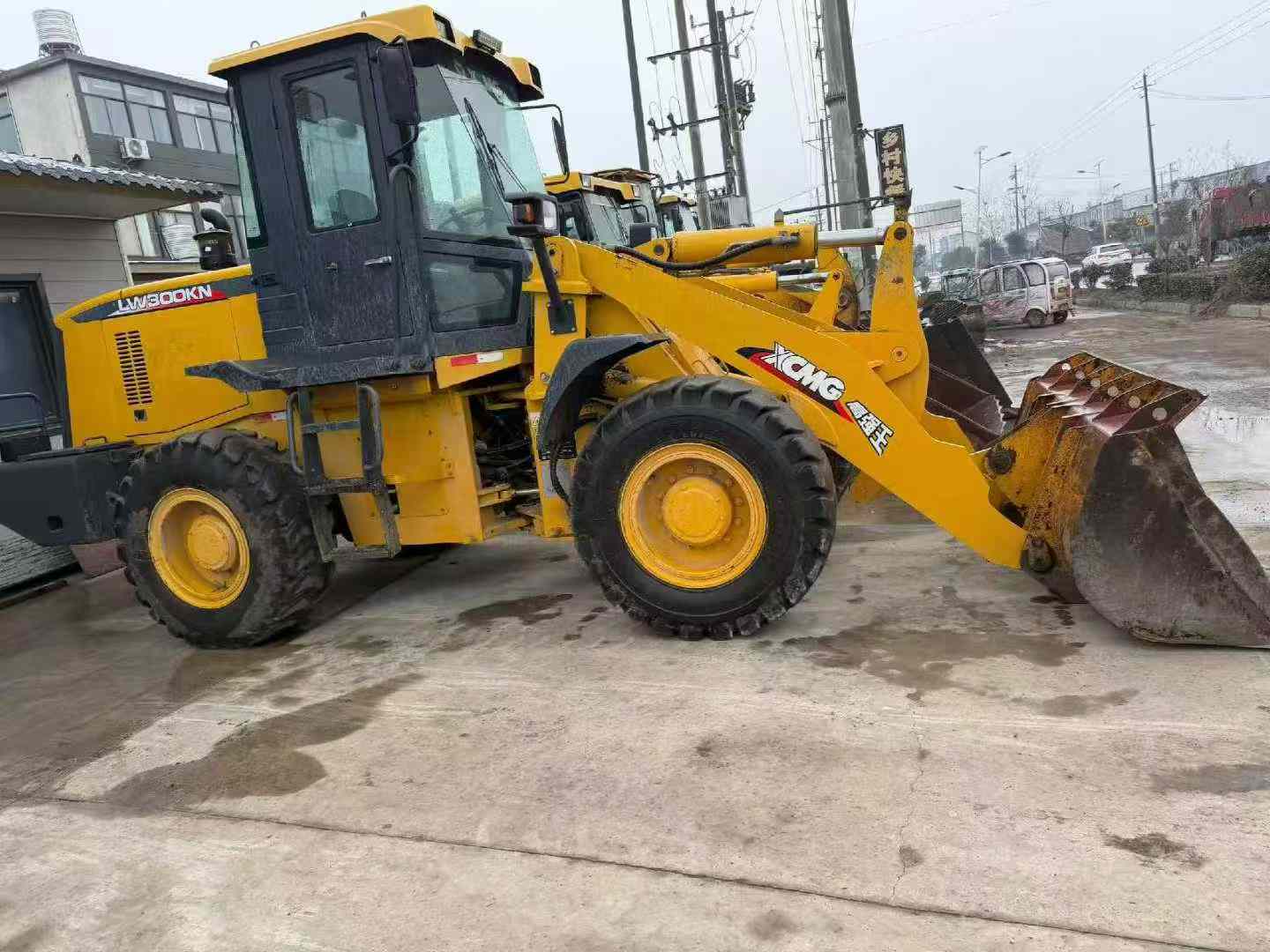

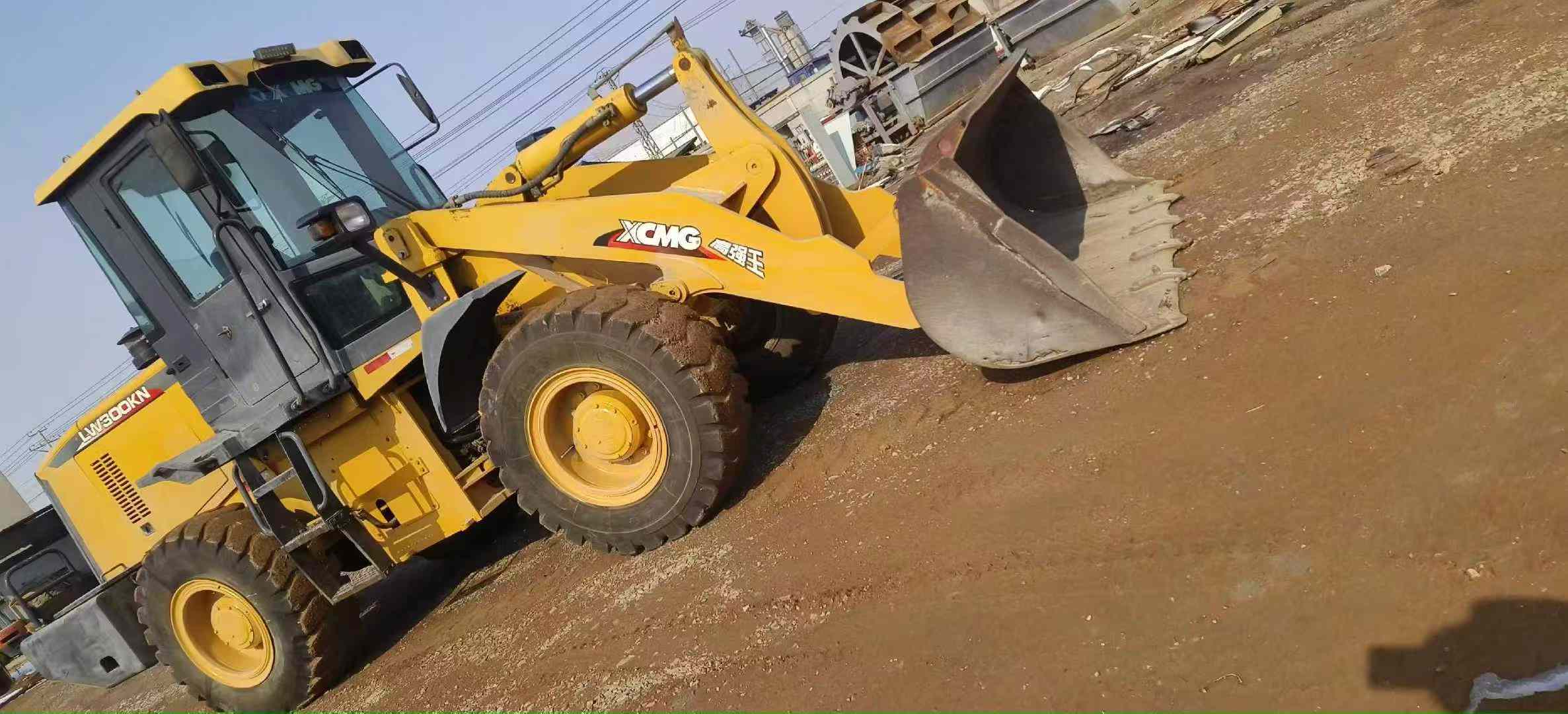

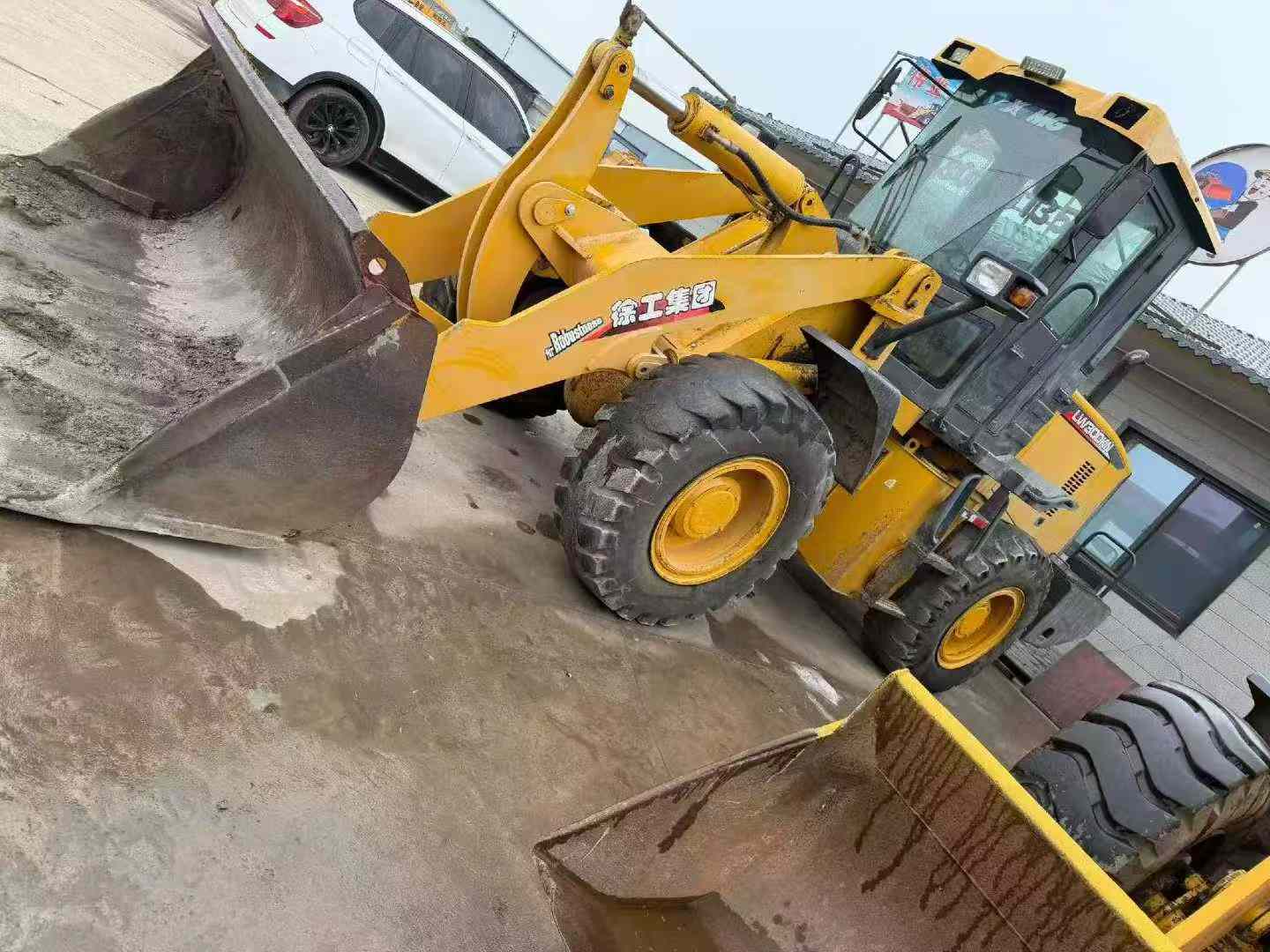

Strengthen your fleet with this 2016 XCMG LW300K wheel loader, a proven workhorse engineered for contractors who demand reliable backup capacity. Powered by a 92kW engine delivering consistent performance at 2300 RPM, this 3-ton loader handles demanding material handling tasks with a 1.8m³ bucket capacity and 120kN digging force. Operating weight of 10,600kg provides exceptional stability during loading cycles, while the 2,930mm unloading height and 3,839mm loading position height ensure efficient truck loading across varied applications.
- Rated load capacity: 3,000kg with 90kN maximum tractive force
- Compact dimensions: 7,250mm length, 2,900mm wheelbase for tight jobsite maneuverability
- Fast cycle times: 5.68s lift, 10.3s total cycle for maximum productivity
- Multi-speed transmission: 14-37km/h range adapts to site conditions
- Turning radius: 6,067mm (outside of bucket) enables confined-space operation
- Currently located in Baoding, Hebei Province
Add production capacity without the new-equipment premium. This unit integrates seamlessly into existing XCMG fleets or serves as cost-effective secondary capacity during peak workloads.
| Specifications | Value |
|---|---|
| No. | 1023507 |
| Engine type | |
| Rated power (kw/rpm) | 92/2300 |
| Working form | |
| Bucket capacity (m³) | 1.8 |
| Rated load (tons) | |
| Rated load (kg) | 3000 |
| Digging force (lifting force) (kN) | 120 |
| Machine operating weight (kg) | 10600 |
| Unloading height - Unloading Angle 45°(mm) | 2930 |
| Unloading distance - Unloading Angle 45°(mm) | 1000 |
| Maximum tractive force (kN) | 90 |
| Distance from rear axle to hinge point (mm) | 1550 |
| Loading position height (mm) | 3839 |
| Wheelbase (mm) | 2900 |
| Minimum ground clearance (mm) | 370 |
| Machine length (mm) | 7250 |
| Machine width (mm) | 2580 |
| Machine height (mm) | 3290 |
| Bucket width (mm) | 25800 |
| Steering Angle | 30 |
| Minimum turning radius of outer wheel center line | 5170 |
| Turning radius - Outside of bucket (mm) | 6067 |
| Lift (s) | 5.68 |
| Ternary sum (s) | 10.3 |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | 14/16 |
| Speed 3 (km/h) | 35/37 |
