Product Description

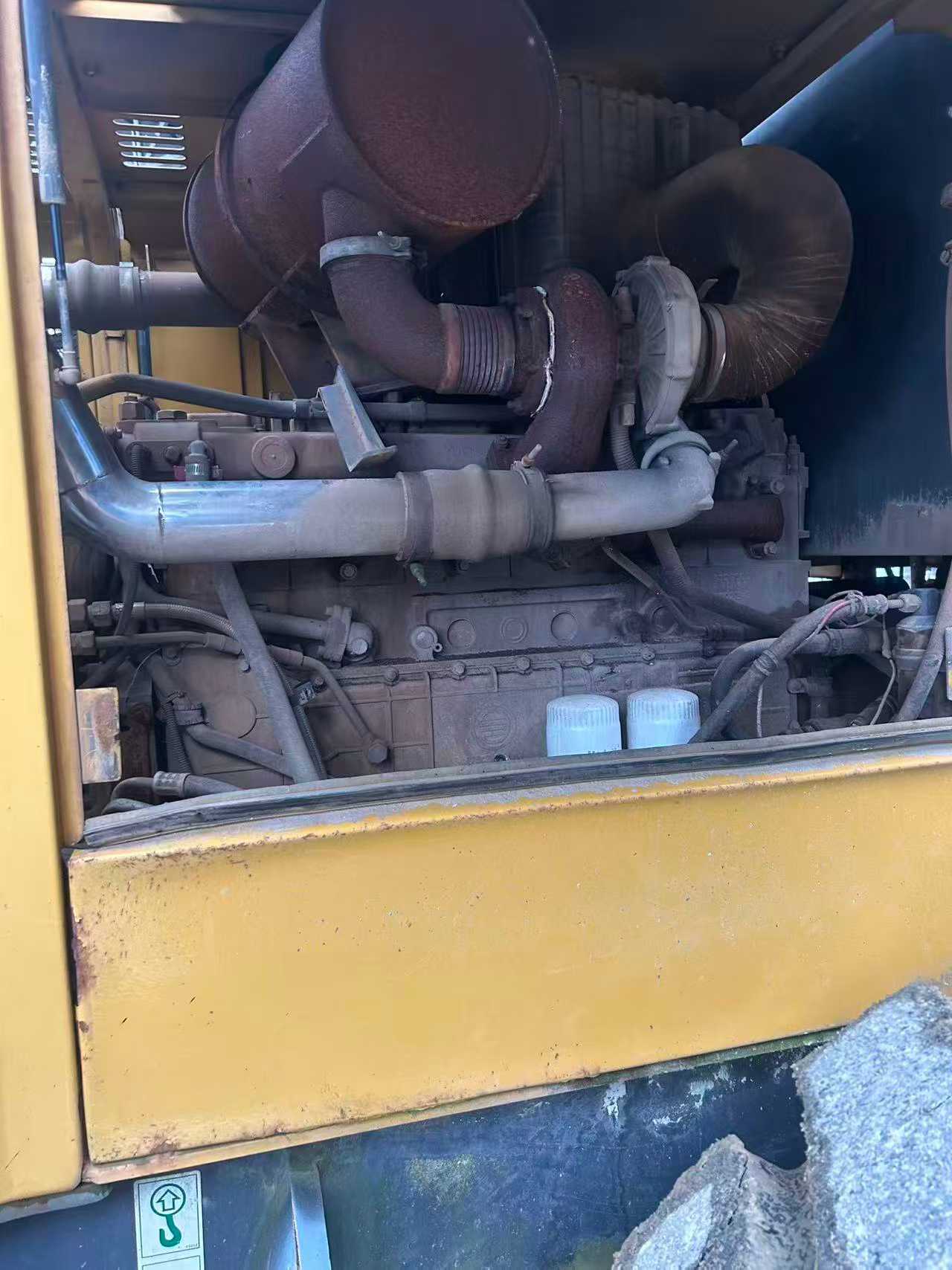

Available now from our 江西宜春 (Yichun, Jiangxi) yard, this 2016 XCMG LW500D wheel loader delivers immediate deployment without factory lead times. Powered by a WD10G220E23 engine producing 162 kW at 2000 rpm, this 5-ton class machine combines proven reliability with robust performance for demanding material handling operations.

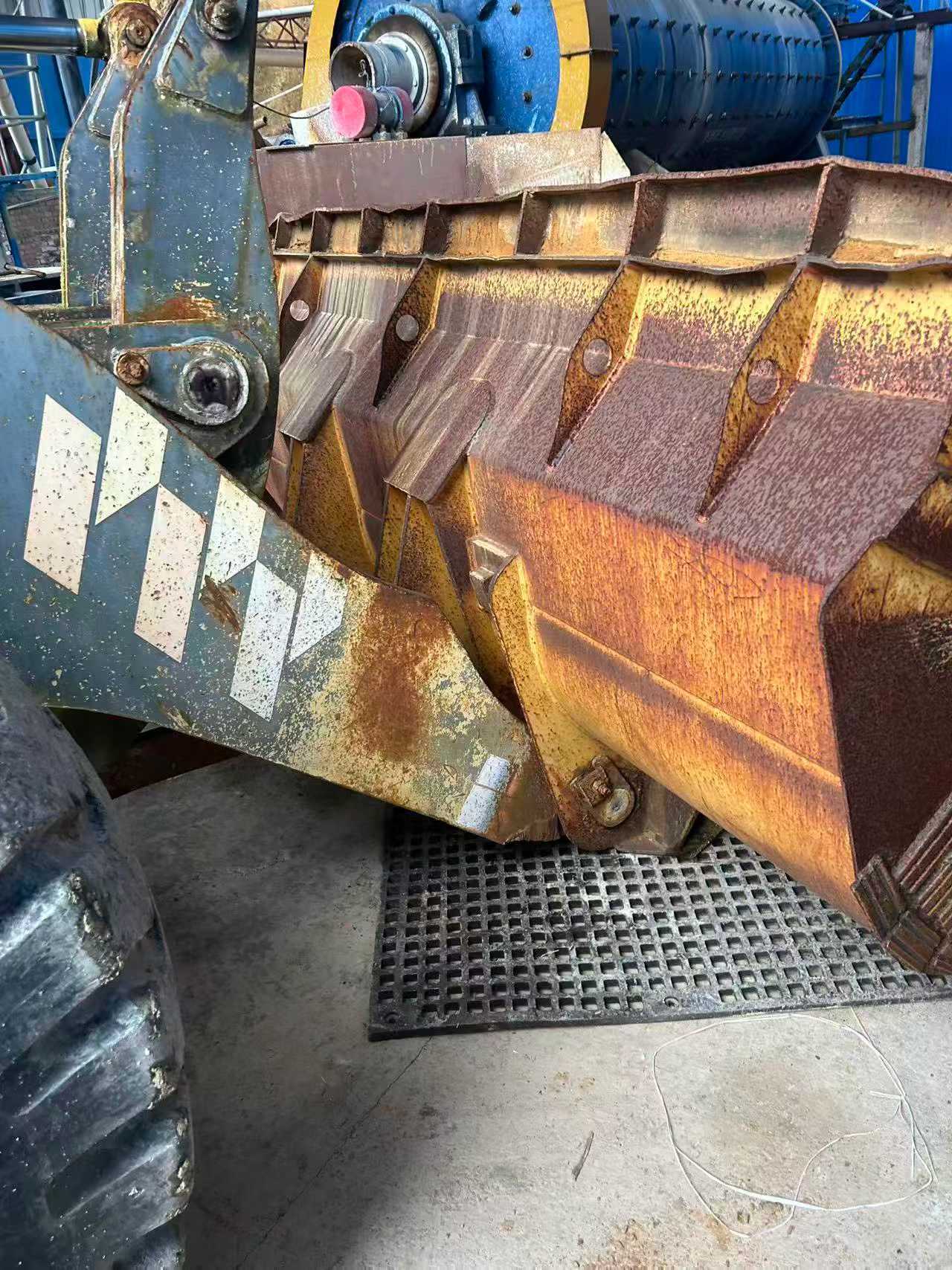

Equipped with a 2.8 m³ bucket and 165 kN digging force, it efficiently moves heavy loads while maintaining a compact 7800 mm overall length. Operating weight of 16,900 kg provides stability during lifting operations, with a maximum unloading height reaching 3560 mm. The 23.5-25 tires and 28° climbing ability ensure confident traction across challenging terrain.
Key Specifications:
- Rated Load: 5,000 kg | Bucket Capacity: 2.8 m³
- Engine Power: 162 kW (WD10G220E23)
- Max Speed: 38 km/h | Wheelbase: 2,960 mm
- Unloading Height: 3,150–3,560 mm
- Operating Weight: 16,900 kg
Skip extended waiting periods—this loader is ready for fast deployment to your site. Contact Fair Trade Machinery today for immediate availability and logistics coordination from 江西宜春.
| Specifications | Value |
|---|---|
| No. | 1037461 |
| Engine type | WD10G220E23 |
| Rated power (kw/rpm) | 162/2000 |
| Bucket capacity (m³) | 2.8 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 165 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1160 |
| Maximum tractive force (kN) | |
| Maximum climbing ability (°) | 28 |
| Wheelbase (mm) | 2960 |
| Wheel base (mm) | 2250 |
| Machine length (mm) | 7800 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3360 |
| Transaxle swing Angle (°) | 35 |
| Tyre specification | 23.5-25 |
| Minimum turning radius of outer wheel center line | |
| Lift (s) | |
| Ternary sum (s) | |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | |
| Maximum speed (km/h) | 38 |
