Product Description

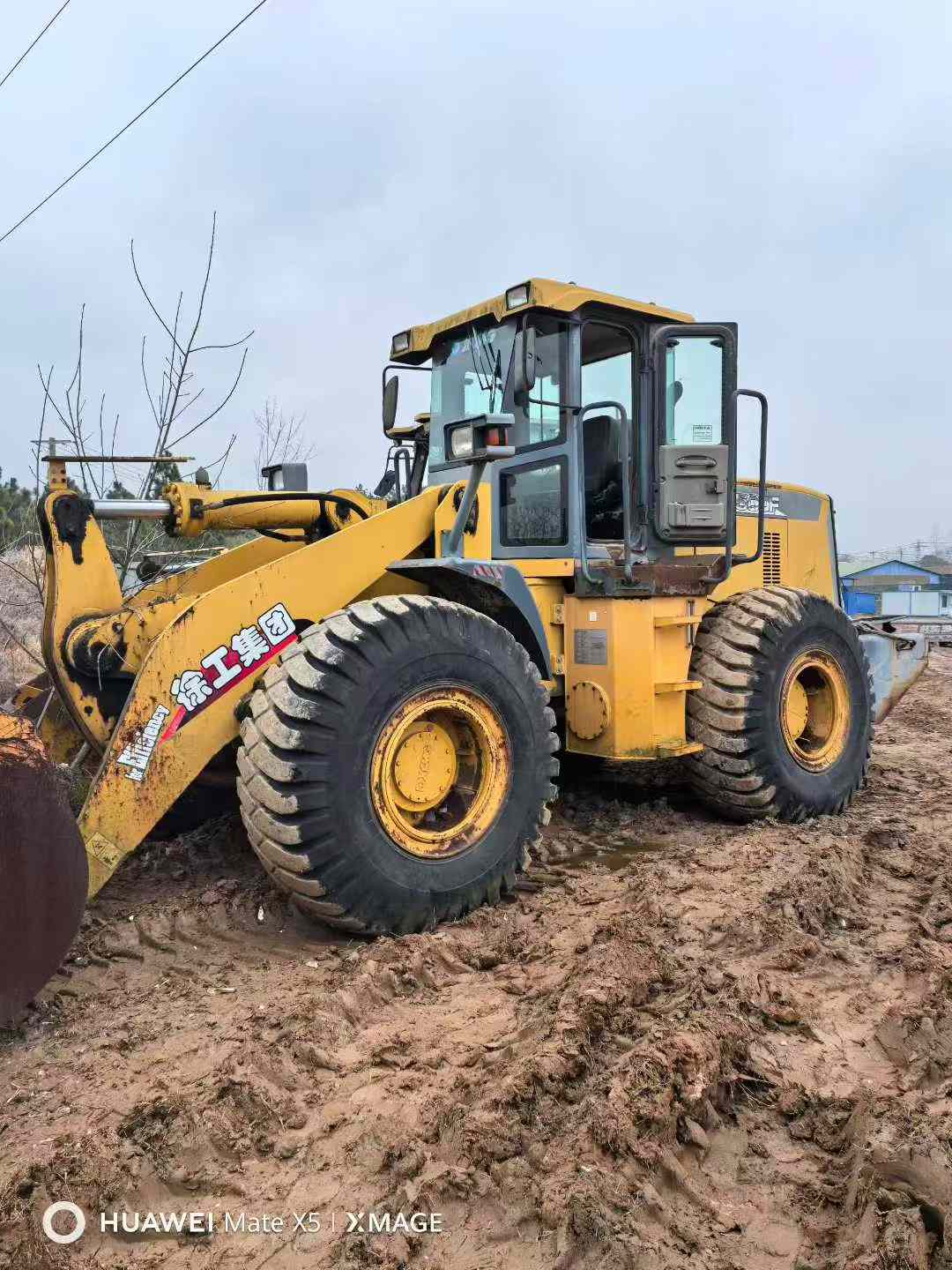

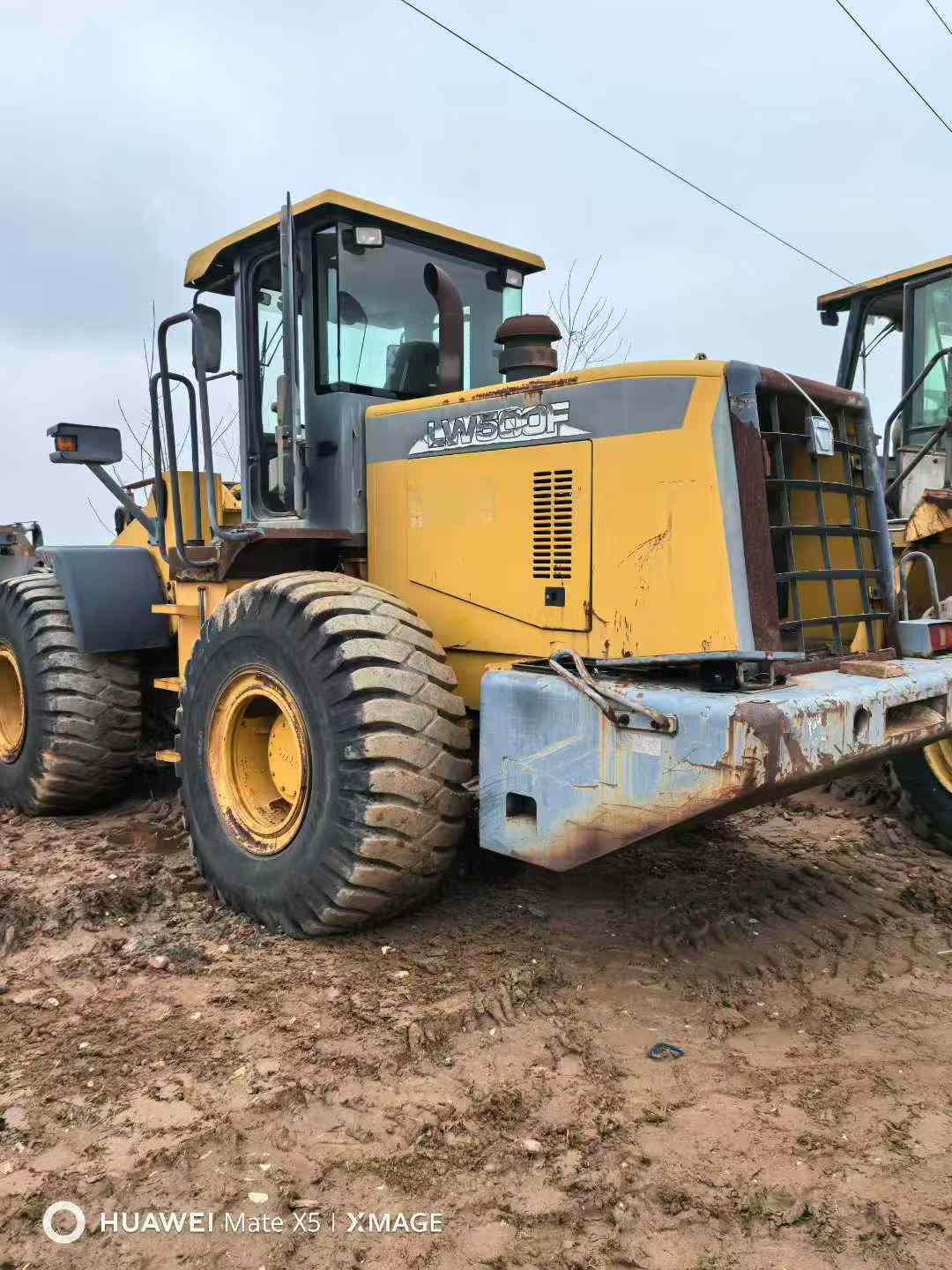

With a rated power of 162 kW and a bucket capacity ranging from 2.5 to 4.5 m³, the XCMG LW500F loader is a robust choice for demanding construction and mining operations. Located in Hebei Baoding, this 2012 model offers a reliable performance with a digging force of 170 kN and a maximum unloading height of up to 3560 mm. Weighing 16900 kg, it ensures stability and efficiency on the job site.
- Engineered by XCMG, a brand known for its durability and parts availability, ensuring minimal downtime.
- High resale value, making it a sound investment for long-term use.
- Maximum tractive force of 156 kN and a wheelbase of 2900 mm, providing excellent maneuverability and traction.
- Speeds of up to 38 km/h in second gear, enhancing productivity and operational flexibility.
| Specifications | Value |
|---|---|
| No. | 1021271 |
| Engine type | |
| Rated power (kw/rpm) | 162 |
| Working form | |
| Bucket capacity (m³) | 2.5~4.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1274 |
| Maximum tractive force (kN) | 156 |
| Wheelbase (mm) | 2900 |
| Machine length (mm) | 8010 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3350 |
| Minimum turning radius of outer wheel center line | 6172 |
| Turning radius - Outside of bucket (mm) | 6920 |
| Lift (s) | 5.6 |
| Ternary sum (s) | 9.9 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 38 |
