Product Description

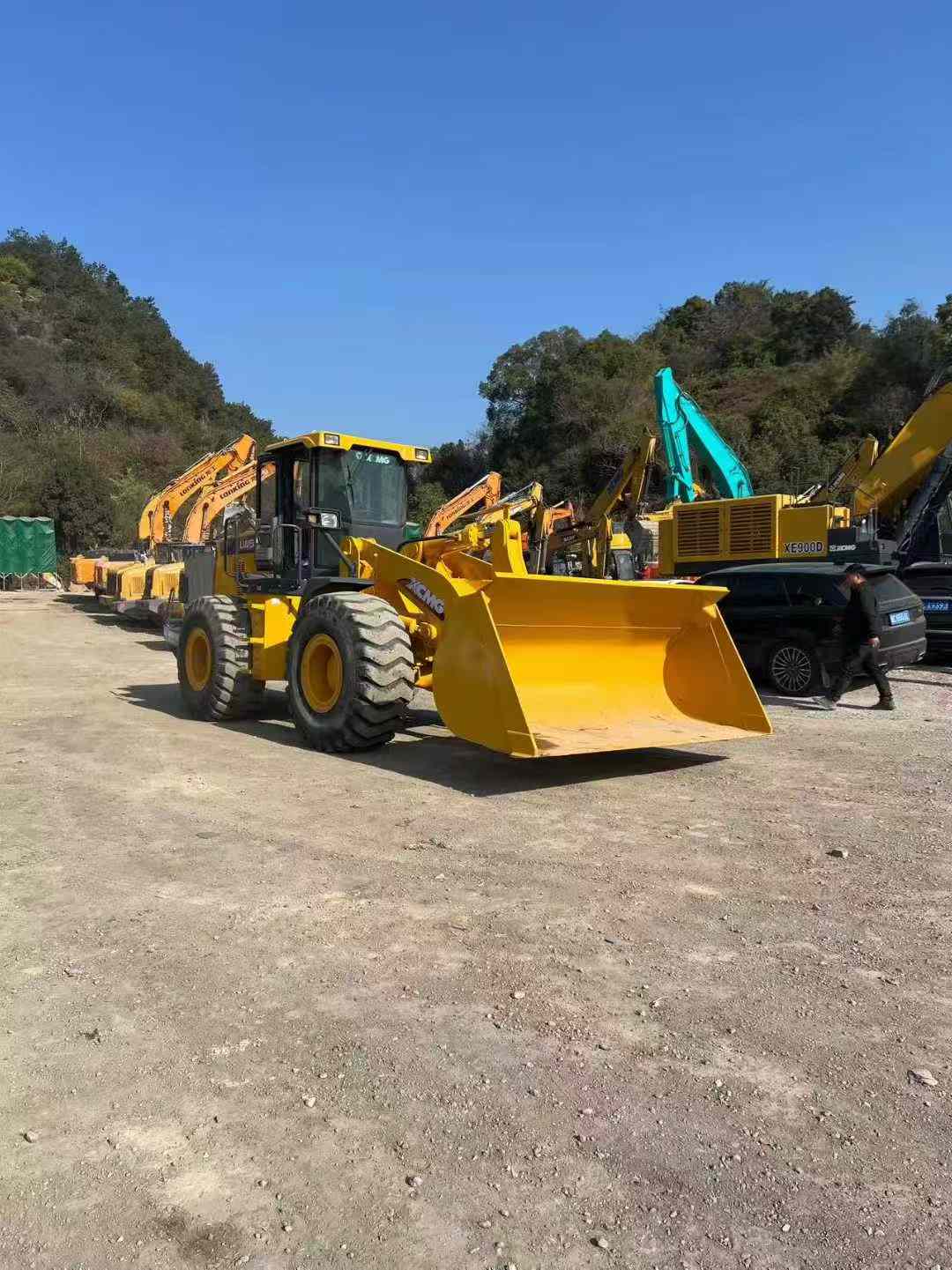

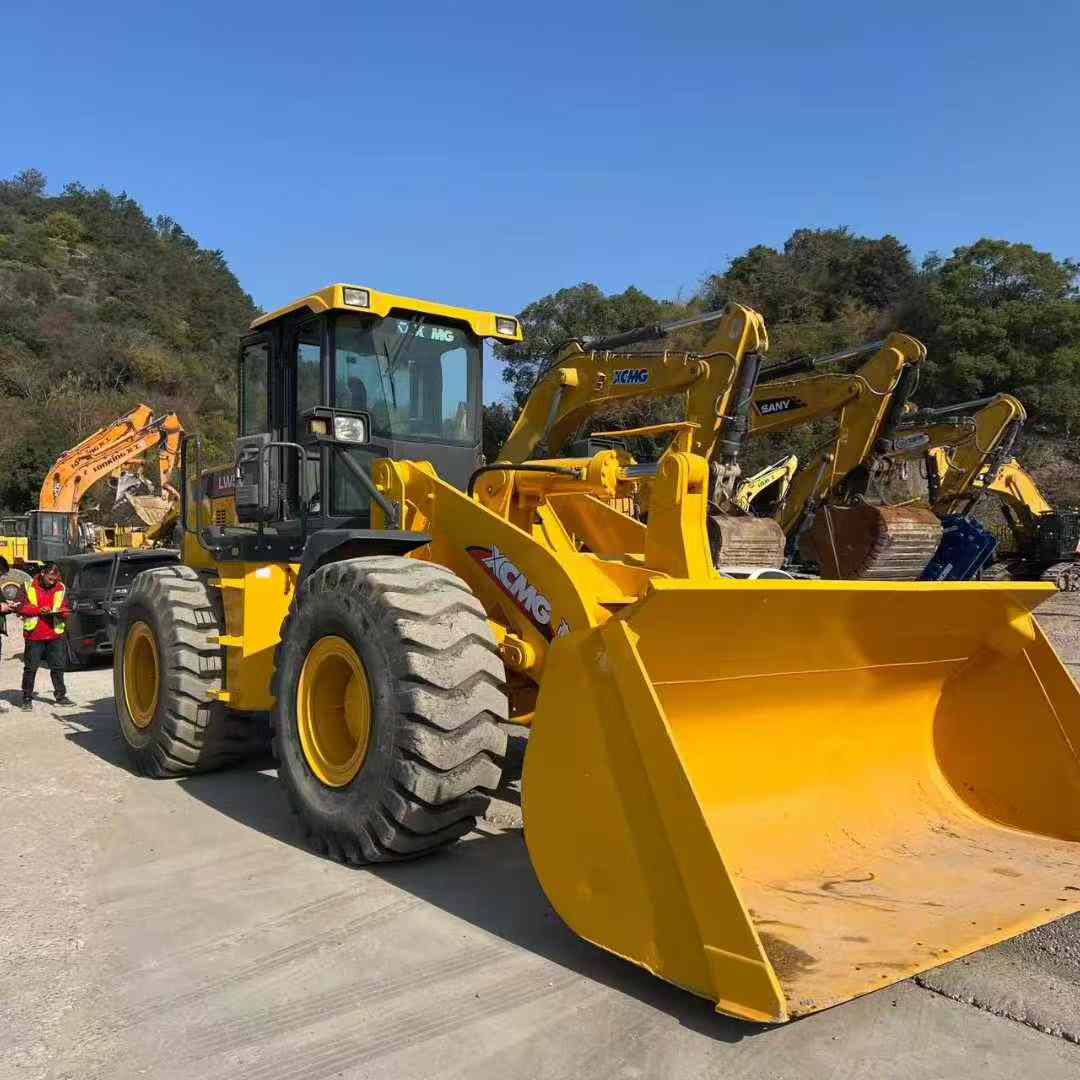

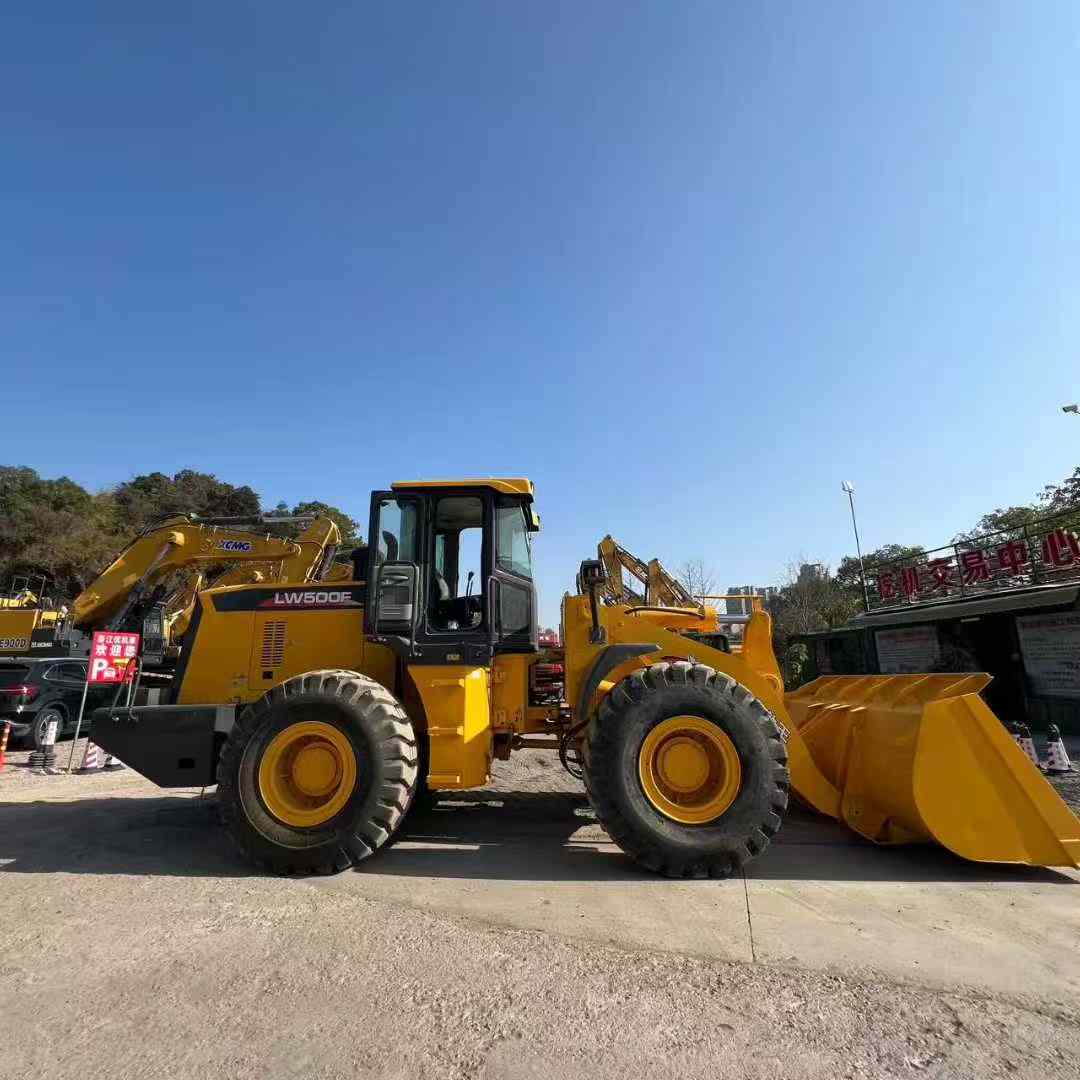

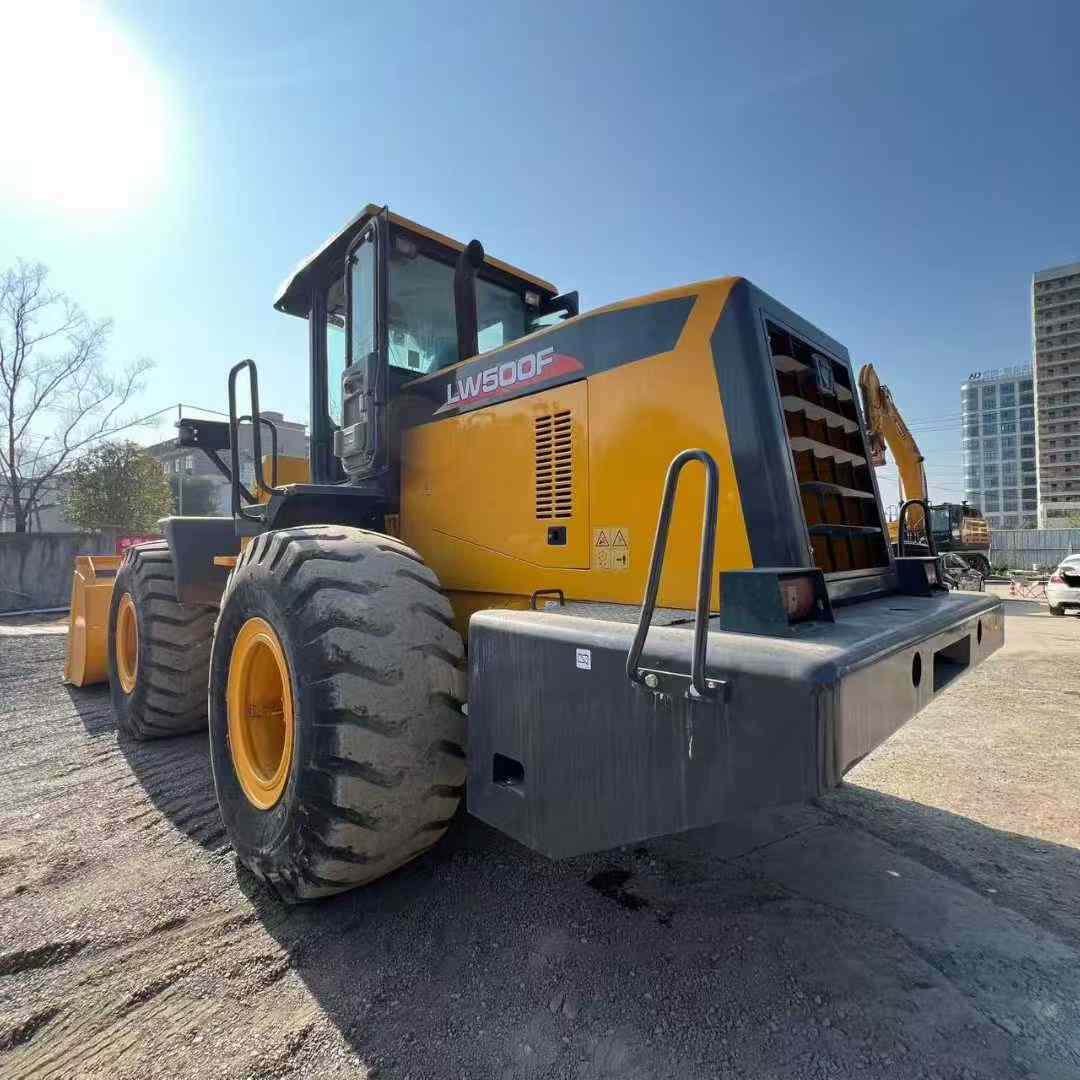

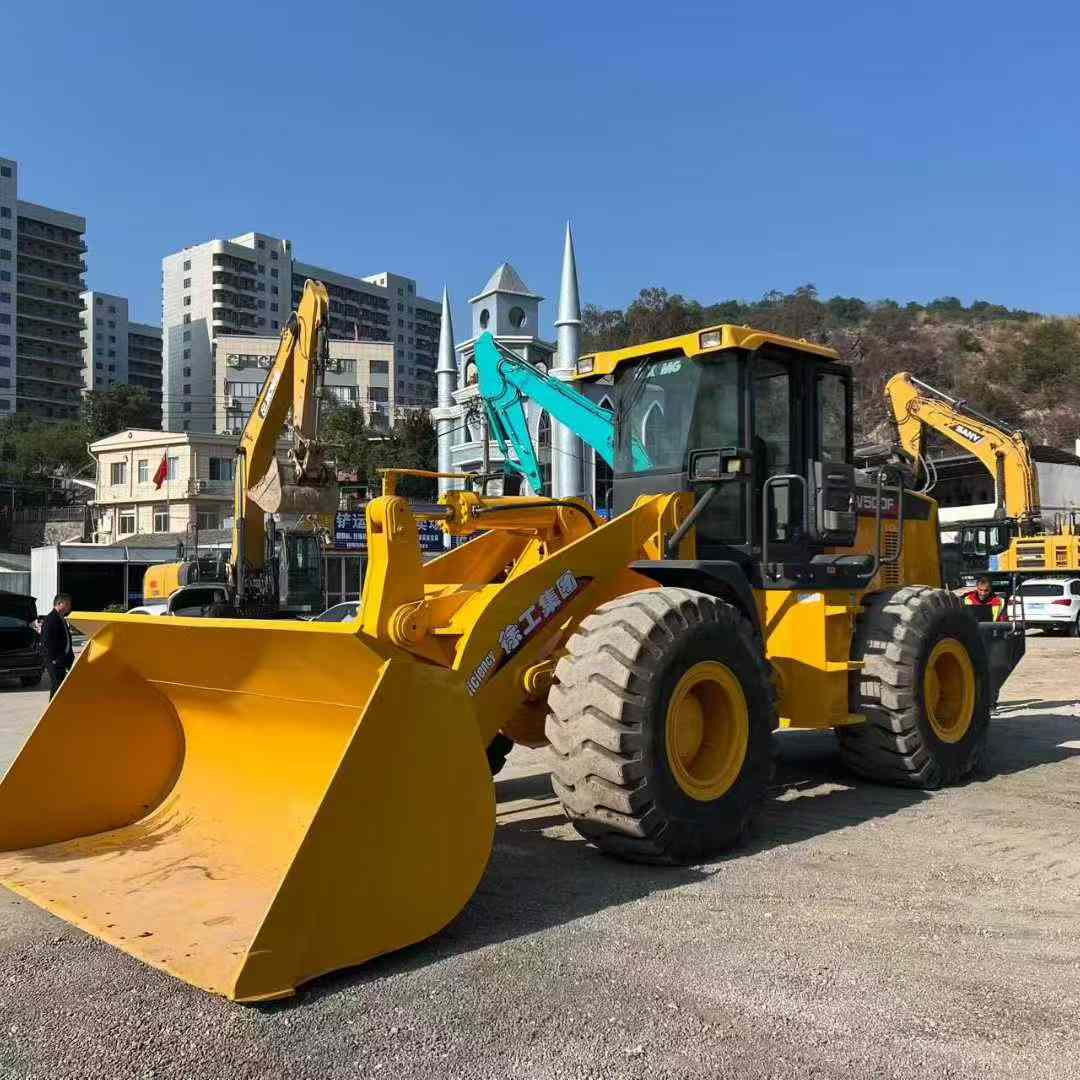

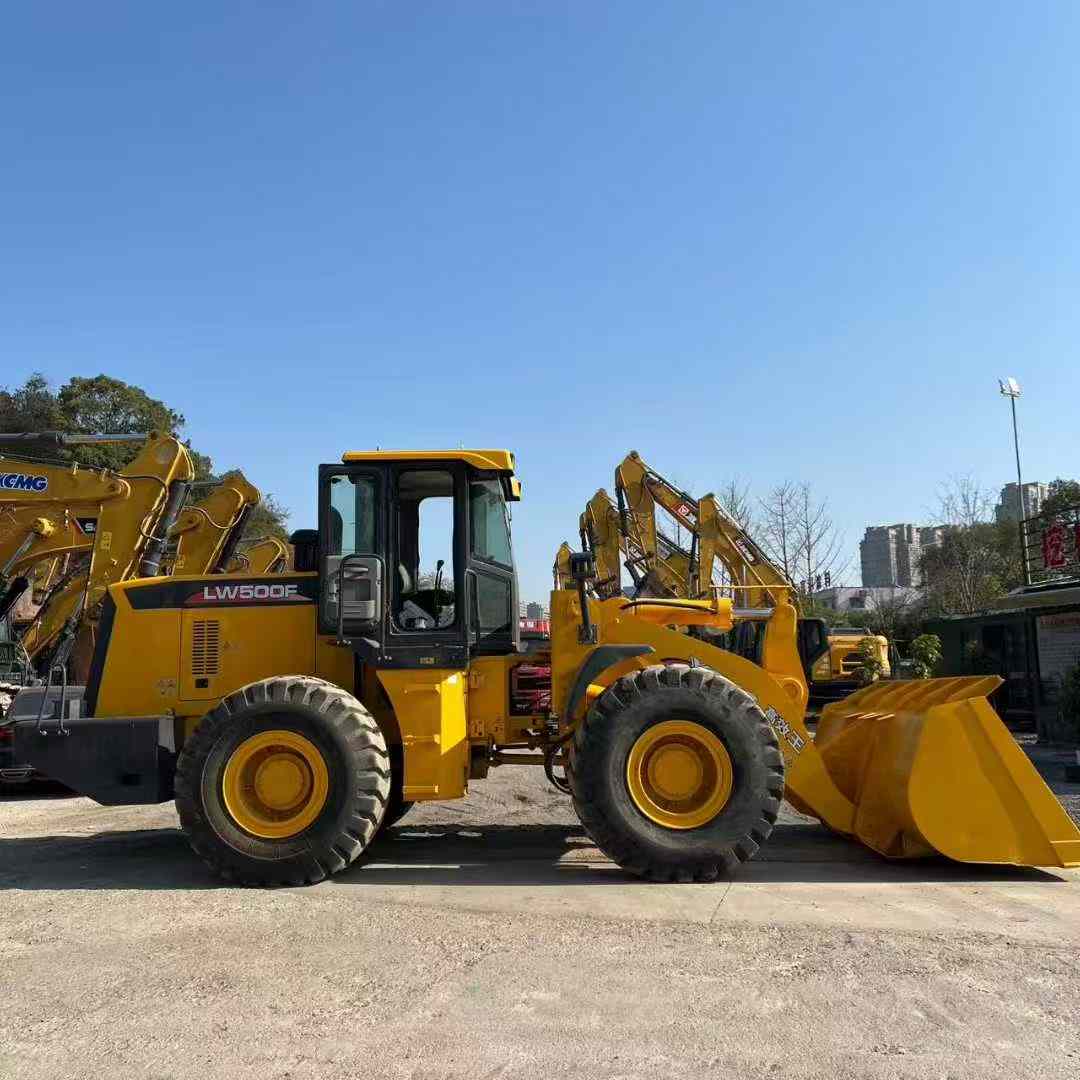

From 浙江温州, this 2016 XCMG LW500F loader is available now, ready to enhance your logistics and speed. With a rated power of 162 kW, it offers robust performance for demanding tasks. The machine, equipped with a bucket capacity ranging from 2.5 to 4.5 m³, can handle a rated load of 5000 kg. Its digging force of 170 kN ensures efficient material handling. Operating at a weight of 16900 kg, the LW500F boasts a maximum unloading height of 3150 to 3560 mm and an unloading distance of 1274 mm. Skip the factory lead times and deploy this powerful loader to your site swiftly. Ideal for quick turnaround and high productivity, the LW500F is a reliable choice for your heavy machinery needs.
| Specifications | Value |
|---|---|
| No. | 1019972 |
| Engine type | |
| Rated power (kw/rpm) | 162 |
| Working form | |
| Bucket capacity (m³) | 2.5~4.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1274 |
| Maximum tractive force (kN) | 156 |
| Wheelbase (mm) | 2900 |
| Machine length (mm) | 8010 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3350 |
| Minimum turning radius of outer wheel center line | 6172 |
| Turning radius - Outside of bucket (mm) | 6920 |
| Lift (s) | 5.6 |
| Ternary sum (s) | 9.9 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 38 |
