Product Description

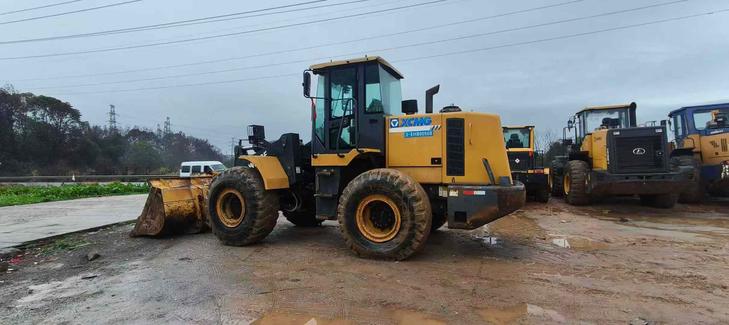

Secure proven performance without the premium price tag. This 2016 XCMG LW500F wheel loader delivers 162kW of rated power and a substantial 5,000kg rated load capacity, making it a cost-effective alternative to new equipment purchases. Currently located in Baoding, Hebei, this machine offers the robust engineering XCMG is known for at a fraction of new equipment costs.
Built for demanding material handling operations, the LW500F features a bucket capacity range of 2.5-4.5m³ and impressive 170kN digging force. With an operating weight of 16,900kg and maximum tractive force of 156kN, this loader handles heavy-duty applications with confidence. Fast cycle times—5.6s lift and 9.9s total cycle—maximize productivity on your jobsite.
Key Specifications:
- Rated Power: 162kW | Rated Load: 5,000kg
- Bucket Capacity: 2.5-4.5m³ | Digging Force: 170kN
- Max Unloading Height: 3,150-3,560mm
- Operating Weight: 16,900kg | Wheelbase: 2,900mm
- Travel Speed: Up to 38km/h (2nd gear)
- Compact Dimensions: 8,010mm (L) × 3,016mm (W) × 3,350mm (H)
Smart buyers recognize value. Invest strategically in proven heavy equipment performance.
| Specifications | Value |
|---|---|
| No. | 1020992 |
| Engine type | |
| Rated power (kw/rpm) | 162 |
| Working form | |
| Bucket capacity (m³) | 2.5~4.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1274 |
| Maximum tractive force (kN) | 156 |
| Wheelbase (mm) | 2900 |
| Machine length (mm) | 8010 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3350 |
| Minimum turning radius of outer wheel center line | 6172 |
| Turning radius - Outside of bucket (mm) | 6920 |
| Lift (s) | 5.6 |
| Ternary sum (s) | 9.9 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 38 |
