Product Description

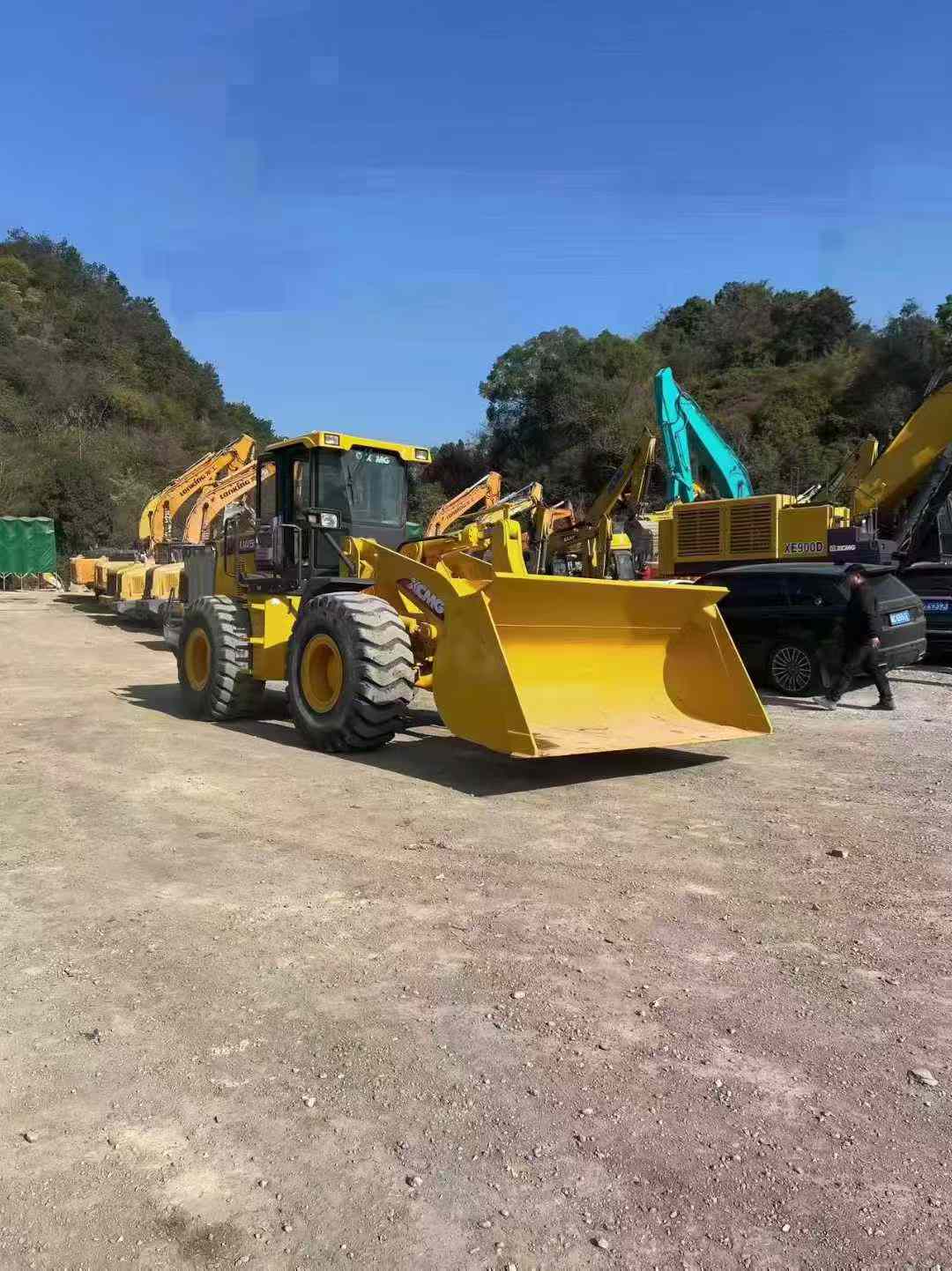

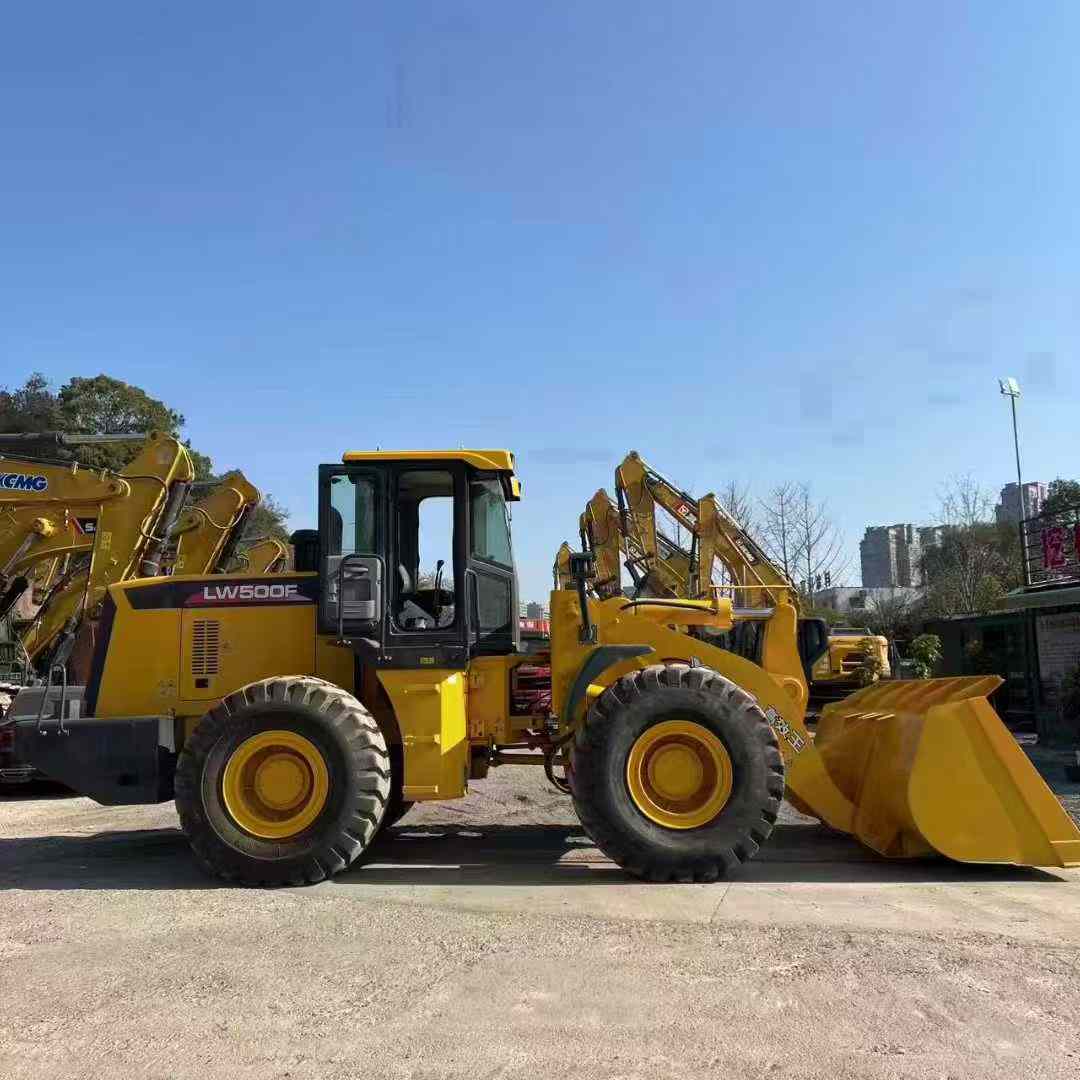

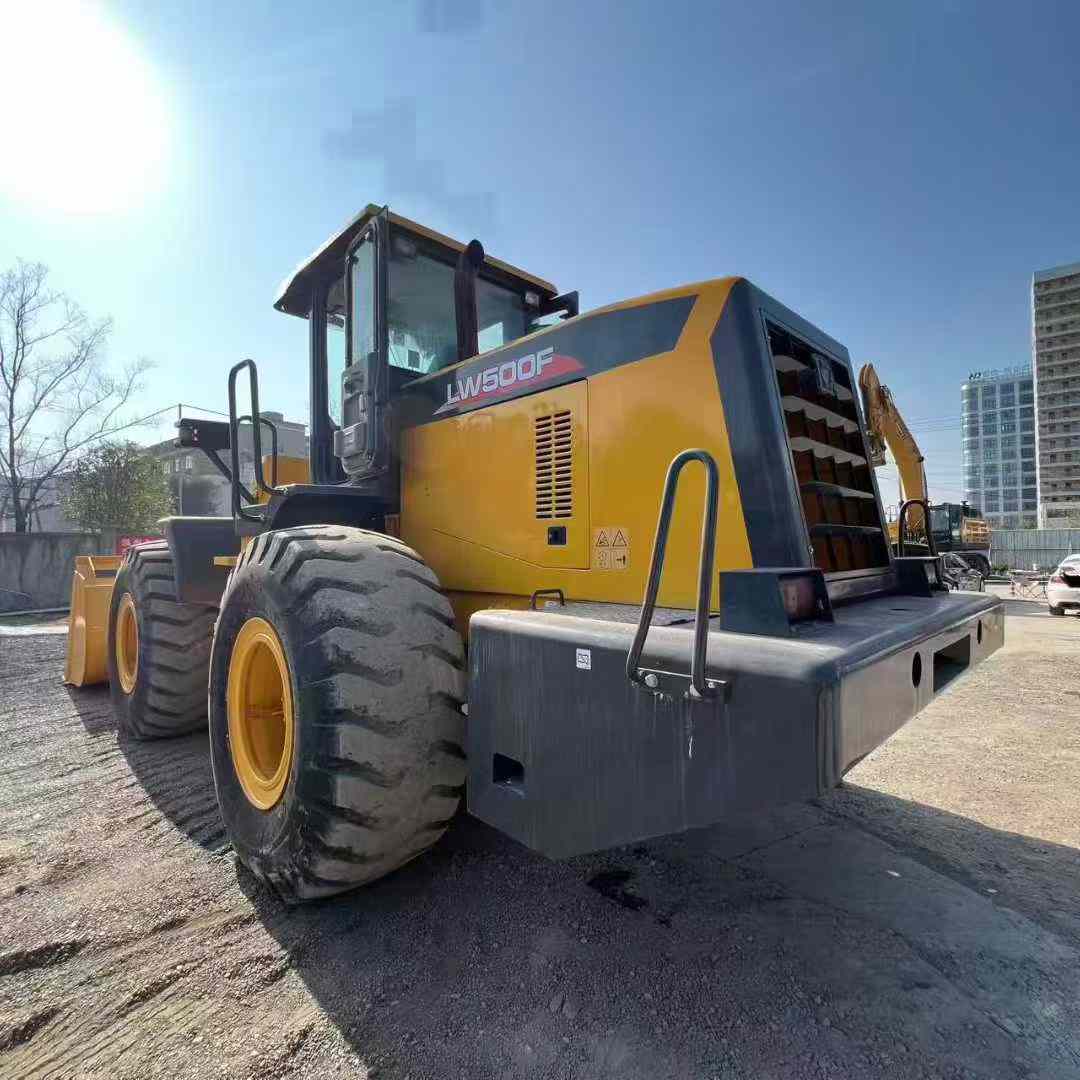

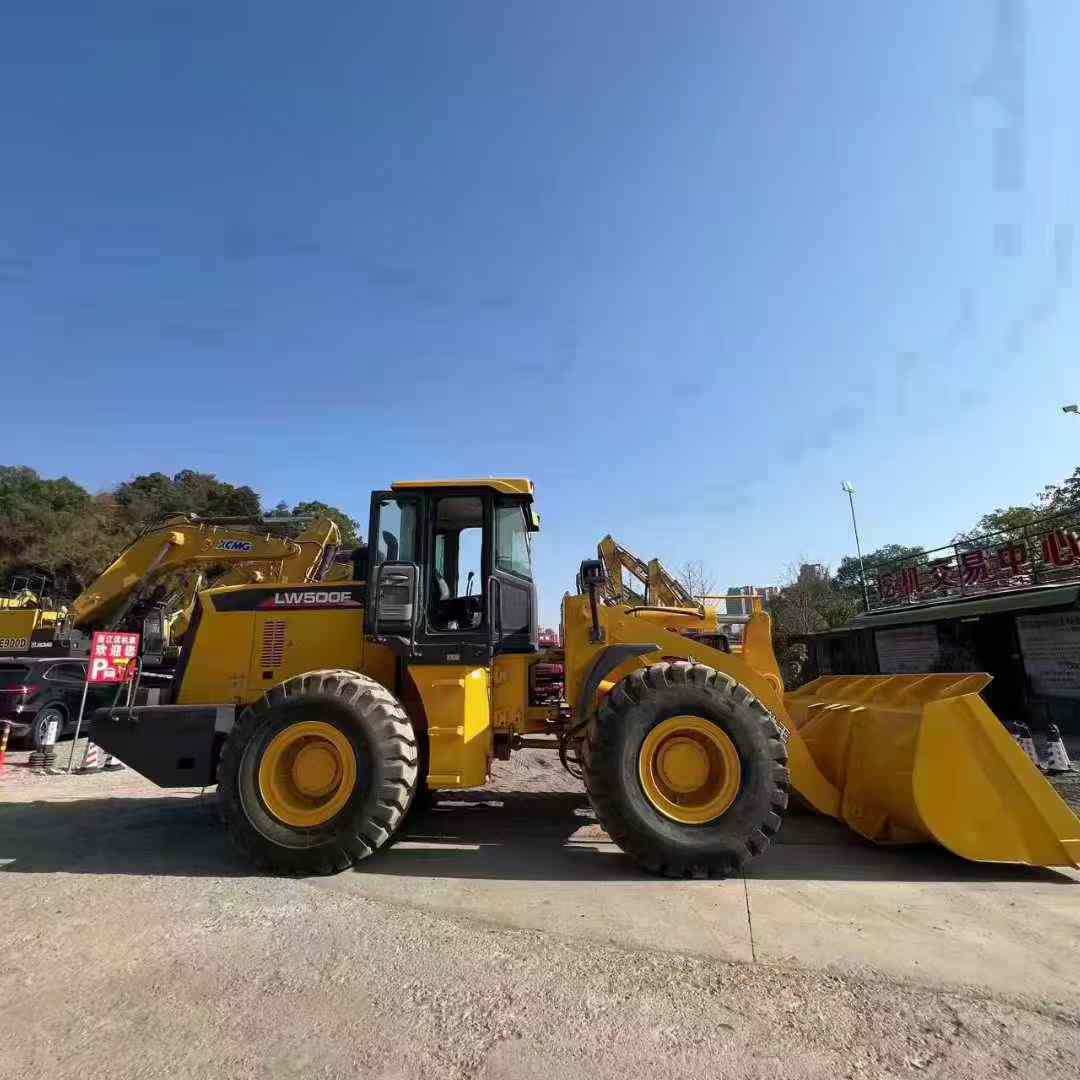

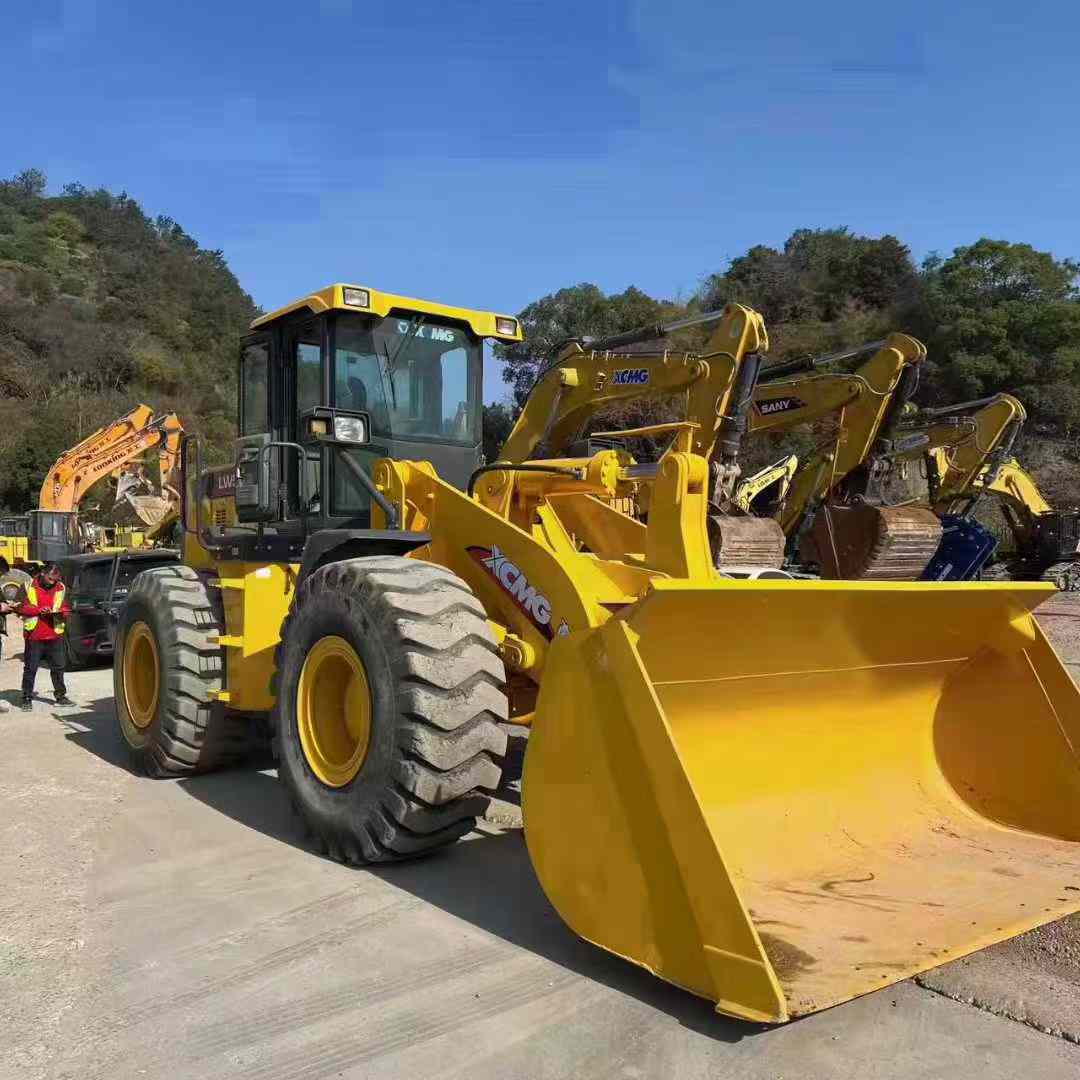

Maximize your equipment budget with this 2016 XCMG LW500F wheel loader from Wenzhou, Zhejiang—delivering proven performance at a fraction of new equipment costs. Powered by a robust 162kW engine and rated for 5,000kg loads, this machine handles demanding material handling operations with professional-grade efficiency. Its 2.5-4.5m³ bucket capacity and 170kN digging force tackle high-volume work while the 16,900kg operating weight ensures stability across challenging terrain.
- Rated Load: 5,000kg with 170kN digging force

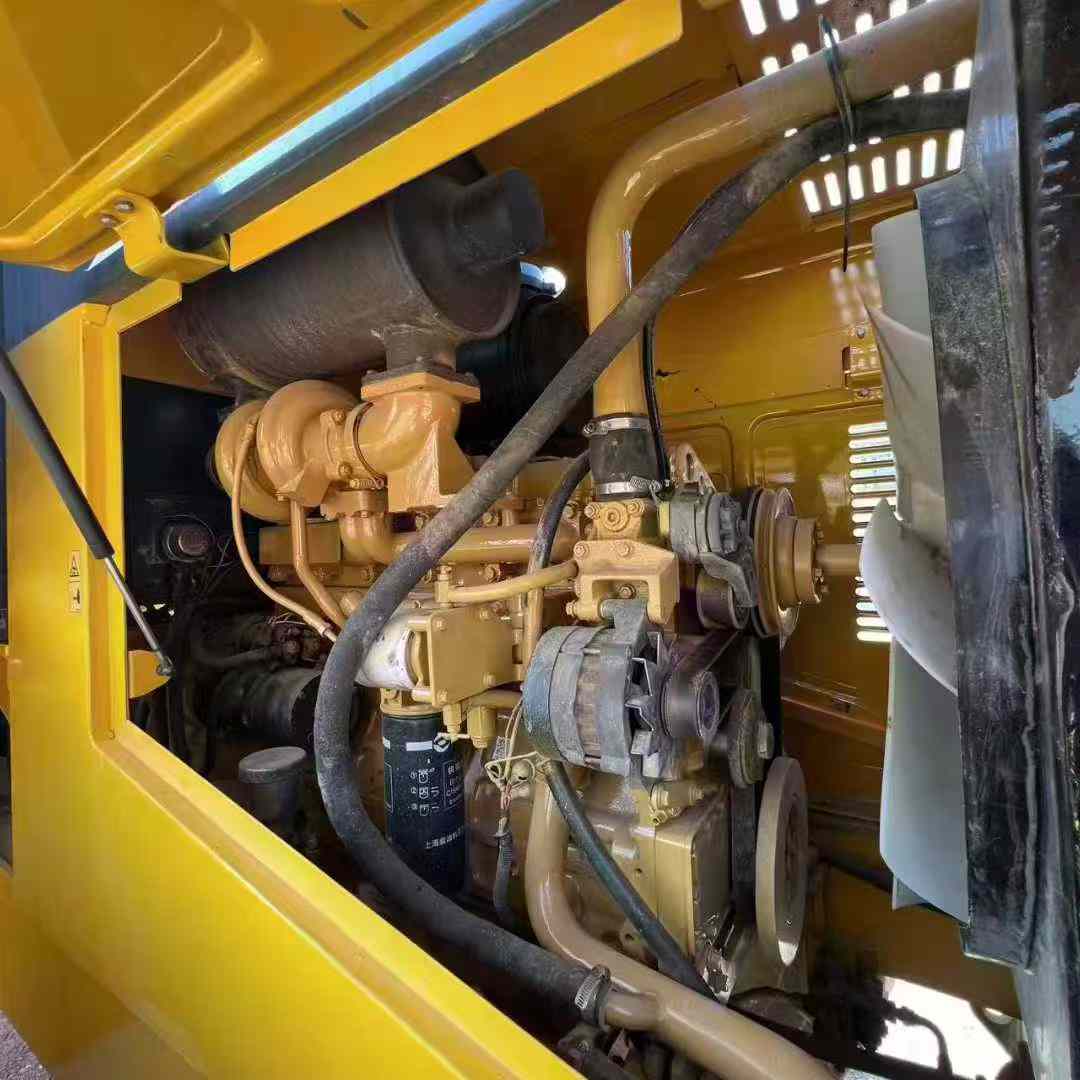

- Engine Power: 162kW for reliable productivity
- Bucket Capacity: 2.5-4.5m³ variable options
- Max Unloading Height: 3,150-3,560mm
- Maximum Tractive Force: 156kN
- Speed Performance: Up to 38km/h (2nd gear)
- Compact Maneuverability: 6,920mm turning radius
Investing in quality pre-owned machinery means accessing XCMG's renowned engineering without the depreciation hit of new purchases. This LW500F represents smart capital allocation for contractors, quarries, and material yards requiring dependable loader performance. Currently available for immediate deployment from our Wenzhou facility.
| Specifications | Value |
|---|---|
| No. | 1040658 |
| Engine type | |
| Rated power (kw/rpm) | 162 |
| Working form | |
| Bucket capacity (m³) | 2.5~4.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1274 |
| Maximum tractive force (kN) | 156 |
| Wheelbase (mm) | 2900 |
| Machine length (mm) | 8010 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3350 |
| Minimum turning radius of outer wheel center line | 6172 |
| Turning radius - Outside of bucket (mm) | 6920 |
| Lift (s) | 5.6 |
| Ternary sum (s) | 9.9 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 38 |
