Product Description

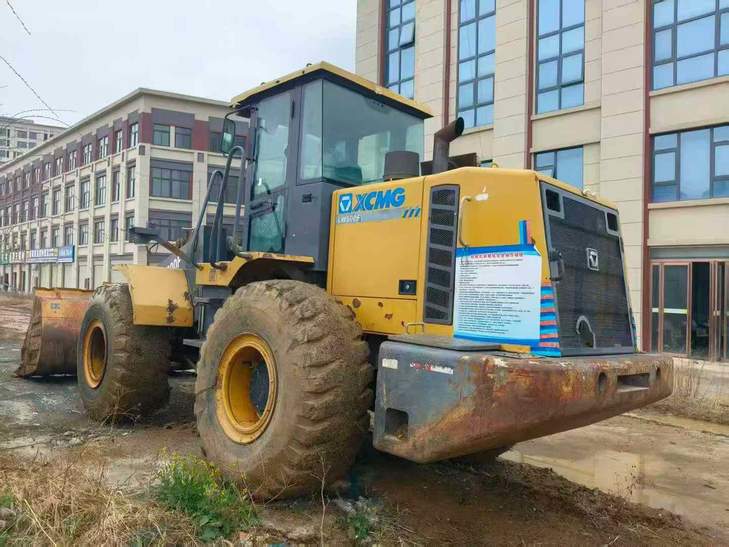

Built for high-capacity material handling, this 2018 XCMG LW500F wheel loader delivers 162 kW of rated power and a 5,000 kg rated load capacity. Currently located in Baoding, Hebei, this machine is equipped with a bucket capacity range of 2.5 to 4.5 m³, making it adaptable for loading, stockpiling, and site preparation across construction, mining, and aggregate operations.
With a 170 kN digging force and 156 kN maximum tractive force, this loader handles dense materials and challenging ground conditions without hesitation. Fast cycle times—5.6-second lift and 9.9-second total cycle—keep productivity high during repetitive loading tasks. An operating weight of 16,900 kg provides stability under load, while the 3,150–3,560 mm unloading height clears standard truck beds efficiently.
Key specifications include:
- Wheelbase: 2,900 mm for maneuverability in confined spaces
- Two-speed transmission: 11.5/16.5 km/h (1st gear), 38 km/h (2nd gear)
- Outside turning radius: 6,920 mm
- Overall dimensions: 8,010 mm (L) × 3,016 mm (W) × 3,350 mm (H)
Inspection welcome. Ready for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1020979 |
| Engine type | |
| Rated power (kw/rpm) | 162 |
| Working form | |
| Bucket capacity (m³) | 2.5~4.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1274 |
| Maximum tractive force (kN) | 156 |
| Wheelbase (mm) | 2900 |
| Machine length (mm) | 8010 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3350 |
| Minimum turning radius of outer wheel center line | 6172 |
| Turning radius - Outside of bucket (mm) | 6920 |
| Lift (s) | 5.6 |
| Ternary sum (s) | 9.9 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 38 |
