Product Description

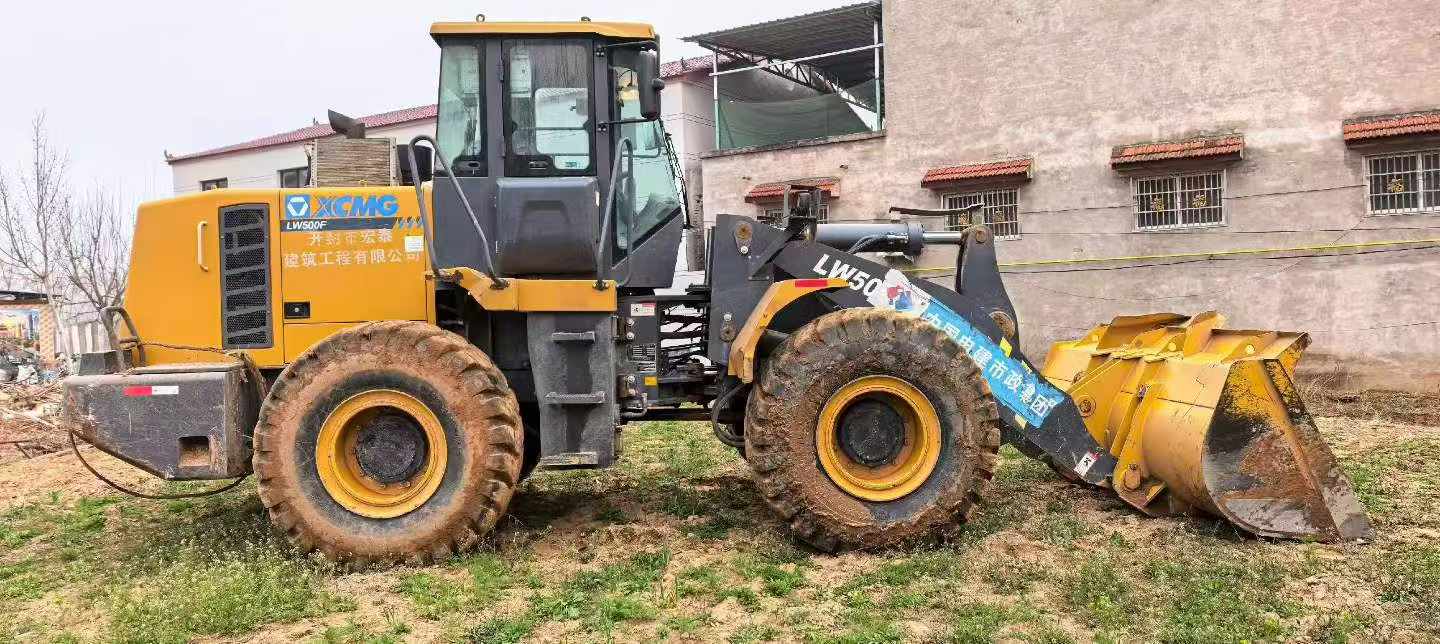

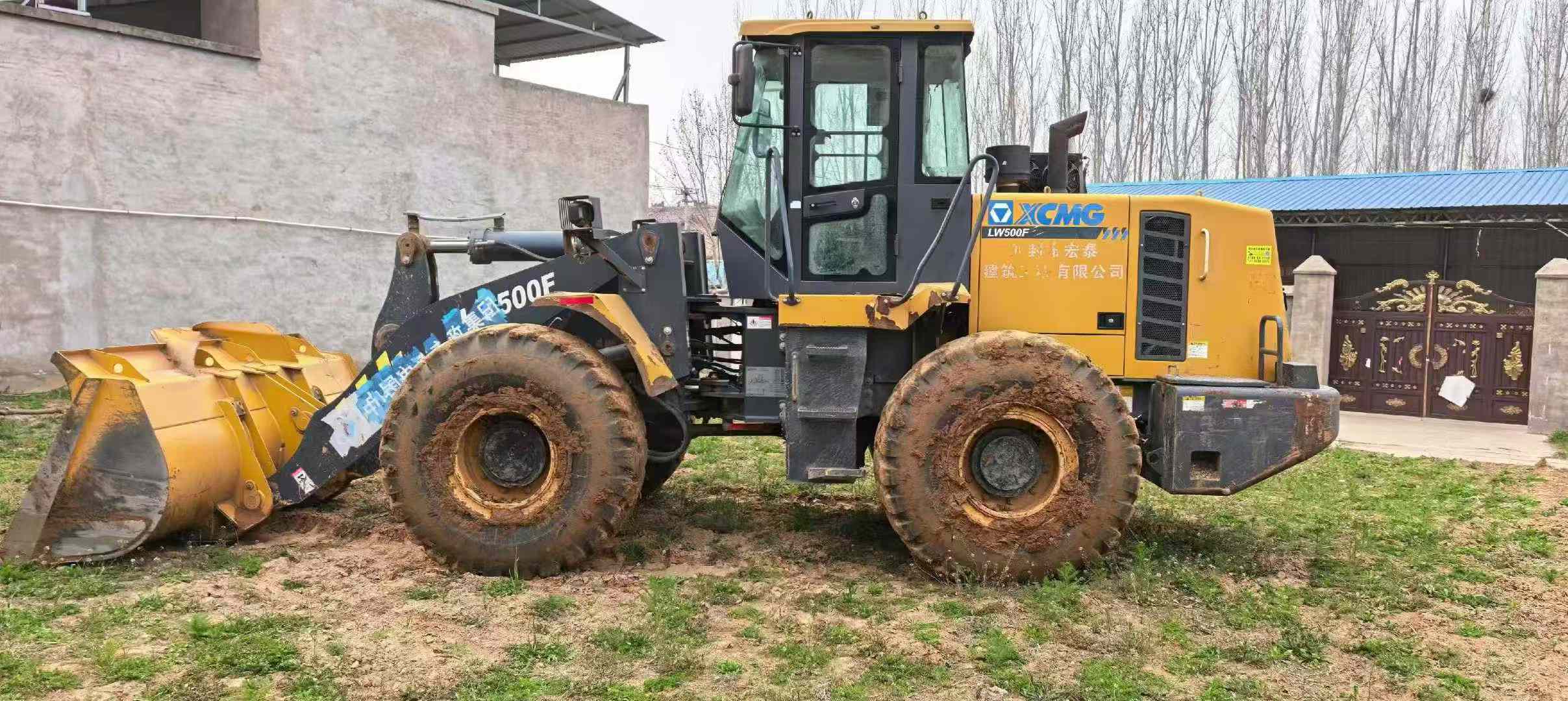

Proven in demanding conditions since 2018, this XCMG LW500F wheel loader demonstrates the durability that defines professional-grade earthmoving equipment. Operating weight of 16,900 kg combines with a robust 162 kW power plant to deliver consistent performance across multiple shift cycles. With a rated load capacity of 5,000 kg and bucket options ranging from 2.5 to 4.5 m³, this workhorse adapts to varied material handling requirements without compromise.
Built for sustained productivity, the LW500F generates 170 kN of digging force and 156 kN maximum tractive force, ensuring reliable breakout performance in challenging materials. Cycle times remain competitive at 5.6 seconds for lift and 9.9 seconds total, while the 38 km/h top speed maintains operational efficiency between work areas. Currently located in Zhengzhou, Henan, this machine represents proven XCMG engineering with documented operational history—a testament to its solid construction and field-tested reliability in real-world applications.
| Specifications | Value |
|---|---|
| No. | 1034834 |
| Engine type | |
| Rated power (kw/rpm) | 162 |
| Working form | |
| Bucket capacity (m³) | 2.5~4.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1274 |
| Maximum tractive force (kN) | 156 |
| Wheelbase (mm) | 2900 |
| Machine length (mm) | 8010 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3350 |
| Minimum turning radius of outer wheel center line | 6172 |
| Turning radius - Outside of bucket (mm) | 6920 |
| Lift (s) | 5.6 |
| Ternary sum (s) | 9.9 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 38 |
