Product Description

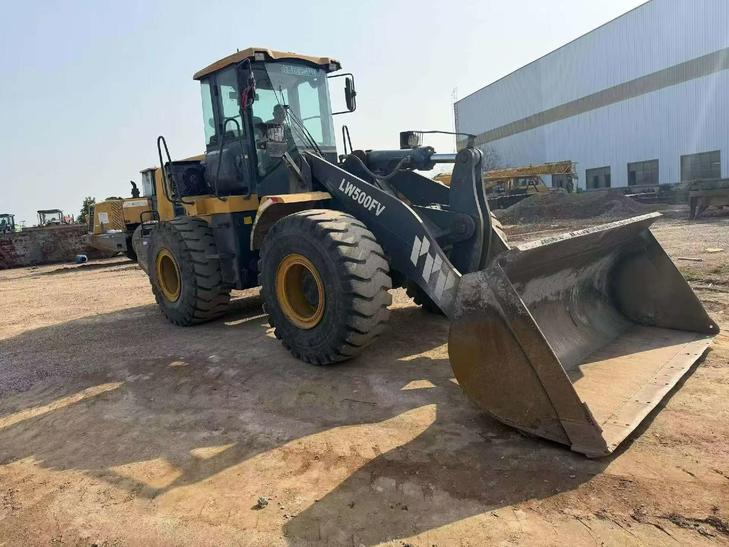

Proven in demanding jobsites worldwide, XCMG's LW500F wheel loader delivers dependable performance backed by one of the industry's most robust support networks. This 2019 model from Baoding, Hebei combines a 162kW power plant with 5-ton rated capacity and 2.5-4.5m³ bucket versatility, making it suitable for quarries, construction yards, and material handling operations requiring consistent productivity.
Key specifications include:
- Breakout force: 170kN with maximum tractive force of 156kN
- Operating weight: 16,900kg for optimal stability
- Dump height range: 3,150-3,560mm with 1,274mm reach
- Cycle times: 5.6s lift, 9.9s total cycle
- Two-speed transmission: 11.5-38km/h for efficient load-and-carry
XCMG's global parts distribution ensures minimal downtime, while strong resale values protect your investment. With factory-trained technicians across six continents and standardized component compatibility across model years, maintenance costs remain predictable. This loader represents a low-risk acquisition for operators prioritizing long-term reliability over untested alternatives.
| Specifications | Value |
|---|---|
| No. | 1038327 |
| Engine type | |
| Rated power (kw/rpm) | 162 |
| Working form | |
| Bucket capacity (m³) | 2.5~4.5 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 170 |
| Machine operating weight (kg) | 16900 |
| Max - Unloading height (mm) | 3150~3560 |
| Unloading distance (mm) | 1274 |
| Maximum tractive force (kN) | 156 |
| Wheelbase (mm) | 2900 |
| Machine length (mm) | 8010 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3350 |
| Minimum turning radius of outer wheel center line | 6172 |
| Turning radius - Outside of bucket (mm) | 6920 |
| Lift (s) | 5.6 |
| Ternary sum (s) | 9.9 |
| Speed 1 gear (km/h) | 11.5/16.5 |
| Speed 2 (km/h) | 38 |
