Product Description

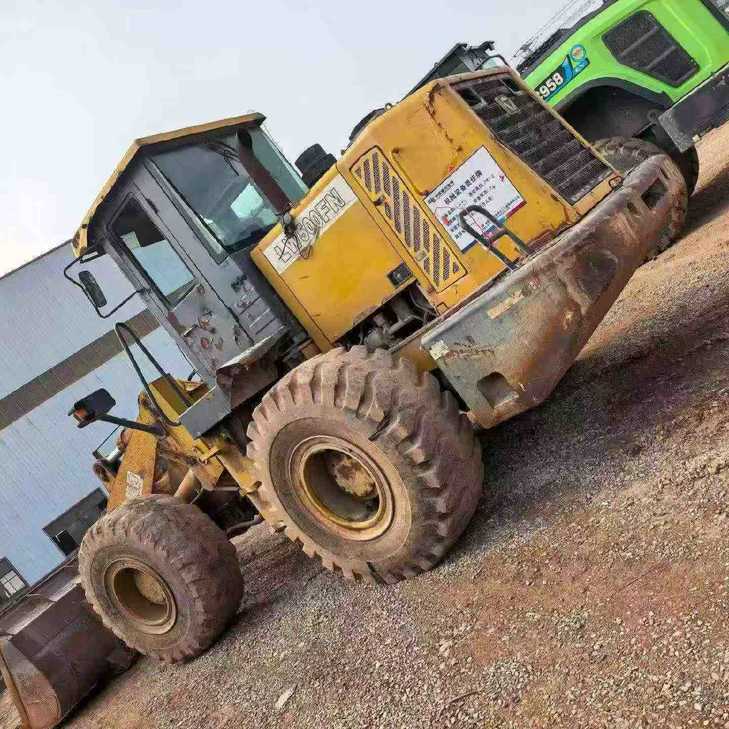

Engineered for demanding material handling operations, this 2014 LW500FN wheel loader combines XCMG's proven mechanical design with robust performance capabilities. Powered by a SC9D220.2G2B1 engine delivering 162 kW at 2000 rpm, this 5-ton rated load machine provides reliable power delivery across dual-speed ranges: 0-11.5/16.5 km/h in first gear and up to 38 km/h in second gear for efficient site mobility.
Technical specifications include:
- Operating weight optimized for a 2960mm wheelbase and 2250mm wheel base configuration
- 23.5-25-16PR tires supporting a maximum climbing ability of 28 degrees
- Transaxle swing angle of 35° for precise load positioning
- Compact dimensions: 8000mm length × 3016mm width × 3515mm height
- SC9D220.2G2B1 turbocharged diesel engine with proven durability
Currently located in Baoding, Hebei Province, this loader represents XCMG's LW-series commitment to hydraulic efficiency and structural integrity. Factory-engineered load-sensing hydraulics ensure consistent bucket control throughout the operating cycle, while the reinforced drivetrain handles repetitive loading applications in aggregate, construction, and logistics environments.
| Specifications | Value |
|---|---|
| No. | 1038330 |
| Engine type | SC9D220.2G2B1 |
| Rated power (kw/rpm) | 162/2000 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | |
| Machine operating weight (kg) | |
| Unloading height - Unloading Angle 45°(mm) | |
| Unloading distance - Unloading Angle 45°(mm) | |
| Maximum tractive force (kN) | |
| Maximum climbing ability (°) | 28 |
| Wheelbase (mm) | 2960 |
| Wheel base (mm) | 2250 |
| Machine length (mm) | 8000 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3515 |
| Transaxle swing Angle (°) | 35 |
| Tyre specification | 23.5-25-16PR |
| Minimum turning radius of outer wheel center line | |
| Lift (s) | |
| Ternary sum (s) | |
| Speed 1 gear (km/h) | 0~11.5/16.5 |
| Speed 2 (km/h) | 0~38 |
| Maximum speed (km/h) | 38 |
