Product Description

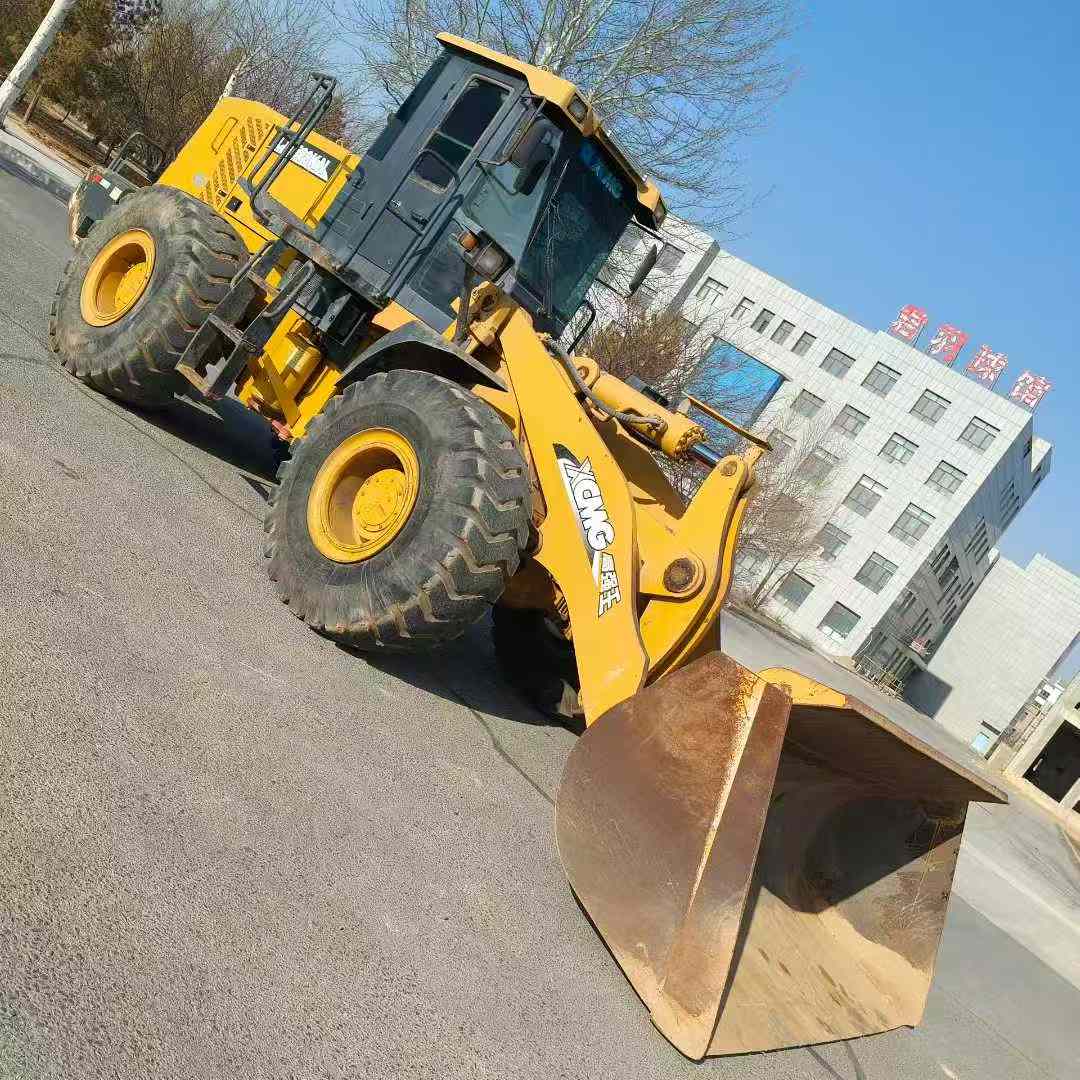

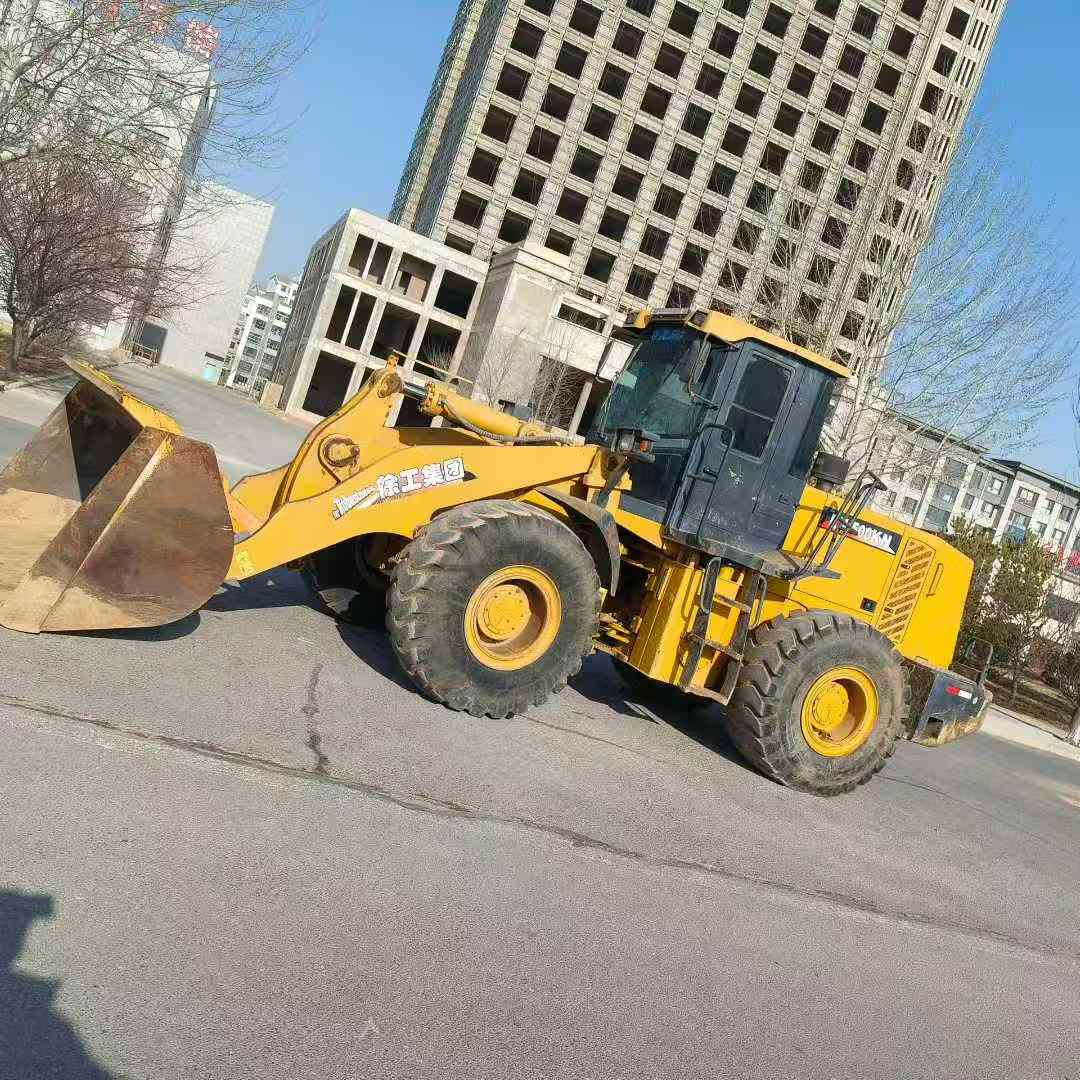

Built for immediate deployment on demanding job sites, this 2013 XCMG LW500KN wheel loader delivers reliable performance where it counts. Powered by a WD10G220E23 engine generating 162 kW at 2000 rpm, this machine handles a rated load of 5000 kg with consistent power delivery. The 3300 mm wheelbase and robust 23.5-25-16PR tires provide stable operation across varied terrain conditions.
Compact dimensions—8225 mm length, 3016 mm width, and 3515 mm height—allow maneuvering in confined work areas while maintaining productivity. A 38-degree transaxle swing angle enhances operational flexibility for loading, material handling, and site preparation tasks. Maximum travel speed reaches 38 km/h for efficient repositioning between work zones.

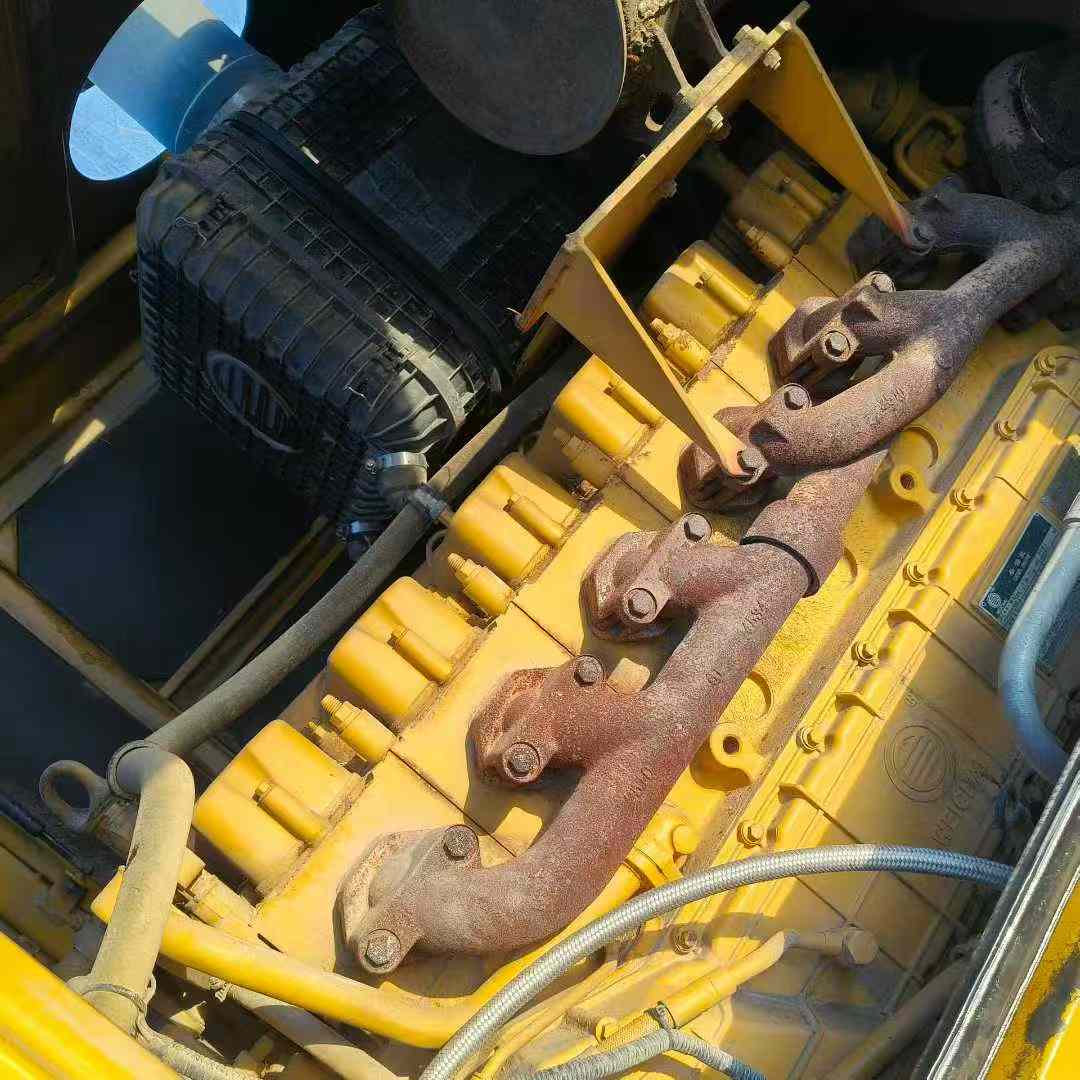

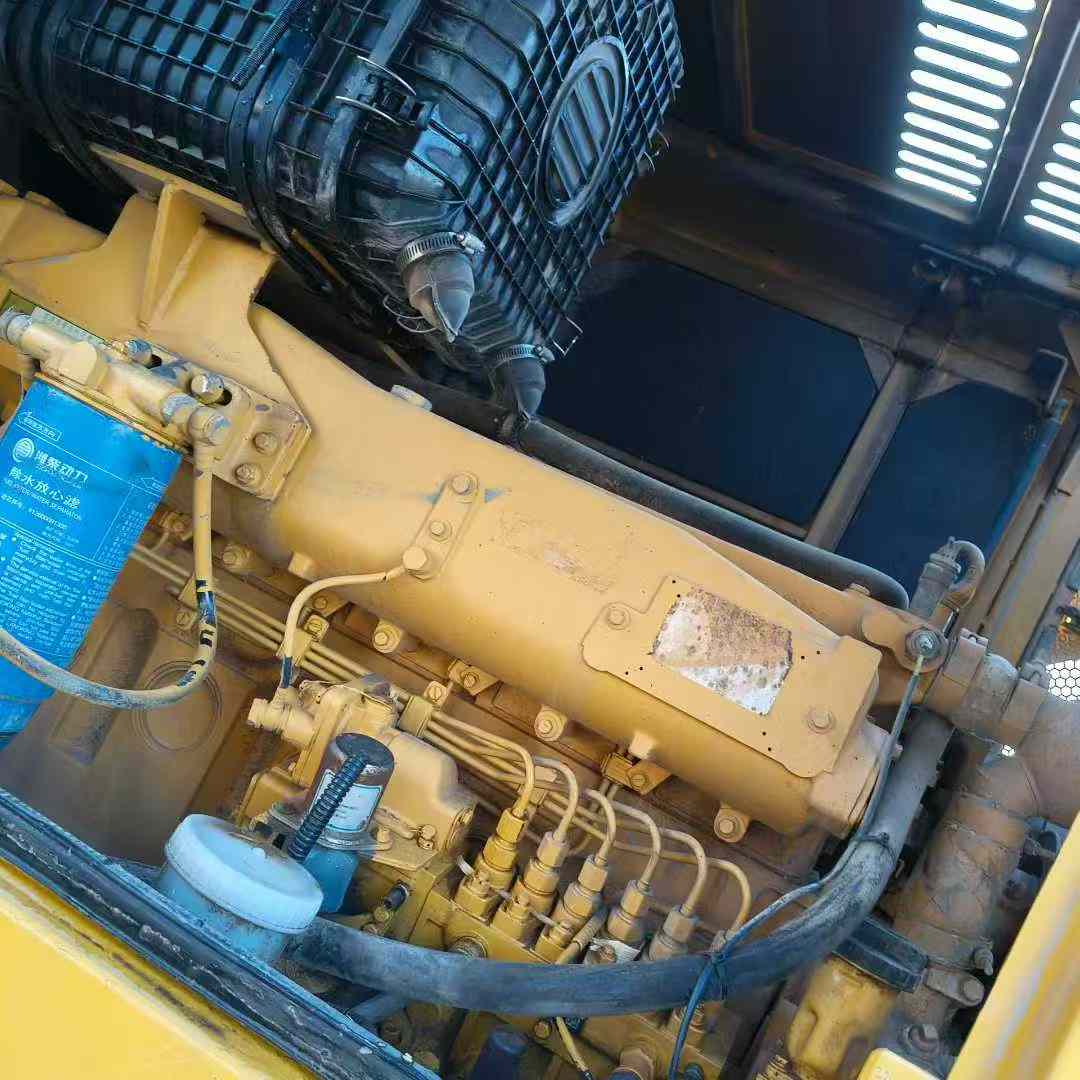

- WD10G220E23 engine: 162 kW rated power
- 5000 kg rated load capacity
- 3300 mm wheelbase for stability
- 38° articulation angle
- Currently located in Baoding, Hebei
Ready to tackle grading, loading, and material transport operations from day one. This loader represents proven XCMG engineering designed for continuous site work.
| Specifications | Value |
|---|---|
| No. | 1009109 |
| Engine type | WD10G220E23 |
| Rated power (kw/rpm) | 162/2000 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | |
| Machine operating weight (kg) | |
| Unloading height - Unloading Angle 45°(mm) | |
| Unloading distance - Unloading Angle 45°(mm) | |
| Maximum tractive force (kN) | |
| Wheelbase (mm) | 3300 |
| Wheel base (mm) | 2250 |
| Machine length (mm) | 8225 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3515 |
| Transaxle swing Angle (°) | 38 |
| Tyre specification | 23.5-25-16PR |
| Minimum turning radius of outer wheel center line | |
| Lift (s) | |
| Ternary sum (s) | |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | |
| Maximum speed (km/h) | 38 |
