Product Description

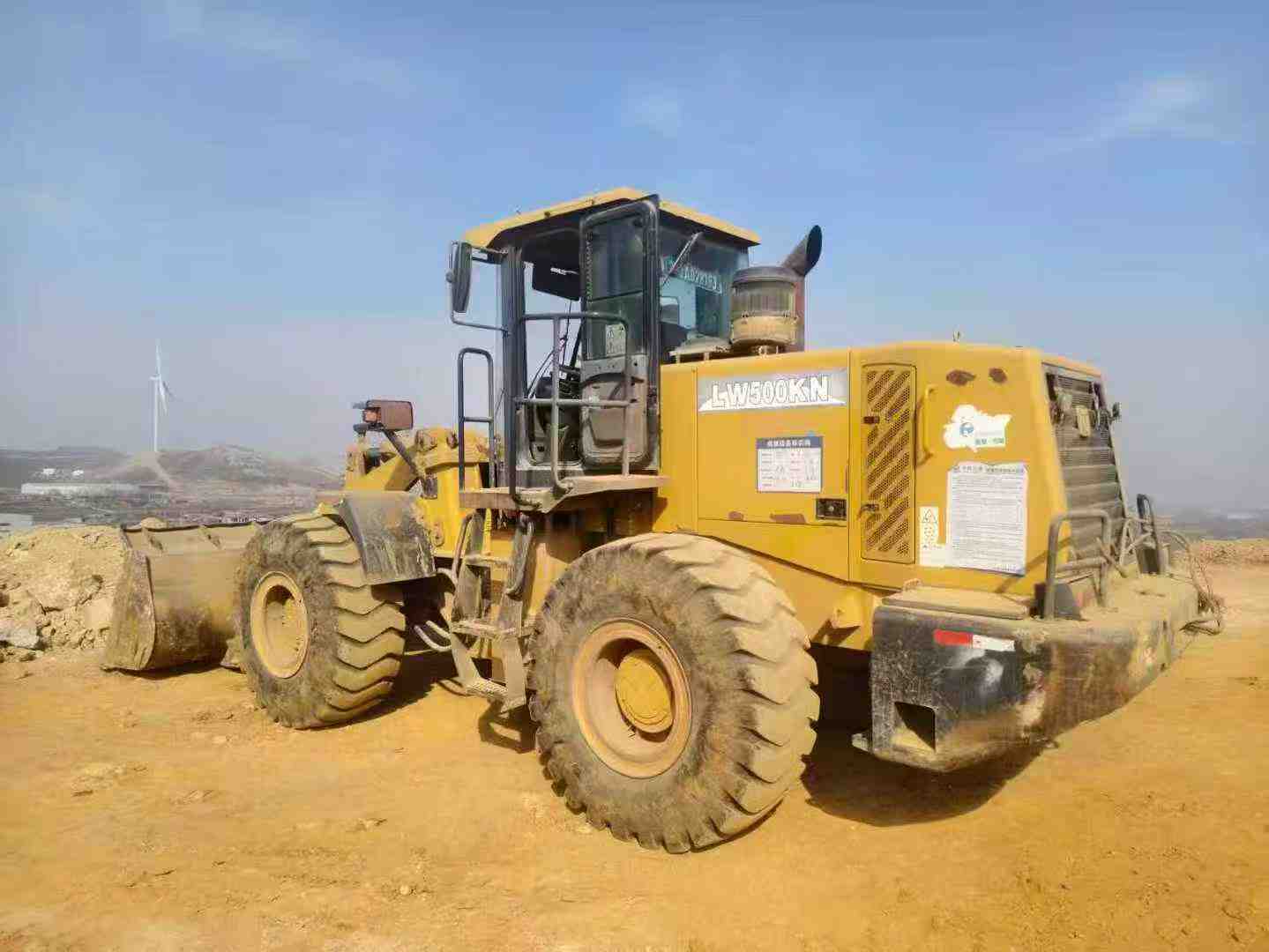

Engineered for demanding material handling operations, this 2014 XCMG LW500KN wheel loader delivers reliable performance with its WD10G220E23 engine producing 162 kW at 2000 rpm. With a 5000 kg rated load capacity and robust construction, this machine handles heavy-duty loading cycles with consistent efficiency. Currently located in Baoding, Hebei, this unit represents proven Chinese engineering designed for construction and aggregate applications.
Operators benefit from exceptional maneuverability through the 38-degree transaxle swing angle and 3300 mm wheelbase configuration, enabling precise positioning in confined work areas. The spacious cabin provides commanding visibility across the 8225 mm machine length, while 23.5-25-16PR tires ensure stable traction across varied terrain. Responsive hydraulic controls and a maximum speed of 38 km/h facilitate productive load-and-carry operations throughout the workday.
Key specifications include:
- Rated power: 162 kW at 2000 rpm
- Rated load capacity: 5000 kg
- Overall dimensions: 8225 × 3016 × 3515 mm
- Wheelbase: 3300 mm for enhanced stability
- Maximum operating speed: 38 km/h
| Specifications | Value |
|---|---|
| No. | 1007761 |
| Engine type | WD10G220E23 |
| Rated power (kw/rpm) | 162/2000 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | |
| Machine operating weight (kg) | |
| Unloading height - Unloading Angle 45°(mm) | |
| Unloading distance - Unloading Angle 45°(mm) | |
| Maximum tractive force (kN) | |
| Wheelbase (mm) | 3300 |
| Wheel base (mm) | 2250 |
| Machine length (mm) | 8225 |
| Machine width (mm) | 3016 |
| Machine height (mm) | 3515 |
| Transaxle swing Angle (°) | 38 |
| Tyre specification | 23.5-25-16PR |
| Minimum turning radius of outer wheel center line | |
| Lift (s) | |
| Ternary sum (s) | |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | |
| Maximum speed (km/h) | 38 |
