Product Description

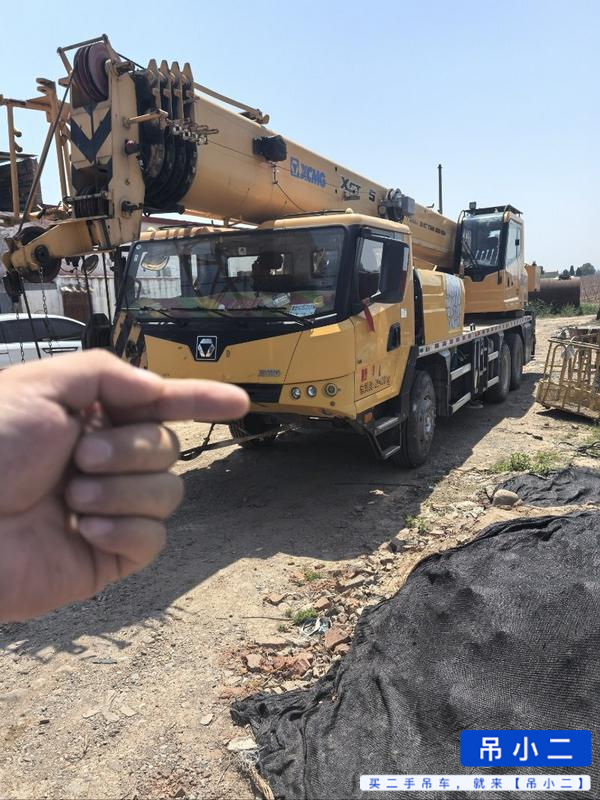

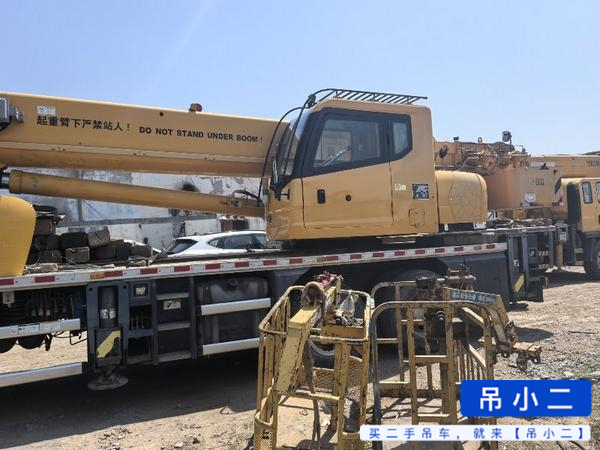

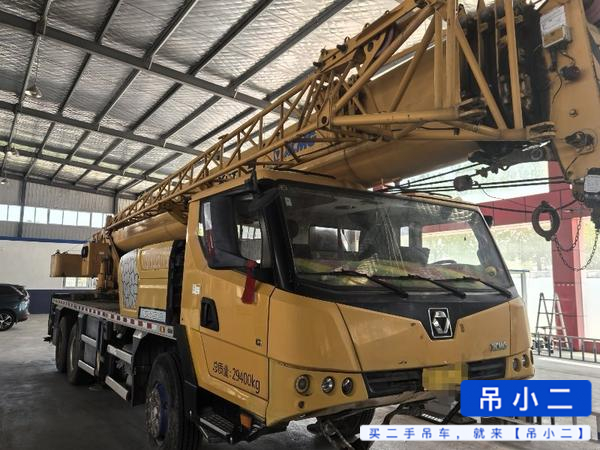

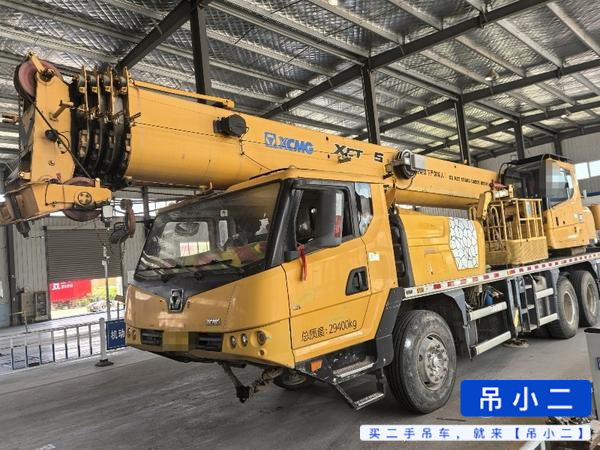

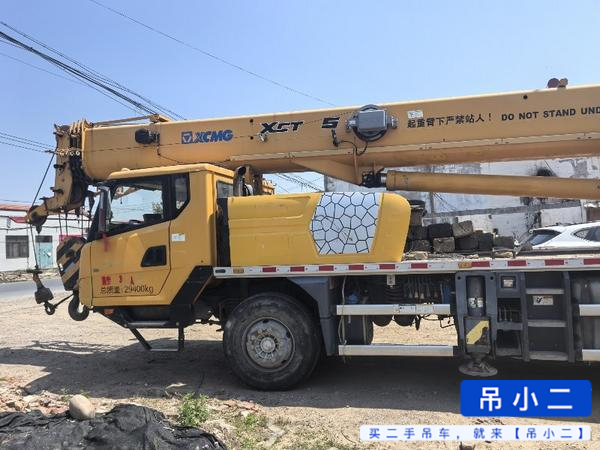

Engineered for precision lifting in demanding urban and industrial environments, this 2018 XCMG XCT20L5 truck crane represents the technical benchmark of XCMG's fifth-generation all-terrain crane series. Powered by a high-performance diesel engine paired with a fully hydraulic control system, this 20-tonne capacity crane delivers consistent, responsive lifting performance across variable load conditions.
- Maximum lifting capacity: 20 tonnes at rated radius
- Five-section full-power boom with synchronous telescoping hydraulics
- Advanced load moment indicator (LMI) with automatic safety cutoff

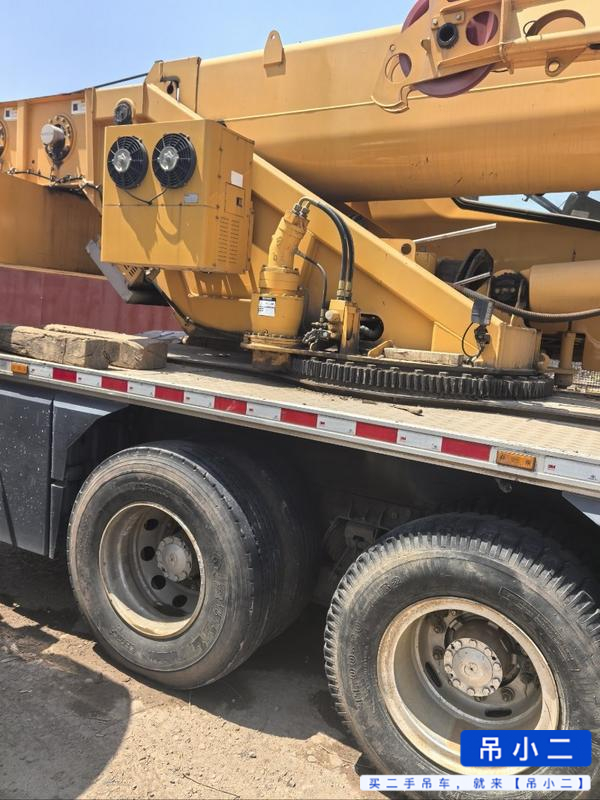

- 360° continuous rotation with hydraulic swing drive
- Compact carrier chassis optimized for tight job site access
- XCMG proprietary hydraulic distribution valve for precise boom control
- Currently located in Hebei, China — available for international export
Built to comply with stringent Chinese national standards and international export specifications, the XCT20L5 series is a proven workhorse across construction, infrastructure, and industrial maintenance sectors. Units sourced directly from Hebei benefit from proximity to major port logistics, reducing lead time for overseas buyers.
| Specifications | Value |
|---|---|
| No. | 1055762 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
