Product Description
Engineered for precision lifting across demanding job sites, this 2020 XCMG XCT20L5 truck crane delivers 20-tonne rated capacity backed by a robust hydraulic luffing and telescoping system designed for smooth, controlled load management. Powered by a high-torque diesel engine meeting current emission standards, the XCT20L5 benefits from XCMG's fifth-generation L5 Series engineering — a platform refined for structural rigidity, outrigger stability, and operator safety.
- Rated lifting capacity: 20 tonnes with optimized load chart performance
- Multi-section telescopic boom with high-strength steel construction
- Advanced hydraulic control system for precise, responsive boom and hook operation
- Full-width outrigger spread for maximum ground bearing stability

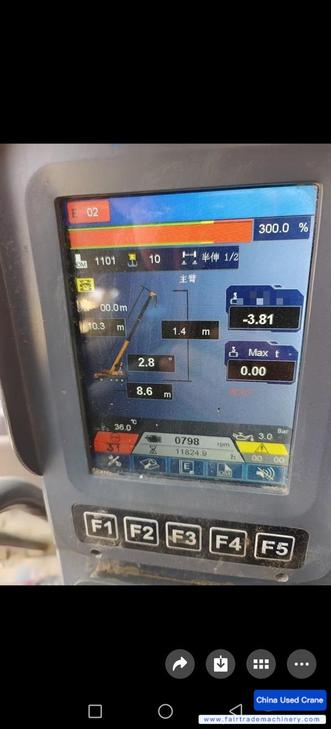

- Ergonomic cab with intuitive load moment indicator (LMI) system
- Built to XCMG's L5 Series quality standards with strict factory QC certification
- Currently available in Hebei, China — suitable for export worldwide
Built in 2020, this unit represents a reliable, well-specified lifting solution for contractors, rental fleets, and infrastructure operators requiring dependable performance at a competitive acquisition cost.
| Specifications | Value |
|---|---|
| No. | 1135746 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
