HOME>>XCMG>>XCMG xct8

2018 XCMG xct8

1/2

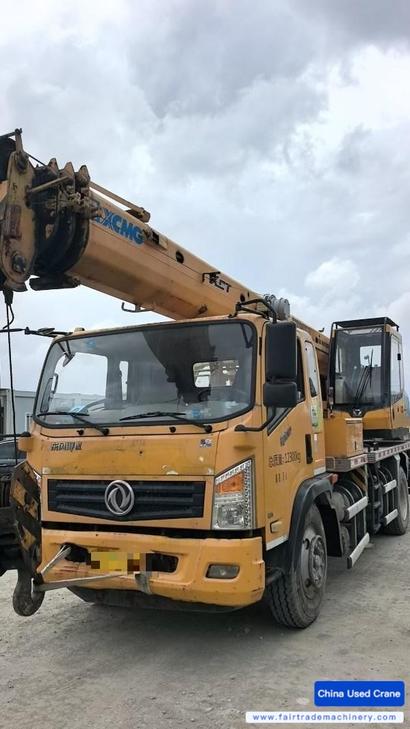

Buy XCMG xct8 Used Crane / 1
Buy XCMG xct8 Used Crane / 2

Product Description

Discover the 2018 XCMG XCT8, a robust and reliable crane currently available in Zhejiang, China. This model is designed to meet the stringent demands of various industrial applications, offering both efficiency and durability. The XCT8 features a 4-section boom, providing versatile reach and lifting capabilities. Equipped with National V emission standards, this crane ensures compliance with environmental regulations while delivering strong performance. Ideal for construction, manufacturing, and other heavy-duty tasks, the XCMG XCT8 from 2018 is a solid choice for businesses looking for a dependable and efficient machine.

  • Year: 2018
  • Brand: XCMG
  • Model: XCT8
  • Location: Zhejiang, China
  • Boom: 4 sections
  • Emission Standard: National V
SpecificationsValue
No.1133887
Tonnage (tons)2
Working weight (kg)1780
Bucket capacity (m³)0.044
Boom length (mm)1690
Rod length (mm)1100
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar Yanmar 3TNV82A
Rated power (kw/rpm)16.5/2200
Cooling modewater-cooling
Number of cylinders (PCS)3
Displacement (L)1.33
Ground specific pressure (Kpa)25.3
Rotation speed (rpm)11
Climbing ability (%)30 °
Bucket digging force (kN)13.9
Rod digging force (kN)8.8
Travel speed (km/h)4.4/2.4
Main overflow set pressure (Mpa)24
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)2*19.8+14.1
Traveling Hydraulic Circuit (Mpa)21
Rotary Hydraulic Circuit (Mpa)18
Hydraulic crushing pipeline is standardis
Main pump typeJapan non Fukoshi variable pump ×2+ gear pump ×1
Pilot Oil Circuit (MPa)3.3
Fuel Tank (L)20
Hydraulic Tank (L)29
Engine Oil changes (L)5.5
Total transport length (mm)3760
Total transport width (mm)1300
Total transport height (mm)2405
Counterweight ground clearance (mm)509
Minimum ground clearance (mm)180
Minimum turning radius of front working device (mm)1675
Back end turning radius (mm)1190
Track gauge (mm)1070
Track plate width (mm)230
Track ground length (mm)1217
Maximum digging radius (mm)3915
Maximum digging depth (mm)2285
Maximum excavation height (mm)2655
Maximum unloading height (mm)2515
Maximum vertical digging depth (mm)1485
Dodging plate width × height (mm)1300 x 235
see more

Overview

No.1133887

Brand Name:

XCMG

Model Number:

xct8

Year:

2018

Location:

Zhejiang China

Pub Date
