Product Description

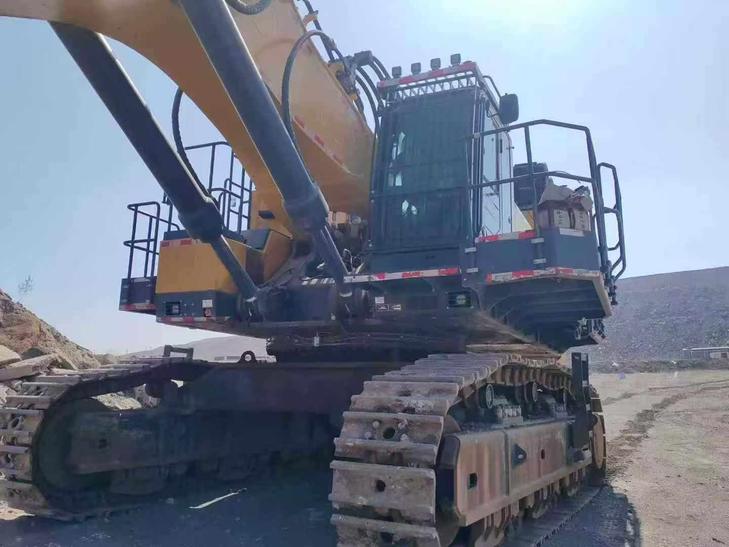

Engineered for extreme-duty mining and quarry operations, this 125-ton hydraulic excavator delivers exceptional performance through advanced Chinese manufacturing. Powered by a robust 567 kW engine operating at 1800 rpm, the XE1250 combines massive digging forces with precise hydraulic control for maximum productivity in demanding environments.
Technical specifications demonstrate superior capability:
- Operating weight: 115,000 kg with optimal stability for heavy excavation
- Bucket capacity: 5.2-8.5 m³ accommodating varied material handling requirements
- Bucket digging force: 597 kN for penetrating compacted materials
- Rod digging force: 470 kN ensuring consistent breakout performance
- Maximum digging radius: 13,860 mm extending operational reach
- Maximum digging depth: 8,110 mm for deep-cut applications
- Maximum unloading height: 7,990 mm facilitating efficient truck loading
- Rotation speed: 5.2 rpm optimizing cycle times
Currently located in Hangzhou, Zhejiang, this 2022 unit represents XCMG's commitment to heavy-duty excavator technology with proven reliability in large-scale earthmoving projects.
| Specifications | Value |
|---|---|
| No. | 1046376 |
| Tonnage (tons) | 125 |
| Working weight (kg) | 115000 |
| Bucket capacity (m³) | 5.2-8.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 567/1800 |
| Rotation speed (rpm) | 5.2 |
| Bucket digging force (kN) | 597 |
| Rod digging force (kN) | 470 |
| Travel speed (km/h) | 2.4-3.5 |
| Maximum digging radius (mm) | 13860 |
| Maximum digging depth (mm) | 8110 |
| Maximum unloading height (mm) | 7990 |
