Name: Used Excavators 2013 XCMG XE135B
Brand: XCMG
SKU: USED-1047947
Availability: InStock
Rating: 4.4 (79 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

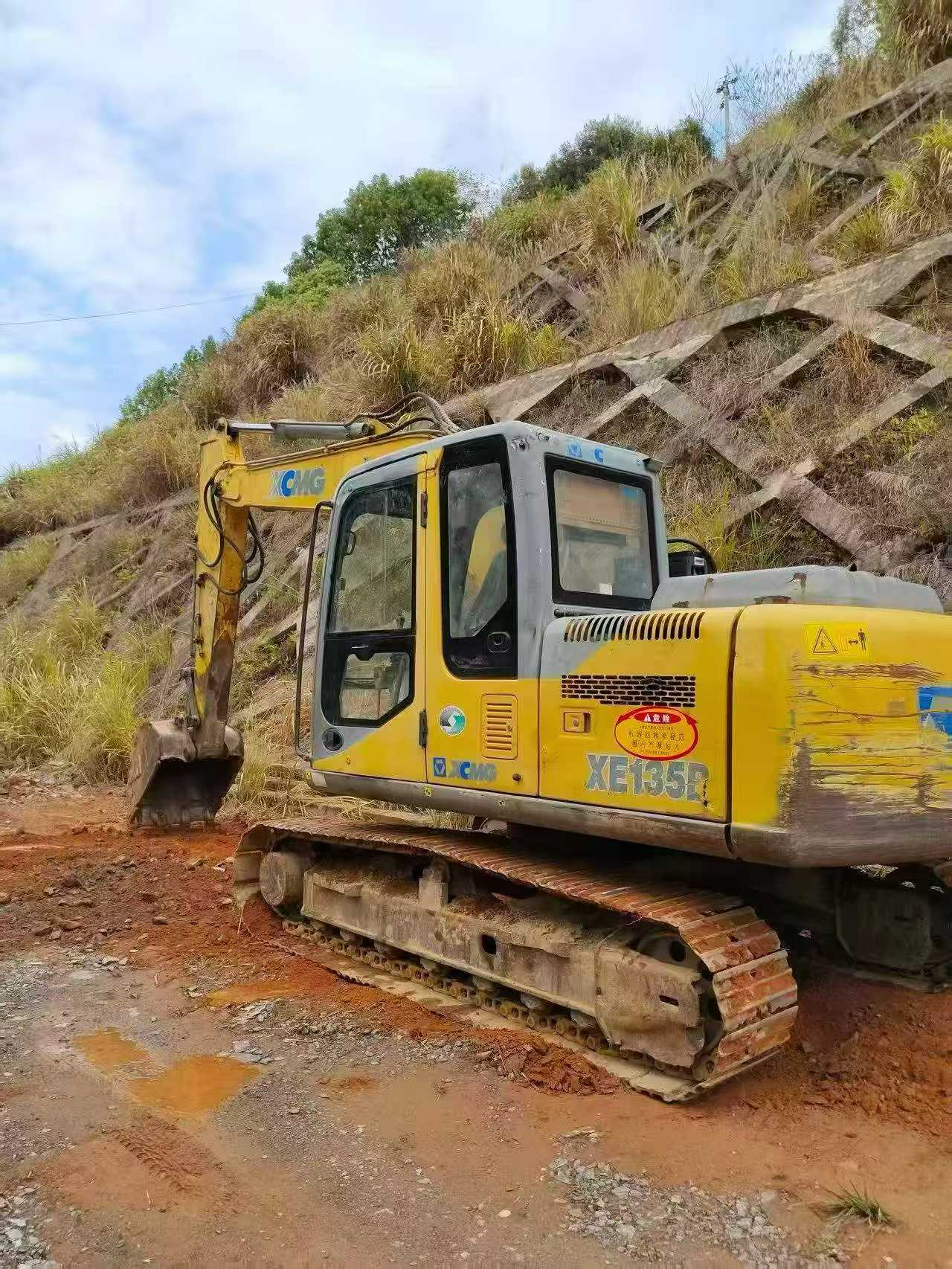

Built to endure the toughest jobsites, this 2013 XCMG XE135B excavator delivers proven performance backed by a decade of field-tested reliability. Powered by a robust ISUZU BB-4BG1TRP engine generating 69.6kW, this 13-ton workhorse combines exceptional digging force with efficient water-cooled operation. Its 0.4-0.52 m³ bucket capacity and impressive 85kN bucket digging force tackle demanding excavation tasks with consistent power, while the maximum digging depth of 5,538mm and 8,296mm reach ensure versatility across applications.

<ul>
 <li>Working weight: 13,800 kg with stable ground pressure of 42 kPa</li>

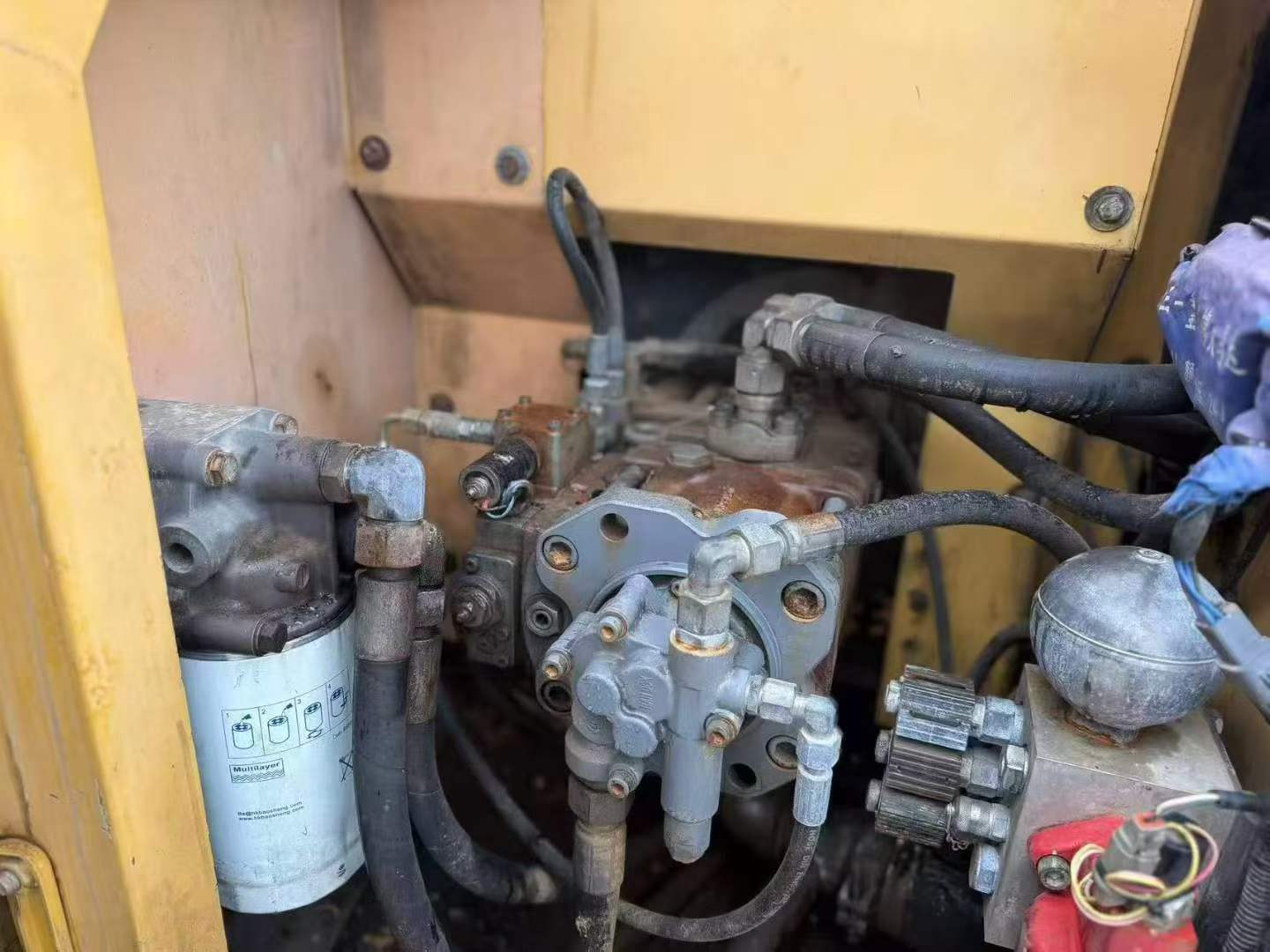

 <li>Dual plunger pump hydraulic system: 2×123 L/min flow for responsive control</li>
 <li>Travel speed: 5.16/3.03 km/h with 35° climbing capability</li>
 <li>Compact dimensions: 7,770mm transport length, 2,512mm width</li>
 <li>Generous fuel capacity: 250L tank for extended operation</li>
 <li>Currently located in Laibin, Guangxi</li>
</ul>

Manufactured in Xuzhou, China, this battle-tested machine represents XCMG's commitment to durability and engineering excellence. A proven workhorse ready for your next project.

Built to withstand the most demanding jobsites, this 2016 Sany SY245H crawler excavator demonstrates proven durability with years of reliable service already behind it. Operating at 24 tons with a robust 147kW D06FRC engine delivering 750 N·m of maximum torque, this Chinese-manufactured workhorse combines substantial power with exceptional performance metrics. Its 1.3-1.5 m³ backhoe bucket generates 175kN of digging force, while the water-cooled 6-cylinder engine ensures consistent operation across challenging conditions. With a maximum digging depth of 6,705mm and reach extending to 10,225mm, this machine tackles large-scale excavation with confidence.

<ul>
 <li>Working Weight: 25,500 kg with 600mm track plates for optimal stability</li>
 <li>Hydraulic Performance: 120kN arm force and 10.6 rpm rotation speed</li>
 <li>Fuel Efficiency: 475L tank capacity for extended operation</li>
 <li>Proven Reliability: 70% climbing ability and 5.4 km/h travel speed</li>
 <li>Currently Located: Zhejiang, China</li>
</ul>

After years in the field, this SY245H continues to perform, proving Sany's reputation for building equipment that endures.

Sany SY245H

Ready to deploy from Zhejiang, this 2022 Sany SY245H mid-size excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Powered by a robust 147kW D06FRC engine generating 750 N·m of torque, this 24-ton machine combines proven reliability with the digging performance your operations demand. With 175 kN bucket digging force and a maximum reach of 10,225mm, it tackles demanding excavation tasks across construction, mining, and infrastructure projects.

<ul>
 <li>Available Now: Skip 6-12 month factory lead times—inspect and ship directly from Zhejiang</li>
 <li>Operational Specs: 1.3-1.5m³ bucket capacity, 6,705mm max dig depth, 3,800mm turning radius</li>
 <li>Reliable Power: Water-cooled 6-cylinder engine (6.373L displacement) with 475L fuel capacity for extended shifts</li>
 <li>Transport-Ready Dimensions: 10,290mm length × 3,190mm width × 3,190mm height</li>
 <li>Fast Global Deployment: Strategic Zhejiang location ensures efficient container loading and competitive freight rates</li>
</ul>

Backed by complete technical documentation and pre-shipment inspection reports, this SY245H represents immediate e

Available now from our Zhejiang facility, this 2016 Sany SY245H hydraulic excavator delivers 24-ton performance without factory wait times. Powered by a robust D06FRC engine producing 147 kW at 2100 rpm, this machine combines a 1.5 m³ bucket capacity with 175 kN bucket digging force for demanding earthmoving applications. Skip the lead times and deploy this water-cooled, 6-cylinder workhorse directly to your construction site.

<ul>
<li>Operating weight: 25,500 kg with proven reliability for intensive excavation</li>
<li>Maximum digging reach: 10,225 mm; digging depth: 6,705 mm</li>
<li>Fast travel speed: 5.4 km/h for efficient site repositioning</li>
<li>Large fuel capacity: 475 L for extended operational shifts</li>
<li>70% gradeability and 3,800 mm minimum turning radius</li>
<li>Ready for immediate shipment from Zhejiang, China</li>
</ul>

Backed by Sany's engineering standards and positioned for rapid deployment, this SY245H offers contractors a turnkey solution for projects requiring immediate equipment availability. Inspect and arrange logistics today—no manufacturing delays, no extended downtime.

Engineered for operator confidence, this 2022 Sany SY245H delivers 24-ton performance with exceptional control and visibility. Powered by a robust D06FRC engine producing 147 kW at 2100 rpm, this excavator combines 175 kN bucket digging force with a smooth 10.6 rpm rotation speed for precise material handling. Operators benefit from superior cabin positioning at 3255 mm height, providing commanding sightlines across the 10,225 mm maximum digging radius.

<ul>
<li>Operator Comfort: Spacious cabin design with water-cooled engine reducing heat and vibration</li>
<li>Stable Platform: 25,500 kg working weight with 53.2 kPa ground pressure ensures minimal settling</li>
<li>Responsive Hydraulics: 1.3–1.5 m³ bucket capacity with 120 kN arm force for controlled digging</li>
<li>All-Day Endurance: 475 L fuel tank minimizes refueling downtime on extended shifts</li>
<li>Proven Reliability: 6-cylinder, 6.373 L displacement engine with 750 N·m torque at working rpm</li>
</ul>

Currently located in Zhejiang, China, this machine offers 70% gradeability and dual travel speeds (5.4/3.4 km/h) for versatile jobsite mobility. Ready for immediate deployment in de

Built in 2016, this Kobelco SK200-2 excavator delivers proven 20-ton performance backed by one of the industry's most trusted names in hydraulic machinery. Kobelco's joint venture manufacturing ensures consistent quality control and straightforward access to genuine replacement parts across global markets. Traditional power systems mean simplified maintenance protocols and lower long-term operating costs compared to hybrid alternatives.

Currently located in Zhejiang, this backhoe-configured unit represents smart value for contractors prioritizing equipment longevity and resale stability. Kobelco machines maintain strong secondary market demand due to their documented durability and widespread dealer support networks.

<ul>
<li>Operating weight: 20 tons</li>
<li>Configuration: Backhoe attachment</li>
<li>Power type: Traditional diesel</li>
<li>Manufacturing origin: Joint venture/Import quality standards</li>
<li>Parts availability: Extensive global supply chain</li>
</ul>

Invest in a machine engineered for reliable daily production with predictable maintenance intervals. Contact Fair Trade Machinery for complete inspection reports and shipping options to your operation.

Kobelco SK200-2

With a robust 48-ton capacity, the Sany SY485C, manufactured in 2020 and located in Zhejiang, China, ensures exceptional handling and stability. Equipped with traditional power, this excavator is designed for operators who demand reliability and precision. The backhoe bucket provides versatile digging capabilities, making it ideal for a variety of construction and excavation tasks. Inside, the cabin offers excellent visibility, enhancing operator comfort and safety. This model, made in China, is a testament to Sany's commitment to quality and performance, ensuring that every job is completed with efficiency and ease.

Sany SY485C

Available now in Guangdong Maoming, this 2012 Hitachi EX120 excavator eliminates factory lead times and accelerates your project timeline. Rated at 12 tons with traditional power and joint venture manufacturing quality, this backhoe-equipped machine is ready for immediate deployment to your site. Skip months of waiting—secure proven Japanese engineering that's inspection-ready and positioned for fast logistics throughout Southern China and international export routes.

<ul>
<li>Year: 2012</li>
<li>Model: Hitachi EX120</li>
<li>Operating Weight: 12 tons</li>
<li>Power Type: Traditional diesel</li>
<li>Configuration: Backhoe attachment</li>
<li>Manufacturing: Joint venture/Import quality</li>
<li>Current Location: Guangdong Maoming, China</li>
<li>Status: In stock, immediate availability</li>
</ul>

Positioned in a major logistics hub, this EX120 offers rapid shipping access via Maoming Port and highway networks. Whether you're scaling operations domestically or require container export, transportation coordination begins immediately upon purchase. Contact Fair Trade Machinery today to arrange inspection and expedited delivery to your worksite.

Hitachi EX120

Maximize your budget without compromising capability. This 2009 Komatsu PC60 excavator delivers proven 6-ton performance at a fraction of new equipment costs, making it an intelligent choice for contractors seeking reliable power and precision. Equipped with traditional power systems and a versatile backhoe configuration, this joint venture-manufactured machine handles diverse jobsite demands with Komatsu's renowned durability.

Currently located in Lianyungang, Jiangsu, this PC60 represents exceptional value for operations requiring compact yet powerful excavation equipment. Ideal for urban construction, utility work, and landscaping projects, it offers the maneuverability needed in confined spaces while maintaining robust digging force.

<ul>
<li>Operating weight: 6 tons</li>
<li>Configuration: Backhoe attachment</li>
<li>Power system: Traditional diesel</li>
<li>Manufacturing origin: Joint venture/Import quality</li>
<li>Year: 2009</li>
<li>Location: Lianyungang, Jiangsu Province</li>
</ul>

Invest strategically in field-tested equipment that continues to perform. Contact Fair Trade Machinery today to discuss acquisition details and shipping options worldwide.

Komatsu PC60

Built in 2020, this Sany SY60 compact excavator delivers reliable 6-ton performance for contractors who demand proven machinery without compromise. Currently located in Shangrao, Jiangxi, this traditional-power unit represents one of China's most widely supported equipment brands in the global used market. Sany's extensive dealer network ensures replacement parts arrive quickly and affordably, protecting your operational timeline and budget.

<ul>
<li>6-ton operating weight ideal for urban construction and utility work</li>
<li>Factory-equipped backhoe bucket ready for immediate deployment</li>
<li>2020 model year with low operational hours</li>
<li>Sany engineering backed by worldwide parts distribution</li>
<li>Strong resale value retention compared to lesser-known brands</li>
</ul>

Purchasing used Sany equipment means investing in a manufacturer with proven aftermarket support across six continents. Parts compatibility, technician familiarity, and diagnostic software availability make the SY60 a practical choice for operations requiring minimal downtime. This machine combines compact dimensions with the financial security of a globally recognized brand.

Sany SY60

Secure a proven 2016 Caterpillar 304CCR mini excavator ready for immediate deployment from our Shenzhen, Guangdong facility. Skip the factory lead times and put this 4-ton workhorse on your site within days. Powered by a reliable Mitsubishi S4Q2 engine delivering 32.7 kW at 2400 rpm, this compact machine combines serious digging capability with the agility demanded by urban construction and utility projects.

Key specifications built for productivity:
<ul>
<li>Operating weight: 4,920 kg with 0.36 m³ bucket capacity</li>
<li>Compact transport dimensions: 5,170 mm × 1,980 mm × 2,550 mm</li>
<li>9 rpm swing speed for efficient cycle times</li>
<li>4.6 km/h travel speed and 70% grading ability</li>
<li>Water-cooled 4-cylinder engine with 2.505L displacement</li>
<li>72L fuel tank for extended operation</li>
</ul>

Available now in Guangdong's logistics hub, this joint venture-manufactured excavator offers fast shipping access to domestic and international buyers. Eliminate project delays—contact Fair Trade Machinery today for rapid acquisition and delivery coordination.

Caterpillar 304CCR

XCMG XE135B

Built for immediate deployment on demanding jobsites, this 2016 Sany SY365C excavator delivers 36 tons of proven digging and grading power. Equipped with a versatile backhoe bucket, this machine tackles foundation work, trenching, demolition debris handling, and material loading without hesitation. Traditional power systems ensure straightforward maintenance and reliable fuel availability across global markets.

Currently positioned in Qingdao, Shandong, this Chinese-manufactured excavator represents practical engineering designed for contractors who need performance over flash. Its robust 36-ton operating weight provides the stability required for precision grading on commercial sites and the muscle needed for breaking hardpan or demolishing concrete structures.

<ul>
<li>36-ton operating class for serious earthmoving tasks</li>
<li>Backhoe bucket configuration ready for trenching and excavation</li>
<li>Traditional power system with proven reliability</li>
<li>2016 model year with serviceable hours remaining</li>
<li>Available for inspection in Qingdao, Shandong</li>
</ul>

Site-ready condition means reduced downtime between acquisition and revenue generation. Contact Fair Trade Machinery to arrange technical inspect

Sany SY365C

Built to endure the toughest job sites, this 2016 Doosan DH500 excavator represents proven engineering excellence from a trusted joint venture manufacturer. Operating at 50 tons with reliable traditional power, this machine has demonstrated its durability through years of consistent performance in demanding applications. Its robust construction and dependable backhoe configuration make it an ideal workhorse for large-scale earthmoving, mining operations, and heavy construction projects.

<ul>
<li>50-ton operating capacity for heavy-duty excavation tasks</li>
<li>Traditional power system ensures straightforward maintenance and operation</li>
<li>Backhoe bucket configuration optimized for versatile digging applications</li>
<li>Joint venture manufacturing combines international quality standards with practical design</li>
<li>Current location: Qingdao, Shandong, China</li>
</ul>

With eight years of proven service since 2016, this DH500 stands as testament to Doosan's reputation for building machines that deliver long-term value. Ready for immediate deployment in your heavy construction fleet.

Doosan DH500

Available now in Jinan, Shandong, this 2016 Sany SY75C-8 compact excavator eliminates factory wait times and ships directly to your project site. Skip the lead times—secure a proven 7-ton machine with immediate deployment capability. Powered by a reliable Isuzu CC-4JG1PAC engine delivering 40kW at 2100 RPM, this unit combines efficient water-cooling with robust hydraulic performance for demanding applications.

Operational specs include a 0.28m³ backhoe bucket, 6,250mm maximum digging radius, and 4,060mm digging depth. With 49kN bucket digging force and 35kN arm force, this excavator handles tough material efficiently. The 6,800kg working weight ensures stability while maintaining a compact 2,220mm transport width for easy logistics. Fast shipping from Jinan means reduced downtime and quicker ROI for contractors and rental fleets.

<ul>
<li>Immediate availability—no factory delays</li>
<li>Isuzu engine: proven reliability and serviceability</li>
<li>Compact dimensions: 6,000mm length for easy transport</li>
<li>70% grading ability tackles steep terrain</li>
<li>Strategic Shandong location enables rapid deployment</li>
</ul>

Secure this ready-to-work SY75C-8 and accelerate your project timeline today.

Sany SY75C-8

Secure a proven 6-ton excavator without the wait. This 2009 Komatsu PC60 backhoe is warehouse-ready in Jiangsu and available for immediate dispatch to your project site. Skip the factory lead times—traditional diesel power and joint venture engineering mean reliable performance from day one.

<ul>
<li>Year: 2009</li>
<li>Model: Komatsu PC60</li>
<li>Operating Weight: 6 tons</li>
<li>Configuration: Backhoe</li>
<li>Power Type: Traditional diesel</li>
<li>Origin: Joint venture/Import</li>
<li>Current Location: Jiangsu, China</li>
</ul>

Built for urban construction, utility work, and light earthmoving, this compact machine delivers Komatsu's trademark durability in a size that maneuvers easily on congested sites. Fast deployment means your crew stays on schedule. Contact us today to arrange inspection and logistics—this unit ships quickly from our Jiangsu facility.

Engineered for precision and daily productivity, this 2020 Caterpillar 320GC hydraulic excavator delivers proven performance across demanding jobsites. Operating at 20 tons with traditional diesel power, this joint venture-manufactured machine combines Caterpillar's global engineering standards with cost-effective construction capabilities. Currently positioned in Jiangsu, China, this backhoe-equipped excavator stands ready for infrastructure, earthmoving, and utility applications.

Operator-centric design defines the 320GC platform. Spacious cabin architecture provides exceptional 360-degree visibility, reducing blind spots during complex material handling and trenching operations. Hydraulic responsiveness ensures smooth boom and stick control, while integrated load-sensing systems optimize fuel consumption without sacrificing dig force. Ergonomic joystick placement and intuitive monitor positioning minimize fatigue during extended shifts.

<ul>
<li>20-ton operating weight for versatile site applications</li>
<li>Enhanced cab visibility with reduced A-pillar obstruction</li>
<li>Stable undercarriage design for sloped terrain work</li>
<li>Proven Cat diesel engine with reliable traditional power</li>
<li>Standard backhoe

Specifications	Value
No.	1047947
Tonnage (tons)	13
Working weight (kg)	13800
Bucket capacity (m³)	0.4-0.52
Boom length (mm)	4600
Rod length (mm)	2510
Country of origin	Xuzhou
power	Traditional power
manufacturer	Made in China
bucket	backhoe
Engine type	ISUZU BB-4BG1TRP
Rated power (kw/rpm)	69.6/2200
Cooling mode	water-cooling
Number of cylinders (PCS)	4
Displacement (L)	4.329
Working form	turbocharging
Ground specific pressure (Kpa)	42
Rotation speed (rpm)	12.3
Climbing ability (%)	35 °
Bucket digging force (kN)	85
Rod digging force (kN)	65
Travel speed (km/h)	5.16/3.03
Main overflow set pressure (Mpa)	31.4/34.3
Maximum flow of main pump (l/min)	2*123
Traveling Hydraulic Circuit (Mpa)	34.3
Rotary Hydraulic Circuit (Mpa)	25
Hydraulic crushing pipeline is standard	no
Main pump type	Two plunger pumps
Pilot Oil Circuit (MPa)	3.9
Fuel Tank (L)	250
Hydraulic Tank (L)	130
Engine Oil changes (L)	14
Total transport length (mm)	7770
Total transport width (mm)	2512
Total transport height (mm)	2880
Counterweight ground clearance (mm)	964
Minimum ground clearance (mm)	478
Minimum turning radius of front working device (mm)	2335
Back end turning radius (mm)	2294
Track gauge (mm)	1990
Track plate width (mm)	500
Track ground length (mm)	2910
Maximum digging radius (mm)	8296
Maximum digging depth (mm)	5538
Maximum excavation height (mm)	8641
Maximum unloading height (mm)	6181
Maximum vertical digging depth (mm)	4727

2013 XCMG XE135B
