Product Description

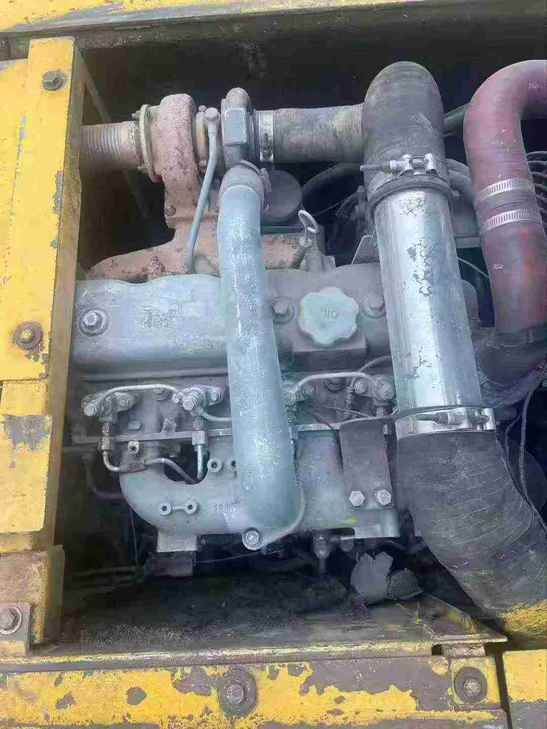

Powered by an ISUZU BB-4BG1TRP engine, this 2014 XCMG XE135B excavator delivers a robust 69.6 kW at 2200 rpm, ensuring reliable performance. Equipped with two plunger pumps, the hydraulic system operates at a main overflow set pressure of 31.4/34.3 Mpa, providing a maximum flow of 2*123 l/min. The machine's turbocharged, water-cooled engine and 4-cylinder design enhance efficiency and durability.
- Working weight: 13,800 kg
- Bucket capacity: 0.4-0.52 m³
- Boom length: 4600 mm
- Rod length: 2510 mm
- Ground specific pressure: 42 Kpa
- Travel speed: 5.16/3.03 km/h
- Maximum digging radius: 8296 mm
- Maximum digging depth: 5538 mm
Engineered for precision and power, the XE135B boasts a bucket digging force of 85 kN and a rod digging force of 65 kN, making it ideal for demanding construction and excavation tasks. Located in 四川泸州, this excavator is ready to meet your project needs with its advanced technical specifications and robust build quality.
| Specifications | Value |
|---|---|
| No. | 1020440 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
