Product Description

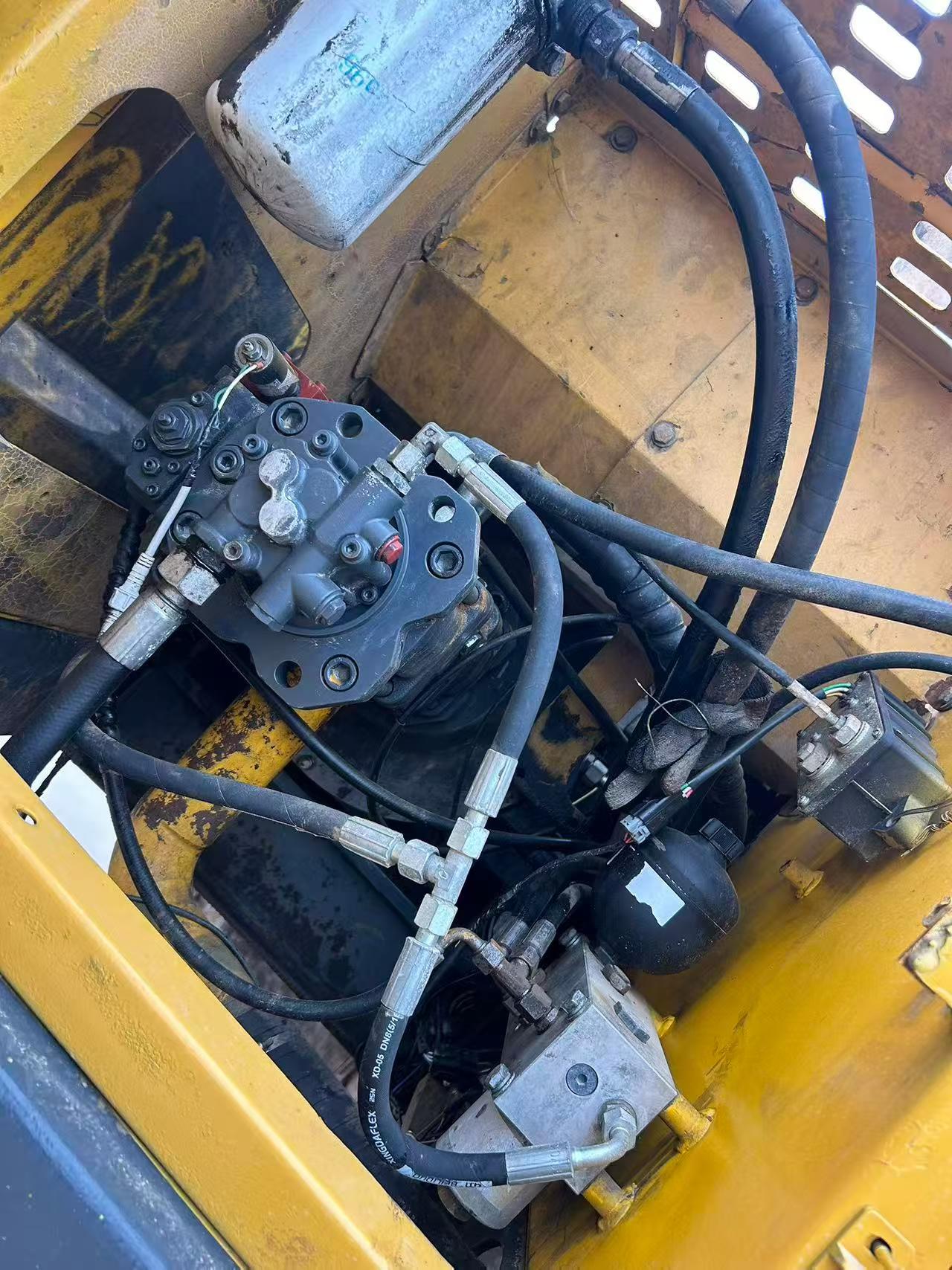

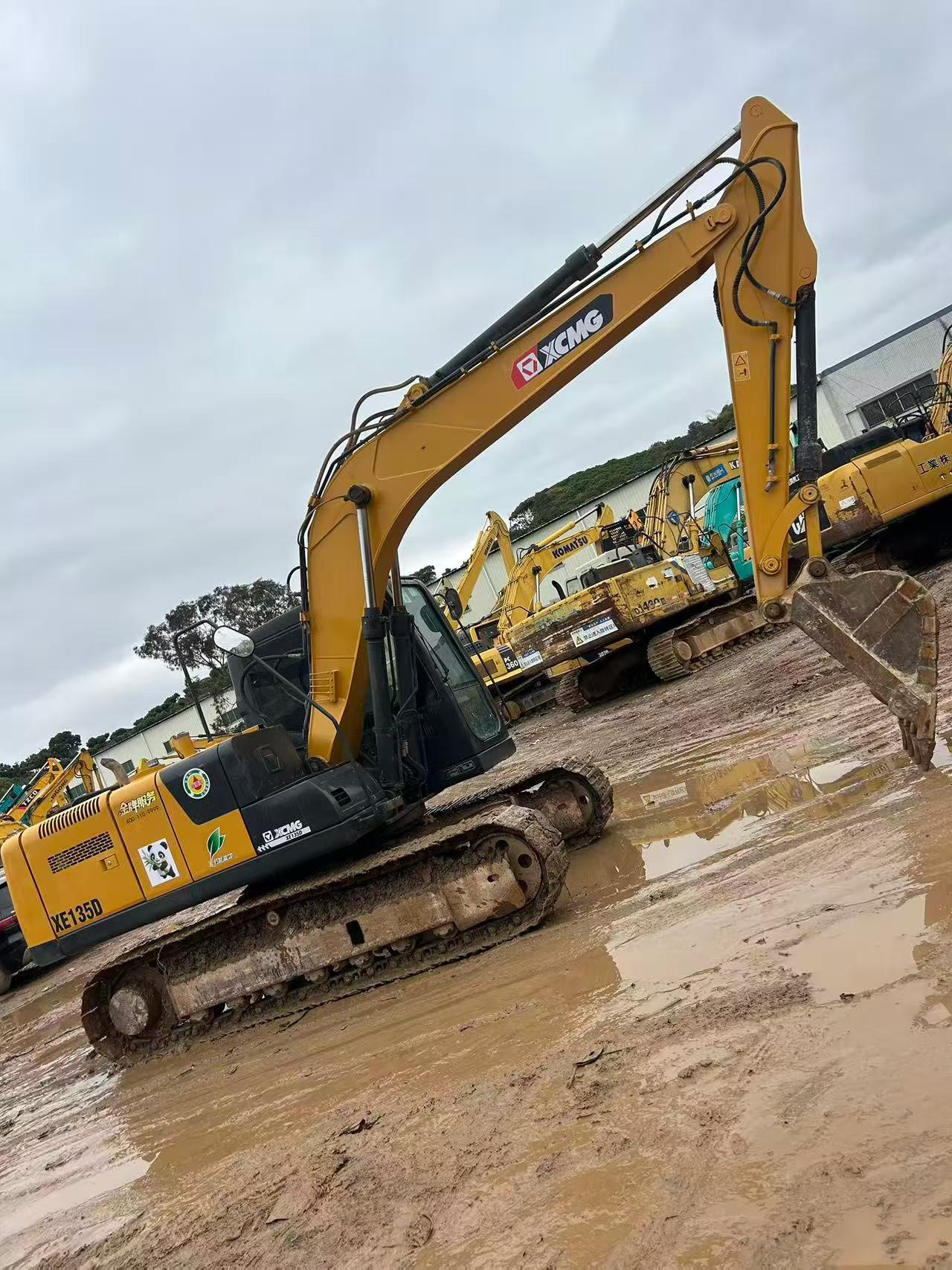

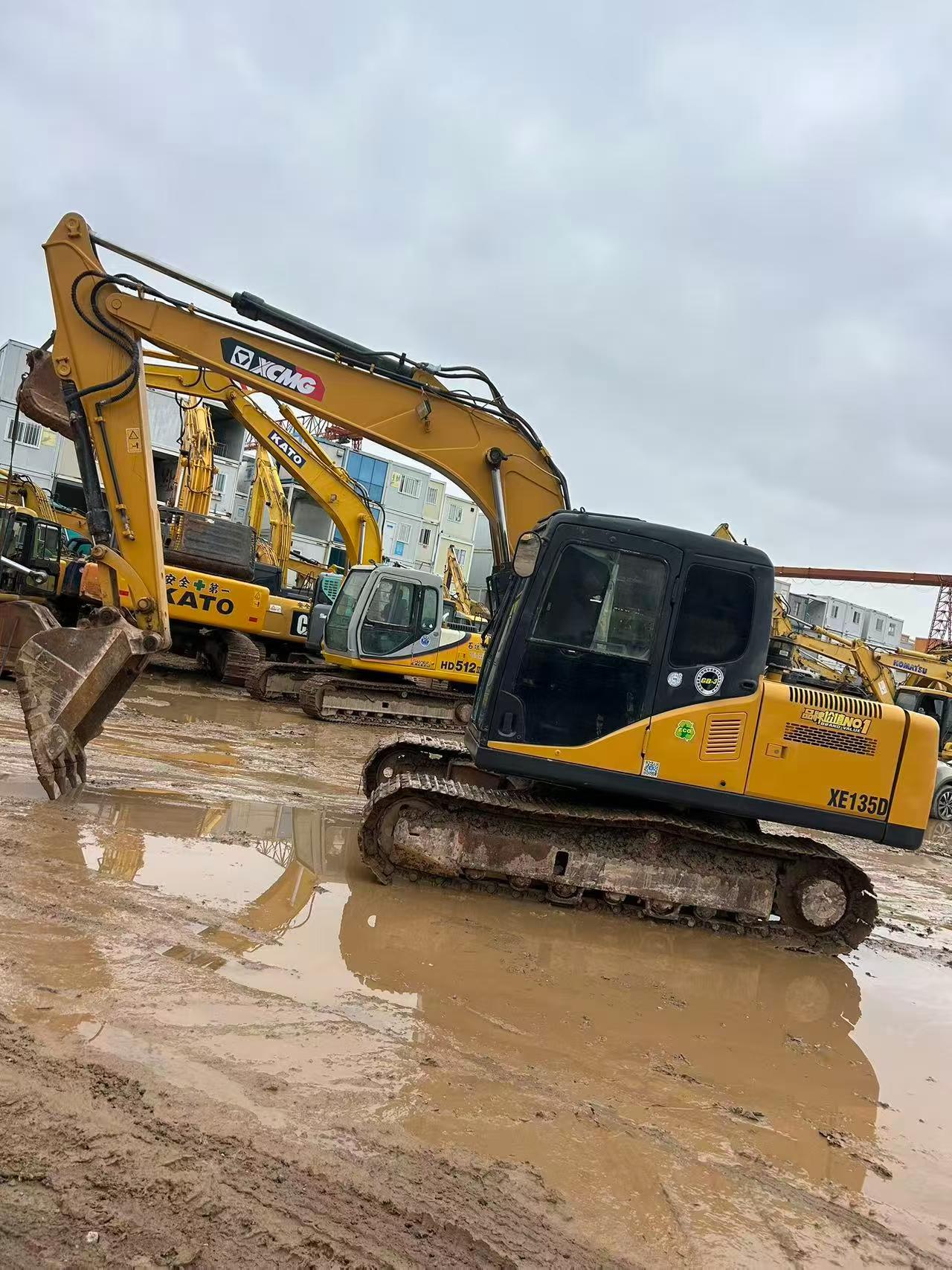

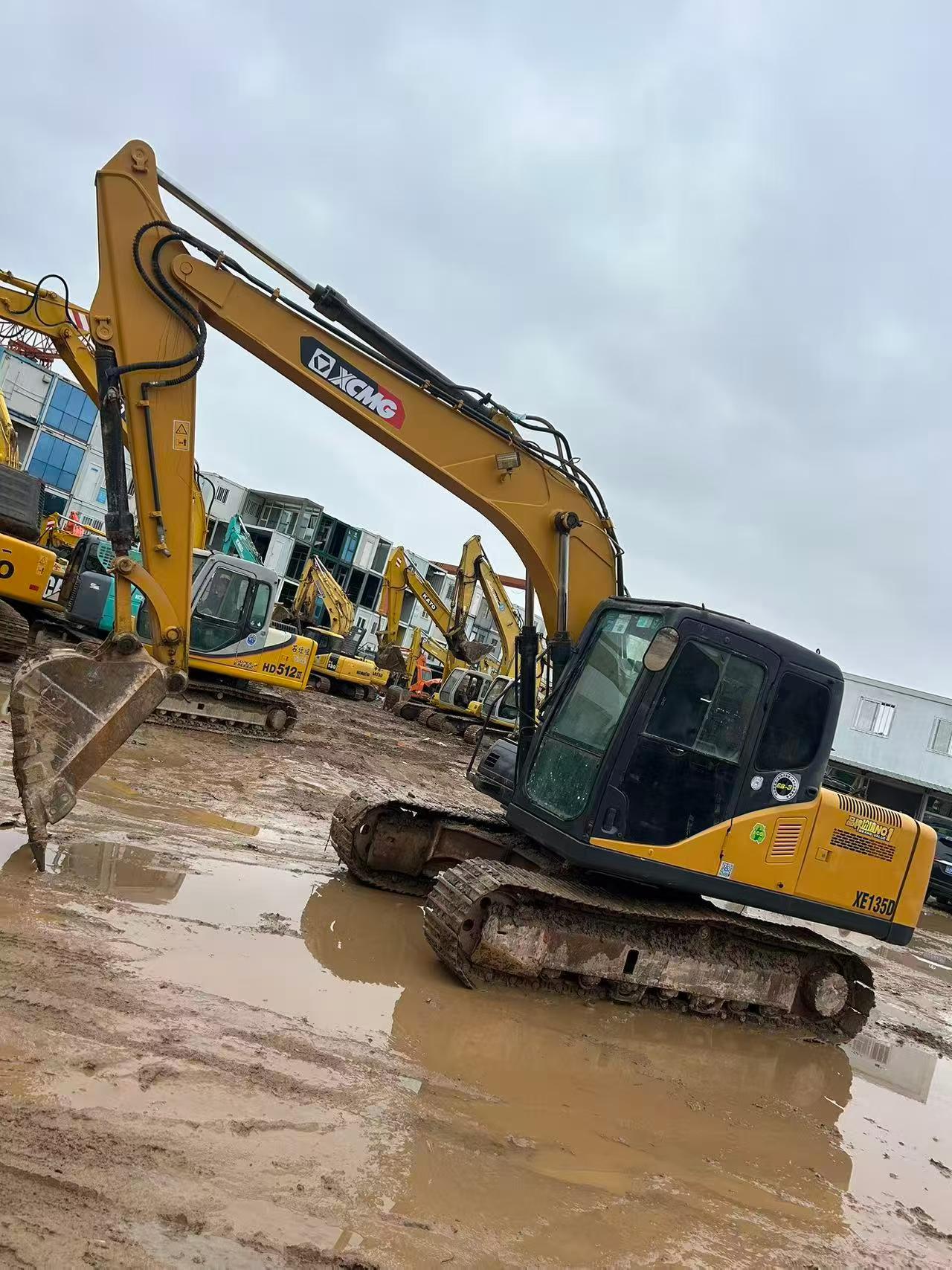

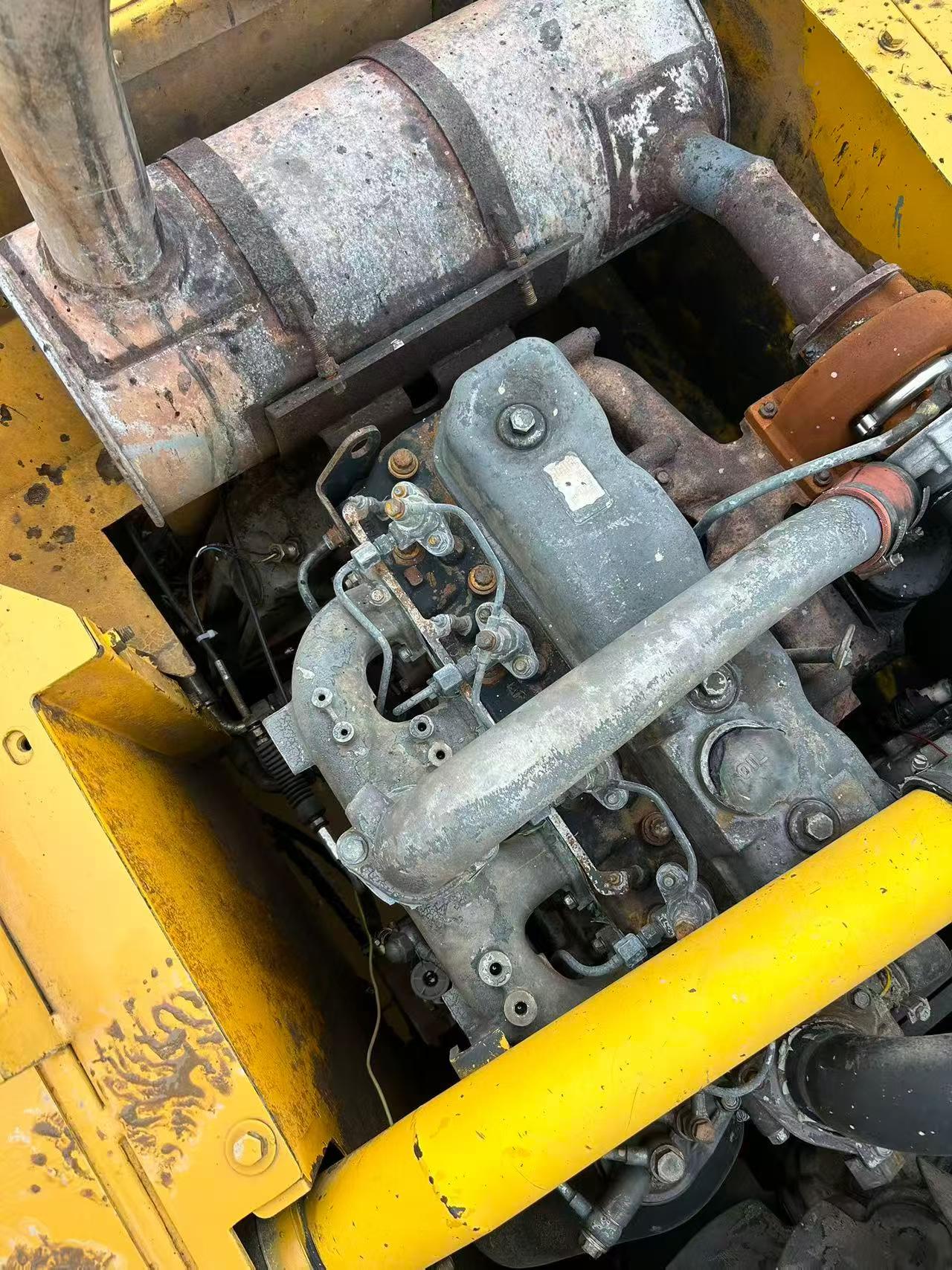

Built for productivity, this 2016 XCMG XE135B crawler excavator delivers 13-ton performance across demanding jobsites. Powered by an ISUZU BB-4BG1TRP turbocharged engine producing 69.6 kW at 2200 rpm, this machine combines reliable water-cooled operation with proven hydraulic power. Dual plunger pumps supply 2×123 L/min flow at 31.4 MPa, driving an 85 kN bucket digging force and 65 kN arm digging force through a 4600 mm boom and 2510 mm stick.
Operational specs include:
- Maximum digging reach: 8296 mm with 5538 mm depth capability
- 0.4-0.52 m³ bucket capacity for efficient material handling
- 12.3 rpm swing speed with 35° grading ability
- Compact transport dimensions: 7770×2512×2880 mm
- 250 L fuel capacity for extended runtime
Currently located in Shenzhen, Guangdong, this site-ready excavator requires no downtime for modifications. Standard configuration handles trenching, foundation work, and material loading immediately upon delivery. Proven Chinese engineering meets international component quality for dependable performance in construction, utility, and demolition applications.
| Specifications | Value |
|---|---|
| No. | 1029006 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
