Name: Used Excavators 2016 XCMG XE135B
Brand: XCMG
SKU: USED-1035296
Availability: InStock
Rating: 4.9 (62 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Built to last through years of demanding site work, this 2016 XCMG XE135B 13-ton crawler excavator stands as a proven workhorse with a documented service history originating from Guangxi, China. Nearly a decade in operation is a direct testament to XCMG's engineering integrity — this machine has earned its reputation on real job sites under real working conditions.

Powered by a robust ISUZU BB-4BG1TRP turbocharged, water-cooled 4-cylinder engine producing 69.6 kW at 2,200 RPM, the XE135B delivers consistent hydraulic performance through dual plunger pumps with a maximum flow of 2×123 L/min. A main overflow pressure of up to 34.3 MPa and a bucket digging force of 85 kN confirm this unit still carries serious digging capability.

Key specifications at a glance:

<ul>
 <li>Operating Weight: 13,800 kg | Bucket Capacity: 0.40–0.52 m³</li>
 <li>Maximum Digging Depth: 5,538 mm | Maximum Digging Radius: 8,296 mm</li>
 <li>Maximum Excavation Height: 8,641 mm | Unloading Height: 6,181 mm</li>
 <li>Travel Speed: 5.16 / 3.03 km/h | Climbing Ability: 35°</li>
 <li>Track Plate Width: 500 mm | Ground Pressure: 42 kPa</li>
 <li>Fuel Tank: 250 L | Hydraulic Tank: 130 L</li>
 <li>Transport Dimensions (L×W×H): 7,770 × 2,512 ×

Maximize your excavation budget with this 2019 Doosan DX60 mini excavator from Anhui Fuyang—delivering proven performance at a fraction of new equipment cost. Powered by a reliable Yanmar 4TNV94L engine producing 39.7kW, this 6-ton workhorse combines efficiency with impressive capabilities: 6150mm maximum digging radius, 3805mm digging depth, and 44kN bucket digging force. Built by a joint venture manufacturer in Yantai, China, this compact machine offers exceptional maneuverability with just 1650mm rear turning radius and 400mm ground clearance.

<ul>
<li>Engine: Yanmar 4TNV94L, 39.7kW @ 2200rpm</li>
<li>Operating Weight: 5700kg with 0.21m³ bucket capacity</li>
<li>Digging Performance: 6150mm reach, 3805mm depth, 44kN bucket force</li>
<li>Hydraulics: Dual 60.5 L/min pumps + 36 L/min auxiliary, 21.6 MPa circuits</li>
<li>Dimensions: 5850mm (L) × 2000mm (W) × 2575mm (H) transport size</li>
<li>Mobility: 78% grading ability, 4.1/3.0 km/h travel speeds</li>
</ul>

Ideal for construction, landscaping, and utility work requiring compact access without sacrificing power. Smart buyers choose proven used equipment—superior value, im

Doosan DX60

Secure proven excavation power without the premium cost. This 2022 XCMG XE370 delivers 37-ton performance with traditional power reliability, originating from China's leading heavy equipment manufacturer. Currently positioned in Wenzhou, Zhejiang, this machine represents smart capital allocation for contractors demanding professional-grade capability at used equipment pricing.

<ul>
<li>Year: 2022</li>
<li>Model: XCMG XE370</li>
<li>Operating Weight: 37 tons</li>
<li>Power System: Traditional power</li>
<li>Configuration: Backhoe bucket</li>
<li>Origin: Made in China</li>
<li>Location: Wenzhou, Zhejiang</li>
</ul>

Acquire high-capacity excavation capabilities at a fraction of new equipment investment. This recent-year model combines XCMG's engineering standards with substantial cost savings, enabling fleet expansion or replacement without depleting operational budgets. Ready for immediate deployment across infrastructure, mining, or heavy civil projects requiring dependable 37-ton class performance.

XCMG XE370

Powered by a proven Isuzu 4JJ1 engine delivering 73kW at 2000rpm, this 2020 Sany SY125C excavator combines 12-ton performance with long-term operational economy. Sany's position as China's leading construction equipment manufacturer ensures parts availability across global markets, protecting your investment through accessible maintenance and strong resale value. Hydraulic muscle delivers 90.6kN bucket digging force and reaches 7,735mm maximum digging radius, while the water-cooled powertrain and 240L fuel tank support extended shift work. Originally commissioned in Wenzhou, Zhejiang, this machine features a 0.55m³ standard bucket capacity suitable for general excavation, trenching, and site development. Total transport dimensions of 7,280mm length keep logistics manageable for international buyers.

<ul>
<li>Working Weight: 12,450kg</li>
<li>Engine: Isuzu 4JJ1-XDJAG-01-C3 (73kW)</li>
<li>Max Digging Depth: 5,190mm</li>
<li>Max Digging Reach: 7,735mm</li>
<li>Bucket Force: 90.6kN</li>
<li>Fuel Capacity: 240L</li>
</ul>

Sany SY125C

With a working weight of 34,900 kg and a tonnage of 35 tons, the 2016 Kobelco SK350-8, located in Jiangsu, stands as a robust choice for demanding projects. Designed with the operator in mind, this excavator ensures smooth handling and exceptional stability, even on uneven terrains. The cabin offers unparalleled visibility, enhancing safety and efficiency during operation. Equipped with a backhoe bucket and powered by traditional power sources, this machine is a reliable asset from a joint venture/import manufacturer. Ideal for operators who prioritize control and comfort, the SK350-8 delivers consistent performance and durability.

Kobelco SK350-8

With a working weight of 21,500 kg and a bucket capacity ranging from 0.9 to 1.1 m³, this 2016 Sany SY205C excavator is a reliable choice for your construction needs. Made in China, Sany is known for its robust machines that offer excellent parts availability and strong resale value, making it a safe investment in the used heavy equipment market.
<ul>
 <li>Rated power: 118 kW at 2000 rpm</li>
 <li>Ground specific pressure: 47.3 Kpa</li>
 <li>Travel speed: 5.4/3.3 km/h</li>
 <li>Bucket digging force: 138 kN</li>
 <li>Maximum digging depth: 6600 mm</li>
</ul>
Located in 广东深圳, this excavator features a backhoe bucket, ensuring versatility and efficiency on various job sites. Its climbing ability of 70% or 35° and a minimum ground clearance of 440 mm make it suitable for challenging terrains. Trust Sany for durable, dependable performance and ease of maintenance.

Sany SY205C

Built for operators who demand precision and endurance in the most demanding extraction and earthmoving applications, the 2023 Sany SY1350H is a 135-ton hydraulic excavator engineered to perform. Powered by a Cummins QSK23-FR engine producing 567 kW at 1,350 rpm and generating 3,468 N·m of peak torque, this machine delivers the raw muscle required for large-scale mining and heavy civil construction. From the operator's seat, a commanding cab position paired with wide sightlines gives the operator direct visual control over the working envelope — critical when managing a 10.0 m³ backhoe bucket with a digging force of 645 kN.

<ul>
 <li>Engine: Cummins QSK23-FR — 23L displacement, 6-cylinder, turbocharged, water-cooled direct injection</li>
 <li>Rated Power: 567 kW / 1,350 rpm | Max Torque: 3,468 N·m</li>
 <li>Operating Weight: 122,000 kg | Ground Pressure: 148 kPa</li>
 <li>Bucket Digging Force: 645 kN | Rod Digging Force: 540 kN</li>
 <li>Fuel Tank Capacity: 1,580 L — extended shift autonomy without frequent refueling stops</li>
 <li>Undercarriage: 3 sprockets, 8 track wheels, 50 track plates per side for stable ground eng

Sany SY1350H

Built for operators who demand precision and confidence on site, the 2021 Sany SY200C is a 20-tonne hydraulic excavator engineered for serious earthmoving work. Manufactured in China and sourced from Guangdong Foshan, this machine arrives with a working weight of 21,500 kg and a bucket capacity of up to 1.0 m³, making it a reliable workhorse across construction, land clearing, and foundation projects.

From the cab, operators benefit from excellent sightlines and ergonomic controls designed to reduce fatigue during extended shifts. A rated power output of 118 kW at 2,000 rpm drives responsive hydraulics, while a low ground pressure of 47.4 kPa ensures stable footing on varied terrain. Climbing capability reaches 70% (35°), giving this machine confident mobility across challenging job sites.

<ul>
 <li>Bucket Digging Force: 138 kN</li>
 <li>Arm Digging Force: 103 kN</li>
 <li>Travel Speed: 5.4 / 3.4 km/h (High/Low)</li>
 <li>Rotation Speed: 11 rpm</li>
 <li>Power Type: Traditional (Diesel)</li>
 <li>Bucket Type: Backhoe</li>
 <li>Origin: Made in China | Located in Foshan, Guangdong</li>
</ul>

Sany SY200C

Built for serious groundwork, this 2014 Hitachi EX130 13-ton hydraulic excavator is prepped and ready to move to your next job site. Sourced from Foshan, Guangdong, this joint-venture import machine carries the proven reliability Hitachi is known for across global construction markets. Equipped with a backhoe bucket and running on traditional power, it delivers consistent digging force and stable hydraulic response for demanding day-to-day operations.

<ul>
 <li>Year: 2014 — mature, field-tested performance with proven mechanical reliability</li>
 <li>Operating Weight: 13 tons — ideal for mid-scale excavation, trenching, and site clearance</li>
 <li>Bucket Configuration: Backhoe — optimized for precision digging, grading, and demolition work</li>
 <li>Power System: Traditional diesel power — dependable output with straightforward maintenance</li>
 <li>Origin: Joint venture / Import — built to international engineering standards</li>
 <li>Location: Foshan, Guangdong — available for swift domestic transport or export logistics</li>
</ul>

From foundation trenching to debris clearance and slope grading, this EX130 is a no-

Hitachi EX130

Built in Japan and engineered for durability, this 2016 Komatsu PC120 represents one of the most dependable choices in the 12-ton excavator segment. Komatsu's global parts network ensures minimal downtime and straightforward maintenance — a critical advantage when sourcing a used machine. Strong resale value and widespread dealer support make the PC120 a low-risk investment for contractors and fleet operators alike.

Powered by the proven Komatsu S4D105-5 engine producing 67.1 kW across a 4.3L displacement, this backhoe excavator delivers consistent hydraulic output with a maximum main pump flow of 323 L/min. Operating weight sits at 11,498.6 kg, with a ground pressure of just 41.2 kPa — well-suited for varied terrain conditions.

<ul>
 <li>Maximum digging depth: 5,000 mm</li>
 <li>Maximum excavation radius: 7,540 mm</li>
 <li>Maximum excavation height: 7,550 mm</li>
 <li>Maximum unloading height: 5,220 mm</li>
 <li>Travel speed: 2.2 / 3.6 km/h</li>
 <li>Climbing ability: 70% / 35°</li>
 <li>Fuel tank capacity: 230 L</li>
 <li>Track plate width: 480 mm</li>
 <li>Currently located in Meizhou, Guangdong Province — available for inspection</li>
</ul>

Komatsu PC120

Built for serious earthmoving demands, the 2018 Doosan DX520LC is a 52-ton hydraulic excavator that delivers consistent, heavy-duty performance backed by one of the most trusted names in the global used equipment market. Sourced from Zhejiang, Shaoxing, China, this backhoe excavator carries a working weight of 50,700 kg and a rated power output of 245 kW — purpose-built for large-scale excavation, mining prep, and infrastructure projects.

Choosing Doosan in the used market is a calculated advantage. As a joint-venture/import-grade manufacturer, Doosan maintains a robust international parts network, meaning reduced downtime and straightforward servicing regardless of your operating region. Strong resale value and wide dealer support make the DX520LC a low-risk, high-return investment.

<ul>
 <li>Year: 2018</li>
 <li>Model: Doosan DX520LC</li>
 <li>Operating Weight: 50,700 kg (52 tons)</li>
 <li>Rated Power: 245 kW</li>
 <li>Bucket Type: Backhoe</li>
 <li>Power Type: Traditional (Diesel)</li>
 <li>Origin: Zhejiang, Shaoxing, China</li>
</ul>

Doosan DX520LC

Staged in Zhejiang Shaoxing and available for immediate dispatch, this 2015 Doosan DX380LC puts 38-tonne excavating power on your site without the factory wait. Skip the lead times — this machine is pre-owned, inspected, and ready to load. Positioned in one of China's most logistics-connected provinces, fast rail, road, and port access means shorter transit windows whether your project is domestic or international.

Powering operations is the DE12TIA C2A six-cylinder engine producing 202 kW (274 hp) at 1,800 rpm — turbocharged, air-cooled, and direct-injected for consistent output across demanding dig cycles. Backed by dual variable piston pumps flowing up to 2 × 279 L/min and a bucket digging force of 249 kN, this DX380LC handles hard-pack, rock-mixed soil, and deep-trench work with equal authority.

<ul>
 <li>Working weight: 38,100 kg | Bucket capacity: 1.4 – 1.9 m³</li>
 <li>Max digging depth: 7,120 mm | Max digging radius: 10,850 mm</li>
 <li>Boom: 6,500 mm | Arm: 2,900 mm | Ground pressure: 71.59 kPa</li>
 <li>Fuel tank: 610 L | Hydraulic tank: 206 L</li>
 <li>Transport dimensions: 11,380 × 3,350 × 3,740 mm</li>
 <li>Location: Zhejiang Shaoxing, China — port &

Doosan DX380LC

Ready for immediate dispatch from Zhejiang Shaoxing, this 2017 Hitachi EX130 puts a proven 13-ton backhoe excavator on your jobsite without the wait. Skip the factory lead times and move straight into productive operation — this machine is available now, inspected, and positioned for fast logistics across domestic and international markets.

Built under joint-venture/import manufacturing standards, the EX130 delivers the reliability and parts accessibility that working contractors demand. Traditional power configuration keeps maintenance straightforward and operational costs predictable on any project.

<ul>
 <li>Year: 2017 — strong remaining service life</li>
 <li>Operating Weight: 13 tons — versatile across utility, civil, and foundation work</li>
 <li>Attachment: Backhoe bucket, ready for trenching and excavation tasks</li>
 <li>Power: Traditional engine — low complexity, easy field servicing</li>
 <li>Location: Zhejiang Shaoxing — direct port and highway access for rapid deployment</li>
 <li>Availability: In stock — no lead time, no production delays</li>
</ul>

Sourced direc

Built around Komatsu's SAA6D125E-5 engine — a 11.04L, 6-cylinder, water-cooled, turbocharged direct-injection powerplant rated at 257 kW / 1,900 rpm — the PC450-8 represents precision Japanese engineering at the 45-ton class. Electronic speed regulation and a dual axial-plunger hydraulic system delivering up to 690 L/min of main pump flow give this machine the muscle and control demanded by large-scale civil, mining, and infrastructure operations.

<ul>
 <li>Digging Performance: Bucket digging force 278 kN | Rod digging force 233 kN | Max digging depth 7,790 mm | Max digging radius 12,005 mm</li>
 <li>Bucket & Attachment: 2.1 m³ backhoe bucket | 7,060 mm boom | 3,380 mm rod | Standard hydraulic lines for auxiliary tools</li>
 <li>Hydraulics: Travel circuit 37.3 MPa | Swing circuit 27.9 MPa | Pilot control circuit 3.2 MPa</li>
 <li>Mobility: Three-speed travel up to 5.5 km/h | 70% grading ability | Ground pressure 84.1 kPa</li>
 <li>Capacity: 650 L fuel tank | 248 L hydraulic tank | Transport dimensions 12,040 × 3,580 × 3,660 mm</li>
 <li>Origin & Location: Japanese-manufactured | Currently available in Shaoxing, Zhejiang,

Komatsu PC450-8

Built for operators who demand proven reliability, this 2020 Sumitomo SH210-5 represents one of the most dependable choices in the 20-tonne used excavator segment. Sumitomo's joint-venture manufacturing heritage means global parts networks remain active and accessible, protecting your investment long after purchase. Strong resale value and consistent market demand make this machine a financially sound acquisition for contractors and fleet managers alike.

Powered by a 4-cylinder, 117.3 kW engine with 5.193L displacement, this 20,600 kg machine delivers 142 kN of bucket digging force and 103 kN of rod digging force — figures that hold up across demanding civil, mining, and infrastructure applications. A variable axial piston travel motor and dual-speed travel system (3.4/5.6 km/h) ensure responsive, controlled performance across varied terrain.

<ul>
 <li>Bucket Capacity: 0.9–1.0 m³</li>
 <li>Maximum Digging Depth: 6,650 mm</li>
 <li>Maximum Digging Radius: 9,900 mm</li>
 <li>Maximum Excavation Height: 9,610 mm</li>
 <li>Main Pump Max Flow: 422 L/min</li>
 <li>Fuel Tank Capacity: 410 L</li>
 <li>Climbing Abi

Sumitomo SH210-5

Built to endure the demands of heavy construction, this 2016 Sany SY205C excavator stands as a proven workhorse with years of reliable field performance behind it. Sourced from Zhejiang, China, this 20-ton machine demonstrates that quality Chinese-engineered equipment delivers lasting value on job sites worldwide. Its longevity speaks directly to Sany's robust manufacturing standards — a machine still performing at spec years after leaving the factory floor.

Powered by a 118 kW engine at 2,000 RPM, the SY205C delivers consistent digging force with a bucket capacity of 0.9–1.1 m³ and a bucket digging force of 138 kN. Whether tackling deep trenching or heavy material handling, its proven mechanical integrity holds firm.

<ul>
 <li>Working Weight: 21,500 kg</li>
 <li>Maximum Digging Depth: 6,600 mm</li>
 <li>Maximum Digging Radius: 10,280 mm</li>
 <li>Maximum Excavation Height: 9,600 mm</li>
 <li>Bucket Digging Force: 138 kN</li>
 <li>Rod Digging Force: 109 kN</li>
 <li>Travel Speed: 5.4 / 3.3 km/h</li>
 <li>Climbing Ability: 70% / 35°</li>
 <li>Track Plate Width:

Built to endure the toughest job sites, this 2017 XCMG XE215 backhoe excavator stands as a proven workhorse with years of reliable performance behind it. At 21 tons of operating weight, this Chinese-manufactured machine delivers the raw digging force and structural integrity that demanding construction, mining, and earthmoving operations require. Seven years of field-proven durability speak louder than any specification sheet.

Powered by a traditional combustion engine, the XE215 offers straightforward mechanical reliability — easy to service, simple to maintain, and built for consistent output across long working hours. Currently located in Kunming, Yunnan, this unit is well-positioned for buyers across Southeast Asia and beyond.

<ul>
 <li>Year: 2017</li>
 <li>Brand / Model: XCMG XE215</li>
 <li>Operating Weight: 21 Tons</li>
 <li>Attachment: Backhoe Bucket</li>
 <li>Power Type: Traditional (Diesel)</li>
 <li>Manufacturer Origin: Made in China</li>
 <li>Current Location: Kunming, Yunnan, China</li>
</ul>

For buyers who value a machine with a track record over an untested alternative, this XE

Specifications	Value
No.	1035296
Tonnage (tons)	13
Working weight (kg)	13800
Bucket capacity (m³)	0.4-0.52
Boom length (mm)	4600
Rod length (mm)	2510
Country of origin	Xuzhou
power	Traditional power
manufacturer	Made in China
bucket	backhoe

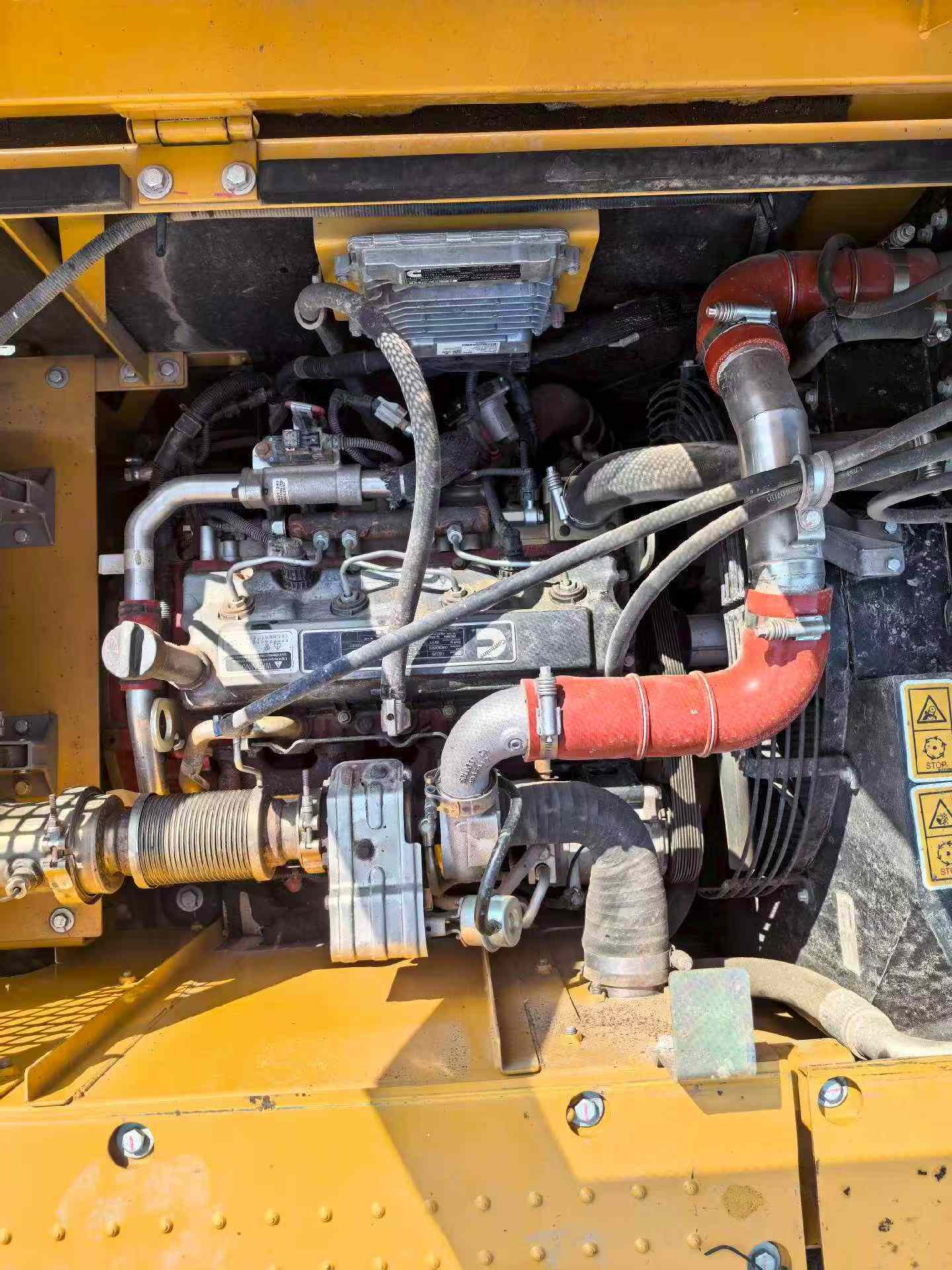

Engine type	ISUZU BB-4BG1TRP
Rated power (kw/rpm)	69.6/2200
Cooling mode	water-cooling
Number of cylinders (PCS)	4
Displacement (L)	4.329
Working form	turbocharging
Ground specific pressure (Kpa)	42
Rotation speed (rpm)	12.3
Climbing ability (%)	35 °
Bucket digging force (kN)	85
Rod digging force (kN)	65
Travel speed (km/h)	5.16/3.03
Main overflow set pressure (Mpa)	31.4/34.3
Maximum flow of main pump (l/min)	2*123
Traveling Hydraulic Circuit (Mpa)	34.3
Rotary Hydraulic Circuit (Mpa)	25
Hydraulic crushing pipeline is standard	no

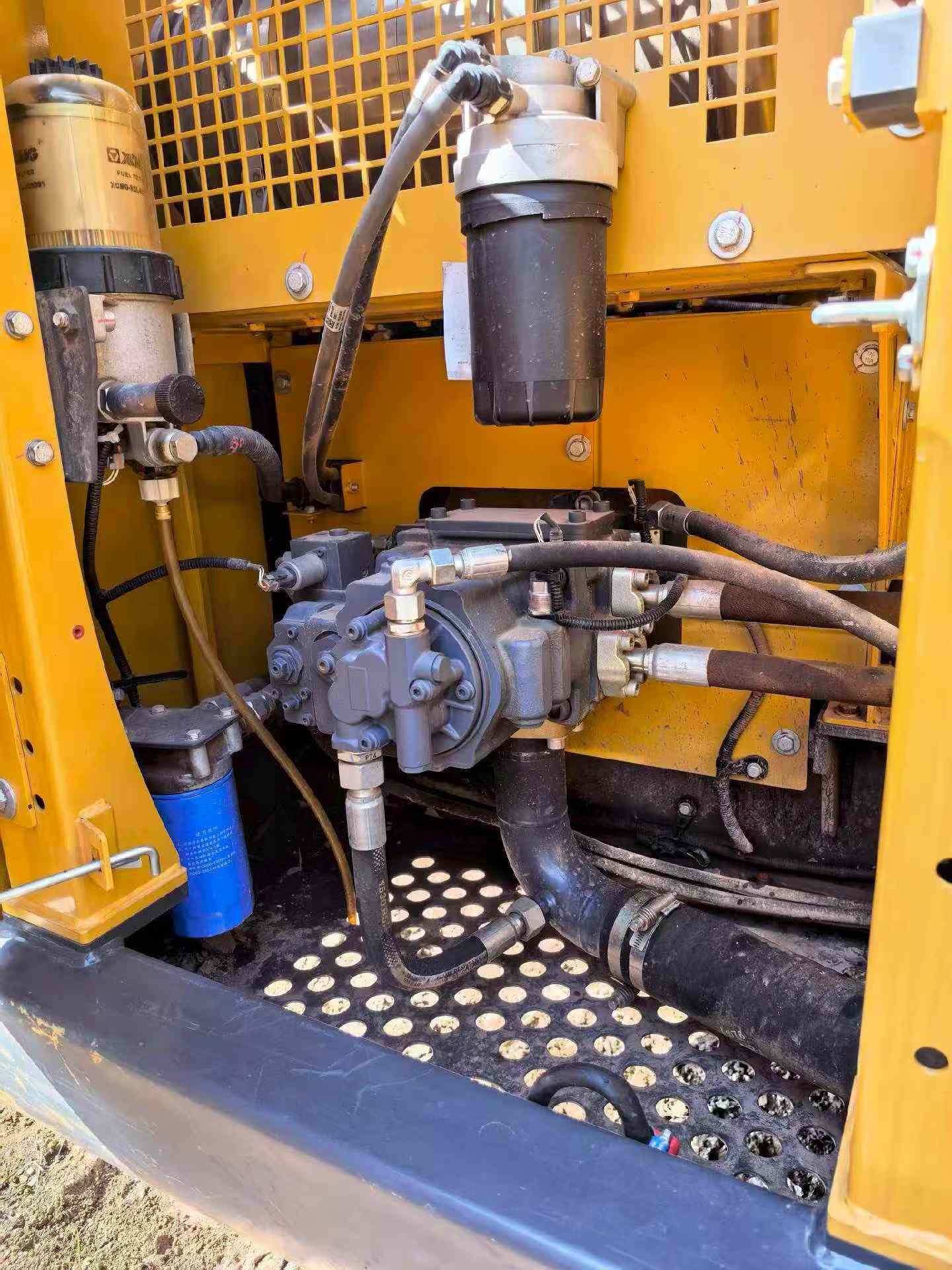

Main pump type	Two plunger pumps
Pilot Oil Circuit (MPa)	3.9
Fuel Tank (L)	250
Hydraulic Tank (L)	130
Engine Oil changes (L)	14
Total transport length (mm)	7770
Total transport width (mm)	2512
Total transport height (mm)	2880
Counterweight ground clearance (mm)	964
Minimum ground clearance (mm)	478
Minimum turning radius of front working device (mm)	2335
Back end turning radius (mm)	2294
Track gauge (mm)	1990

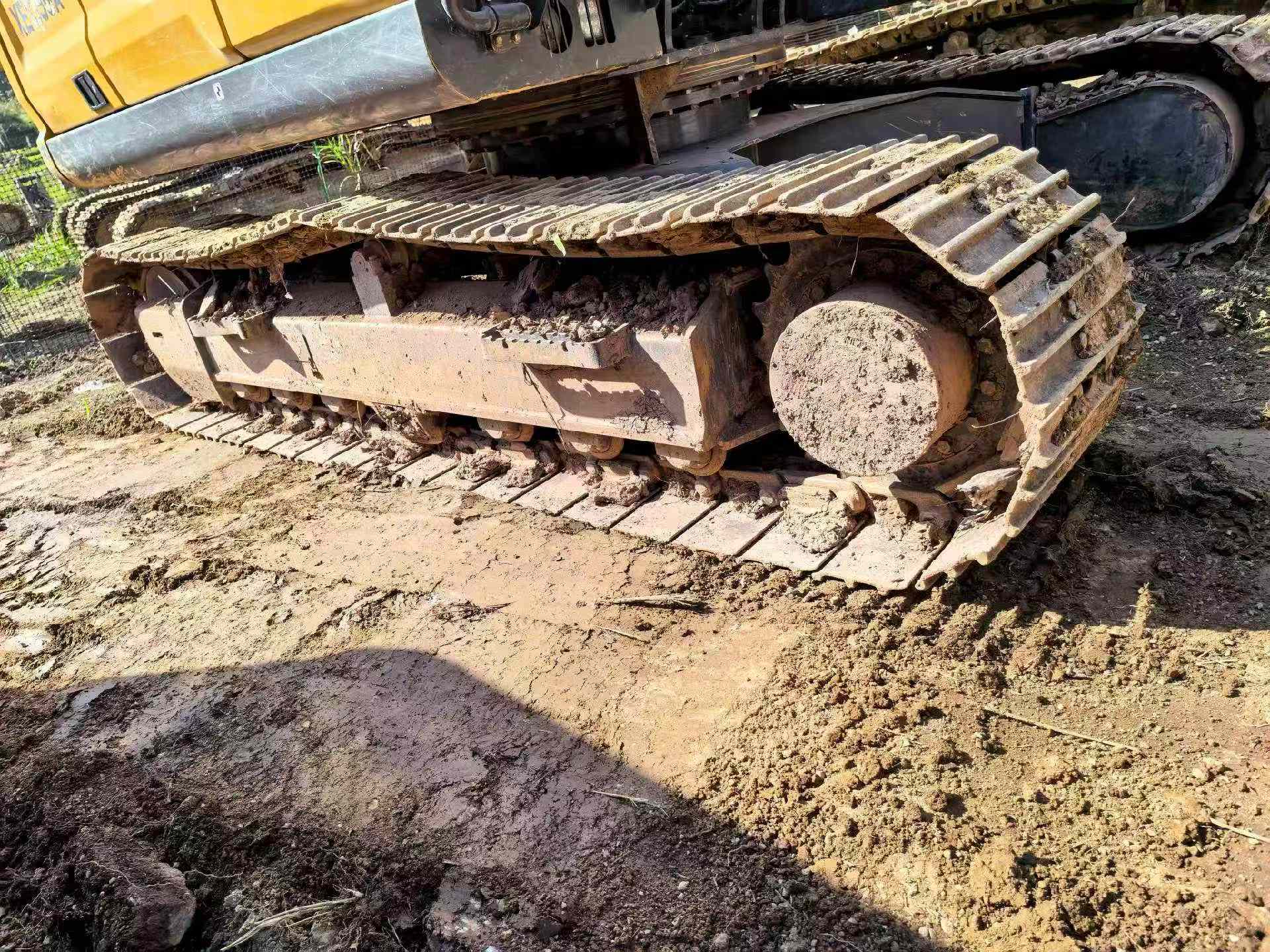

Track plate width (mm)	500
Track ground length (mm)	2910
Maximum digging radius (mm)	8296
Maximum digging depth (mm)	5538
Maximum excavation height (mm)	8641
Maximum unloading height (mm)	6181
Maximum vertical digging depth (mm)	4727

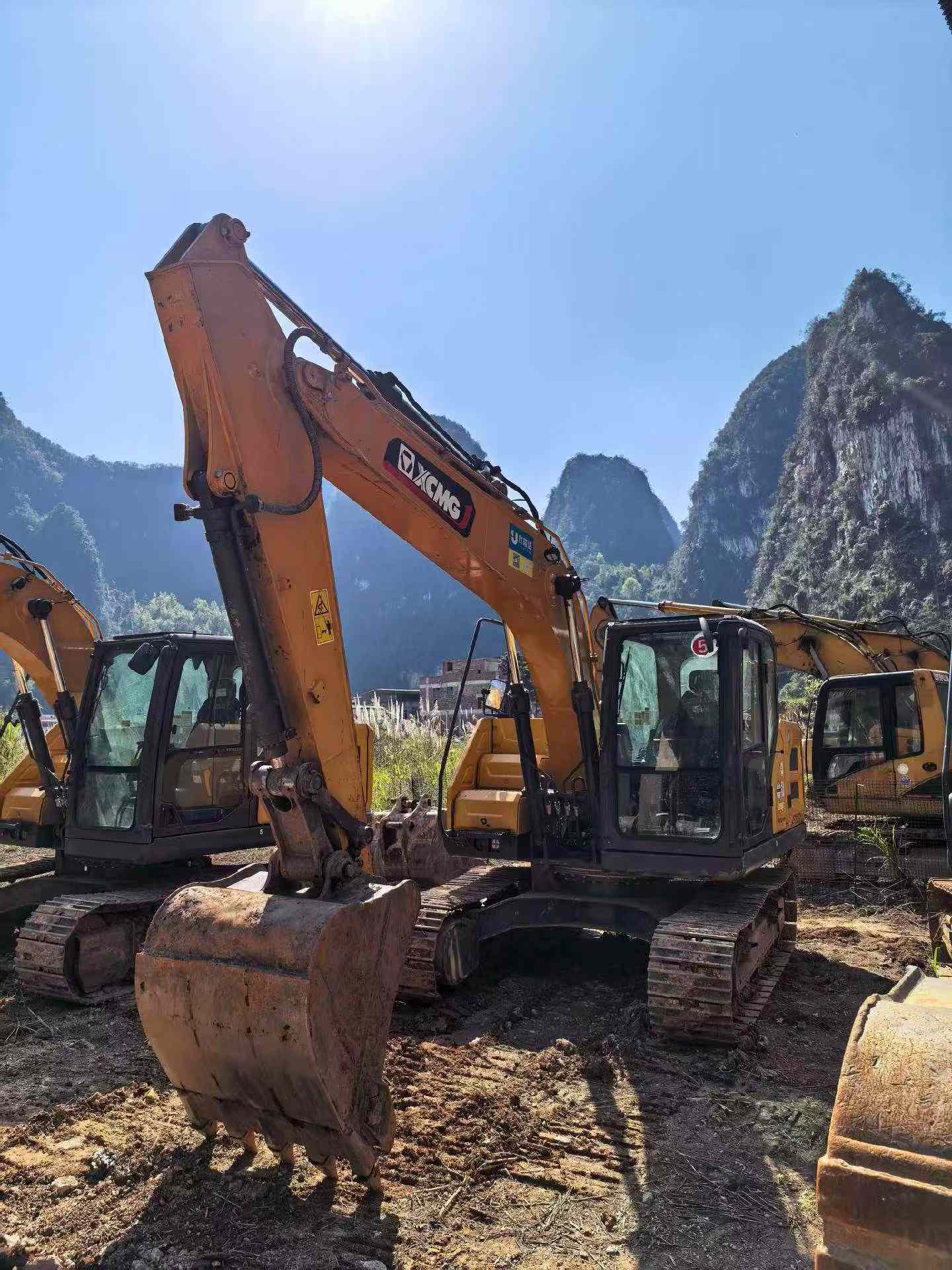

2016 XCMG XE135B
