Product Description

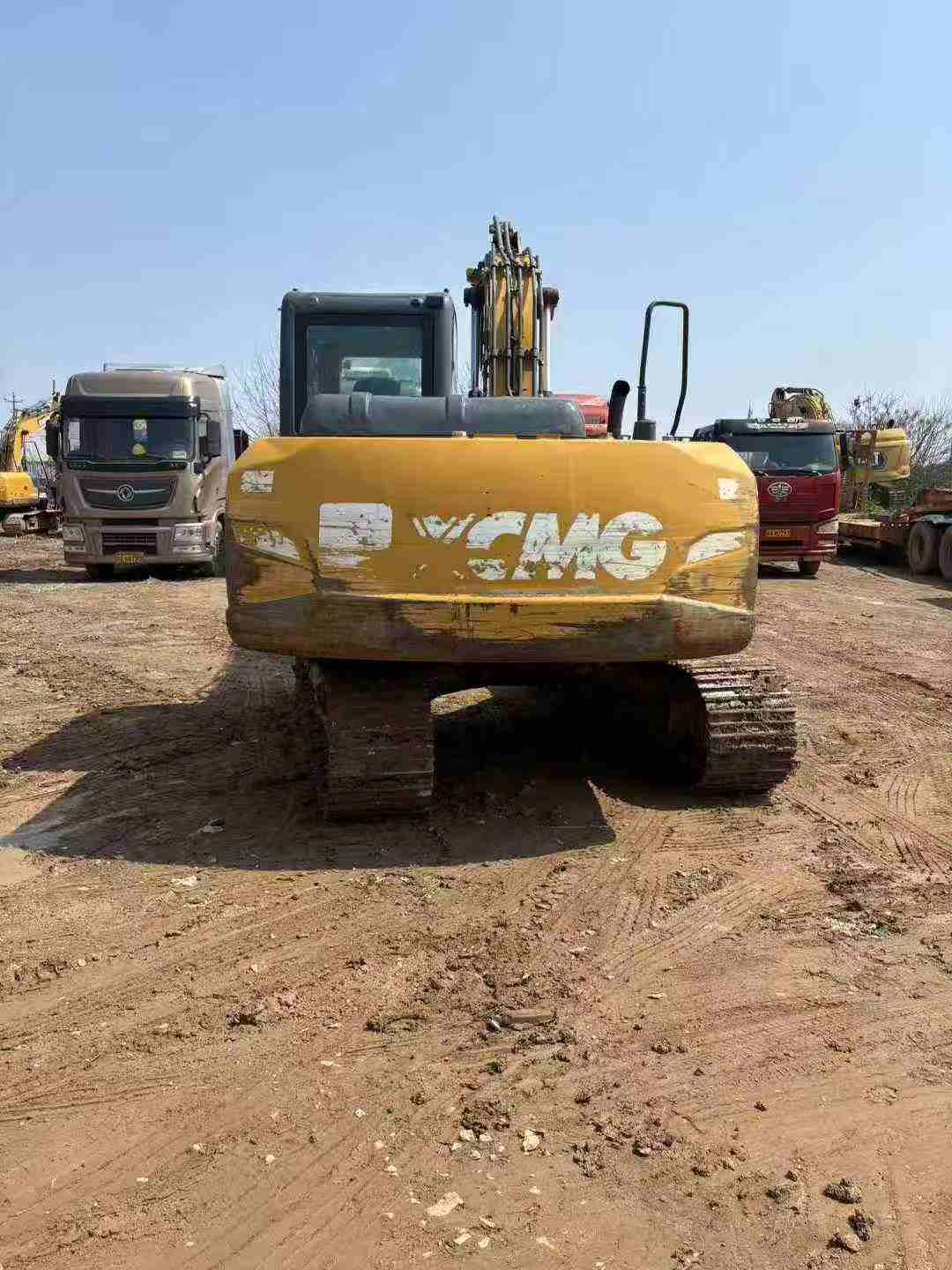

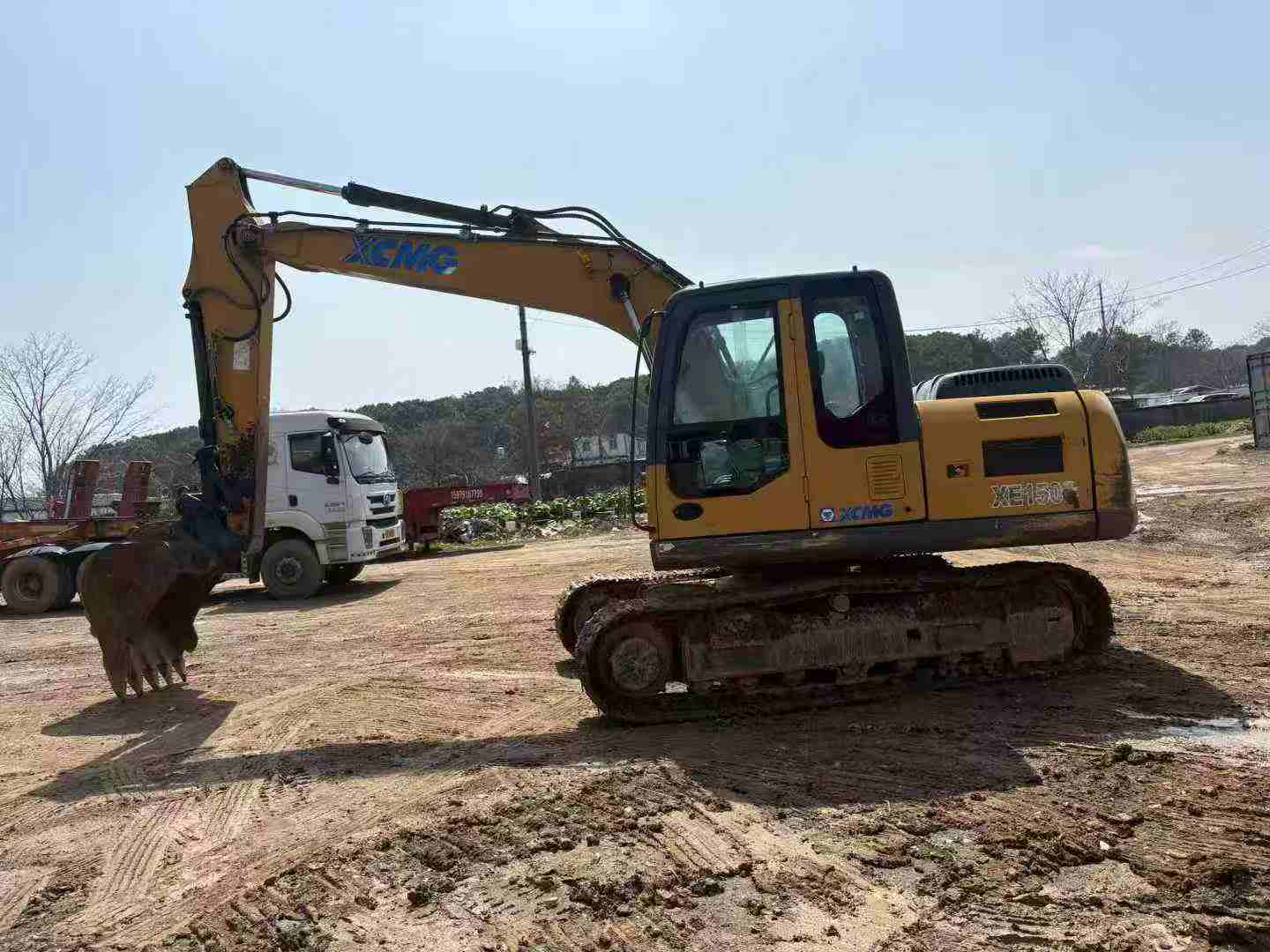

Available now in Nanchang, Jiangxi—this 2016 XCMG XE135B delivers 13-ton performance without factory wait times. Powered by a reliable ISUZU 4-cylinder turbocharged engine producing 69.6 kW, this mid-size excavator combines proven hydraulics with immediate deployment capability. Skip the lead times and put this machine to work on your site within days, not months.
Engineered in Xuzhou with robust specifications for demanding applications, this crawler excavator offers practical reach and digging power where you need it most:
- Maximum digging reach of 8,296 mm and depth to 5,538 mm for versatile trenching and loading
- Bucket digging force of 85 kN with 0.4-0.52 m³ capacity handles tough ground conditions

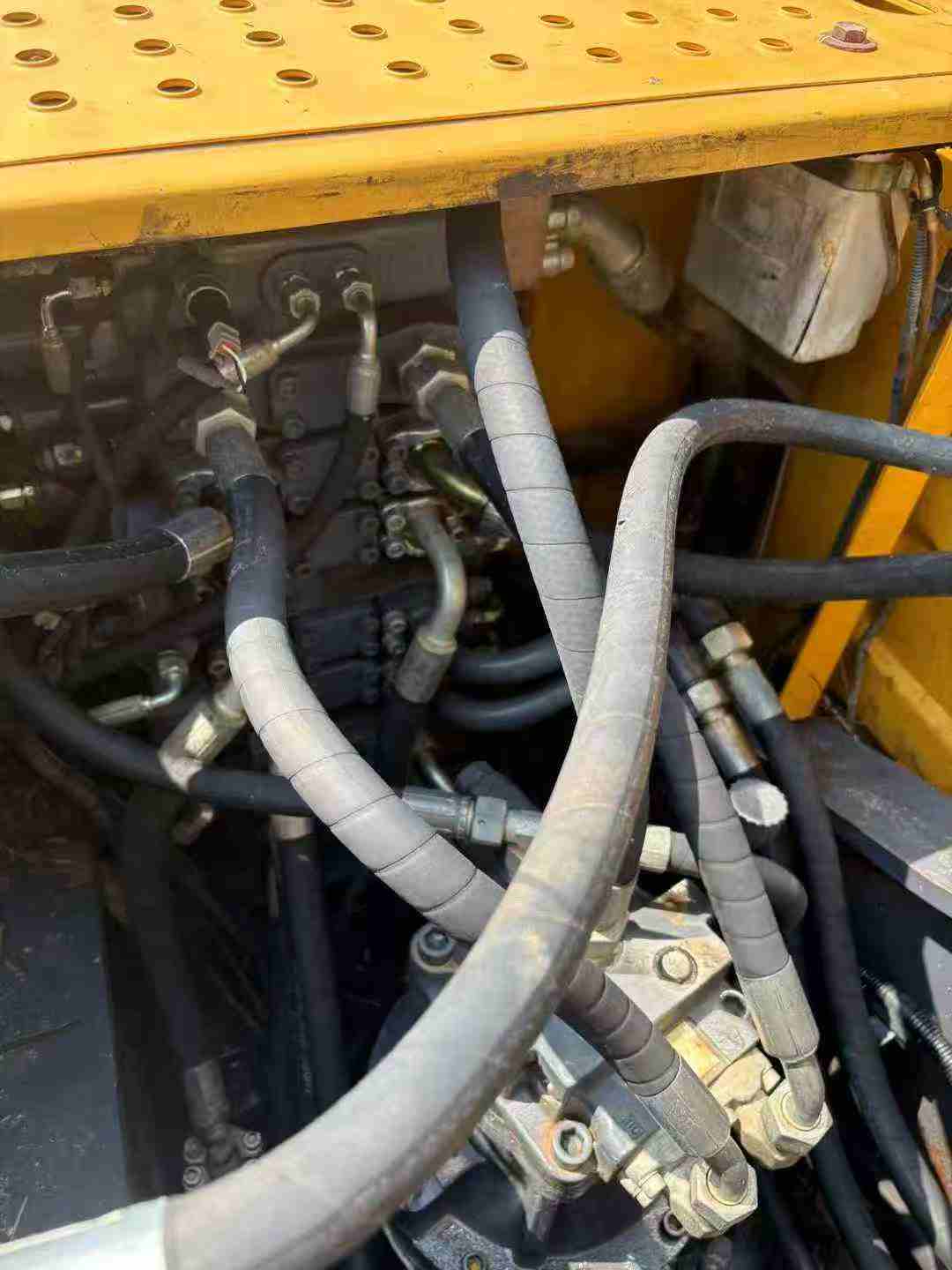

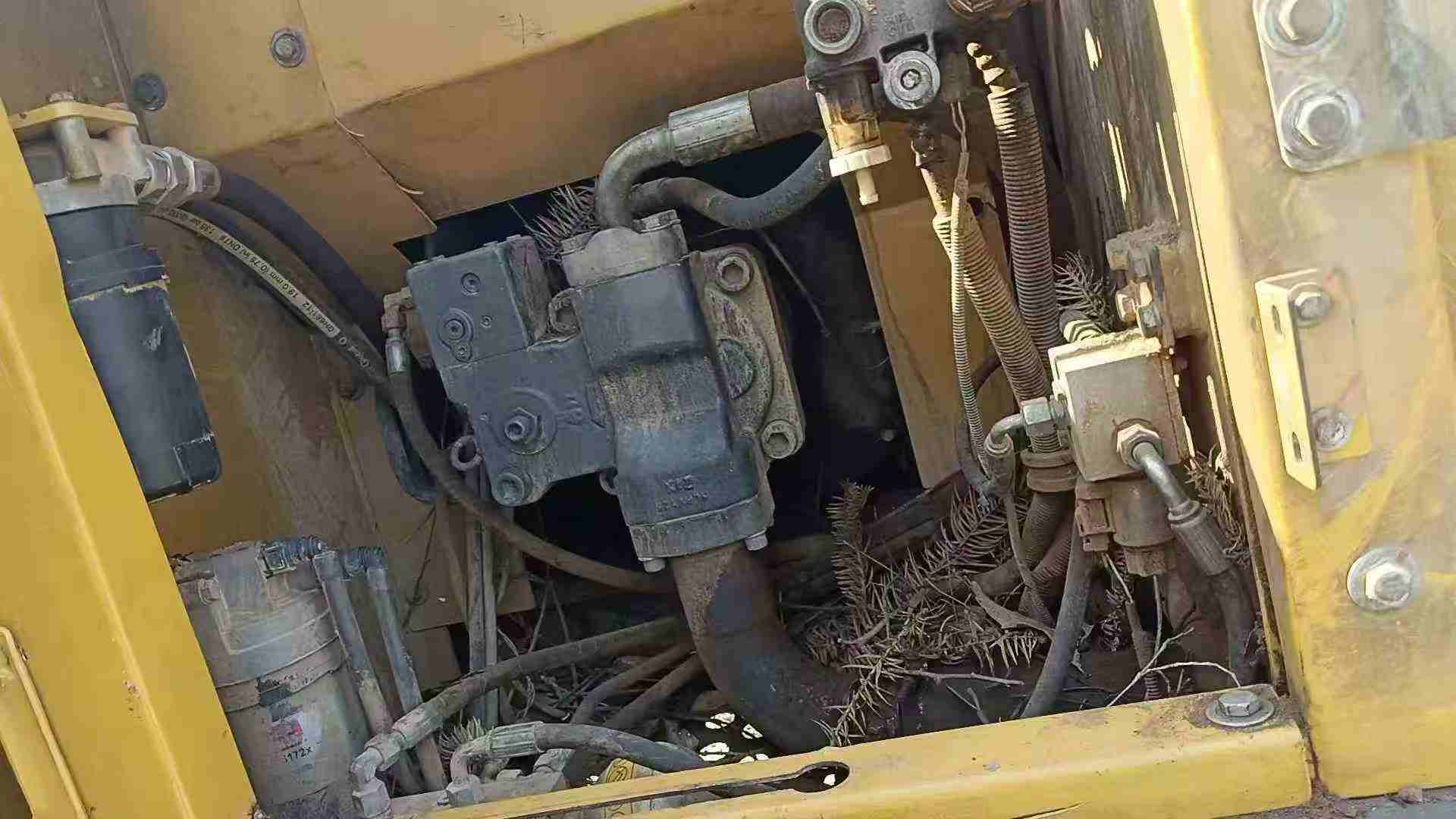

- Dual plunger pumps delivering 2×123 L/min flow ensure responsive cycle times
- 35° climbing ability and 478 mm ground clearance navigate uneven terrain reliably

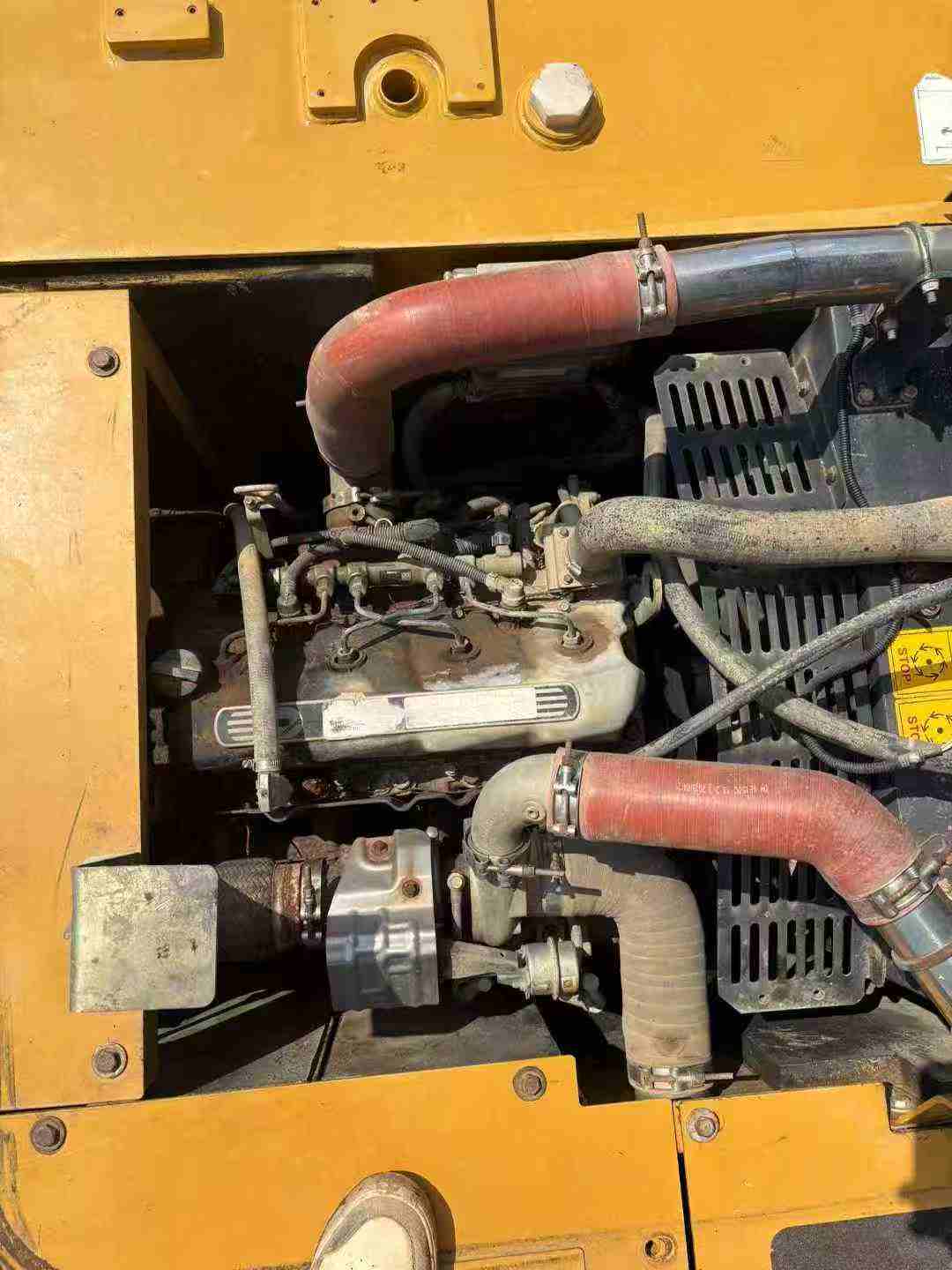

- Water-cooled ISUZU BB-4BG1TRP engine with 4.329 L displacement provides consistent power
Sourced from Nanchang with 13,800 kg working weight and standard backhoe configuration, this XE135B represents immediate availability for contractors requiring proven excavation capacity. Fast deployment ready—contact us
| Specifications | Value |
|---|---|
| No. | 1036536 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
