Product Description

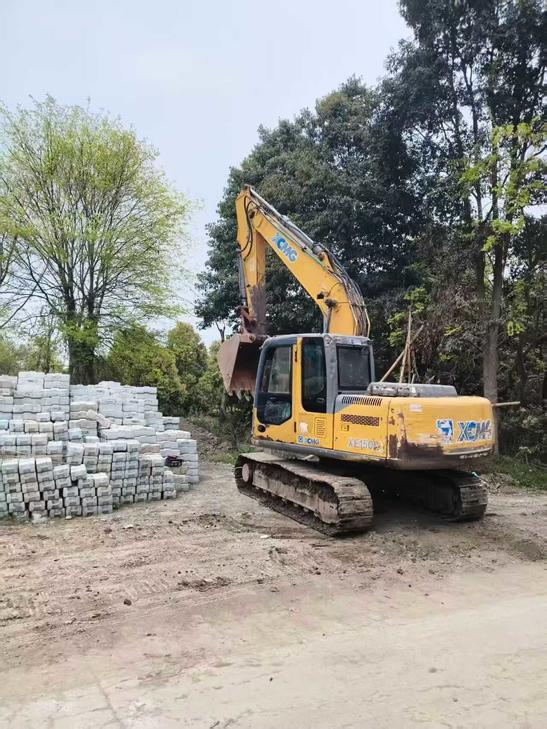

Built for productivity, this 2016 XCMG XE135B excavator delivers 13 tons of proven performance on demanding jobsites. Powered by an ISUZU BB-4BG1TRP engine generating 69.6 kW at 2200 rpm, this machine tackles digging, grading, and material handling with consistent reliability. Its 0.4-0.52 m³ bucket capacity and 85 kN bucket digging force make quick work of trenching and foundation excavation, while the 8296 mm maximum digging radius extends your operational reach across the work area.
Currently located in Sichuan, this water-cooled, turbocharged excavator features dual plunger pumps delivering 2×123 L/min flow for responsive hydraulic performance. The 4600 mm boom and 2510 mm arm provide 5538 mm maximum digging depth—ideal for utility installation and site preparation. With 35° climbing ability and 5.16 km/h travel speed, you'll reposition efficiently between tasks. Track width of 500 mm distributes the 13,800 kg operating weight at just 42 kPa ground pressure, minimizing surface disruption on sensitive sites.
- ISUZU 4-cylinder diesel: 69.6 kW turbocharged power
- Maximum digging reach: 8296 mm
- Bucket digging force: 85 kN
- Operating weight: 13,800 kg
- Dual hydraulic pumps: 2×123
| Specifications | Value |
|---|---|
| No. | 1039973 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
