Product Description
Built for high-output excavation work, this 2017 XCMG XE135B delivers 13-ton class performance with proven ISUZU turbocharged power. Currently located in Chongqing, this machine comes equipped with a 0.4-0.52 m³ backhoe bucket, 4600mm boom, and 2510mm arm—configured for immediate deployment on digging, grading, and demolition projects. The 69.6 kW engine provides reliable power through a dual plunger pump hydraulic system, while 85 kN bucket digging force and 65 kN arm force handle dense material with authority.
Operational specs include:
- Maximum digging depth: 5538mm; reach: 8296mm
- Working weight: 13,800 kg with 42 Kpa ground pressure
- Travel speed: 5.16 km/h (high) / 3.03 km/h (low)
- Fuel capacity: 250L; hydraulic reservoir: 130L
- 35° climbing ability for sloped terrain access
- Water-cooled 4-cylinder engine with 4.329L displacement
Transport dimensions of 7770mm × 2512mm × 2880mm allow standard flatbed hauling. This Xuzhou-manufactured excavator is site-ready for contractors requiring dependable mid-size excavation capacity.
| Specifications | Value |
|---|---|
| No. | 1028711 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

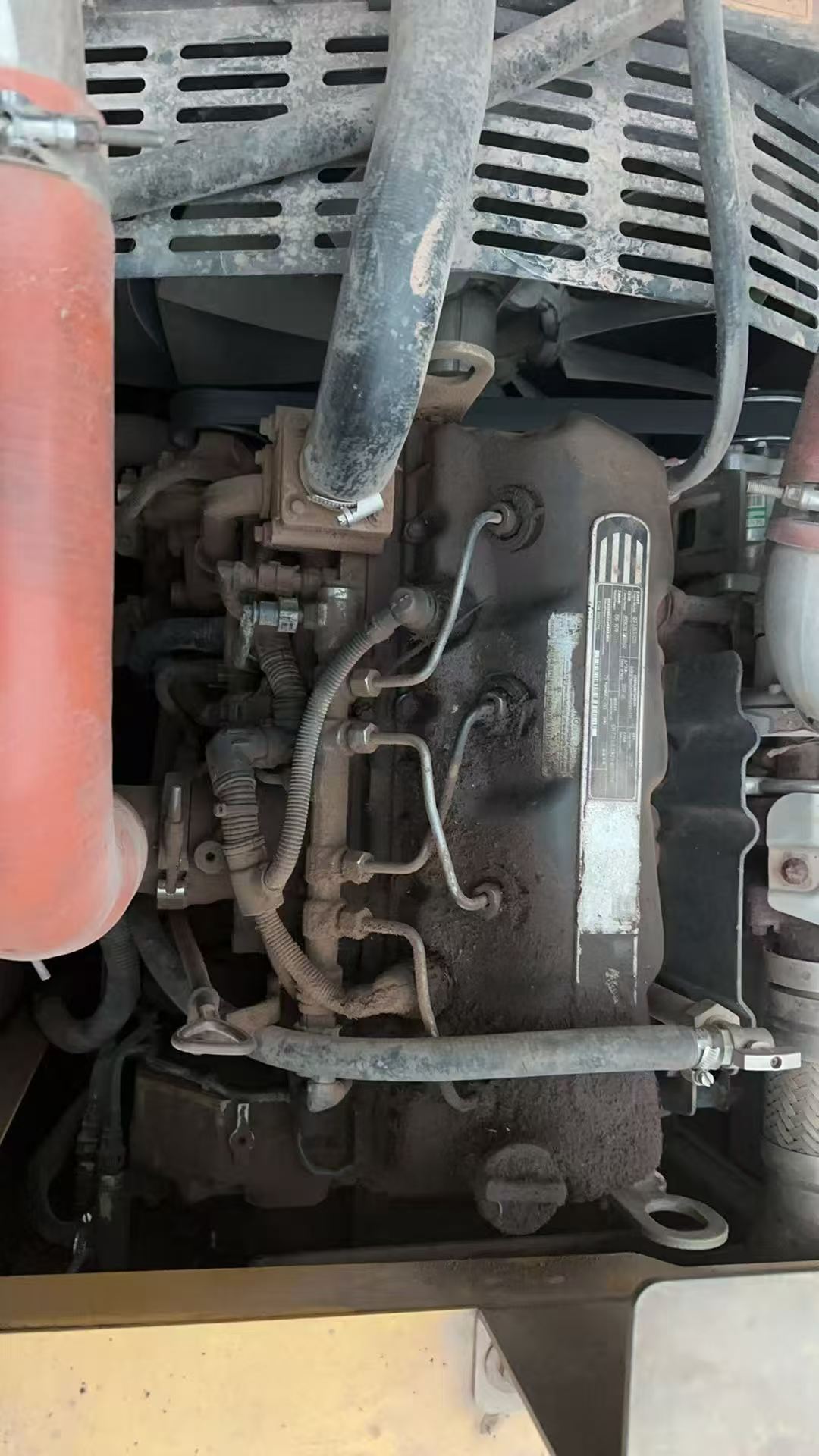

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

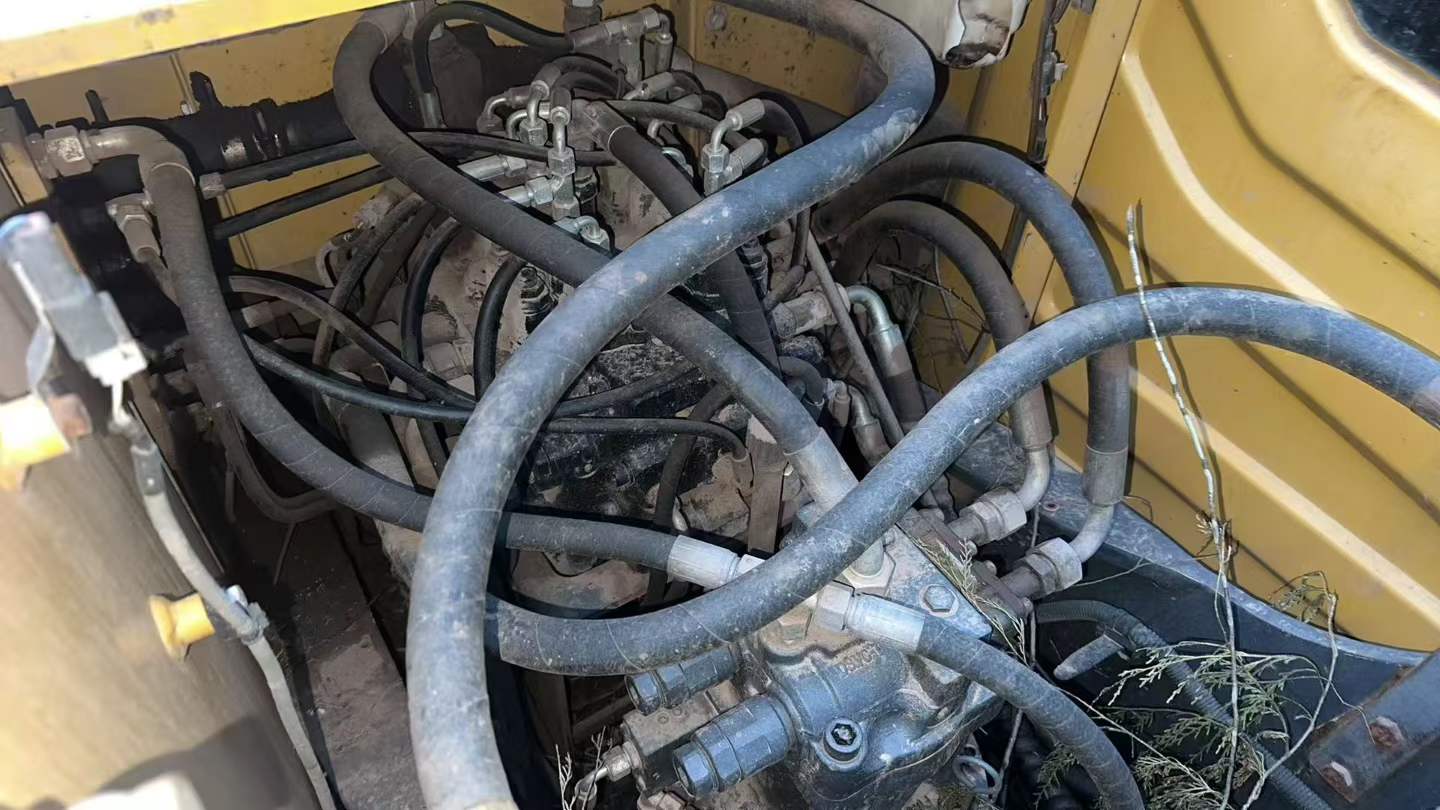

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |

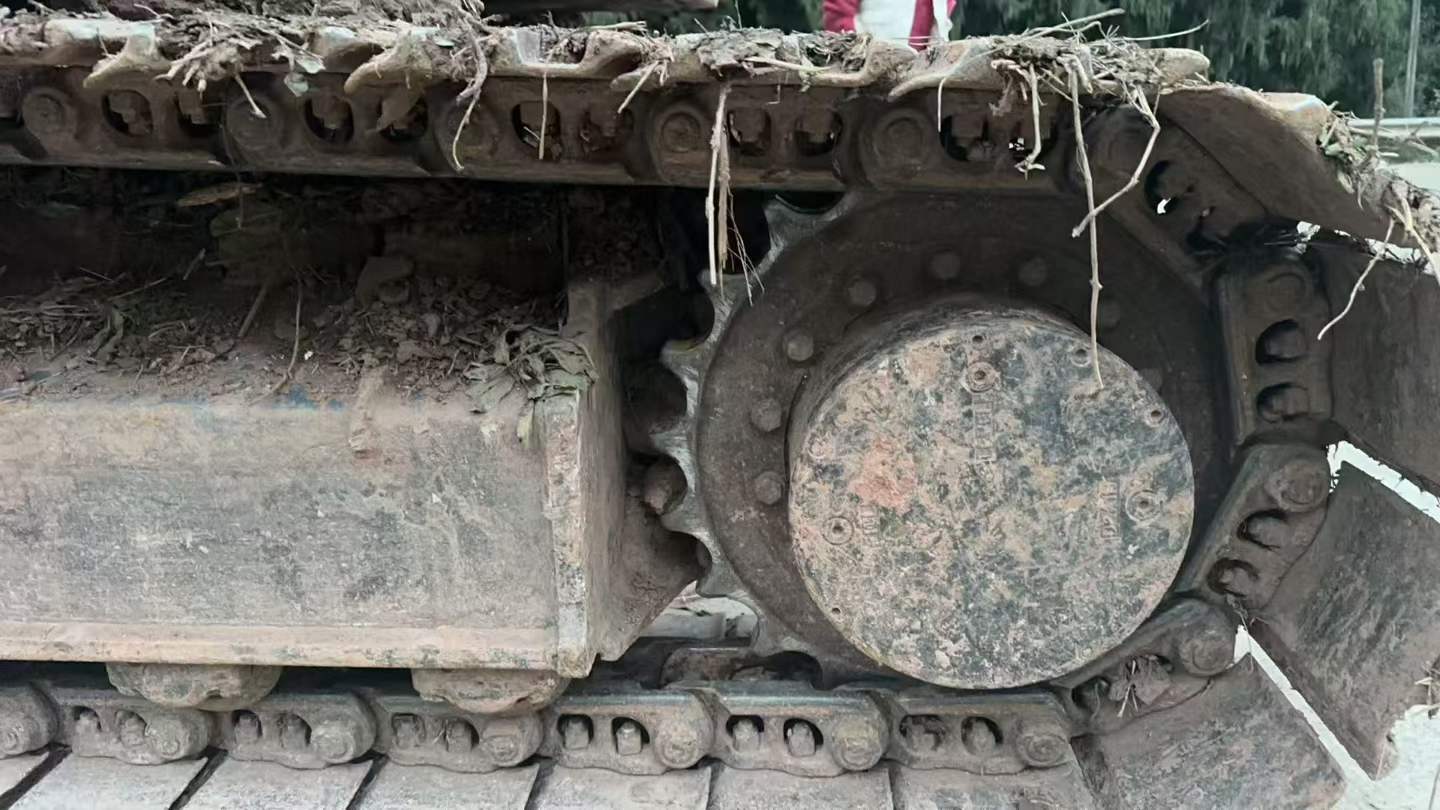

| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
