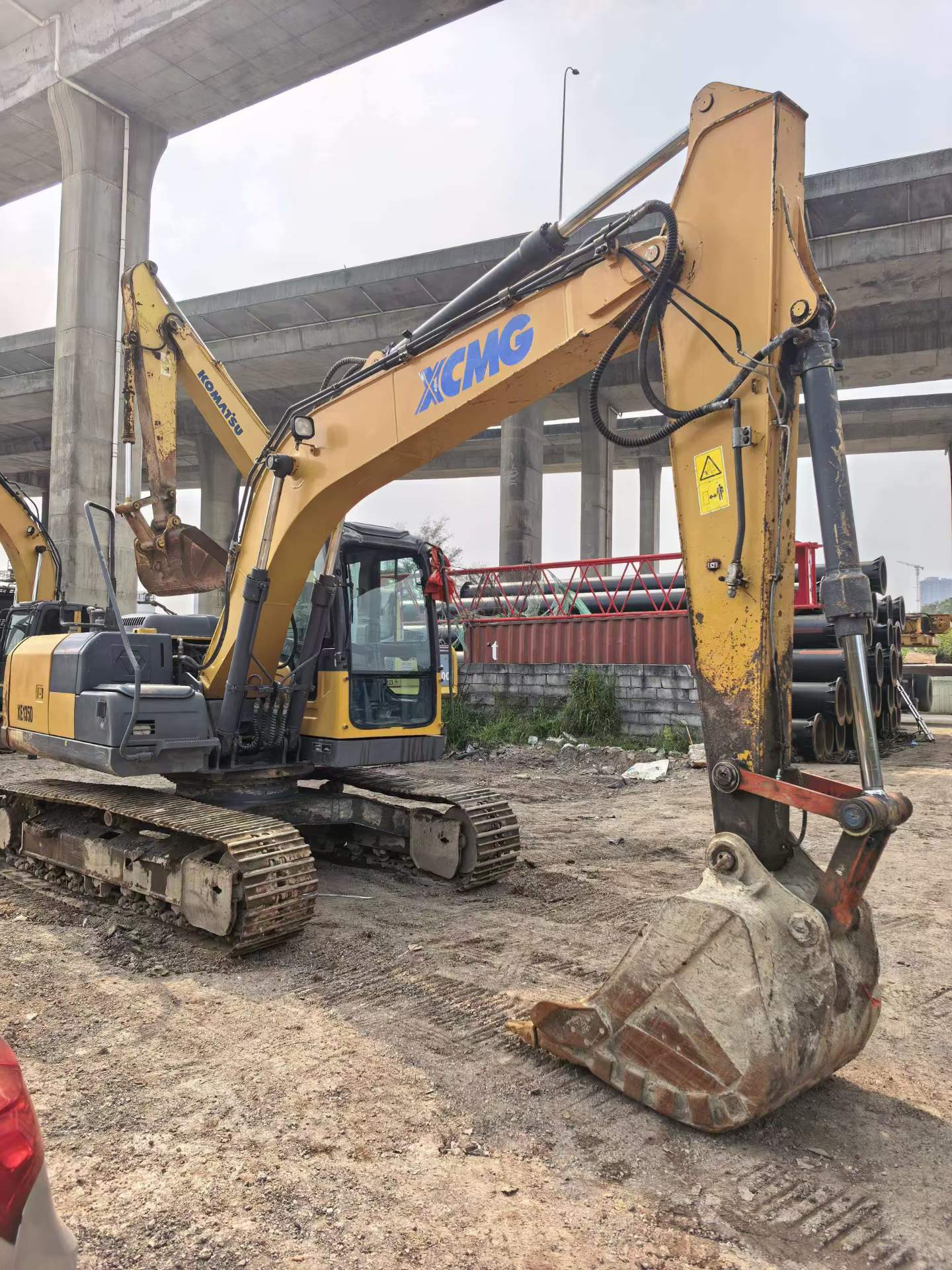

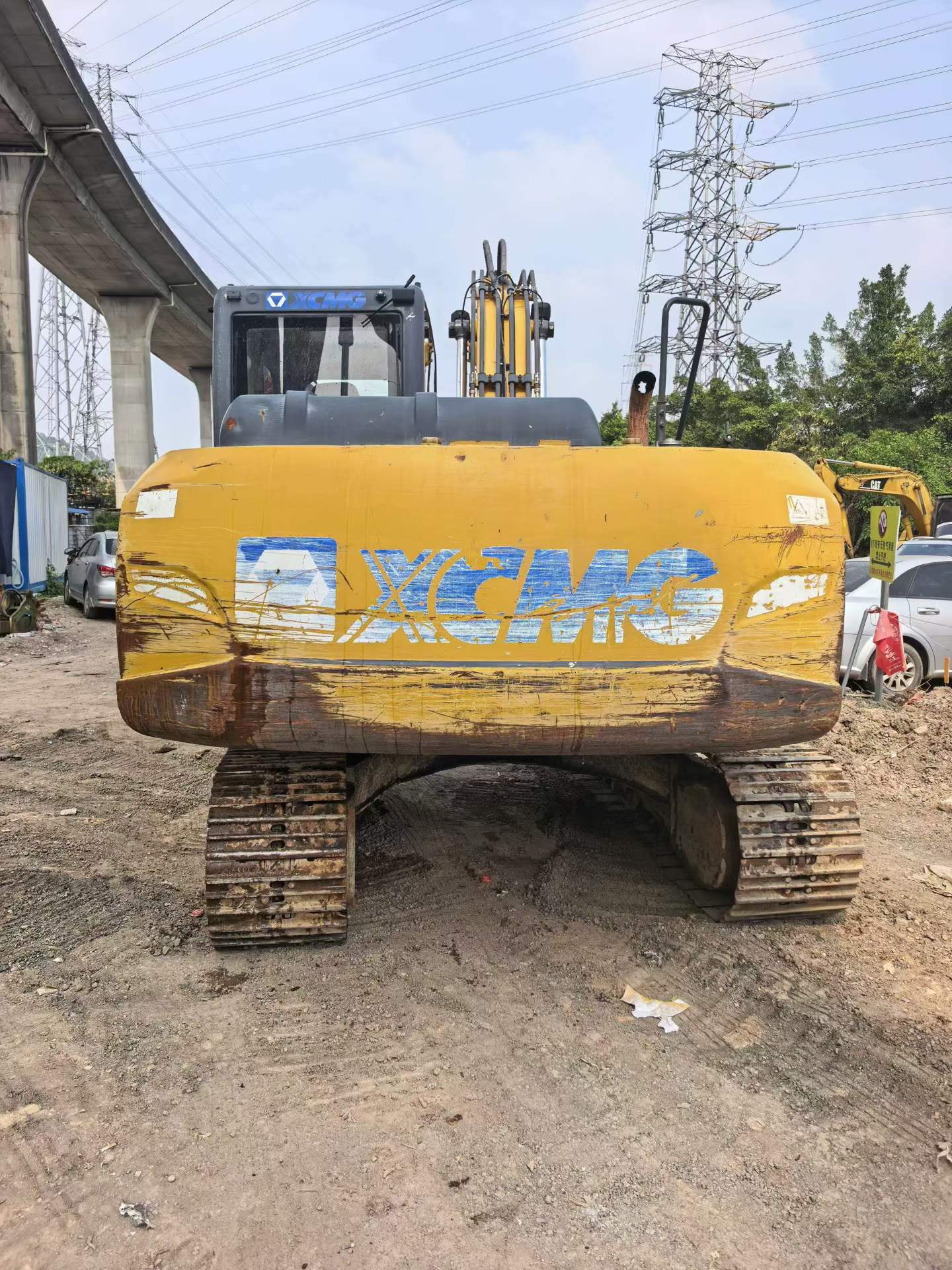

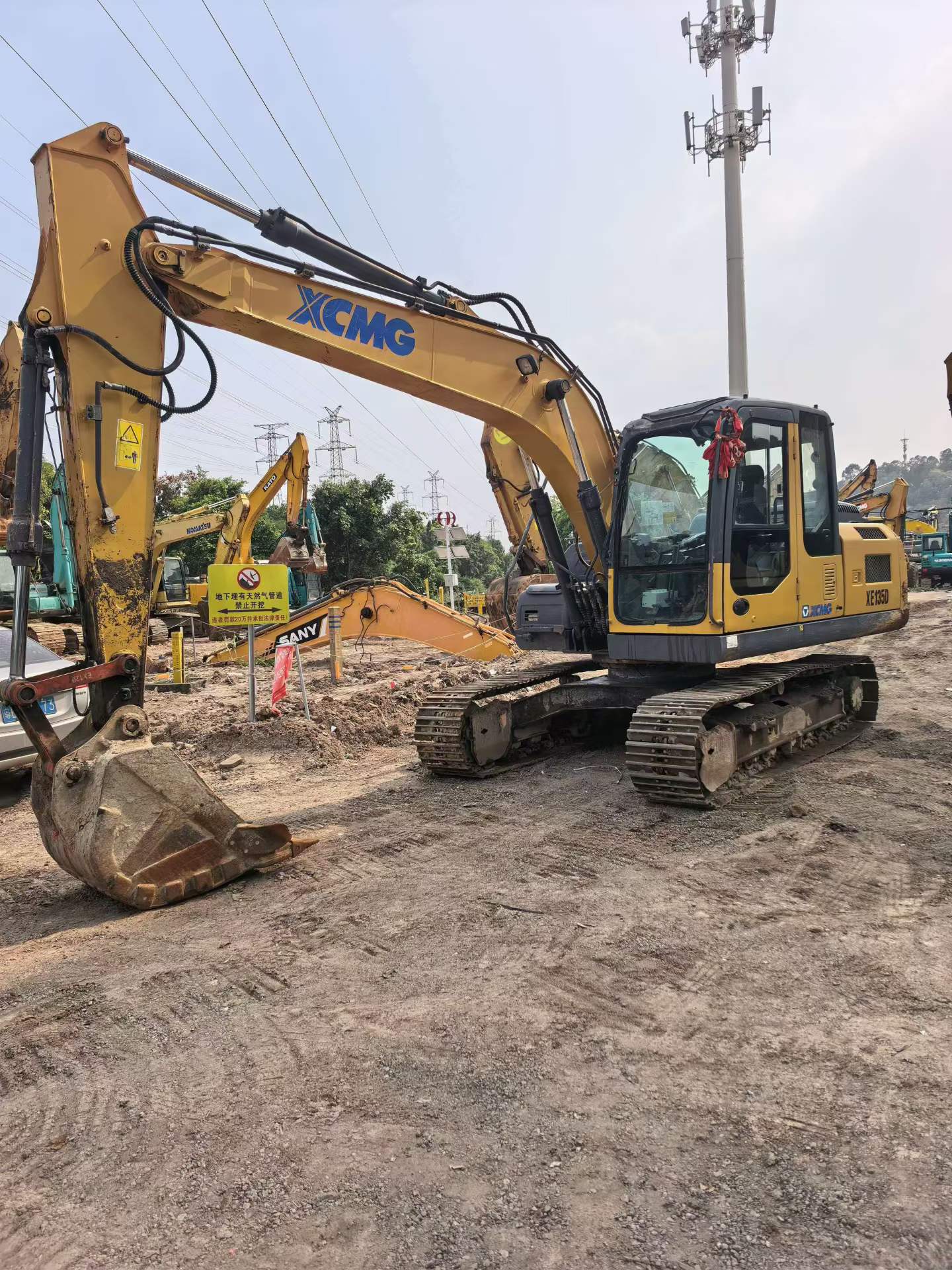

Name: Used Excavators 2017 XCMG XE135B
Brand: XCMG
SKU: USED-1038523
Availability: InStock
Rating: 4.2 (35 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Engineered for precision and daily productivity, this 2017 XCMG XE135B delivers 13-ton performance with operator-focused design. Powered by an ISUZU BB-4BG1TRP turbocharged engine producing 69.6kW, this excavator combines responsive hydraulics with exceptional stability across demanding jobsites. Dual plunger pumps supply 2×123 L/min flow, enabling smooth simultaneous operations while maintaining control under load.

Operators benefit from superior visibility and ergonomic positioning within the spacious cabin. Ground-level stability comes from 2910mm track contact length and 500mm-wide plates, distributing 13,800kg working weight to just 42kPa ground pressure. The machine excels in confined areas with a 2335mm front turning radius, while delivering 8296mm maximum reach and 5538mm digging depth when extended work envelopes are required.

<ul>
<li>Bucket digging force: 85kN with 0.4-0.52m³ capacity</li>
<li>Hydraulic system: 31.4/34.3MPa main relief, 3.9MPa pilot circuit</li>
<li>Travel speeds: 5.16/3.03 km/h (high/low range)</li>
<li>Swing speed: 12.3 rpm for efficient load positioning</li>
<li>Climbing ability: 35° on stable terrain</li>
<li>Current location: Guangzhou, Guangdong</li>
</ul>

Engineered for precision and reliability, this 2021 Doosan DX60 mini excavator delivers exceptional performance in the 6-ton class. At its core sits the proven Yanmar 4TNV94L engine, generating 39.7 kW at 2200 rpm with consistent torque delivery of 20-22 N·m. Advanced hydraulic architecture features dual main pumps flowing 60.5 l/min each, plus an auxiliary 36 l/min circuit, all operating at 21.6 MPa for responsive control and efficient cycle times.

Performance specifications demonstrate superior capability:
<ul>
<li>Maximum digging reach of 6150 mm with 3805 mm depth capacity</li>
<li>Bucket digging force: 44 kN; arm digging force: 28 kN</li>
<li>Compact footprint: 5850 mm length × 2000 mm width, 1650 mm rear swing radius</li>
<li>Impressive 78% (30-degree) grading ability with 58 kN tractive force</li>
<li>9.5 rpm rotation speed for productive positioning</li>
</ul>

Currently located in Fuzhou, Fujian, this joint-venture manufactured unit combines Japanese engine technology with robust construction standards. The 0.21 m³ backhoe bucket and 115-liter fuel capacity ensure extended operational efficiency across demanding jobsites.

Doosan DX60

Available now in Fuzhou, Fujian, this 2016 Kobelco SK200-8 eliminates factory wait times and accelerates your project timeline. Built in Hangzhou as a joint-venture machine, this 20-ton excavator delivers reliable performance with its Hino J05E water-cooled engine rated at 114kW and a generous 0.8m³ bucket capacity. Skip the extended lead times—this unit is inspection-ready and positioned for fast deployment to job sites across China and international destinations.

<ul>
<li>Immediate Availability: Stock unit in Fuzhou ready for viewing and dispatch</li>
<li>Proven Power: 5.123L turbocharged engine with intercooling, 143kN bucket digging force</li>
<li>Efficient Hydraulics: Dual variable displacement pumps (2×220 L/min), standard crushing pipeline</li>
<li>Versatile Reach: 9.9m maximum digging radius, 6.7m maximum depth, 2.94m rod length</li>
<li>Mobility Specs: 9450mm transport length, 2800mm width, 12.5rpm rotation speed</li>
</ul>

Reduce downtime and maintain momentum. This SK200-8 offers documented service history, solid structural integrity, and the logistics advantage of mainland positioning for rapid container loading or regional over

Kobelco SK200-8

Engineered with precision in Hefei, this 2016 ZX270-3 delivers industrial-grade performance through its ISUZU AH-4HK1X turbocharged engine, generating 132 kW at 2000 rpm. Dual variable piston pumps supply 448 l/min combined flow at 34.3 MPa working pressure, ensuring responsive hydraulic control across all functions. The 27-ton platform features a 1.3 m³ backhoe bucket backed by 193 kN digging force and 137 kN arm force, making it suitable for demanding excavation applications.

<ul>
 <li>Hydraulic System: 2×224 l/min variable piston pumps, 34.3 MPa circuit pressure</li>
 <li>Engine: ISUZU 4-cylinder water-cooled diesel, 5.193L displacement with intercooler</li>
 <li>Reach & Depth: 10,710 mm max digging radius, 7,230 mm digging depth</li>
 <li>Performance: 6.2 m boom, 3.11 m arm, 12.6 rpm swing speed</li>
 <li>Weight Class: 27,700 kg operating weight, 56 kPa ground pressure</li>
</ul>

Currently located in Fuzhou, Fujian. This joint-venture manufactured machine represents Hitachi's proven -3 series reliability with comprehensive hydraulic specifications for professional contractors.

Hitachi ZX270-3

Ready to ship from 福建福州, this 2020 Doosan DH150 eliminates factory wait times and gets your project moving immediately. Operating at 15 tons with reliable traditional power, this joint venture excavator delivers proven performance for mid-size earthmoving, trenching, and site preparation work. Skip months of lead time—this machine is available now for fast deployment directly to your job site.

<ul>
<li>Year: 2020</li>
<li>Model: Doosan DH150</li>
<li>Operating Weight: 15 tons</li>
<li>Power Type: Traditional diesel</li>
<li>Configuration: Backhoe</li>
<li>Origin: Joint venture/Import</li>
<li>Current Location: 福建福州, China</li>
<li>Availability: In stock, immediate delivery</li>
</ul>

Positioned in Fuzhou with access to major shipping routes, this DH150 offers rapid logistics coordination for domestic and international buyers. Avoid production backlogs—secure this field-ready excavator and maintain your project timeline without delay.

Doosan DH150

Built for operators who demand precision and endurance, the 2019 Kobelco SK260LC-8 is a 26-ton hydraulic excavator engineered in Japan and now available from Jiangsu, China. Powered by a Hino J05E four-cylinder, water-cooled turbocharged engine producing 131 kW at 2,100 rpm, this machine delivers consistent performance across demanding jobsites. The spacious, low-vibration cab offers wide-angle visibility and intuitive pilot controls, reducing operator fatigue during extended shifts. Standard hydraulic crushing pipelines add versatility straight from the factory.

<ul>
 <li>Engine: Hino J05E | 131 kW / 2,100 rpm | 5.123L displacement | Turbocharged, intercooled, direct injection</li>
 <li>Operating Weight: 25,200 kg | Bucket Capacity: 1.3 m³</li>
 <li>Digging Force: Bucket 170 kN | Arm 119 kN</li>
 <li>Maximum Digging Depth: 7,000 mm | Maximum Digging Radius: 10,310 mm</li>
 <li>Travel Speed: 3.6 / 5.8 km/h | Gradeability: 70% (35°)</li>
 <li>Main Pump: Dual variable displacement axial piston pumps | Max flow: 2 × 246 L/min</li>
 <li>Track Width: 600 mm | Transport Dimensions: 10,120 × 3,190 × 3,200 mm</l

Kobelco SK260LC-8

Expand your operational capacity with this 2016 Kobelco SK260 excavator, currently located in Jinhua, Zhejiang. Built as a joint venture/import model with proven traditional power systems, this 26-ton machine delivers the reliability contractors demand when scaling their fleets. Equipped with a backhoe bucket configuration, it handles trenching, foundation work, and site preparation with consistent performance across multiple job sites.

<ul>
<li>Year: 2016</li>
<li>Model: Kobelco SK260</li>
<li>Operating Weight: 26 tons</li>
<li>Power Type: Traditional power</li>
<li>Bucket Configuration: Backhoe</li>
<li>Manufacturer Origin: Joint venture/Import</li>
<li>Current Location: Jinhua, Zhejiang</li>
</ul>

Ideal as a backup unit during peak season or as a strategic addition to diversify your equipment roster, this SK260 minimizes downtime risk and maximizes project throughput. Kobelco's engineering ensures parts availability and serviceability, critical factors for contractors managing multiple machines. Ready for immediate deployment in demanding construction and excavation environments.

Kobelco SK260

Deployed from 四川 (Sichuan) and ready for immediate mobilization, this 2019 Doosan DX800HD hydraulic excavator eliminates factory wait times and gets your heavy-duty operation running now. Built with an 80-ton working weight and powered by a Perkins 2506J engine delivering 402 kW at 2,100 rpm, this China-manufactured machine combines serious digging force with reliable fuel efficiency. Available for fast deployment to your site—no backorders, no delays.

<ul>
<li>Bucket Capacity: 4.64~5.58 m³ backhoe configuration</li>
<li>Digging Performance: 40.5 kN bucket force, 34.3 kN rod force</li>
<li>Maximum Reach: 11,595/12,670 mm radius; 7,120/7,725 mm depth</li>
<li>Maximum Height: 10,470/11,910 mm excavation; 7,000/8,245 mm unloading</li>
<li>Transport Dimensions: 12,320/13,370 mm (L) × 3,400/4,000 mm (W) × 4,905/4,420 mm (H)</li>
<li>Travel Speed: 4.8/2.9 km/h</li>
</ul>

Skip the lead times. Secure this 80-ton workhorse from 四川 and accelerate your project timeline today.

Doosan DX800HD

Engineered for precision work in confined spaces, this 2016 Komatsu PC50MR-2 mini excavator delivers operator-centered performance across demanding jobsites. Powered by a reliable 2.2L four-stroke water-cooled direct injection engine, this 5-ton machine combines joint venture manufacturing quality with practical functionality. Operators benefit from exceptional cabin visibility and intuitive controls that reduce fatigue during extended shifts.

<ul>
<li>Compact Maneuverability: 1935mm total track width navigates tight urban environments while maintaining stability</li>
<li>Responsive Handling: Dual travel speeds (4.3/2.6 km/h) provide precise positioning control</li>
<li>Digging Power: 24.4kN rod digging force with 6070mm maximum reach handles varied excavation tasks</li>
<li>Ground Contact: 2000mm track length and 400mm track plates distribute weight effectively across soft terrain</li>
<li>Location: Currently available in Guangzhou, Guangdong</li>
</ul>

Backed by Komatsu's reputation for durability, this PC50MR-2 represents proven technology ideal for contractors prioritizing operator comfort and machine control in residential, utility, an

Komatsu PC50MR-2

Built for high-output excavation and grading operations, this 2016 Komatsu PC360-7 delivers 180 kW of reliable power through its Komatsu SAA6D114E engine. With a 33-ton operating weight and 1.6 m³ bucket capacity, this machine handles demanding earthmoving tasks across construction sites, quarries, and infrastructure projects. Maximum digging depth reaches 7,380 mm, while the 11,100 mm digging radius provides extensive work coverage without repositioning.

<ul>
<li>Powerful hydraulics: 227 kN bucket digging force, 171 kN arm digging force</li>
<li>Proven drivetrain: 6-cylinder turbocharged diesel, water-cooled, 8.27L displacement</li>
<li>Production-ready dimensions: 6,470 mm boom, 3,185 mm arm for optimal reach</li>
<li>Efficient operation: 535 L/min main pump flow, axial plunger hydraulic motors</li>
<li>Stable platform: 3,700 mm track ground contact, 600 mm track shoes, 67.7 kPa ground pressure</li>
<li>Currently located in Sichuan, ready for immediate deployment</li>
</ul>

This PC360-7 is engineered for consistent performance in excavation, loading, and site preparation applications. Contact Fair Trade Machinery today for detailed specifications and shipping arrangements.

Komatsu PC360-7

Built to endure the toughest jobsites, this 2016 Kobelco SK260 excavator represents eight years of proven performance in demanding conditions. Operating at 26 tons with traditional power systems, this backhoe excavator combines joint venture engineering excellence with field-tested reliability. Currently located in Sichuan, this machine has demonstrated the durability that construction professionals depend on day after day.

Kobelco's reputation for building workhorses that stand the test of time is fully evident in this SK260 model. Every hour logged proves its robust construction and engineering integrity, making it a smart investment for operators who need consistent performance without compromise.

<ul>
<li>26-ton operating weight for versatile excavation tasks</li>
<li>Traditional power system with proven reliability</li>
<li>Backhoe configuration for maximum digging efficiency</li>
<li>Joint venture manufacturing ensures quality standards</li>
<li>Available in Sichuan for immediate deployment</li>
</ul>

Contact Fair Trade Machinery today to secure this dependable Kobelco SK260 for your fleet.

Built for immediate deployment on demanding worksites, this 2016 Sany SY365C delivers 36 tons of excavation power where you need it most. Equipped with a proven backhoe configuration and traditional powertrain, this Chinese-manufactured excavator handles digging, grading, and demolition tasks with industrial-grade reliability. Currently positioned in Sichuan, the machine arrives site-ready for operators who require proven performance without delay.

<ul>
 <li>36-ton operating weight for stable, productive excavation</li>
 <li>Backhoe attachment configured for trenching and foundation work</li>
 <li>Traditional power system offering straightforward maintenance</li>
 <li>2016 model year with documented service history</li>
 <li>Sany engineering designed for high-volume earthmoving operations</li>
</ul>

Contractors facing tight project timelines will appreciate the SY365C's work-ready condition. From road construction to site preparation, this excavator transitions between grading, loading, and demolition applications without reconfiguration. Available now from our Sichuan location for immediate shipment to your project site.

Sany SY365C

Built to endure the toughest job sites, this 2015 Hyundai R150-7 excavator stands as a proven workhorse in the 14-ton class. Powered by traditional diesel technology and manufactured to joint venture/import standards, this machine delivers reliable performance year after year. Currently located in Sichuan, it represents exceptional value for contractors seeking dependable excavation capability without compromise.

With nearly a decade of proven service, this R150-7 demonstrates Hyundai's commitment to durability and engineering excellence. Its backhoe configuration handles demanding digging, trenching, and material handling operations with consistent precision.

<ul>
<li>14-ton operating weight for versatile applications</li>
<li>Traditional power system ensures straightforward maintenance</li>
<li>Joint venture/import manufacturing quality</li>
<li>Backhoe bucket configuration included</li>
<li>2015 model year with proven track record</li>
<li>Available now in Sichuan</li>
</ul>

Invest in a machine that has already proven its worth. Contact Fair Trade Machinery today to secure this reliable Hyundai R150-7 for your fleet.

Hyundai R150-7

Proven reliability meets practical performance in this 2016 Sany SY205C excavator, currently located in Jiangsu. Operating at 20 tons with a robust 118kW engine, this machine delivers consistent productivity across demanding jobsites. Sany's position as China's leading construction equipment manufacturer translates directly into lower operating costs—parts remain readily available through extensive dealer networks, and resale values hold strong due to brand recognition across Asian and emerging markets.

Key specifications include:
<ul>
<li>Operating weight: 21,500 kg with 0.9-1.1 m³ bucket capacity</li>
<li>Maximum digging reach: 10,280 mm / Maximum depth: 6,600 mm</li>
<li>Bucket digging force: 138 kN / Rod digging force: 109 kN</li>
<li>Compact transport dimensions: 9,680 mm (L) × 2,980 mm (W) × 3,440 mm (H)</li>
<li>70% gradeability for versatile terrain capability</li>
</ul>

Backed by Sany's global service infrastructure and standardized component design, this SY205C offers predictable maintenance schedules and accessible technical support. Ideal for contractors prioritizing long-term value over initial acquisition cost.

Sany SY205C

Available now in 福建莆田, this 2020 Caterpillar 320A excavator eliminates factory wait times and accelerates your project timeline. Equipped with a proven 20-ton operating capacity and traditional power system, this joint venture/import machine delivers the reliability Caterpillar is known for without the delays of new equipment procurement.

Key specifications include:
<ul>
<li>Year: 2020</li>
<li>Model: Caterpillar 320A</li>
<li>Operating Weight: 20 tons</li>
<li>Power Type: Traditional power</li>
<li>Configuration: Backhoe bucket</li>
<li>Origin: Joint venture/Import</li>
<li>Location: 福建莆田, ready for immediate deployment</li>
</ul>

Skip months of lead times. Fast deployment to your site means you're operational within days, not quarters. Positioned in 福建莆田 for rapid logistics coordination across Southeast China and international shipping routes. Contact Fair Trade Machinery today to secure this machine and keep your operations moving forward.

Caterpillar 320A

Built for precision work in confined spaces, this 2019 Caterpillar 305.5 mini excavator delivers reliable performance across digging, grading, and demolition tasks. Powered by a robust Mitsubishi M4M0 engine generating 56hp, this 5-ton machine combines compact maneuverability with serious digging capability. Currently located in Zhejiang Jinhua, it arrives site-ready with minimal setup required.

<ul>
<li>Working weight: 5,480 kg for stable operation on varied terrain</li>
<li>Bucket digging force: 38.7 kN with 26 kN rod force for tough materials</li>
<li>Standard 0.18 m³ backhoe bucket handles trenching and excavation efficiently</li>
<li>Compact footprint ideal for urban construction and utility installation</li>
<li>Joint venture quality with proven Caterpillar engineering</li>
</ul>

Whether you're cutting foundations, installing drainage systems, or clearing debris, this 305.5 provides the hydraulic power and control needed for daily production. Inspect in Jinhua and put it to work immediately. Contact Fair Trade Machinery for shipping quotes and technical specifications.

Caterpillar 305.5

Built to endure the toughest job sites, this 2016 Doosan DH60 mini excavator stands as a proven workhorse in the 6-ton class. Powered by traditional combustion technology and manufactured to joint venture/import standards, this machine delivers consistent performance backed by years of reliable operation. Currently located in Guangzhou, Guangdong, it represents exceptional value for contractors seeking dependable equipment with a documented track record.

<ul>
<li>Operating Weight: 6 tons – ideal for urban construction and utility work</li>
<li>Power System: Traditional diesel engine for maximum fuel availability worldwide</li>
<li>Configuration: Backhoe setup for versatile digging and trenching applications</li>
<li>Manufacturing Quality: Joint venture/import standards ensure superior build integrity</li>
<li>Proven Durability: Eight years of service demonstrate exceptional longevity</li>
<li>Location: Guangzhou, Guangdong – ready for inspection and export</li>
</ul>

Doosan's reputation for engineering robust compact excavators shines through in this DH60 model. Years of field operation have validated its construction quali

Specifications	Value
No.	1038523
Tonnage (tons)	13
Working weight (kg)	13800
Bucket capacity (m³)	0.4-0.52
Boom length (mm)	4600
Rod length (mm)	2510
Country of origin	Xuzhou
power	Traditional power
manufacturer	Made in China
bucket	backhoe

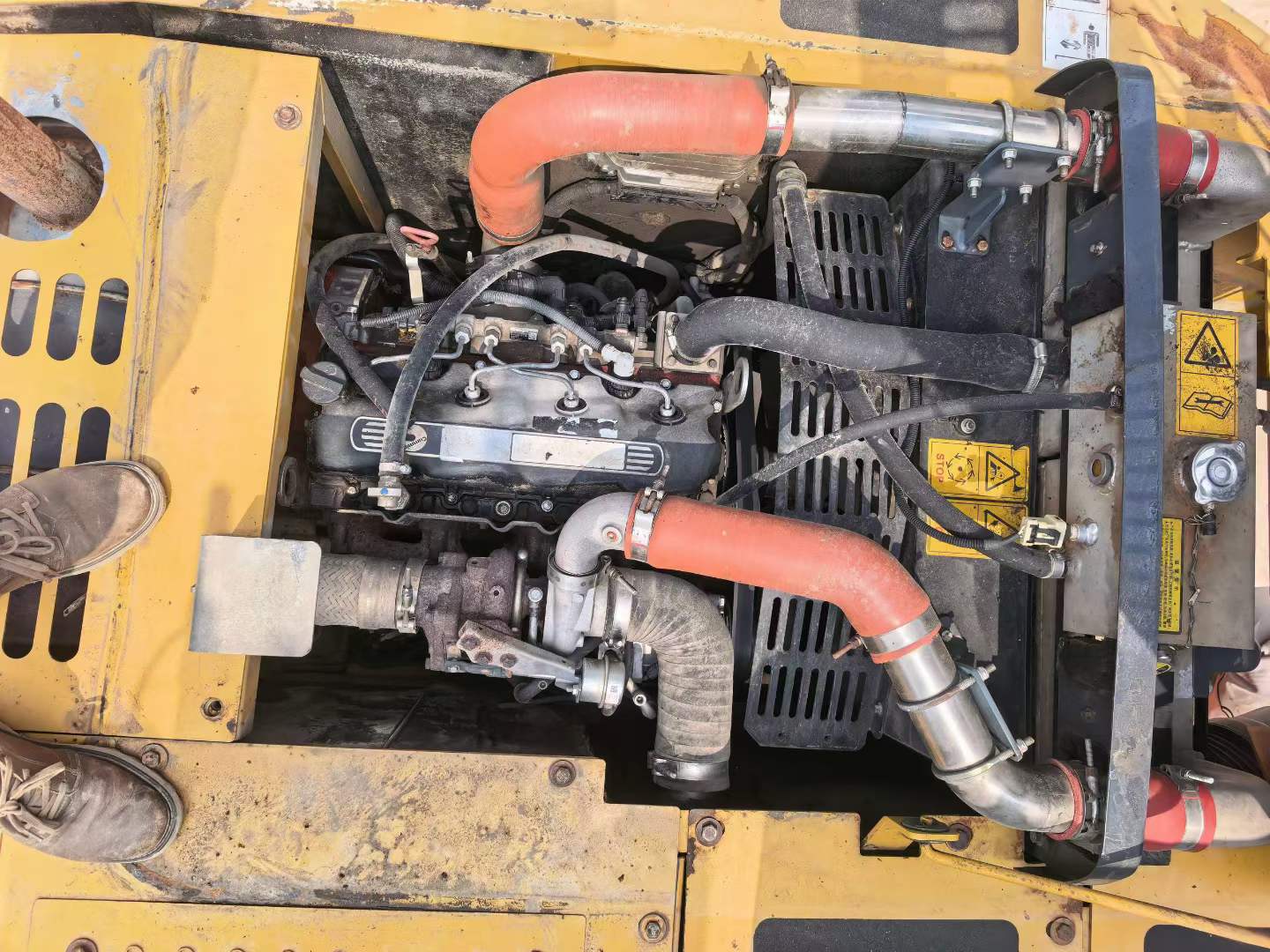

Engine type	ISUZU BB-4BG1TRP
Rated power (kw/rpm)	69.6/2200
Cooling mode	water-cooling
Number of cylinders (PCS)	4
Displacement (L)	4.329
Working form	turbocharging
Ground specific pressure (Kpa)	42
Rotation speed (rpm)	12.3
Climbing ability (%)	35 °
Bucket digging force (kN)	85
Rod digging force (kN)	65
Travel speed (km/h)	5.16/3.03
Main overflow set pressure (Mpa)	31.4/34.3
Maximum flow of main pump (l/min)	2*123
Traveling Hydraulic Circuit (Mpa)	34.3
Rotary Hydraulic Circuit (Mpa)	25
Hydraulic crushing pipeline is standard	no

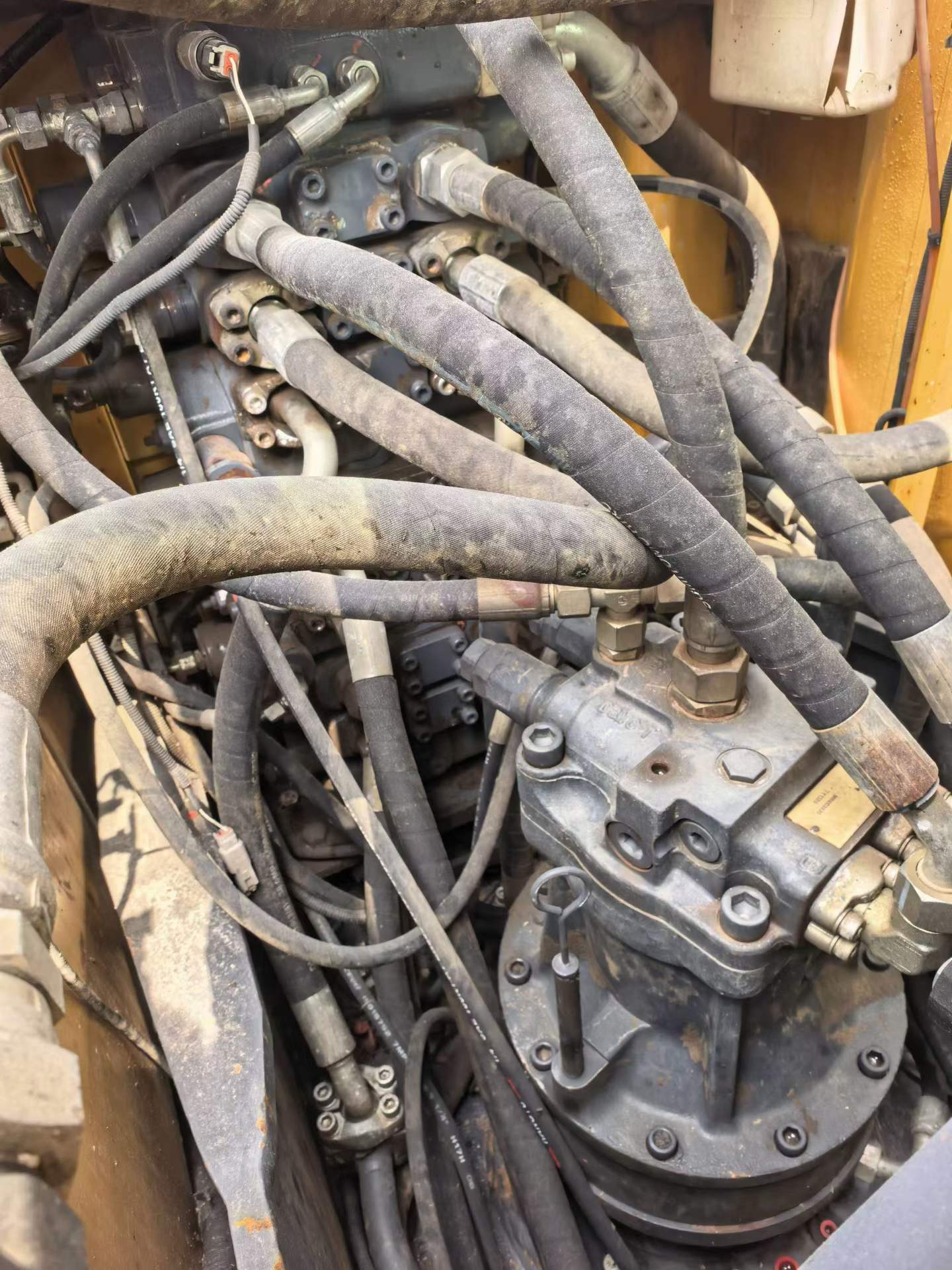

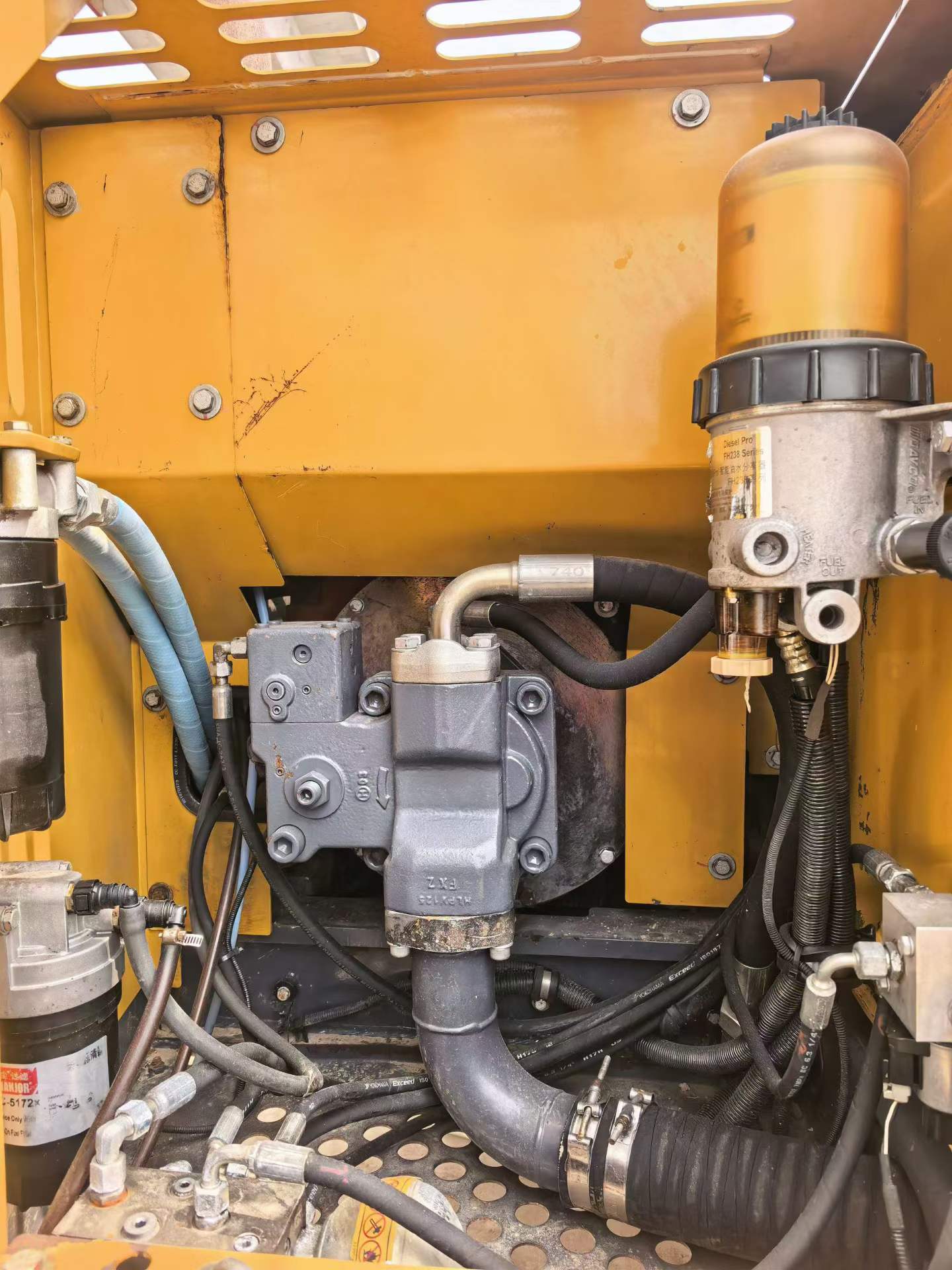

Main pump type	Two plunger pumps
Pilot Oil Circuit (MPa)	3.9
Fuel Tank (L)	250
Hydraulic Tank (L)	130
Engine Oil changes (L)	14
Total transport length (mm)	7770
Total transport width (mm)	2512
Total transport height (mm)	2880
Counterweight ground clearance (mm)	964
Minimum ground clearance (mm)	478
Minimum turning radius of front working device (mm)	2335
Back end turning radius (mm)	2294
Track gauge (mm)	1990
Track plate width (mm)	500
Track ground length (mm)	2910
Maximum digging radius (mm)	8296
Maximum digging depth (mm)	5538
Maximum excavation height (mm)	8641
Maximum unloading height (mm)	6181
Maximum vertical digging depth (mm)	4727

2017 XCMG XE135B
