HOME>>XCMG>>XCMG XE135B

2017 XCMG XE135B

1/7

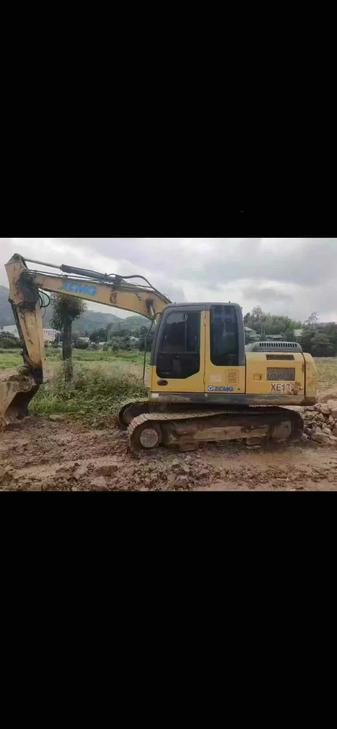

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7

Product Description

This 2017 XCMG XE135B hydraulic excavator offers reliable performance for construction, earthmoving, and material handling operations. With approximately 112,000 RMB in original value, this mid-size crawler excavator delivers proven capability for contractors and fleet operators seeking dependable used equipment.

Key features include:

  • XCMG's established 13-ton class platform with robust undercarriage
  • Fuel-efficient engine designed for extended duty cycles
  • Hydraulic system engineered for responsive digging and lifting
  • Spacious operator cabin with ergonomic controls
  • Currently located in Fujian, China for inspection and logistics planning

The XE135B represents solid value in the secondary market, combining XCMG's manufacturing standards with operational hours that reflect real-world use. Suitable for site development, trenching, loading, and general excavation tasks. Contact us to arrange technical evaluation and shipping options.

SpecificationsValue
No.1110243
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1110243

Brand Name:

XCMG

Model Number:

XE135B

Year:

2017

Location:

Fujian China

Pub Date
