Product Description

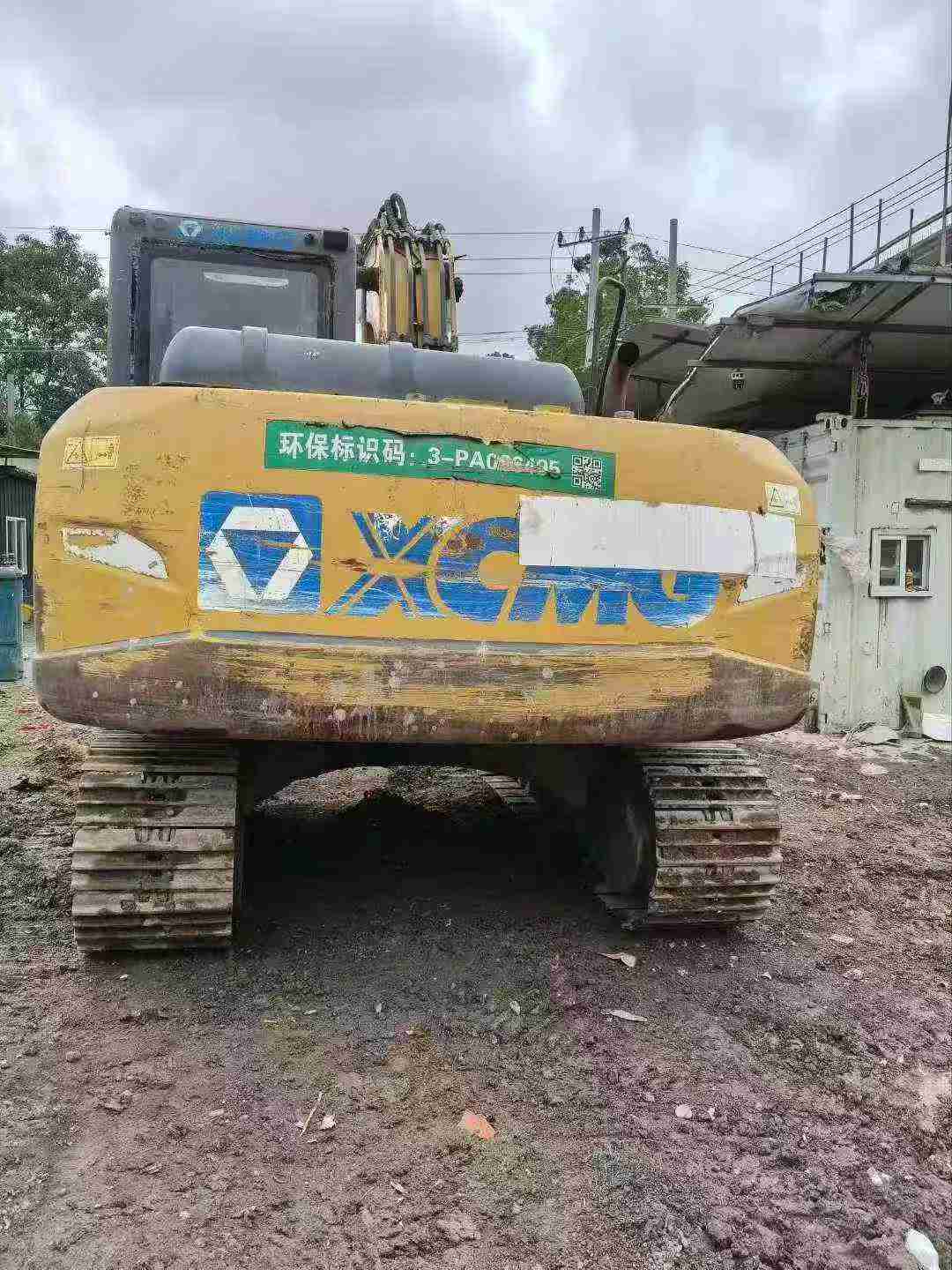

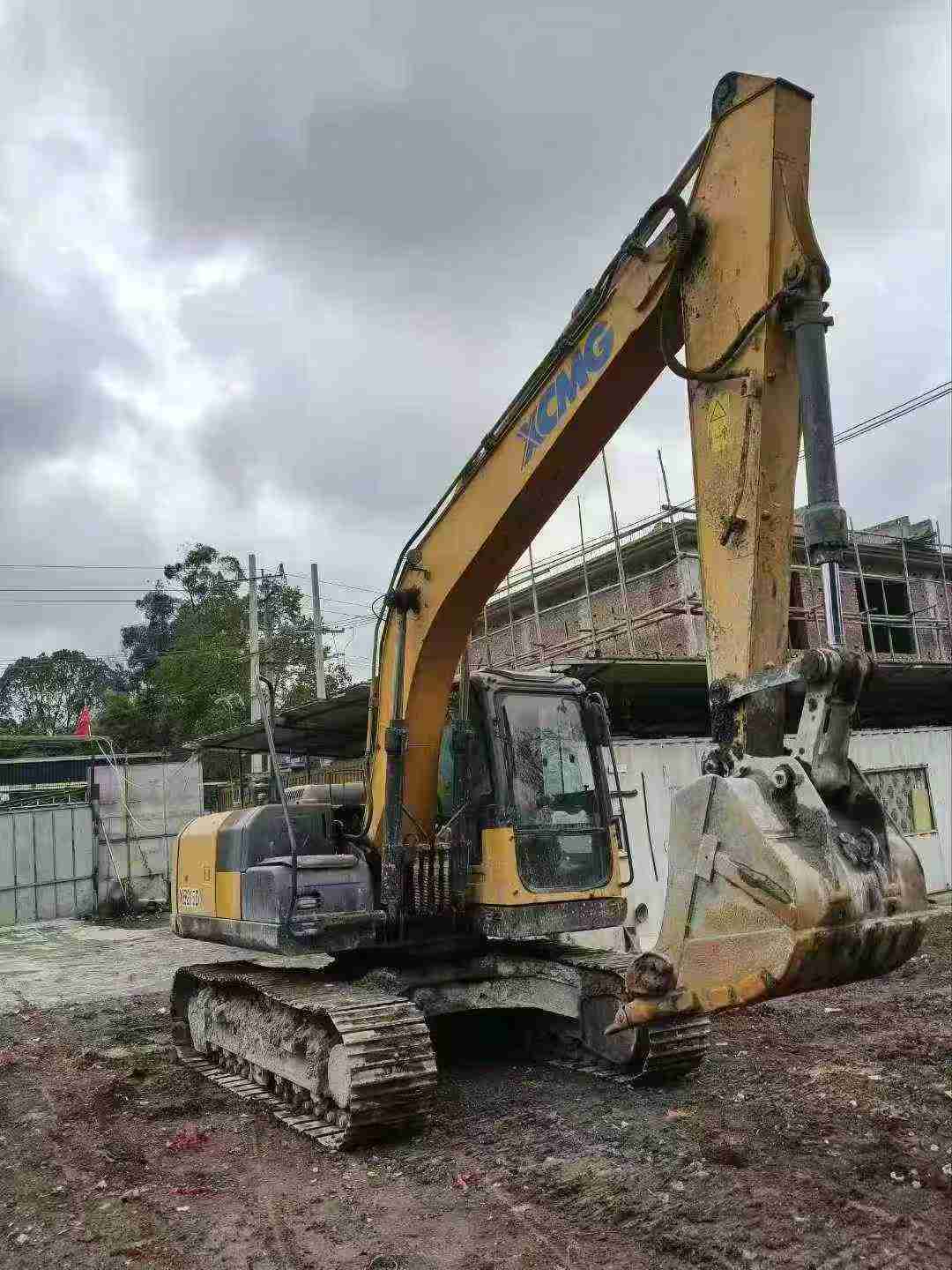

Proven in demanding field conditions since 2018, this XCMG XE135B excavator demonstrates the build quality that keeps contractors coming back. Operating at 13 tons with a robust 13,800 kg working weight, this machine delivers consistent performance through its ISUZU BB-4BG1TRP engine producing 69.6 kW at 2200 rpm. Water-cooled turbocharged power ensures reliable operation across diverse jobsites.
Engineered for longevity, the XE135B combines impressive reach specifications—8,296 mm maximum digging radius and 5,538 mm digging depth—with substantial digging forces of 85 kN (bucket) and 65 kN (rod). Dual plunger pumps delivering 2×123 L/min maintain hydraulic consistency even under continuous load. Currently located in Sichuan Luzhou, this workhorse offers:
- 4.329L displacement engine with proven ISUZU reliability
- 0.4-0.52 m³ bucket capacity for versatile material handling
- 35° climbing ability and 42 Kpa ground pressure for varied terrain
- 250L fuel capacity supporting extended operational periods
- Compact 2,512 mm transport width for easier mobilization
Built to withstand years of heavy-duty excavation, this machine represents dependable Chinese manufacturing at its
| Specifications | Value |
|---|---|
| No. | 1018859 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
