Product Description

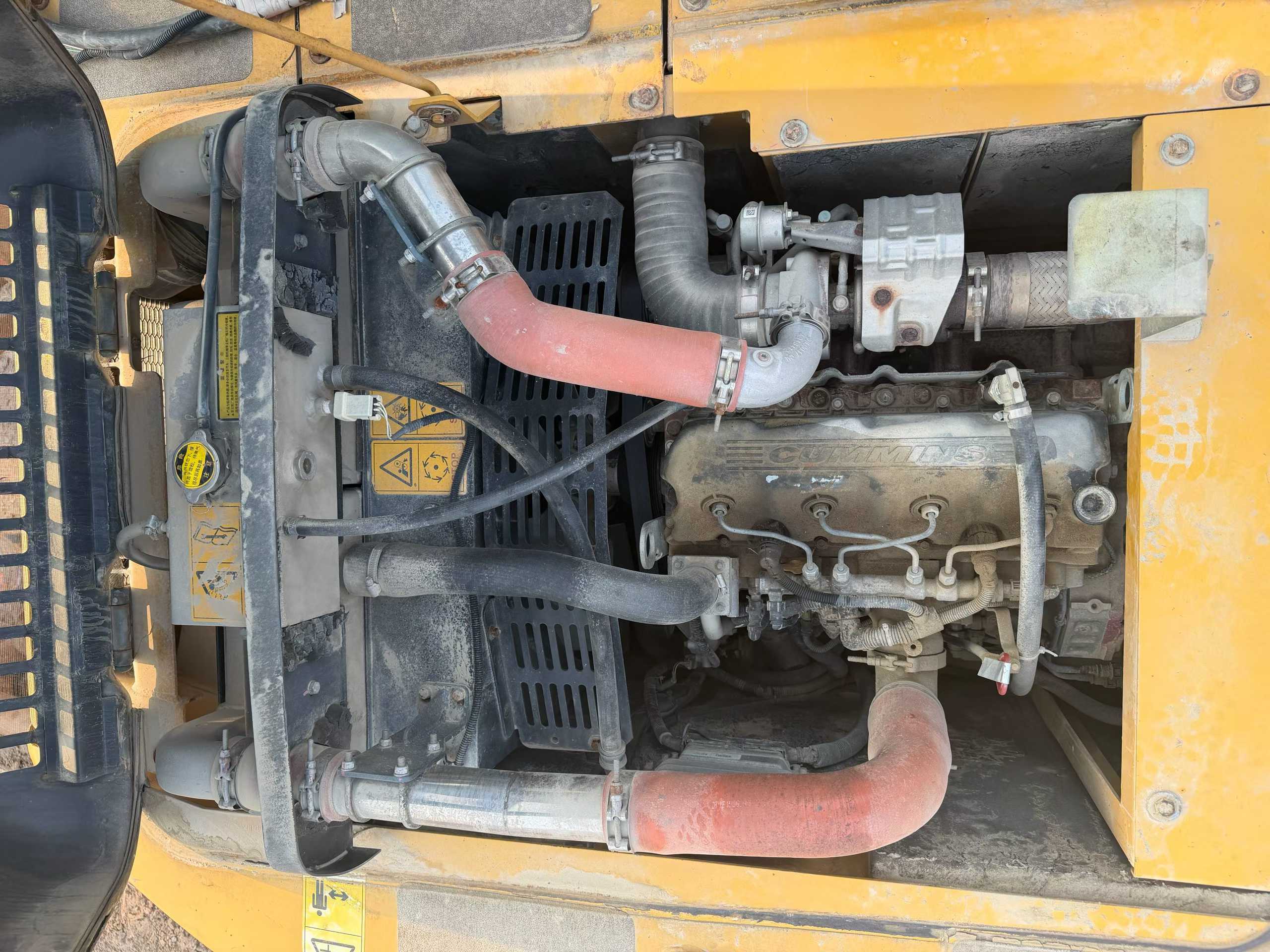

Engineered with precision in Xuzhou, this 13-ton excavator delivers professional-grade performance through proven mechanical architecture. Powered by an ISUZU BB-4BG1TRP turbocharged engine generating 69.6kW at 2200rpm, the XE135B combines 4.329L displacement with water-cooling efficiency for sustained operation in demanding conditions. Dual plunger pumps supply 2×123 L/min hydraulic flow at 31.4/34.3 MPa, driving exceptional bucket digging force of 85kN and rod force of 65kN.
Operational capabilities include:
- Maximum digging reach of 8,296mm with 5,538mm depth capacity
- 4,600mm boom and 2,510mm rod configuration for versatile positioning
- 0.4-0.52m³ bucket capacity suited for varied material handling
- 12.3rpm rotation speed with 35° climbing ability on challenging terrain
- Compact transport dimensions: 7,770×2,512×2,880mm
Currently located in Chongqing, this 2018 unit represents XCMG's commitment to hydraulic efficiency and structural integrity. The 13,800kg working weight distributes 42kPa ground pressure across 2,910mm track contact, ensuring stability without sacrificing mobility in construction and earthmoving applications.
| Specifications | Value |
|---|---|
| No. | 1031518 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
