Product Description

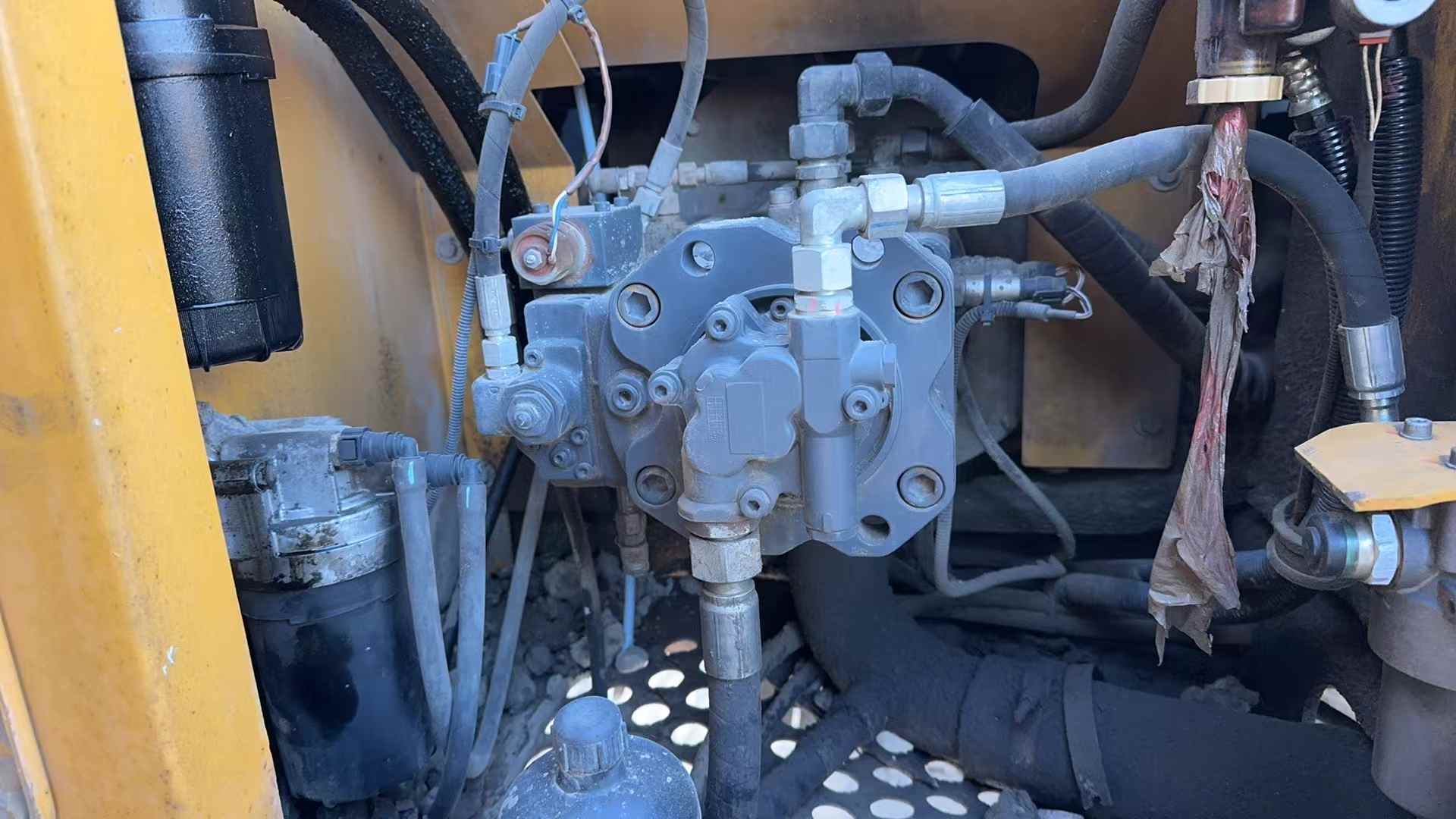

Engineered with precision in Xuzhou, this 13-ton excavator delivers exceptional performance through proven ISUZU BB-4BG1TRP turbocharged technology. The water-cooled 4-cylinder engine generates 69.6kW at 2200 rpm, paired with dual plunger pumps providing 2×123 L/min maximum flow at 31.4/34.3 MPa—ensuring responsive hydraulic power across all operations.
Hydraulic capability defines this machine's advantage. Bucket digging force reaches 85kN while arm digging force delivers 65kN, supported by a robust 0.4-0.52 m³ bucket capacity. The 4600mm boom and 2510mm arm combine for an impressive 8296mm maximum reach and 5538mm digging depth, making this configuration ideal for medium-scale earthmoving and utility work.
Key specifications include:
- Working weight: 13,800 kg with 42 kPa ground pressure
- Travel speed: 5.16/3.03 km/h with 35° climbing ability
- Compact transport dimensions: 7770×2512×2880 mm
- Fuel capacity: 250L for extended operation
- 12.3 rpm rotation speed for efficient cycle times

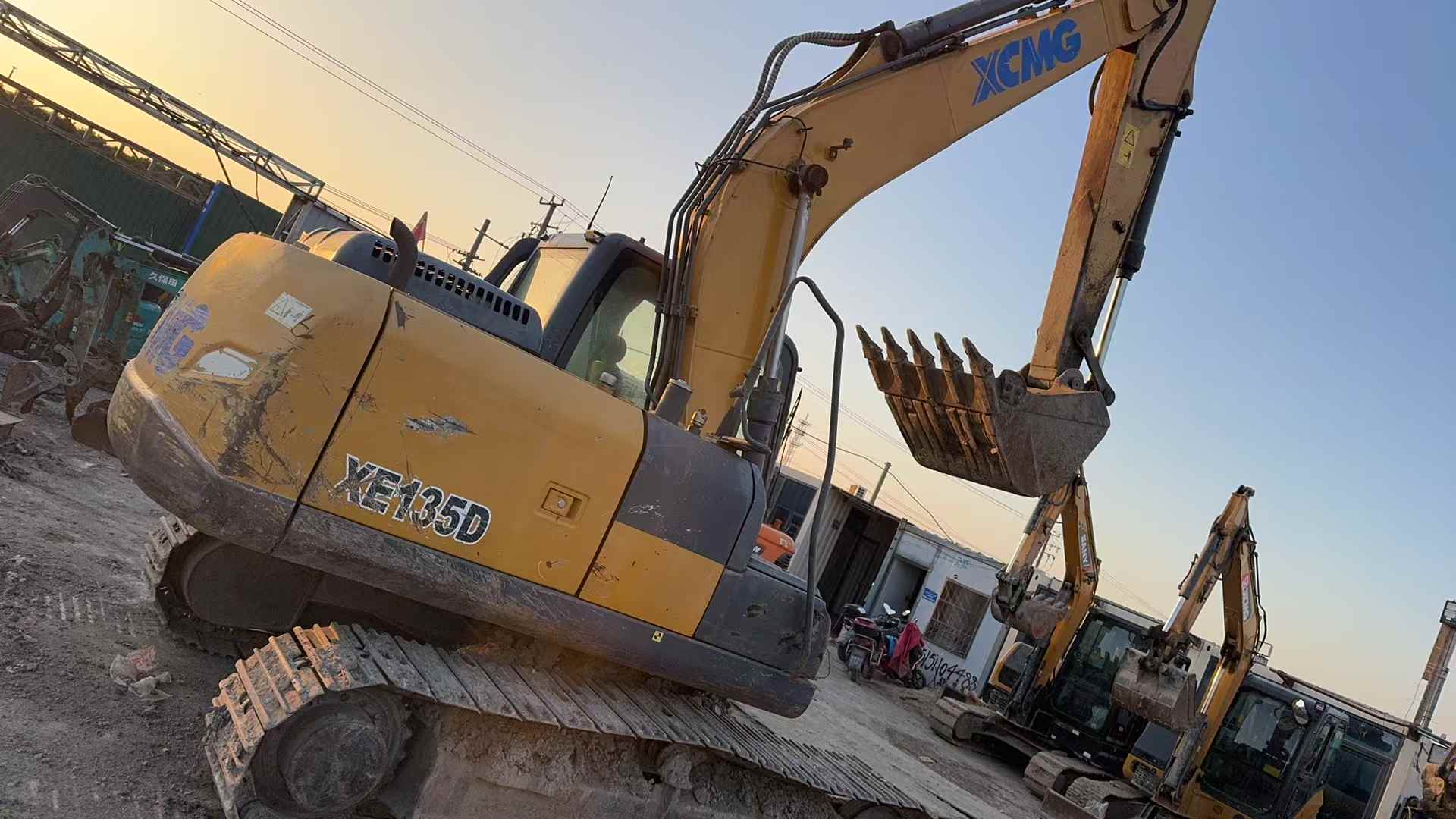

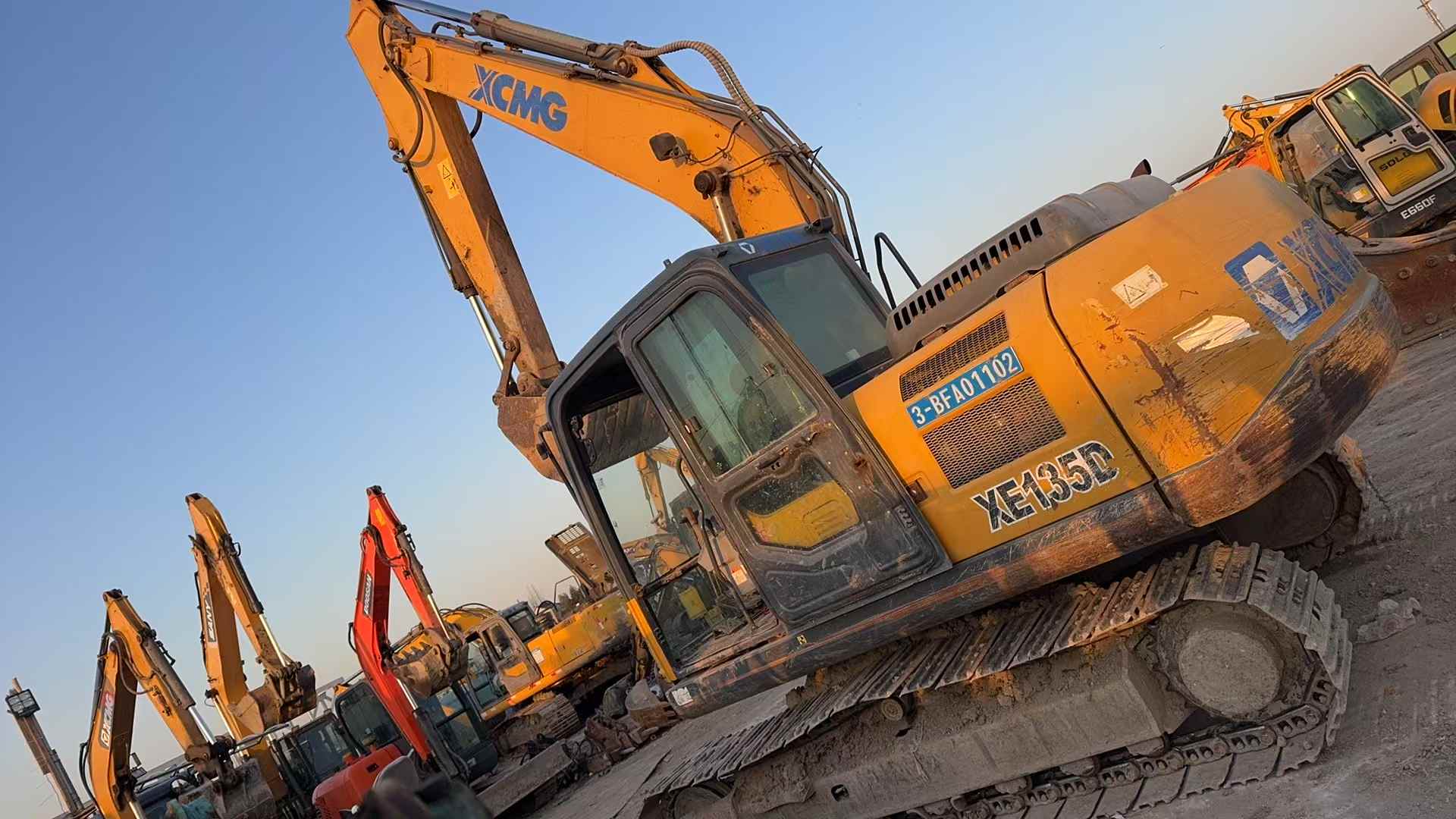

Currently located in Shanghai, this 2019 unit represents XCMG's commitment to durable construction equipment with field-proven components.
| Specifications | Value |
|---|---|
| No. | 1027892 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
