2019 XCMG XE135B

1/9

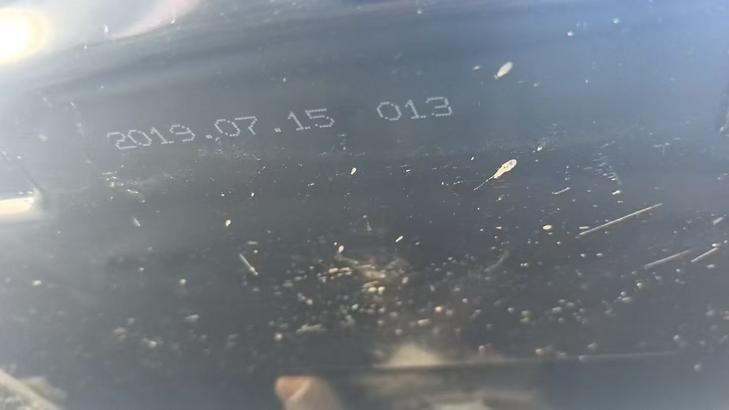

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7
Buy XCMG XE135B Used Excavator / 8
Buy XCMG XE135B Used Excavator / 9

Product Description

This 2019 XCMG XE135B hydraulic excavator offers reliable performance for medium-duty earthmoving applications. As a well-established model in XCMG's product line, the XE135B delivers dependable operation with a proven track record in construction, mining, and infrastructure projects.

Key features include:

  • 13.5-ton operating weight class suitable for diverse jobsite requirements
  • Fuel-efficient engine design for reduced operational costs
  • Robust hydraulic system engineered for demanding work cycles
  • Operator cabin designed for extended shift comfort
  • XCMG factory support and parts availability

Currently located in Jiangxi, China, this unit is available for immediate sale. The machine represents a cost-effective solution for contractors seeking proven excavator technology from a leading Chinese manufacturer. Inspection welcomed prior to purchase.

SpecificationsValue
No.1110308
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1110308

Brand Name:

XCMG

Model Number:

XE135B

Year:

2019

Location:

Jiangxi China

Pub Date
