2019 XCMG XE135B

1/8

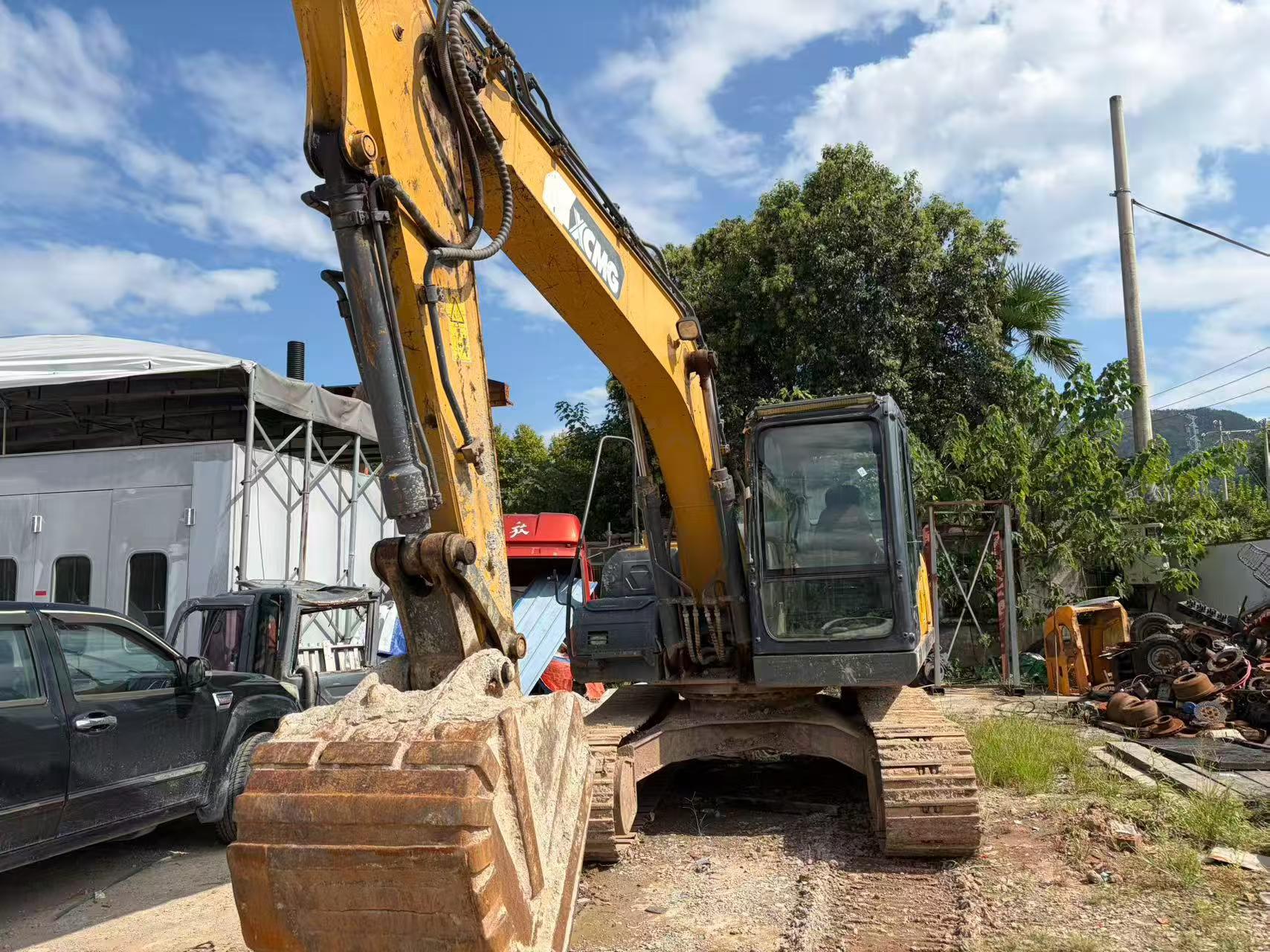

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7

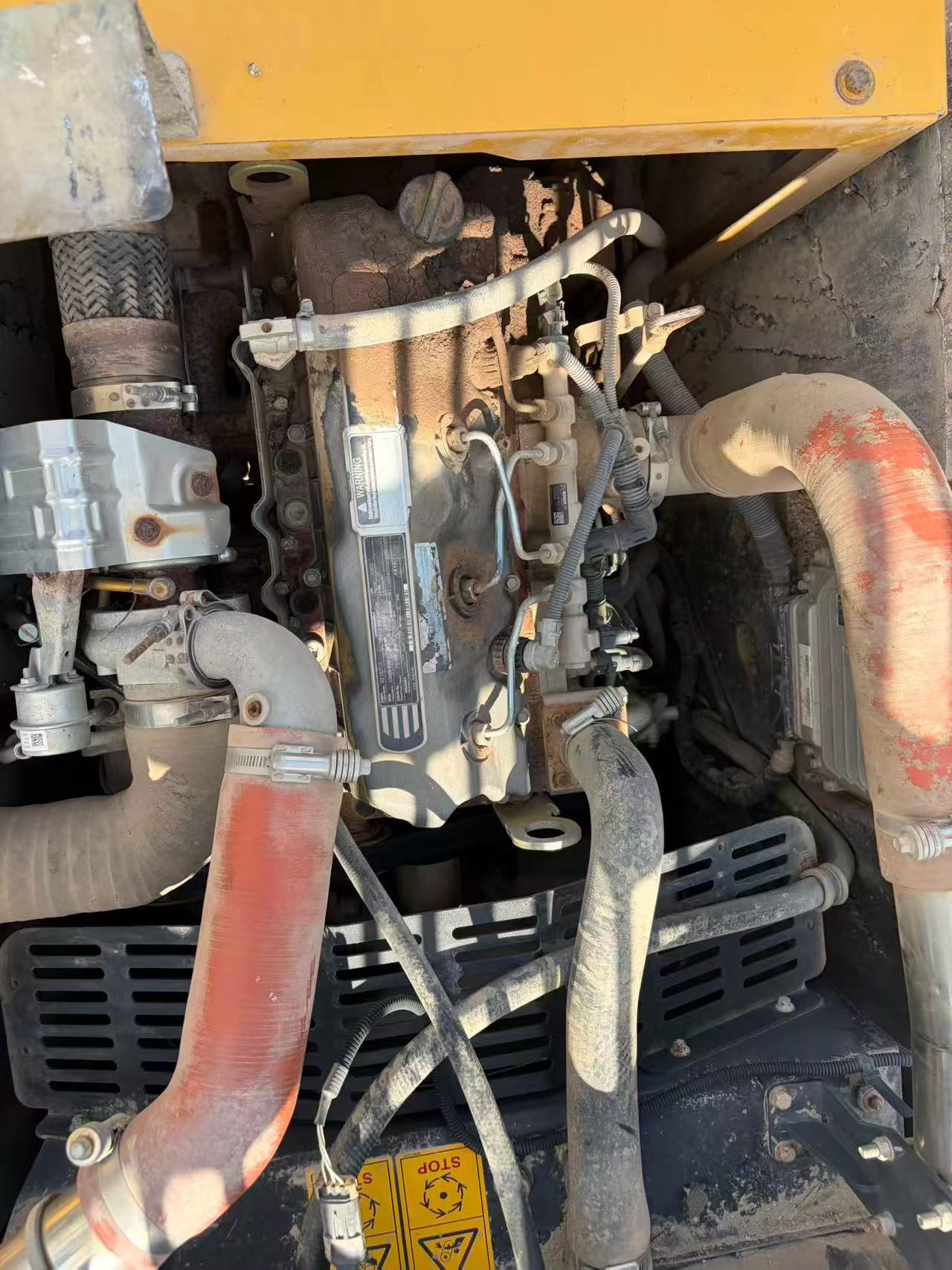

Buy XCMG XE135B Used Excavator / 8

Product Description

This 2019 XCMG XE135B excavator offers reliable performance for medium-duty applications. With approximately five years of operational history, this 13.5-ton class machine demonstrates XCMG's established engineering in the compact excavator segment. Currently located in Zhejiang, China, the unit is positioned for efficient logistics throughout Asia-Pacific markets.

Key attributes include:

  • 13.5-ton operating weight suitable for construction, landscaping, and utility work
  • Hydraulic system designed for responsive digging and grading operations
  • Cab-mounted controls with standard instrumentation
  • Tracked undercarriage for stability on varied terrain
  • Service history available upon request

The XE135B represents practical value in the used equipment market, combining XCMG's manufacturing scale with proven mechanical design. Ideal for contractors seeking cost-effective capacity expansion or fleet operators requiring backup units. Pre-purchase inspection recommended.

SpecificationsValue
No.1139299
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1139299

Brand Name:

XCMG

Model Number:

XE135B

Year:

2019

Location:

Zhejiang China
