Product Description

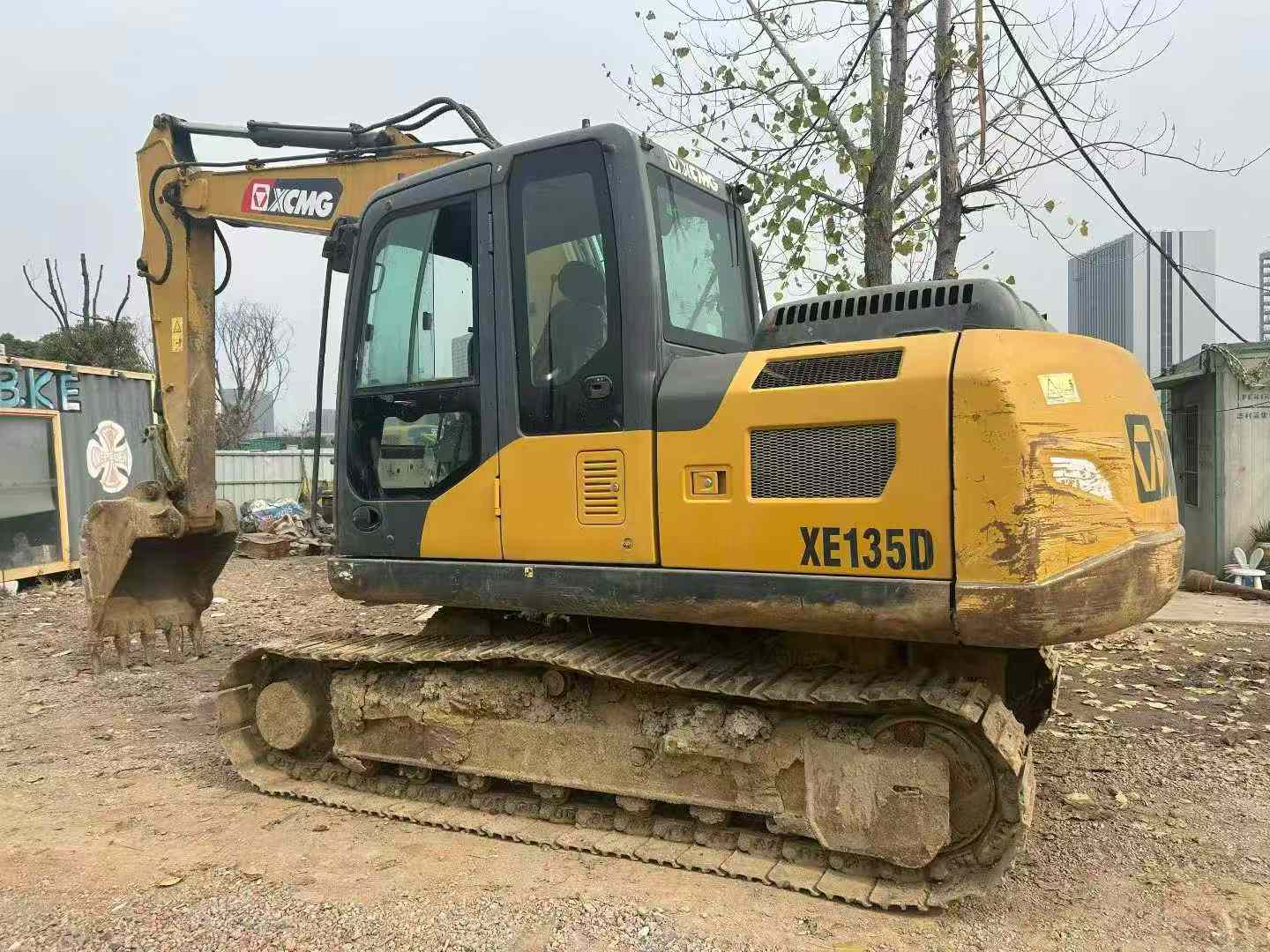

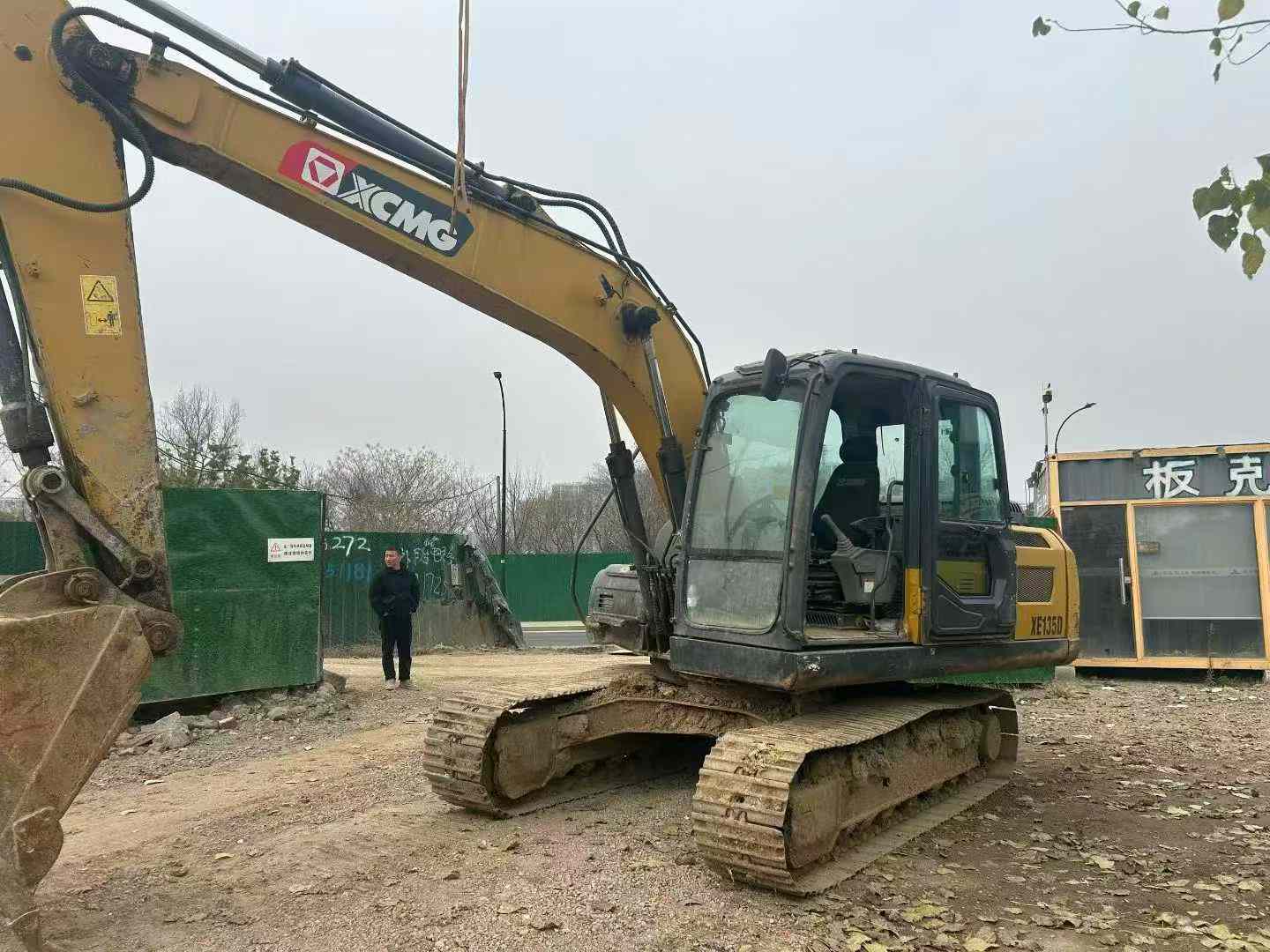

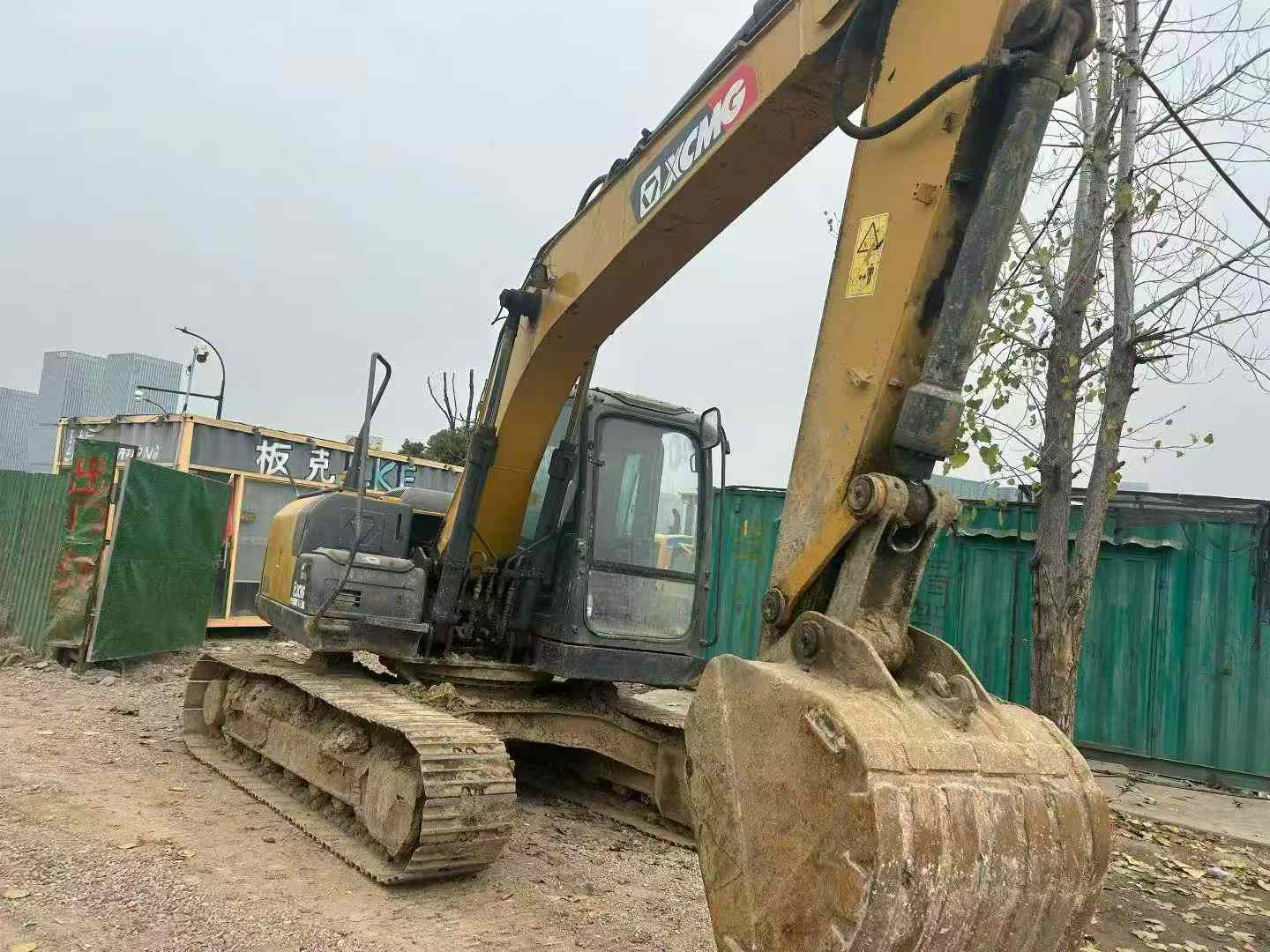

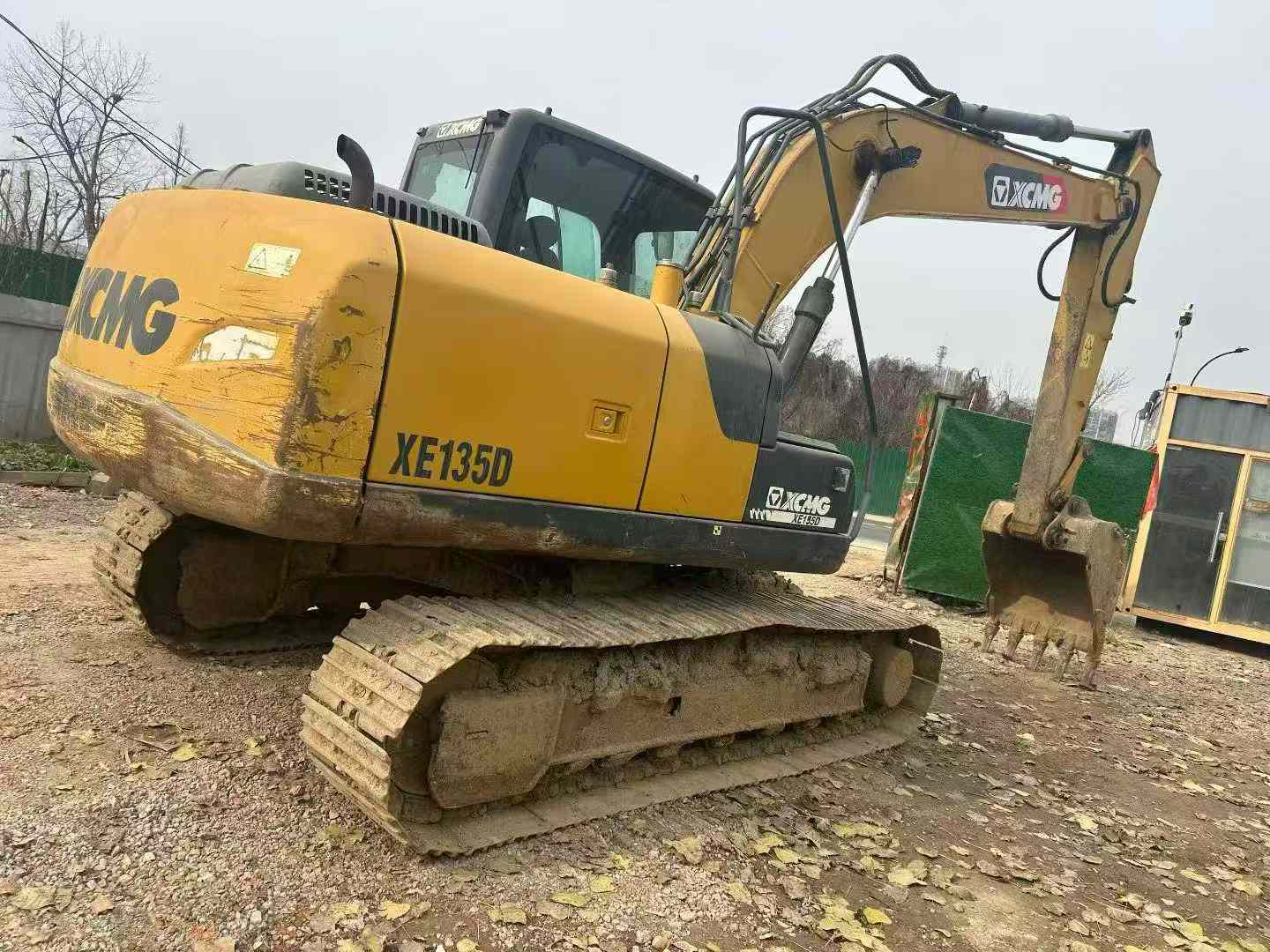

Engineered with precision in Xuzhou, this 13-ton excavator delivers robust performance through its ISUZU BB-4BG1TRP turbocharged engine, producing 69.6 kW at 2200 rpm with water-cooling efficiency across four cylinders. Dual plunger pumps supply 2×123 L/min hydraulic flow at 31.4/34.3 MPa, powering an 85 kN bucket digging force and 65 kN rod digging force for demanding excavation tasks. With an impressive 8296 mm maximum digging radius and 5538 mm depth capacity, the XE135B tackles complex site requirements while maintaining 42 kPa ground pressure for minimal surface impact.
- Working weight: 13,800 kg with 0.4-0.52 m³ bucket capacity
- Superior reach: 4600 mm boom, 2510 mm rod configuration
- Hydraulic system: 31.4 MPa main circuit, 250 L fuel tank, 130 L hydraulic reservoir
- Mobility: 5.16 km/h travel speed, 35° climbing ability, 12.3 rpm rotation
- Compact transport: 7770×2512×2880 mm dimensions
- Currently located in Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1022199 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

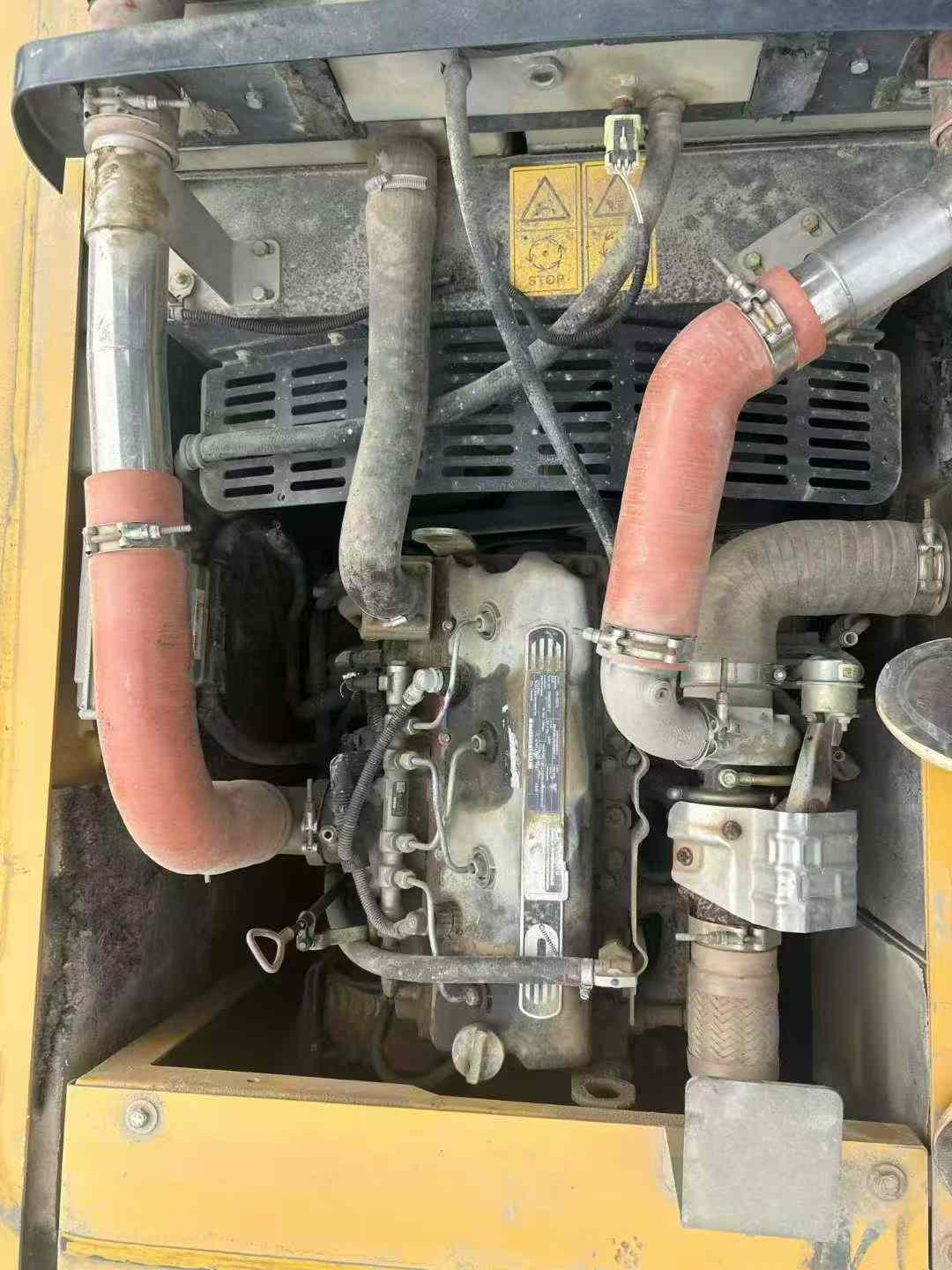

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

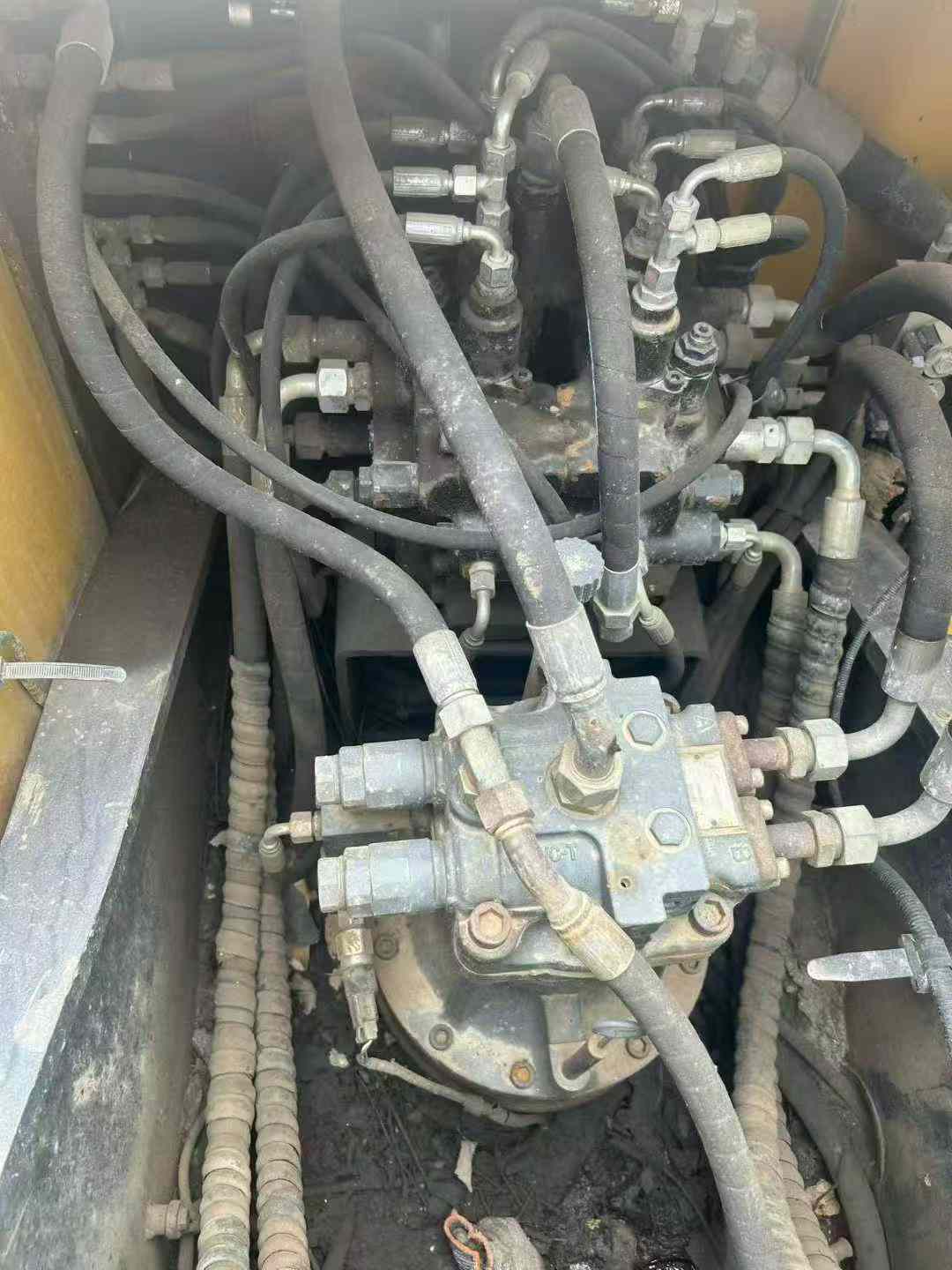

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
