Product Description

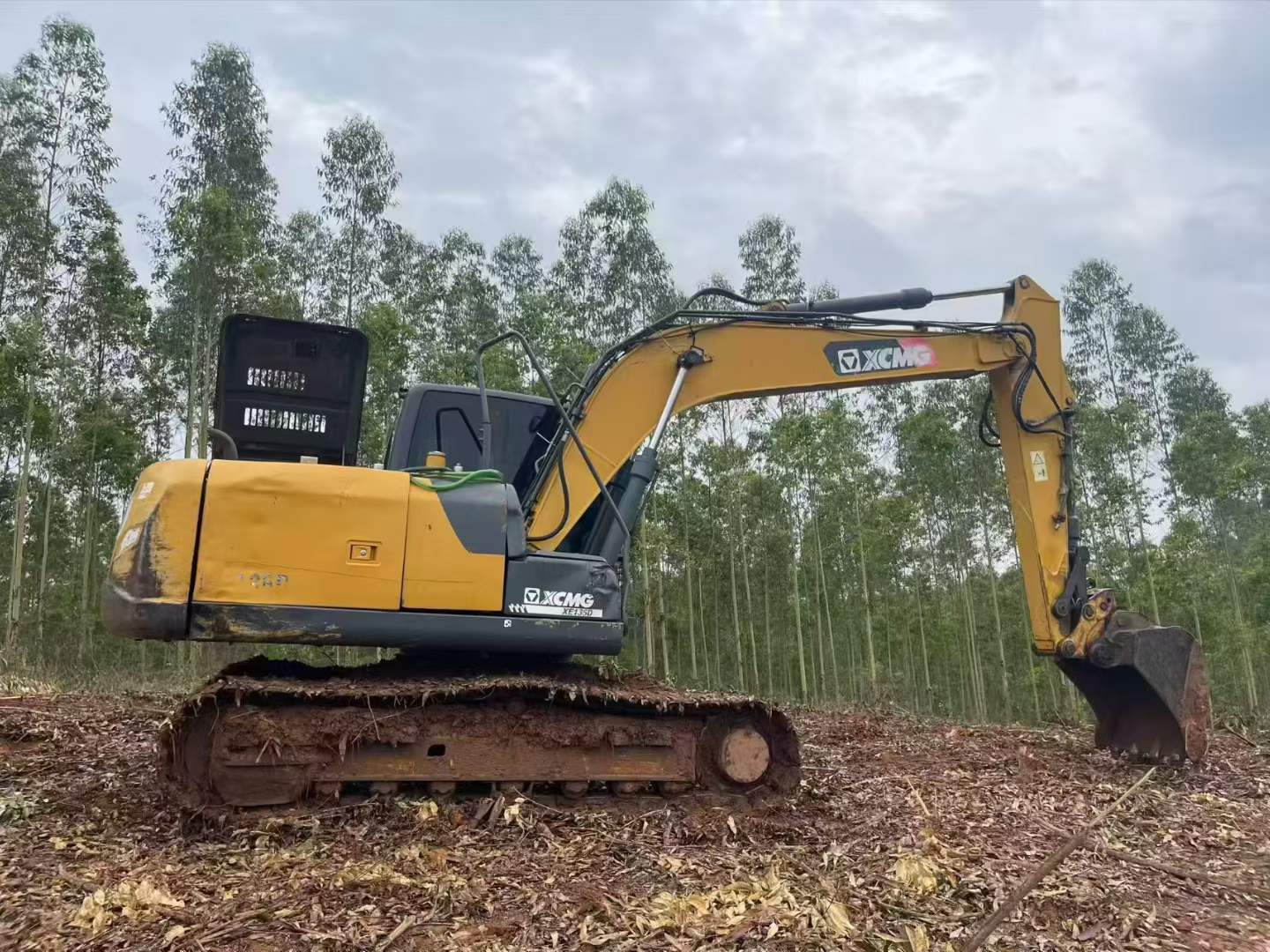

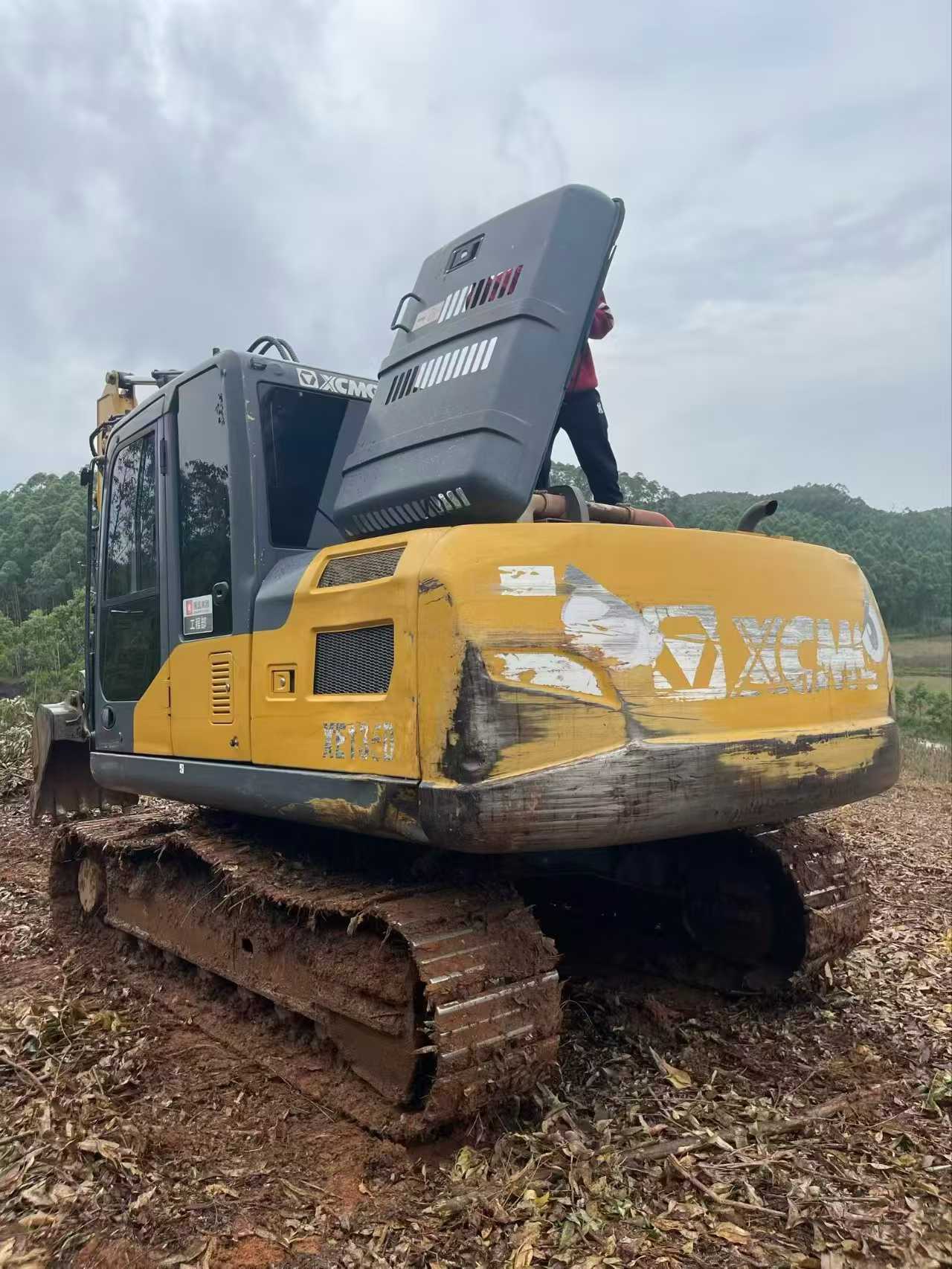

With a robust working weight of 13,800 kg and a bucket capacity ranging from 0.4 to 0.52 m³, the XCMG XE135B is an ideal addition to any busy contractor's fleet. Featuring a powerful ISUZU BB-4BG1TRP engine with a rated power of 69.6 kW at 2200 rpm, this excavator ensures reliable performance for demanding tasks. Its 4600 mm boom and 2510 mm rod provide extensive reach, while the 85 kN bucket digging force and 65 kN rod digging force make it capable of handling tough materials. The water-cooled, turbocharged engine, combined with a 250 L fuel tank, supports long hours of operation without frequent refueling. With a maximum travel speed of 5.16 km/h and a climbing ability of 35°, the XE135B is versatile on various terrains. Ideal as a backup or primary unit, this 2020 model from Xuzhou, China, integrates seamlessly into your existing fleet, enhancing productivity and reliability.
| Specifications | Value |
|---|---|
| No. | 1023114 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

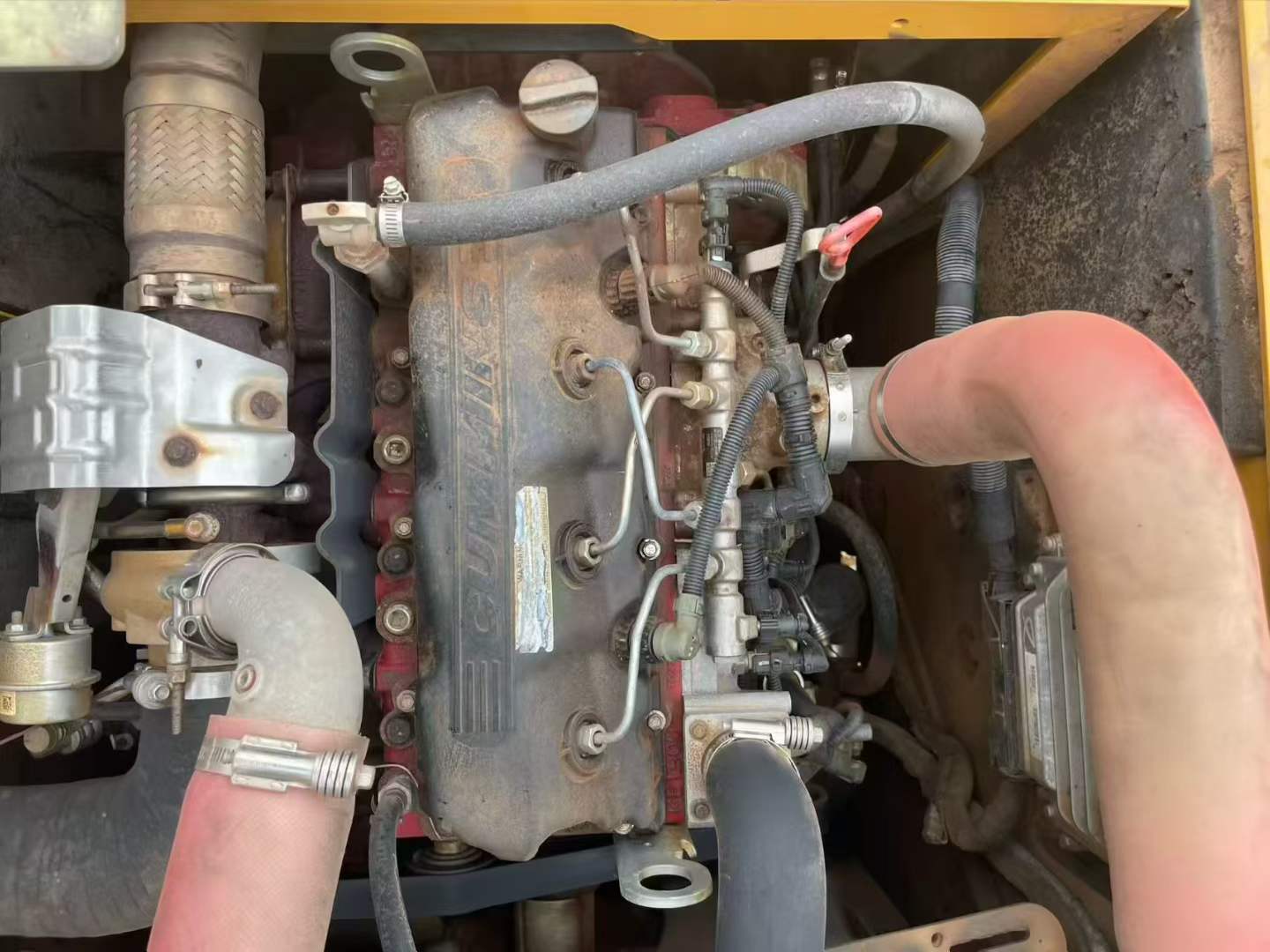

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

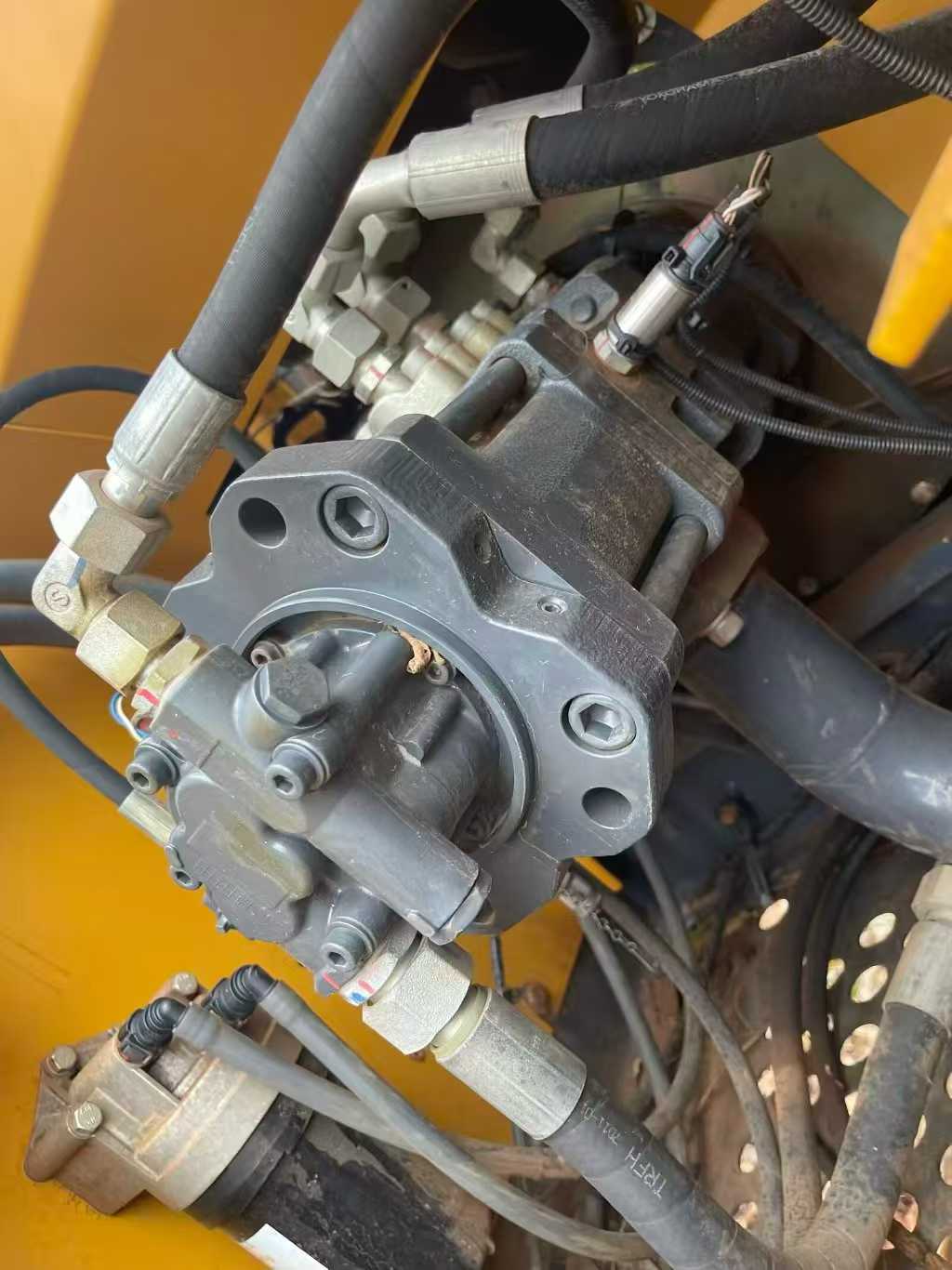

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
