Product Description

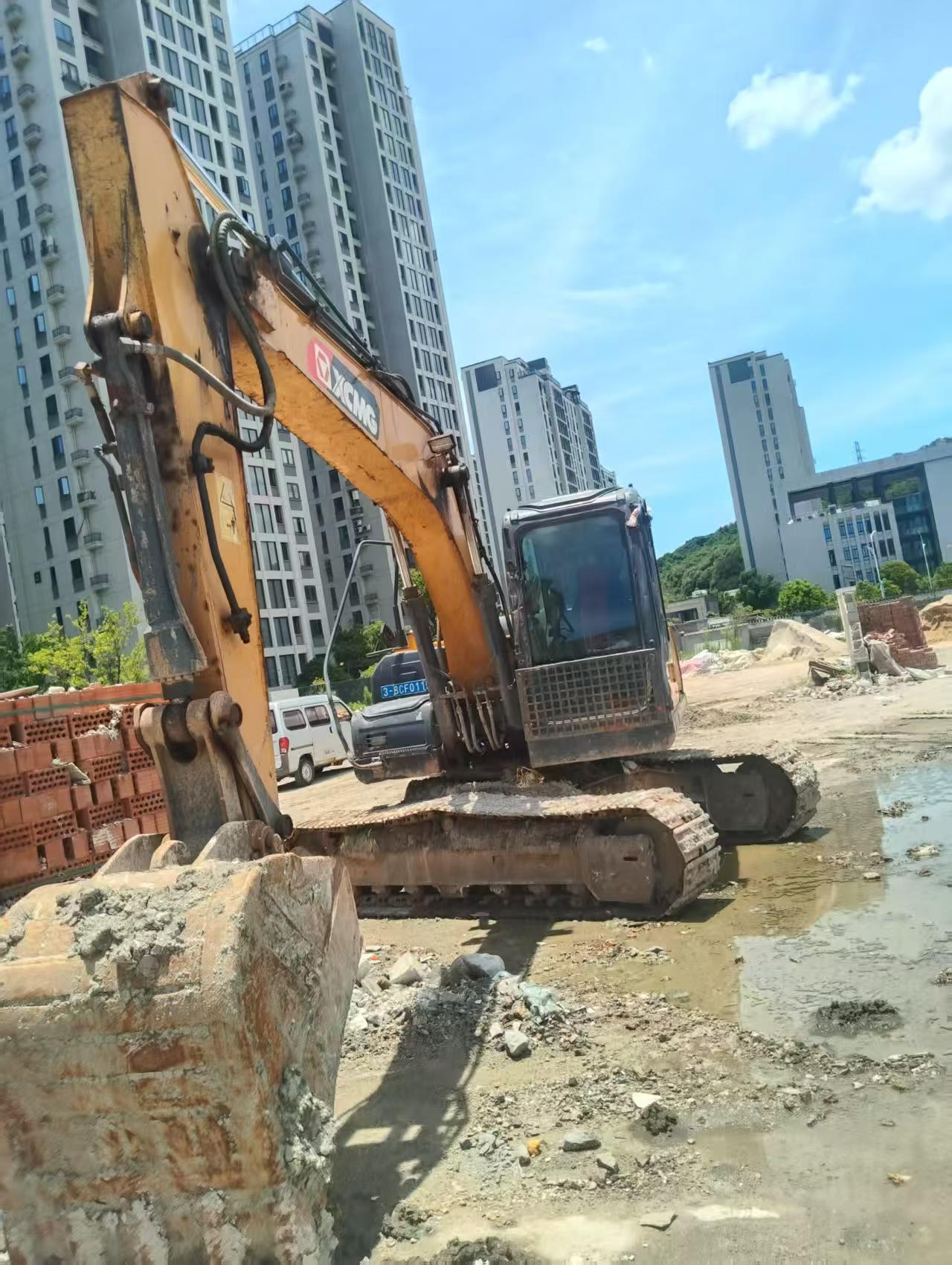

Built for productivity, this 2020 XCMG XE135B excavator delivers 13-ton class performance with zero downtime. Powered by an ISUZU BB-4BG1TRP engine producing 69.6kW at 2200rpm, this machine tackles digging, grading, and demolition work with authority. Maximum digging depth reaches 5,538mm while the 8,296mm working radius covers extensive ground without repositioning. Bucket digging force of 85kN breaks through compacted soil and rocky terrain efficiently.
Equipped with dual plunger pumps flowing 2×123 L/min, hydraulic response remains crisp under heavy loads. The 0.4-0.52m³ bucket capacity moves material quickly, while the 4,600mm boom and 2,510mm arm provide optimal geometry for truck loading and trenching operations. Water-cooled turbocharged engine maintains consistent power in demanding conditions. Track width of 500mm distributes the 13,800kg operating weight across a 42kPa ground pressure footprint, minimizing site disturbance.
Key Specifications:
- Operating weight: 13,800kg | Rated power: 69.6kW
- Max digging depth: 5,538mm | Max reach: 8,296mm
- Bucket force: 85kN | Arm force: 65kN
- Fuel capacity: 250L | Hydraulic tank: 130L
- Currently located in Wenz
| Specifications | Value |
|---|---|
| No. | 1023689 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

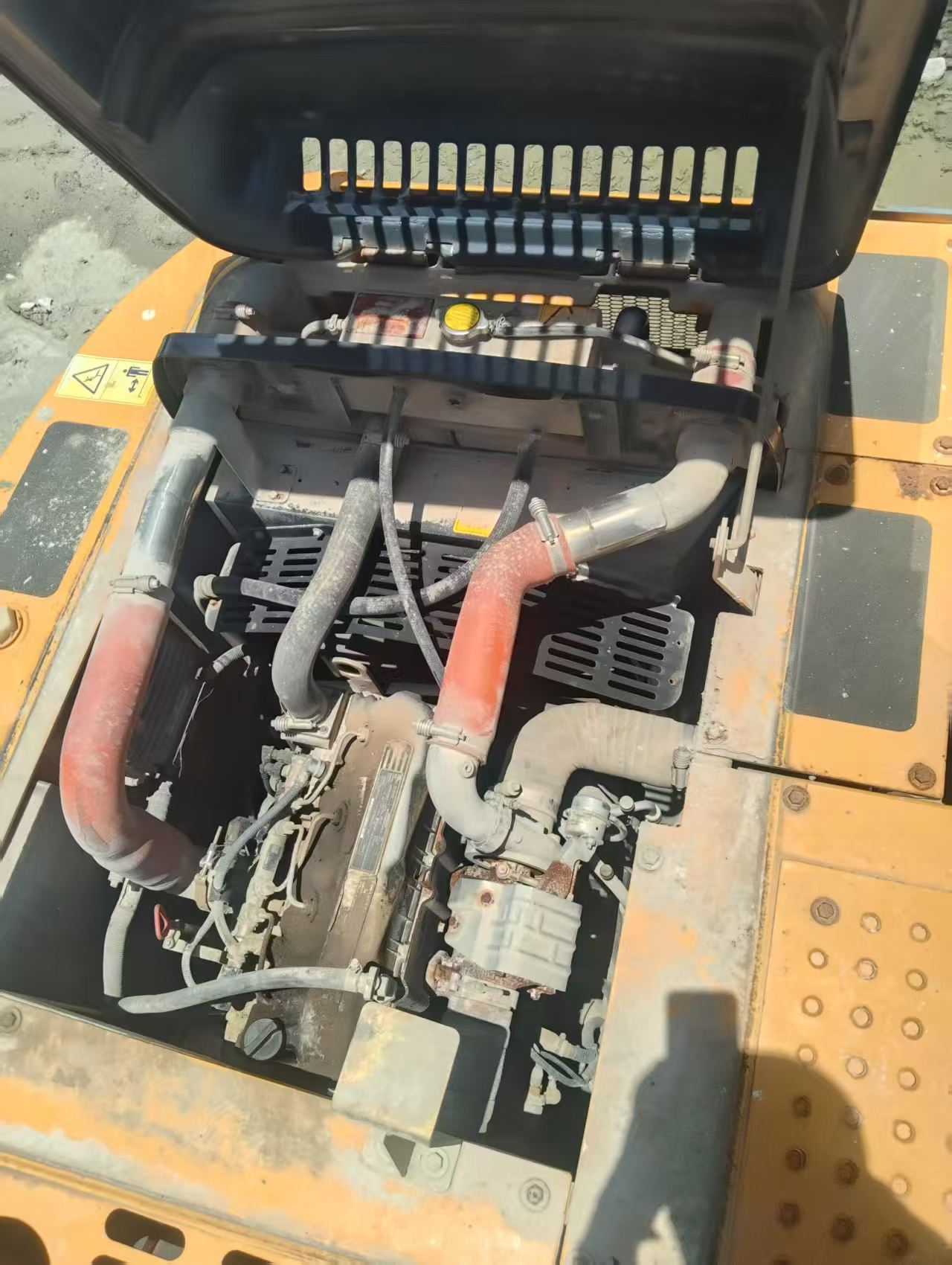

| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

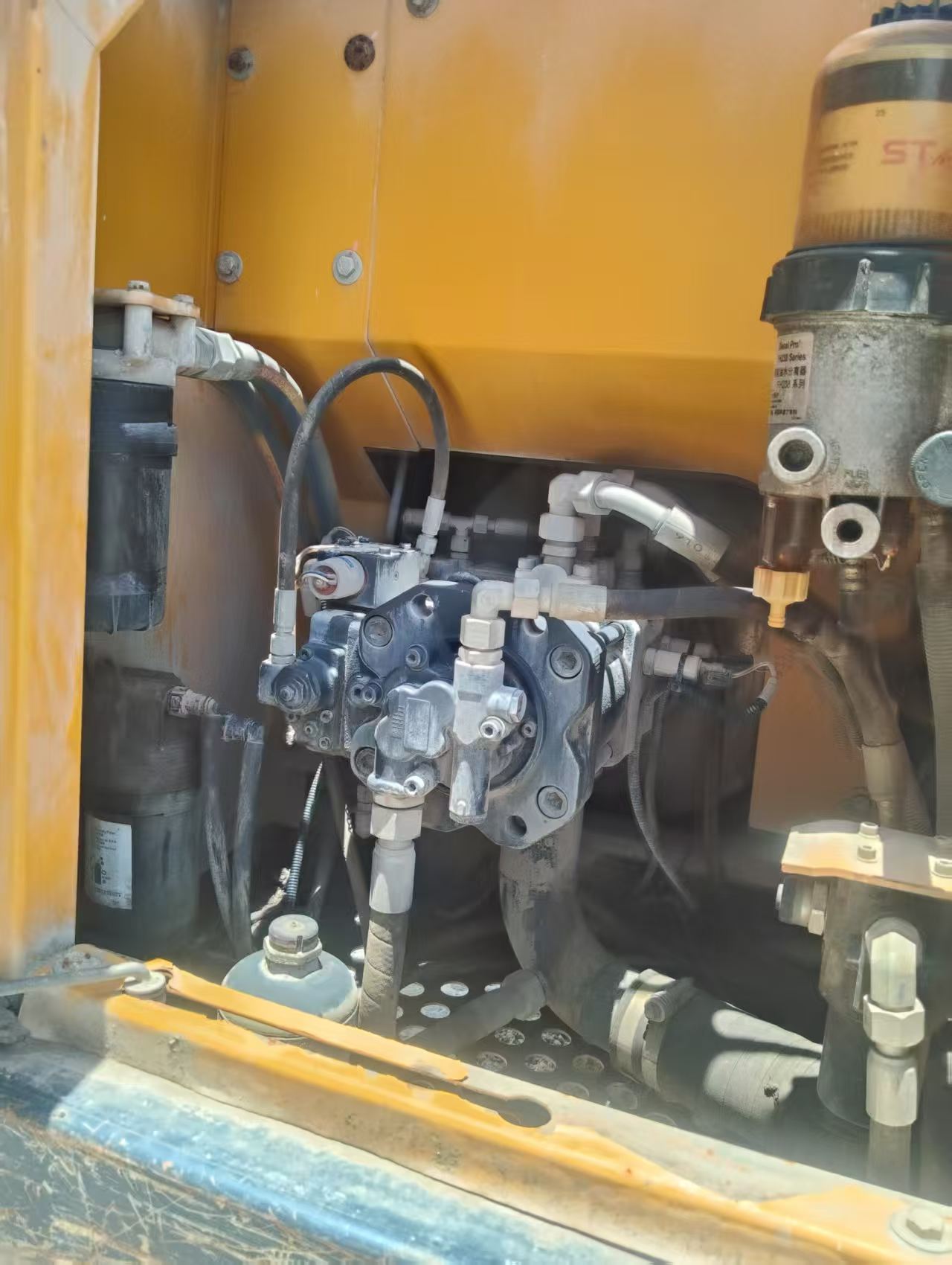

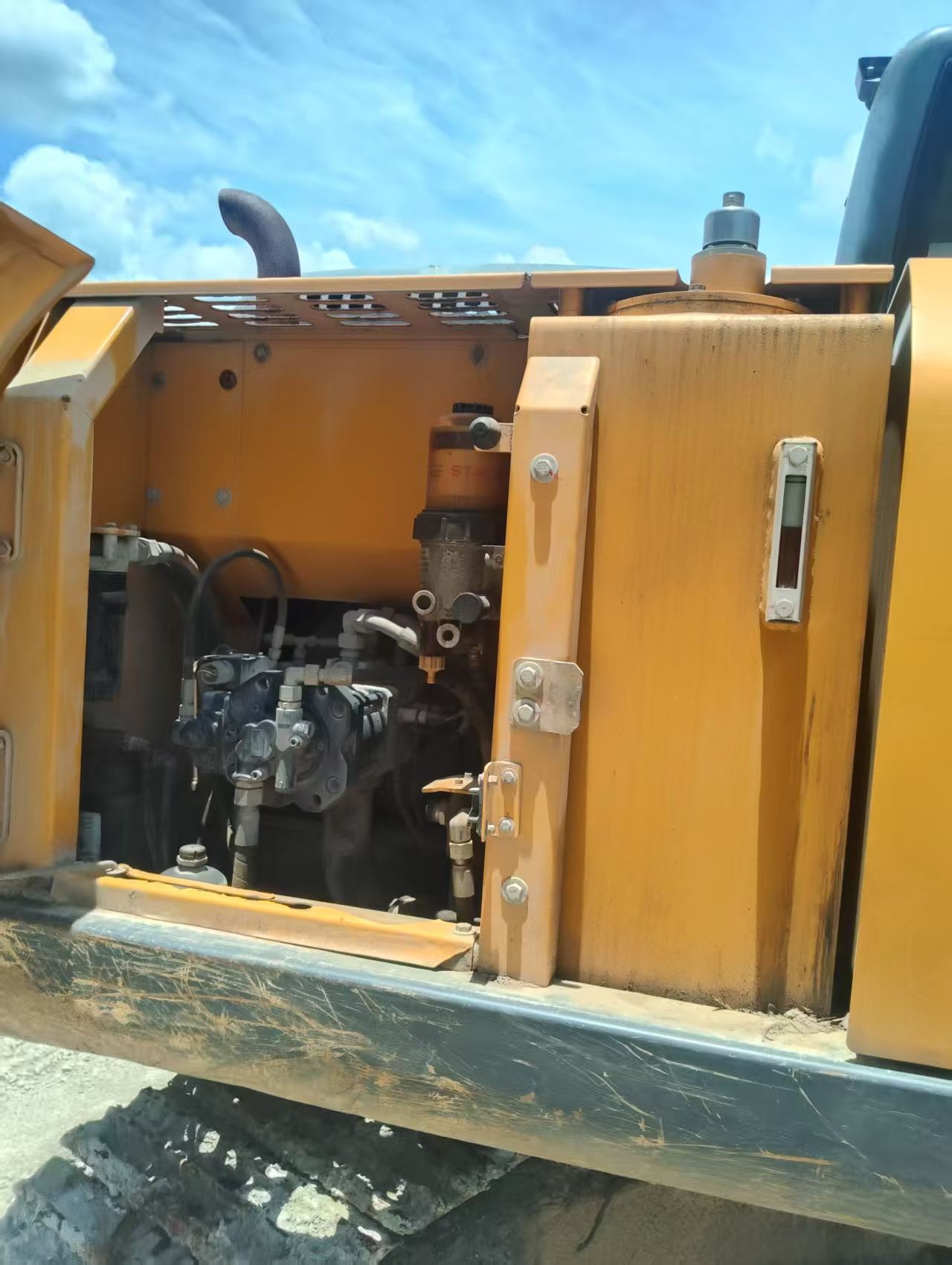

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |

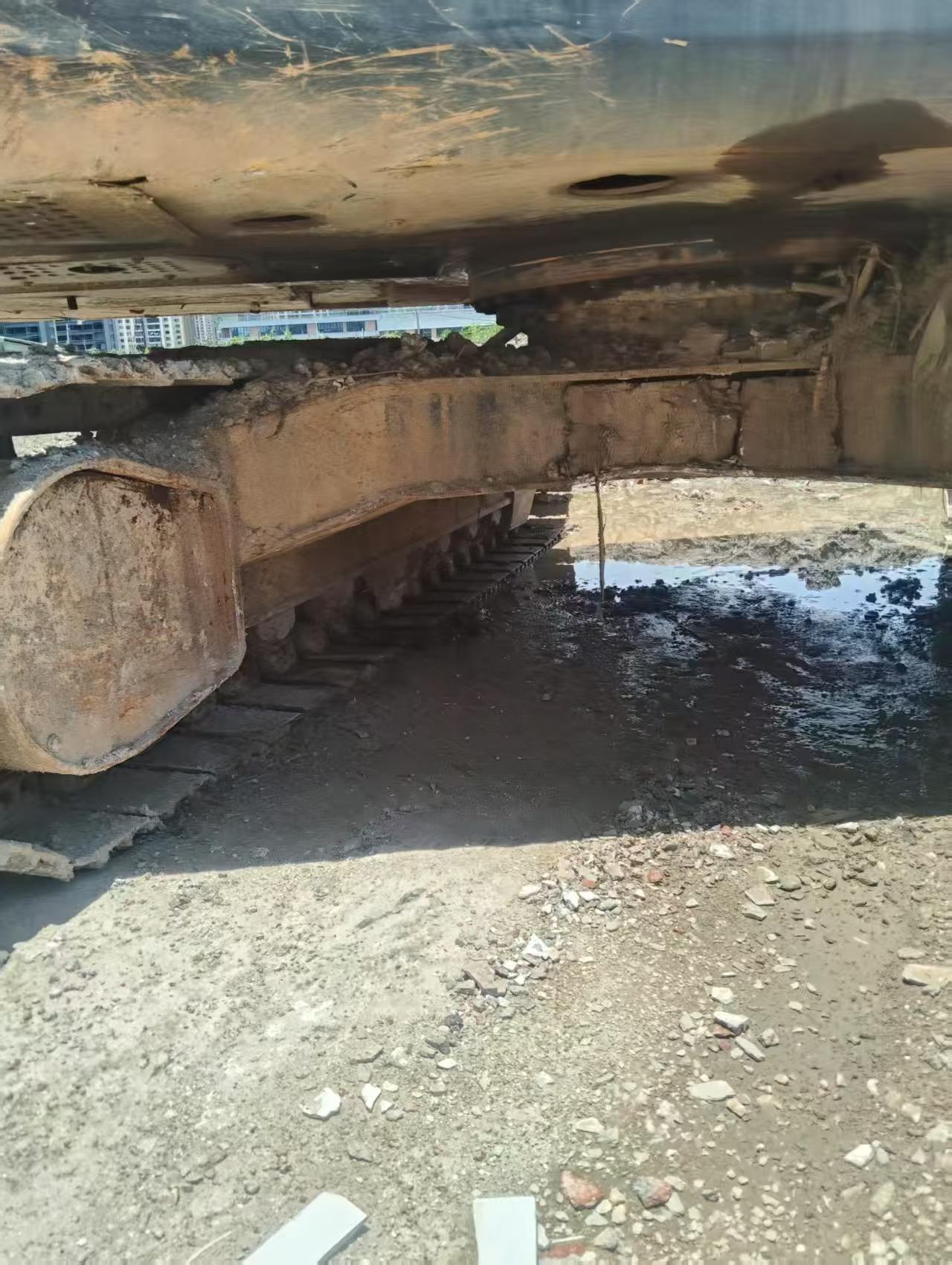

| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
