Product Description

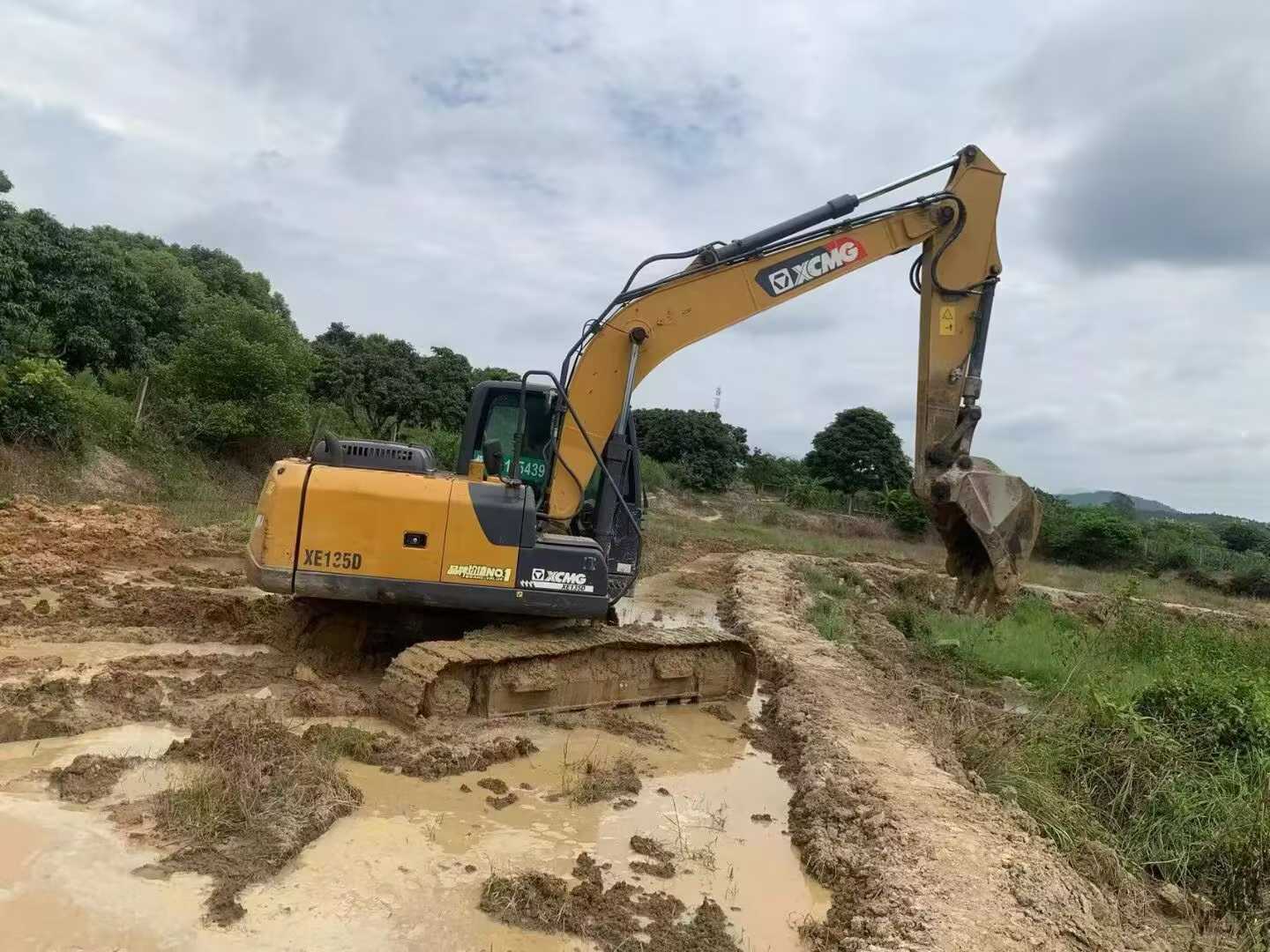

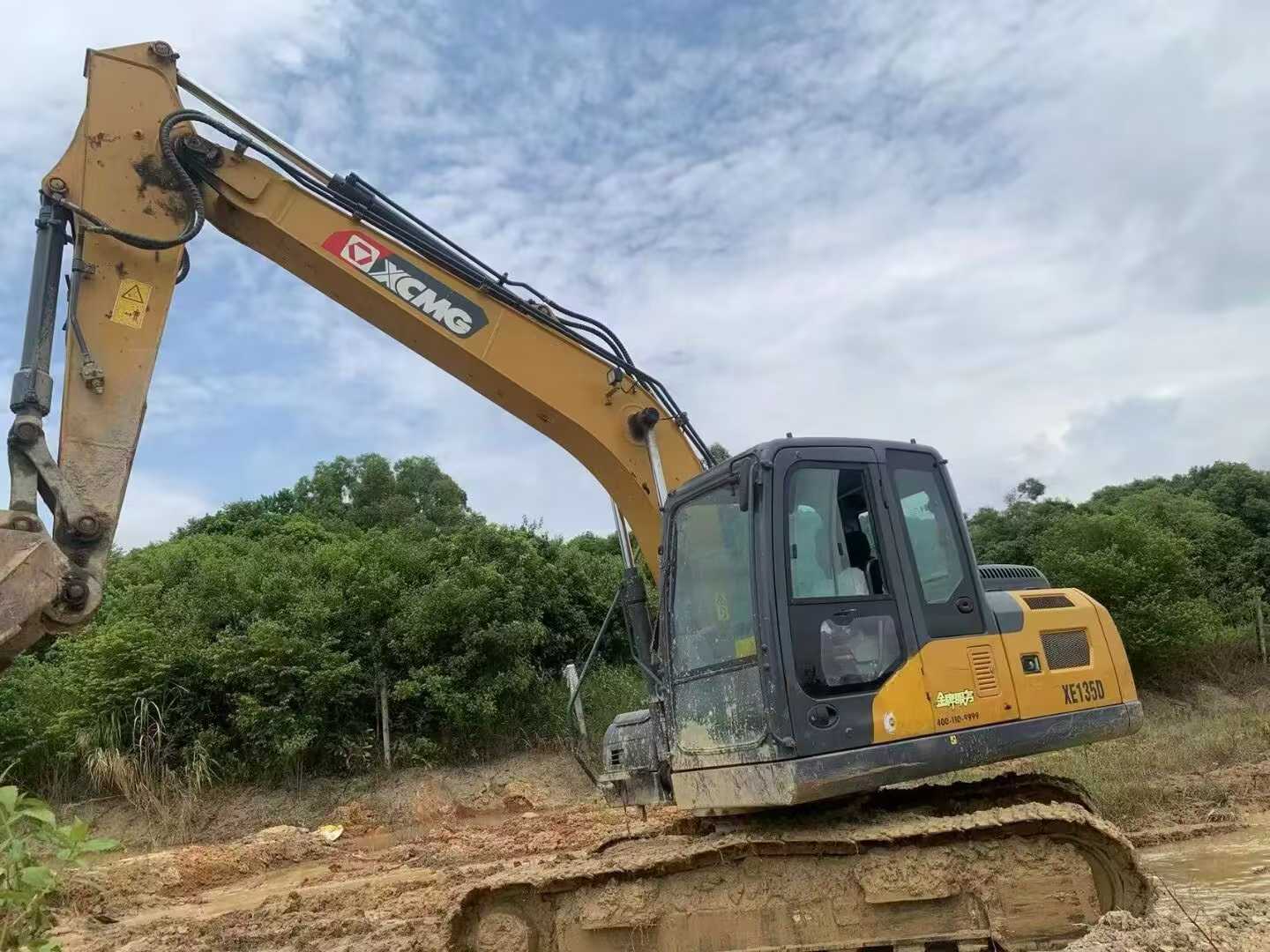

Built for precision and control, this 2021 XCMG XE135B delivers 13-ton performance with operator-centered engineering. Powered by a reliable ISUZU BB-4BG1TRP engine producing 69.6 kW, this excavator combines responsive hydraulics with exceptional stability across demanding jobsites. Dual plunger pumps supply 2×123 L/min flow, ensuring smooth simultaneous operations while the 12.3 rpm rotation speed enables efficient load positioning.

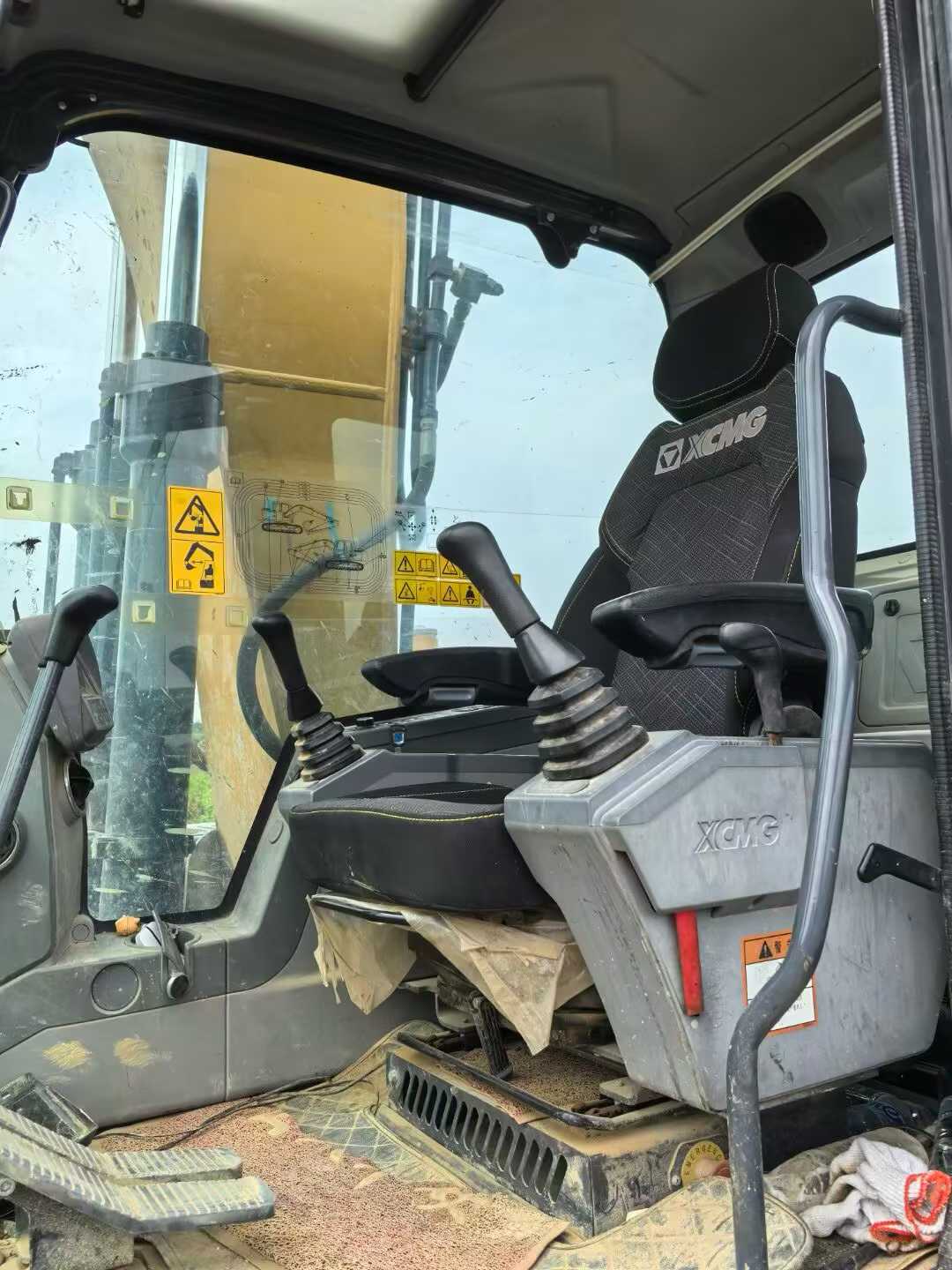

Operators benefit from commanding visibility across an 8,296 mm maximum digging radius and 5,538 mm maximum depth. The spacious cabin provides clear sightlines to the 0.4-0.52 m³ bucket throughout the full working envelope. Low ground specific pressure of 42 kPa and 500 mm track plates maintain stability on soft terrain, while 35° climbing ability handles steep grades confidently.
- Working Weight: 13,800 kg with balanced counterweight design
- Digging Forces: 85 kN bucket, 65 kN stick for tough material
- Hydraulic Precision: 31.4/34.3 MPa main relief, 3.9 MPa pilot control
- Transport Dimensions: 7,770 × 2,512 × 2,880 mm
- Location: Foshan, Guangdong – ready for inspection
| Specifications | Value |
|---|---|
| No. | 1024549 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

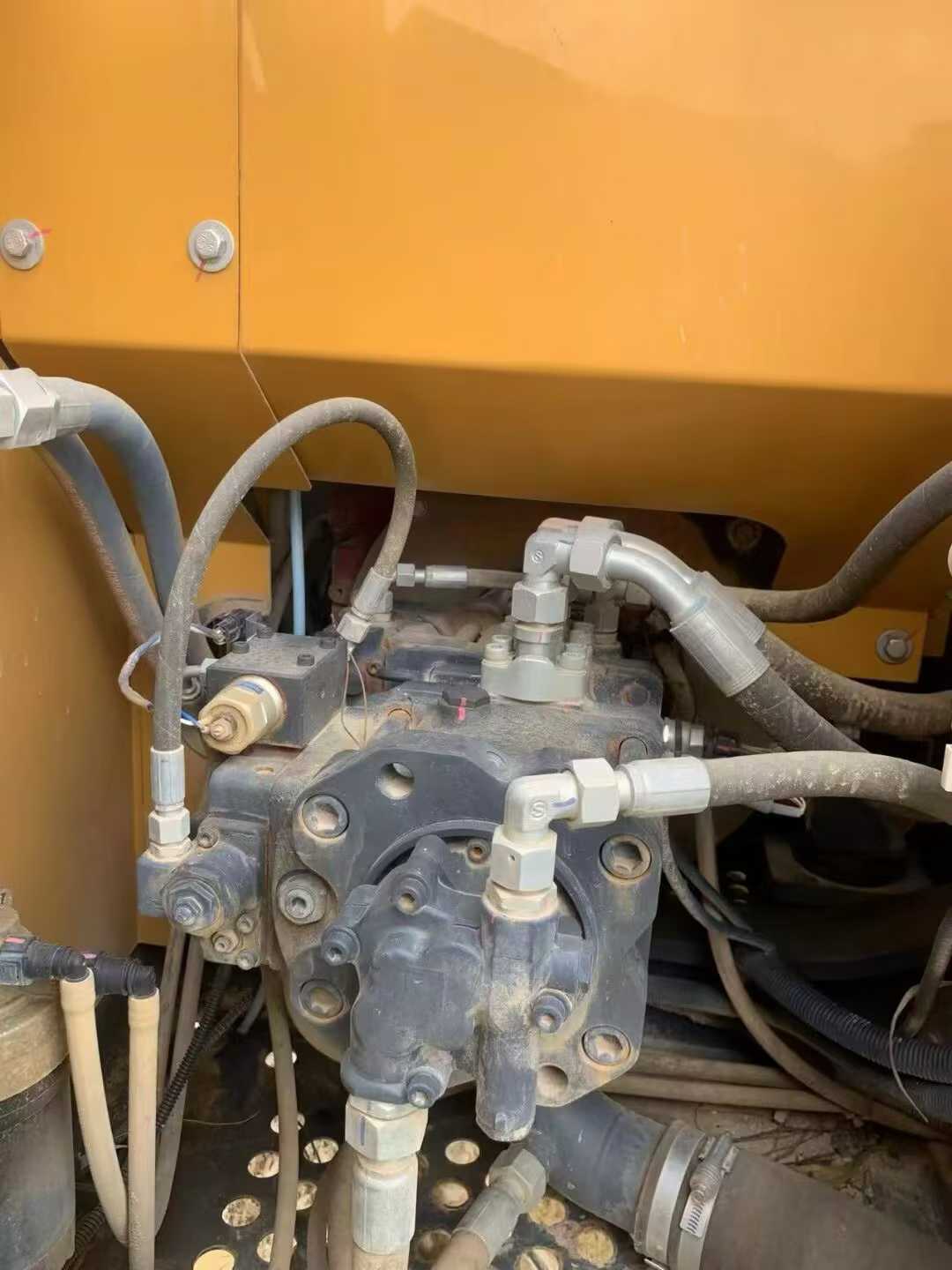

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
