Product Description

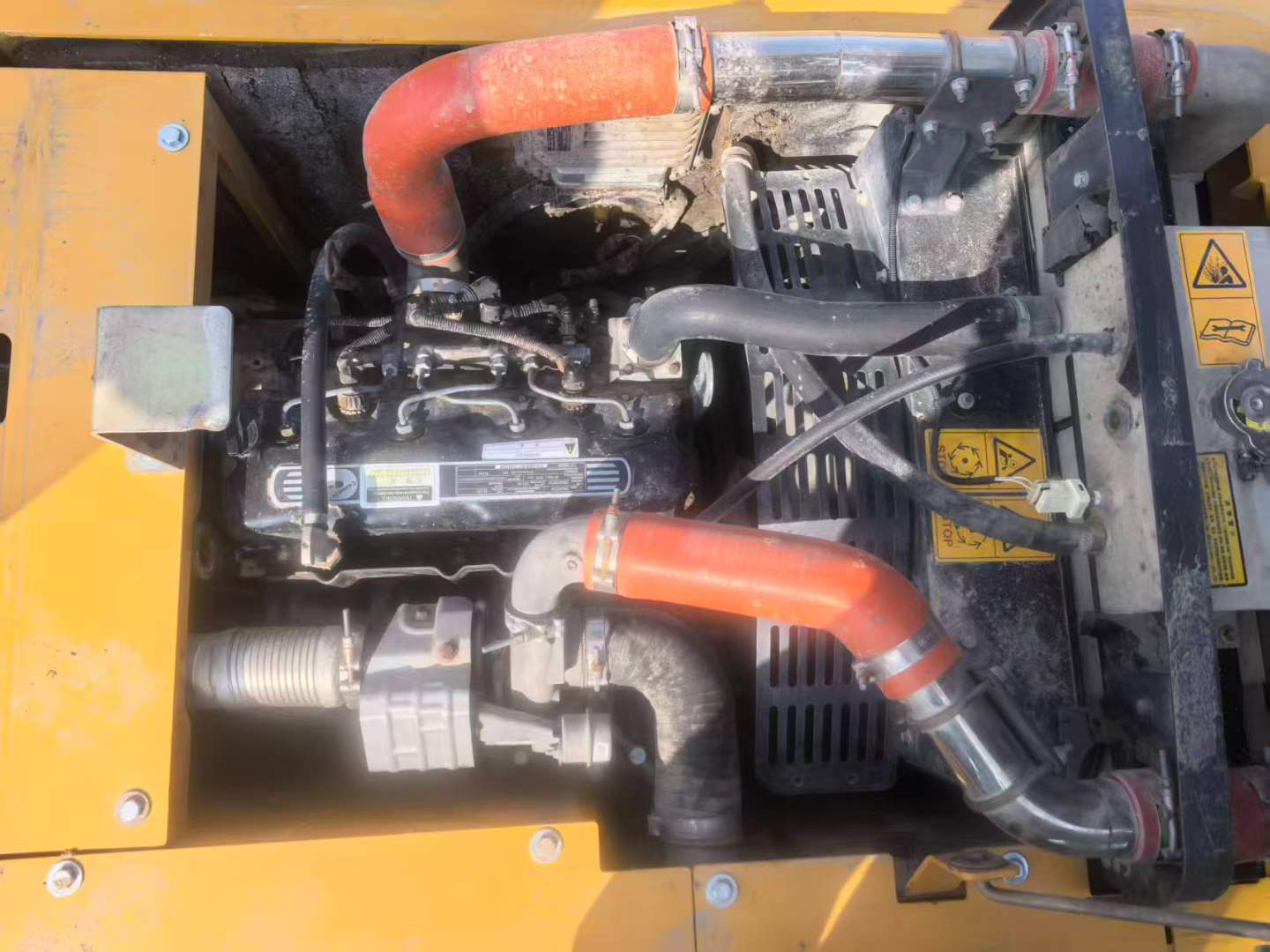

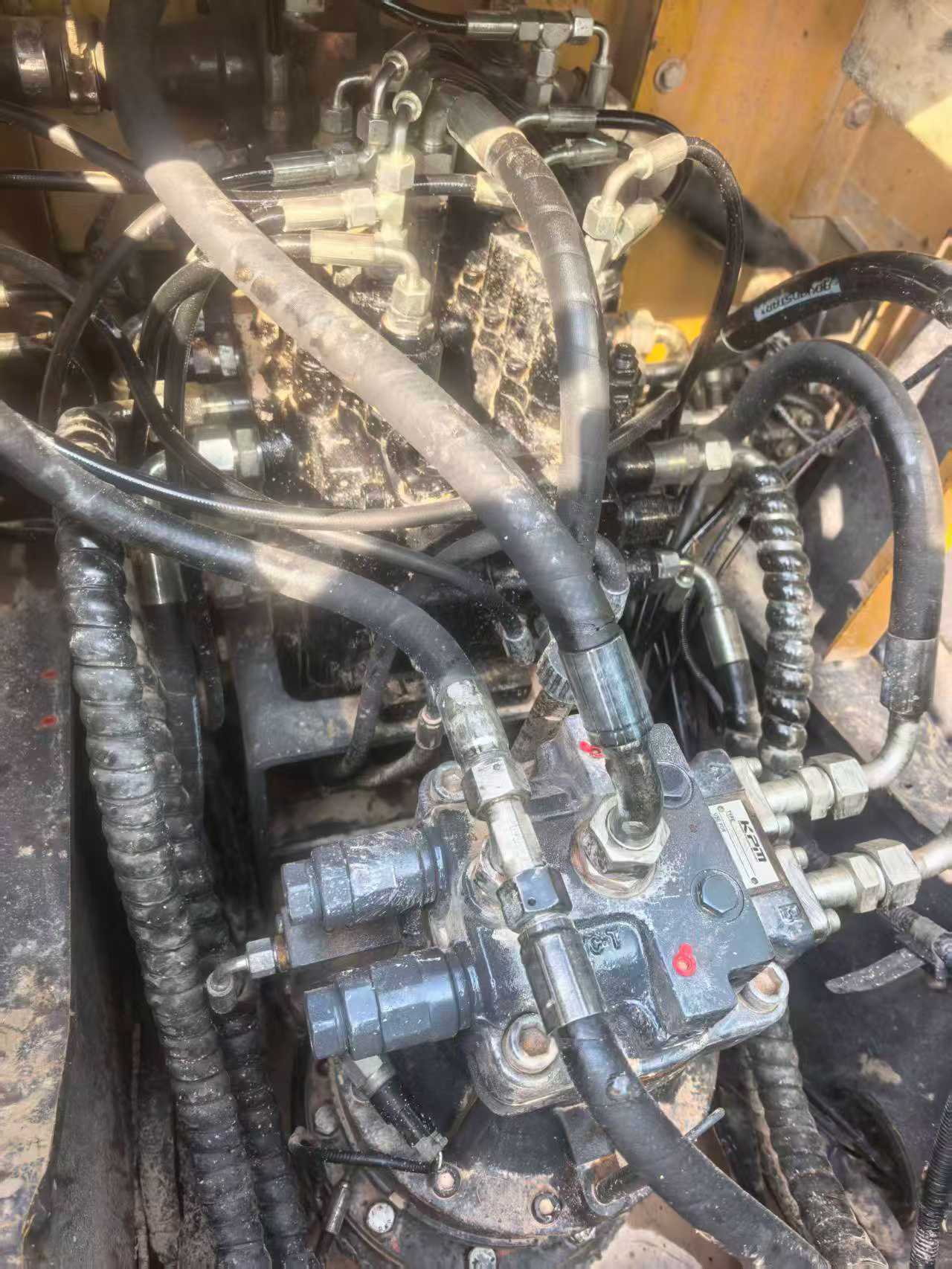

Proven in demanding environments since 2021, this XCMG XE135B excavator delivers the reliability contractors depend on. Operating at 13 tons with a robust 13,800 kg working weight, this machine combines ISUZU's trusted BB-4BG1TRP engine (69.6 kW) with XCMG's engineering heritage from Xuzhou. Water-cooled turbocharged performance ensures consistent power across extended shifts, while dual plunger pumps provide 2×123 L/min hydraulic flow for responsive control.
Built for versatility, the 4,600 mm boom and 2,510 mm arm achieve an impressive 8,296 mm maximum digging radius and 5,538 mm depth. Bucket digging force reaches 85 kN, tackling compacted materials with authority. Track dimensions (2,910 mm ground length, 500 mm width) distribute the 42 kPa ground pressure evenly, protecting finished surfaces while maintaining a 35° climbing capability.
Key Specifications:
- Bucket capacity: 0.4-0.52 m³ backhoe configuration
- Maximum excavation height: 8,641 mm
- Travel speed: 5.16/3.03 km/h (high/low)
- Fuel capacity: 250 L for extended runtime
- Current location: Maoming, Guangdong
This workhorse represents proven Chinese manufacturing quality, ready for im
| Specifications | Value |
|---|---|
| No. | 1027845 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
