Product Description

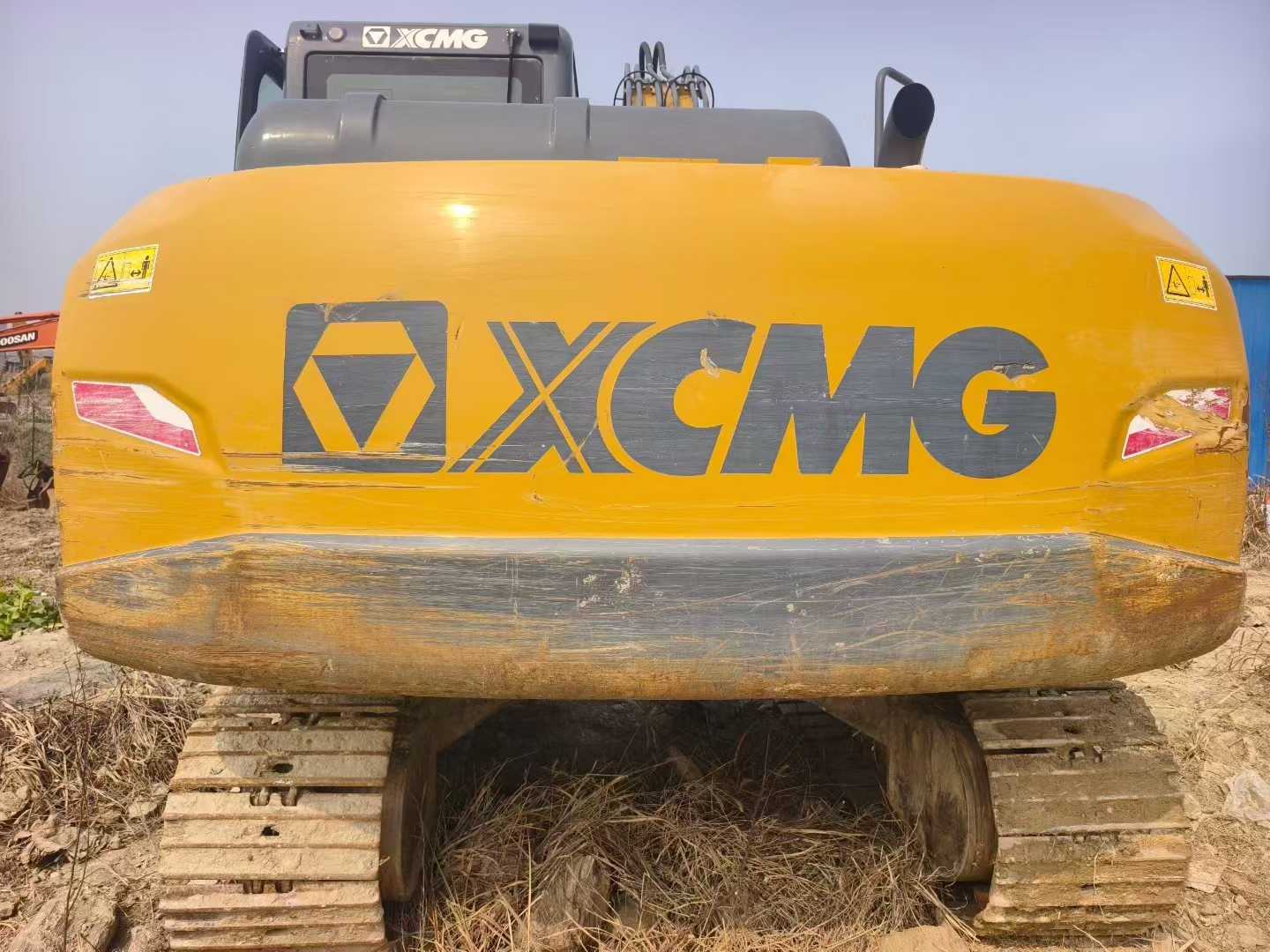

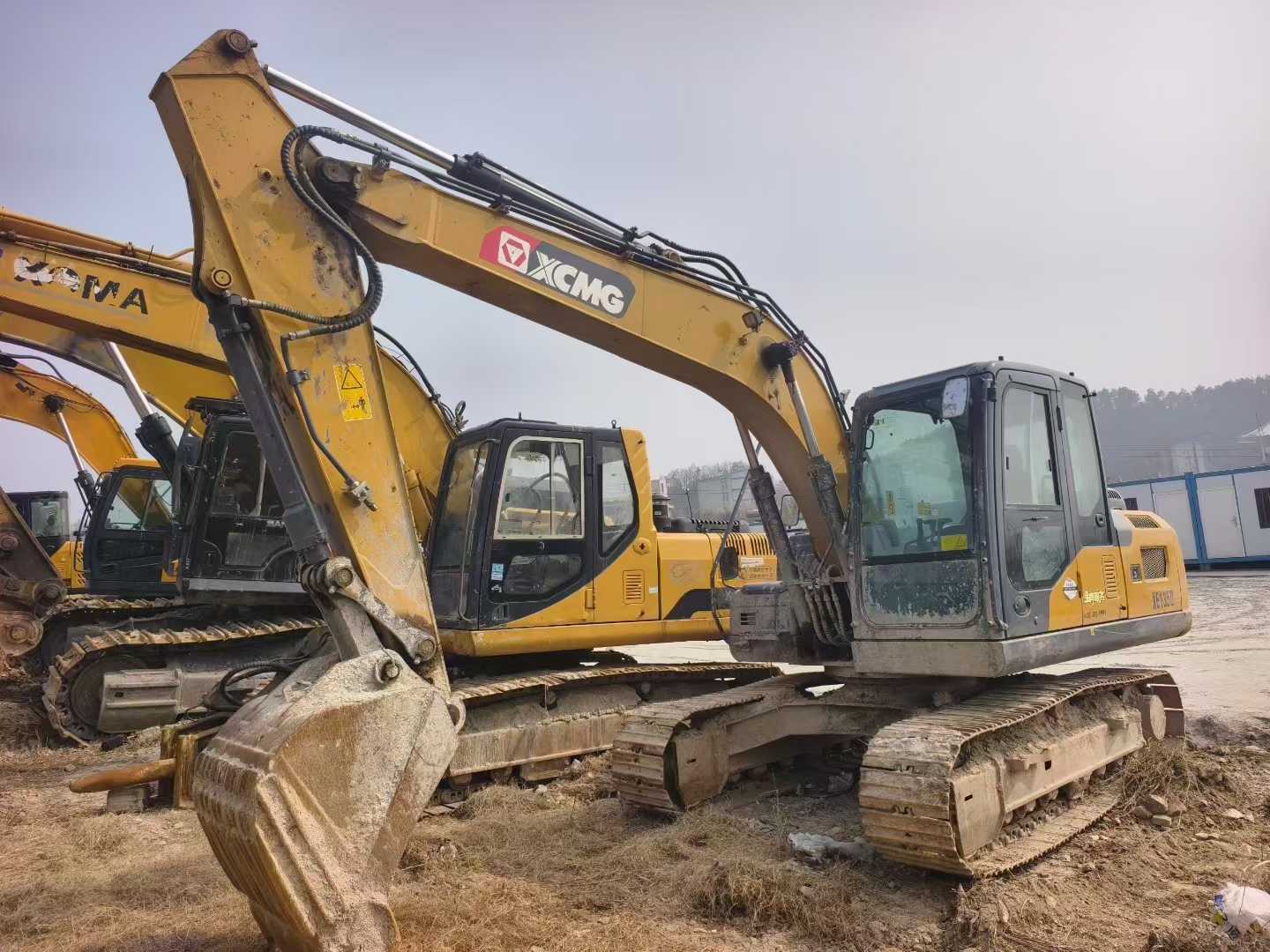

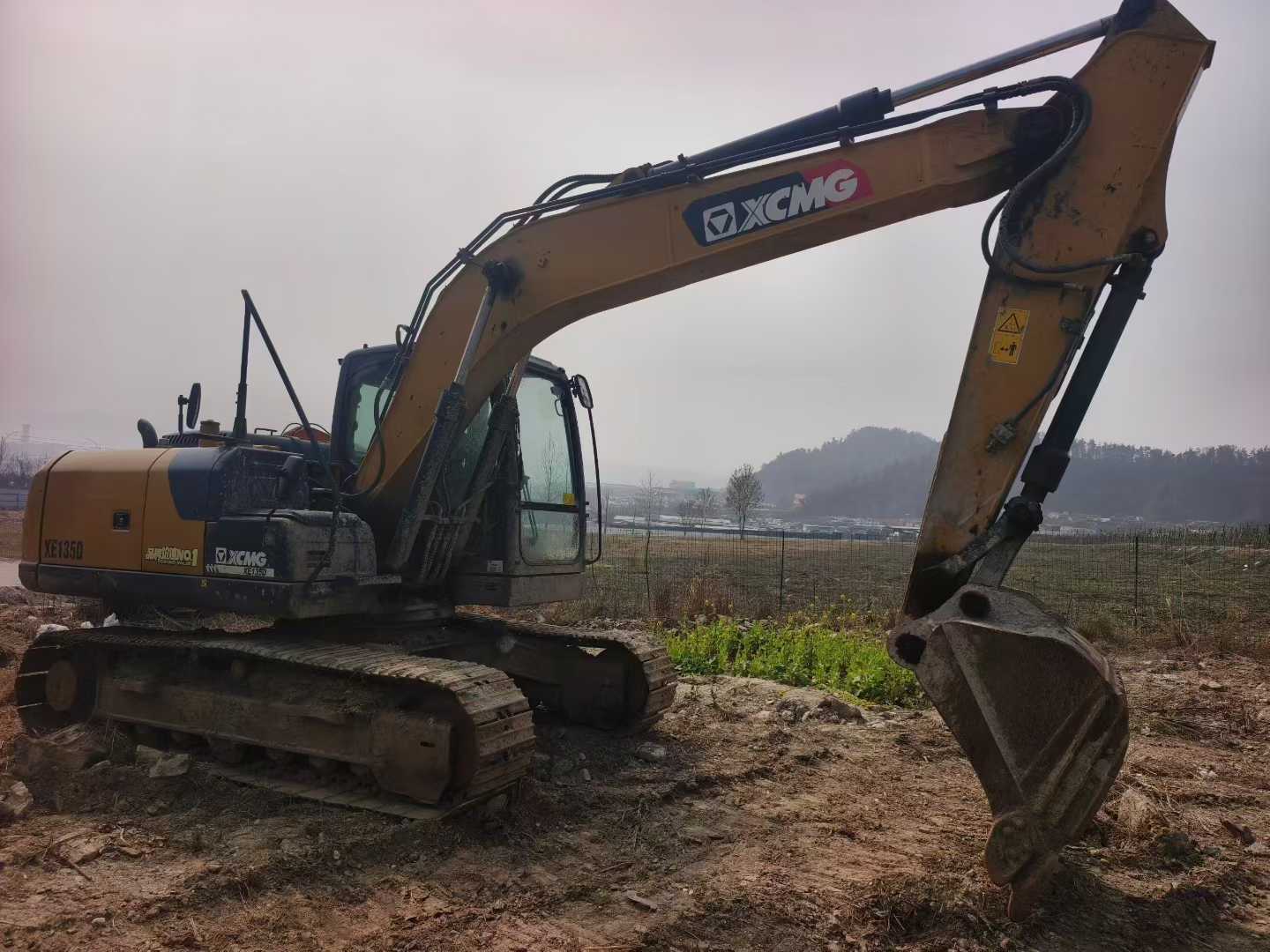

Built for precision and control, this 2021 XCMG XE135B crawler excavator delivers exceptional operator performance in demanding construction environments. Operating at 13 tons with a robust ISUZU BB-4BG1TRP engine producing 69.6 kW, this machine combines reliable power with refined handling characteristics. Dual plunger pumps supply 2×123 L/min hydraulic flow, ensuring responsive control across all functions while maintaining smooth operation during extended shifts.
Operators benefit from excellent stability thanks to 2910mm track ground contact and optimized 42 kPa ground pressure distribution. The spacious cabin provides commanding visibility across the 8296mm maximum digging radius, with intuitive pilot controls operating at 3.9 MPa for precise bucket and boom positioning. Equipped with a 0.4-0.52 m³ bucket, 85 kN bucket digging force, and 5538mm maximum digging depth, this Xuzhou-manufactured excavator handles varied excavation tasks with consistent reliability.

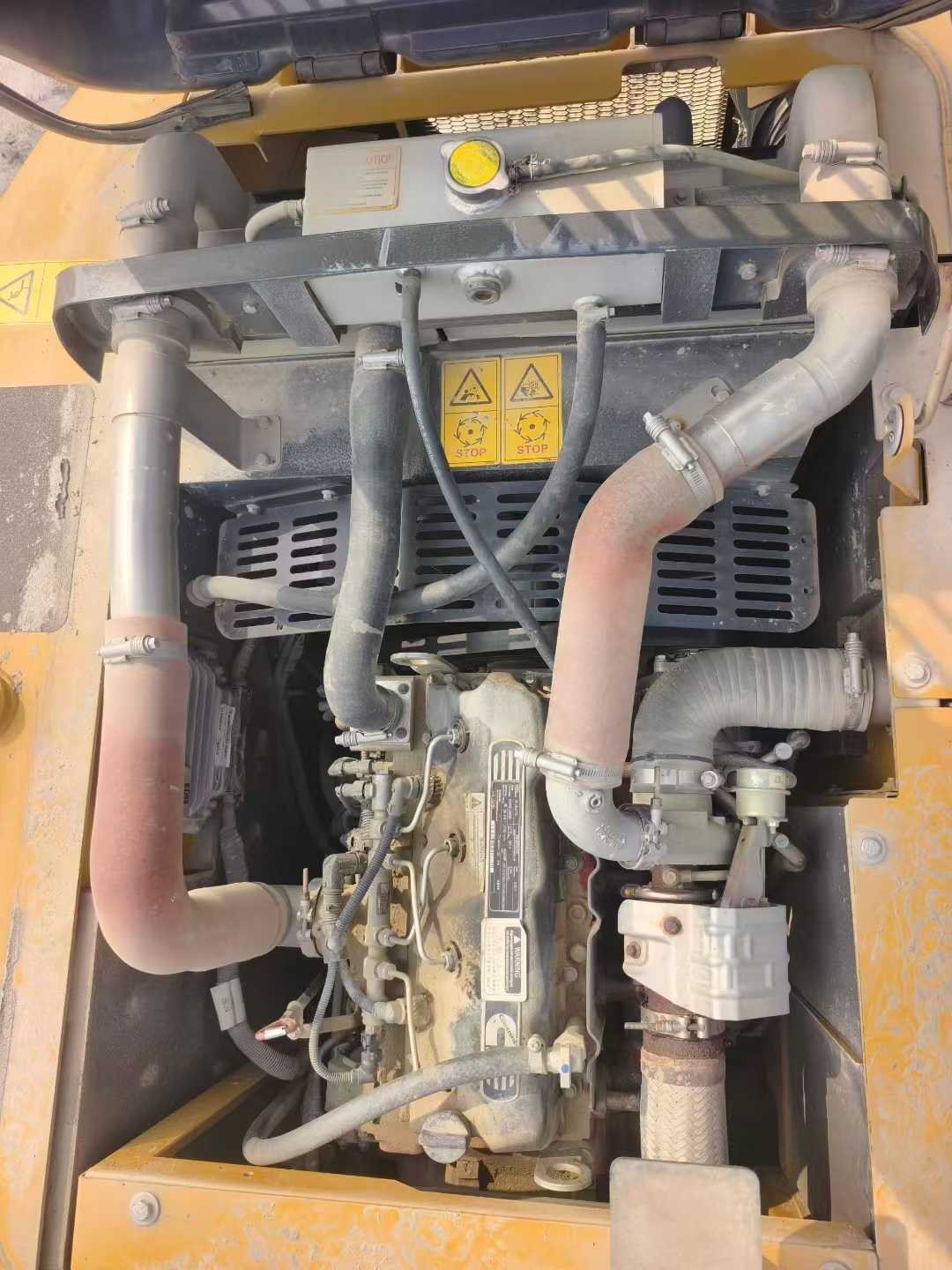

- Water-cooled 4-cylinder turbocharged engine for sustained performance
- Low-effort pilot hydraulics reduce operator fatigue
- Wide 500mm track plates enhance stability on soft ground
- Currently located in Hubei, ready for globa
| Specifications | Value |
|---|---|
| No. | 1031371 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |

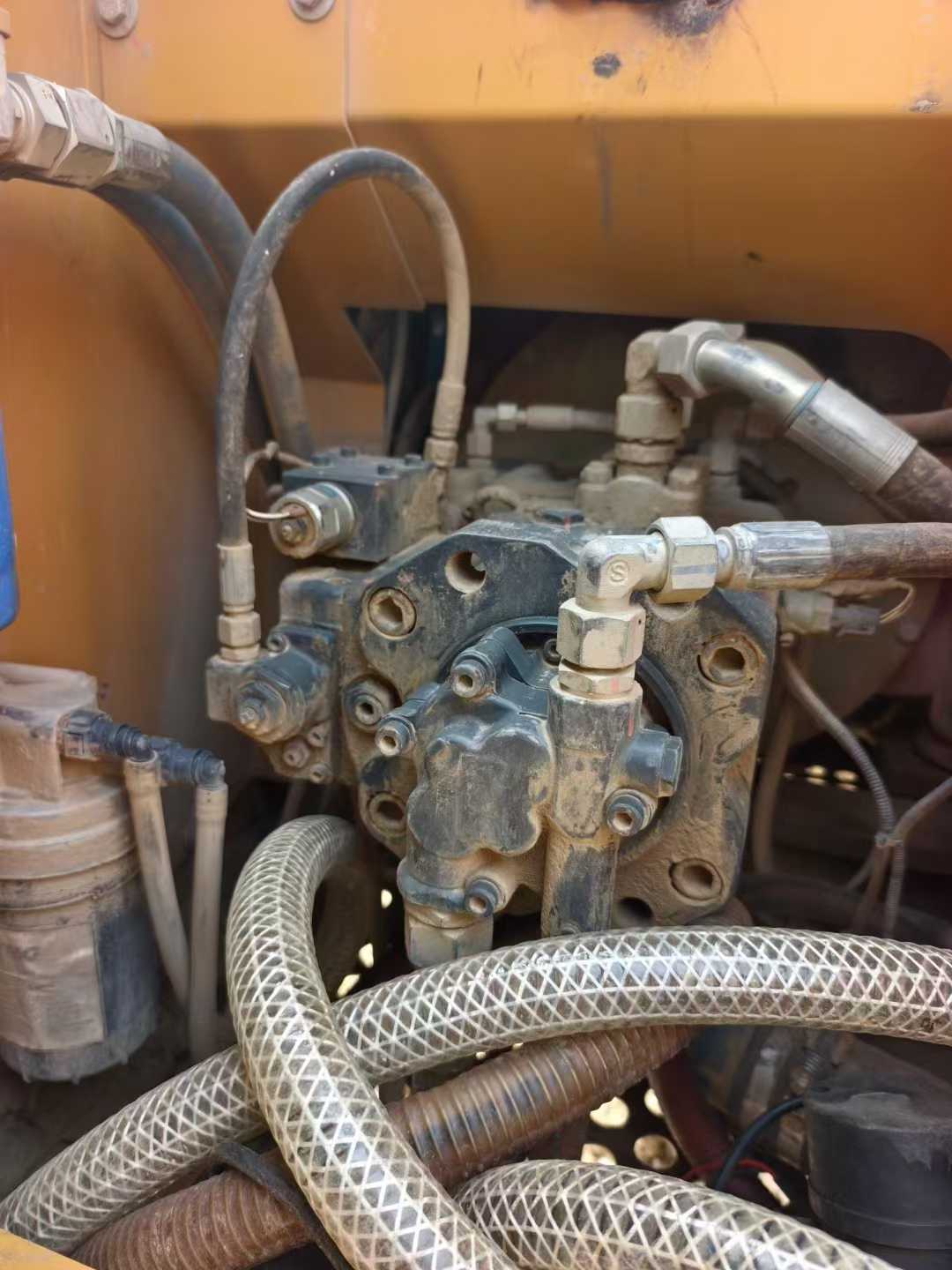

| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
