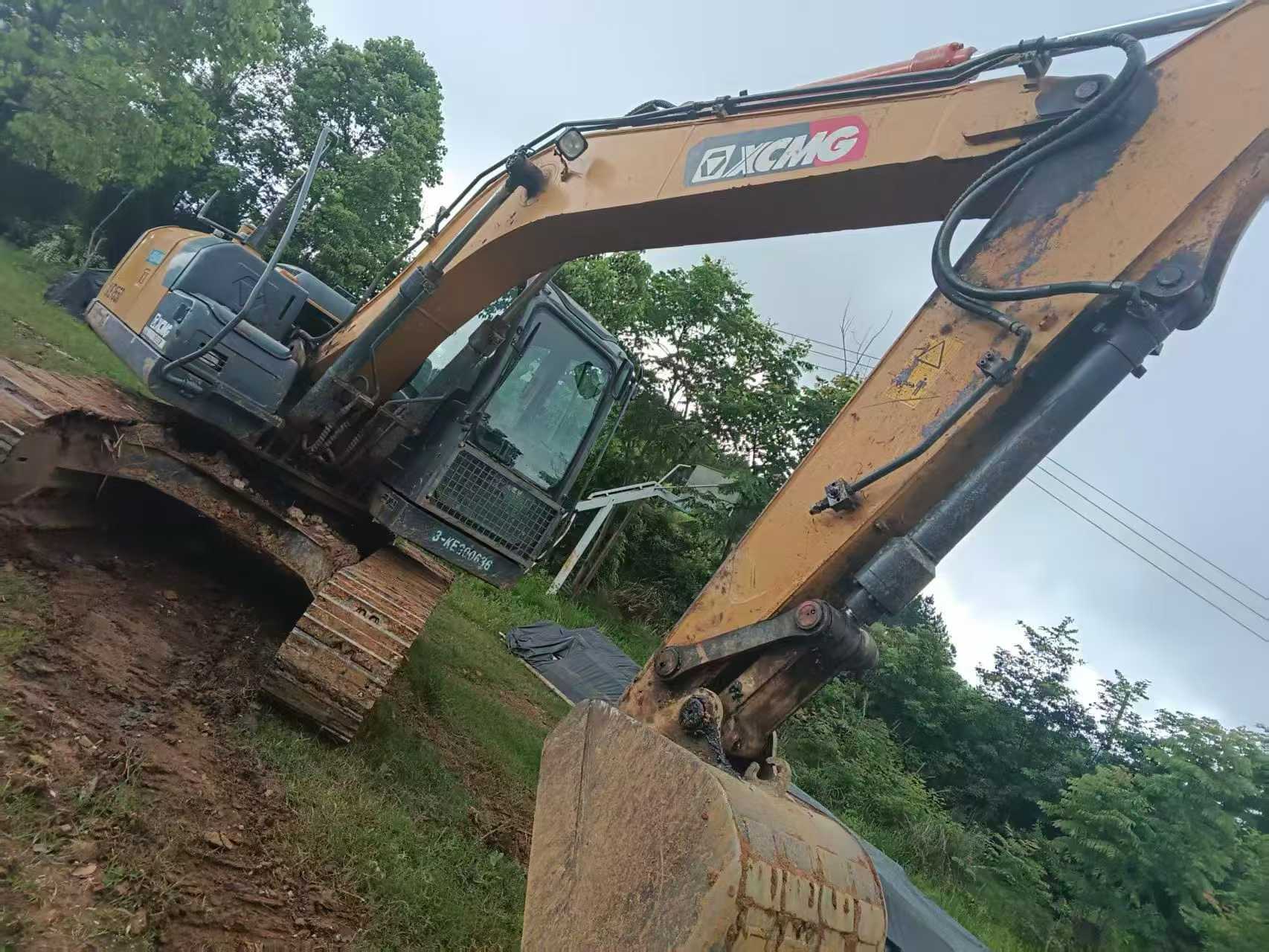

2021 XCMG XE135B

Engineered for demanding mid-range excavation tasks, the 2021 XCMG XE135B delivers proven hydraulic and mechanical performance across construction, infrastructure, and land-clearing applications. Powered by an ISUZU BB-4BG1TRP turbocharged, water-cooled 4-cylinder engine producing 69.6 kW at 2,200 RPM, this 13-tonne machine operates with a dual plunger pump system generating a maximum main pump flow of 2×123 L/min at a main overflow pressure of 31.4/34.3 MPa — delivering consistent hydraulic output under sustained load cycles.

• Bucket Digging Force: 85 kN | Rod Digging Force: 65 kN
• Maximum Digging Depth: 5,538 mm | Maximum Digging Radius: 8,296 mm
• Maximum Excavation Height: 8,641 mm | Unloading Height: 6,181 mm
• Bucket Capacity: 0.40–0.52 m³ (backhoe configuration)
• Travel Speed: 5.16 / 3.03 km/h | Climbing Ability: 35°
• Ground Pressure: 42 kPa | Track Plate Width: 500 mm
• Fuel Tank: 250 L | Hydraulic Tank: 130 L
• Transport Dimensions: 7,770 × 2,512 × 2,880 mm

Currently available in Guangxi, China, this unit represents a well-specified, production-line-standard machine from XCMG's established XE-series — a model range recognized for structural durability and straightforward serviceability in global markets.
