HOME>>XCMG>>XCMG XE135B

2021 XCMG XE135B

1/9

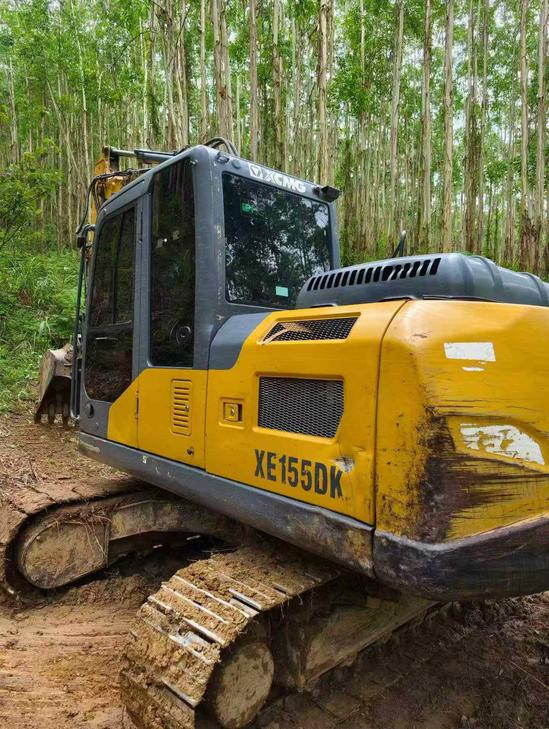

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7

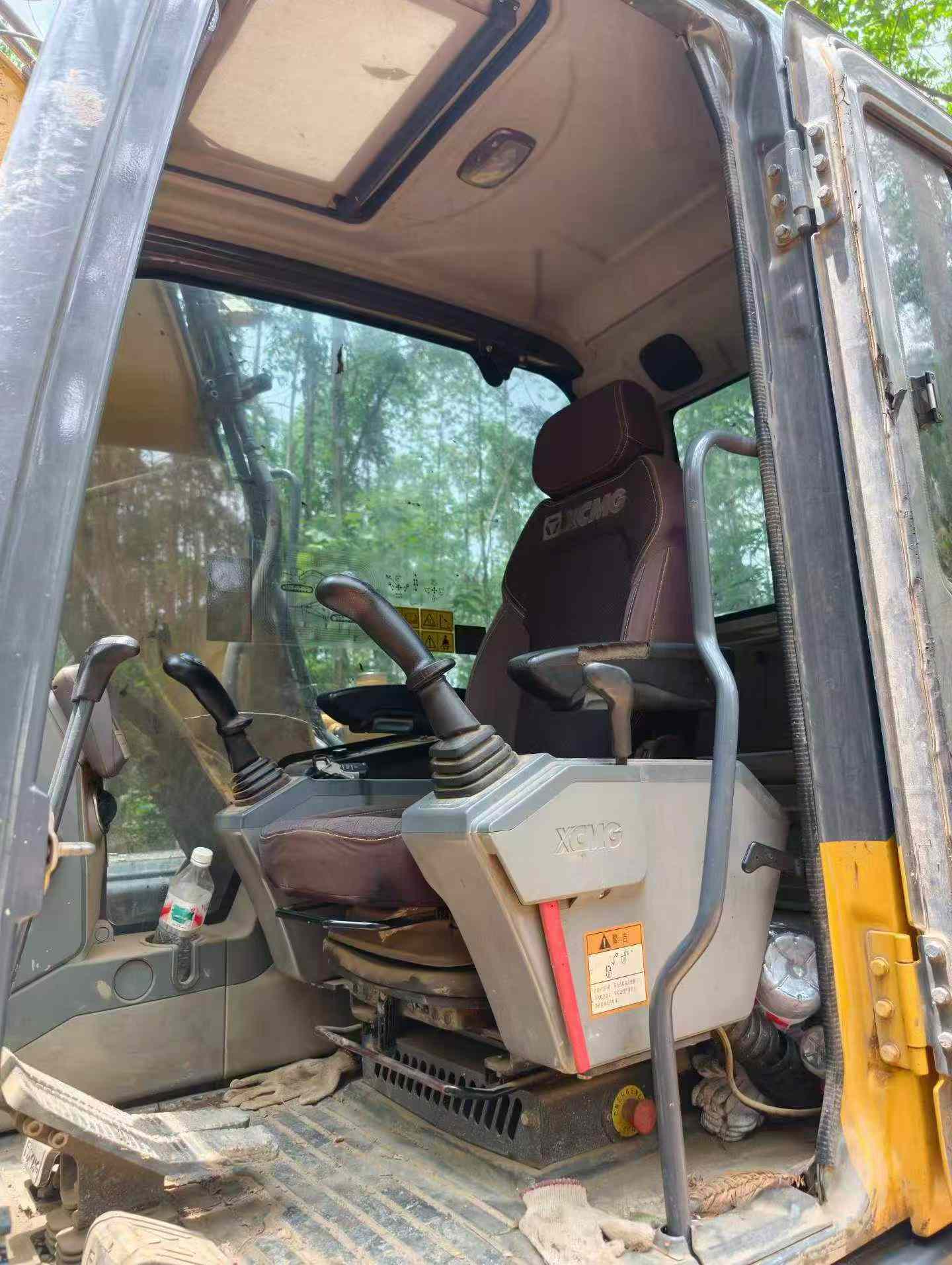

Buy XCMG XE135B Used Excavator / 8
Buy XCMG XE135B Used Excavator / 9

Product Description

This 2021 XCMG XE135B excavator is available from Guangxi, China. The machine features original major components with no overhauls or replacements, indicating careful operation and maintenance throughout its service life. With approximately three years of field use, this mid-size crawler excavator offers reliable performance for earthmoving, trenching, and general construction applications.

Key highlights include:

  • Original engine, hydraulic system, and drivetrain components
  • Well-maintained condition requiring no immediate repairs
  • Standard XCMG build quality and parts availability
  • Suitable for contractors seeking dependable used equipment

The XE135B represents XCMG's proven design in the 13-ton class, combining operational efficiency with straightforward serviceability. This unit is priced competitively for the regional market. Interested buyers should contact the seller directly to arrange inspection and discuss commercial terms.

SpecificationsValue
No.1075524
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1075524

Brand Name:

XCMG

Model Number:

XE135B

Year:

2021

Location:

Guangxi China
