2021 XCMG XE135B

1/9

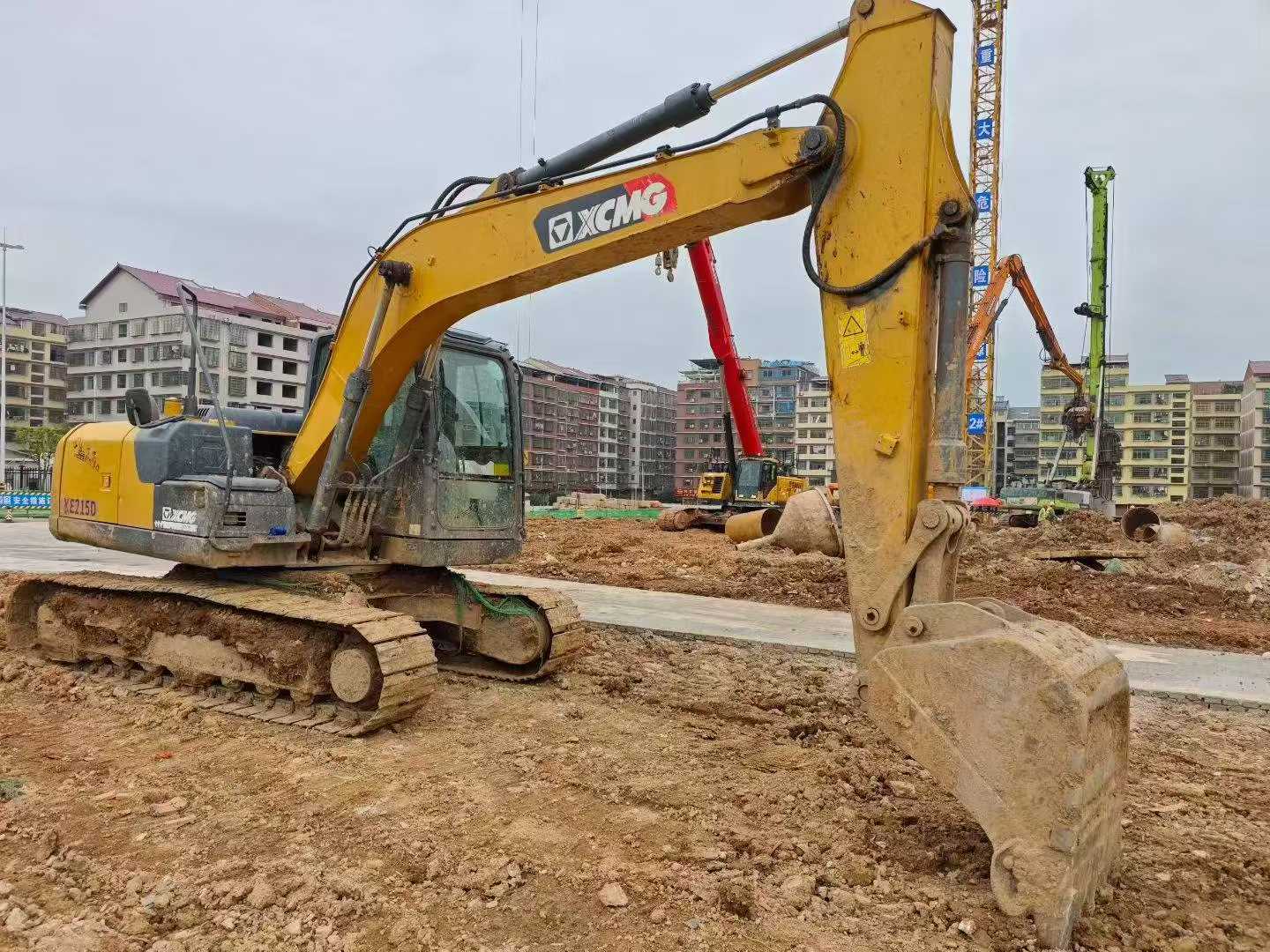

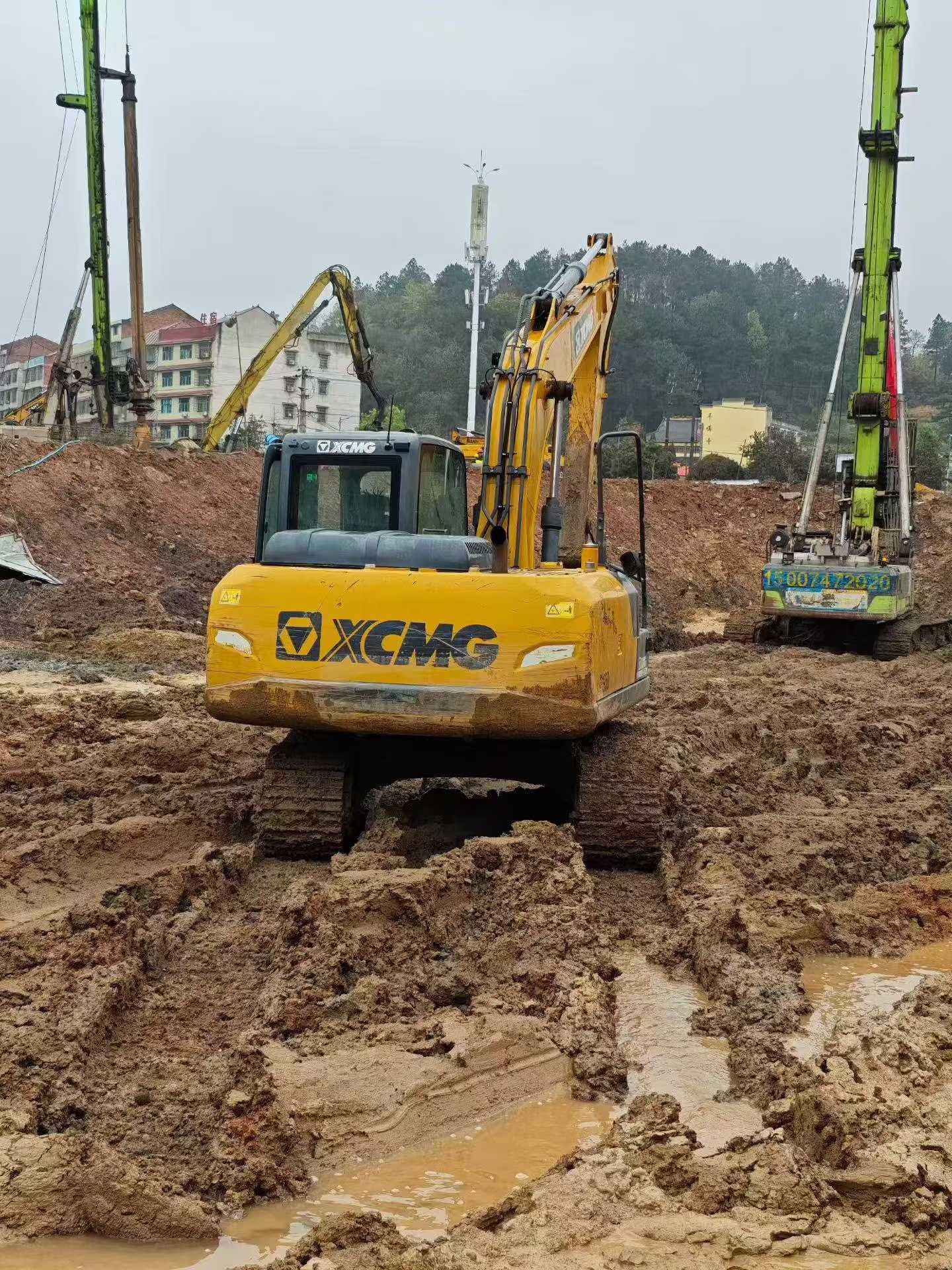

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5
Buy XCMG XE135B Used Excavator / 6
Buy XCMG XE135B Used Excavator / 7
Buy XCMG XE135B Used Excavator / 8
Buy XCMG XE135B Used Excavator / 9

Product Description

This 2021 XCMG XE135B excavator is available now in Hunan, China. The XE135B is a 13.5-ton class hydraulic excavator designed for medium-duty earthmoving, trenching, and site preparation work. XCMG's proven engineering delivers reliable performance in construction and infrastructure projects.

Key features of the XE135B include:

  • 13.5-ton operating weight for versatile job site applications
  • Fuel-efficient engine meeting emission standards
  • Durable undercarriage and hydraulic system
  • Operator-focused cab design for extended shifts
  • Local availability in Hunan for immediate inspection

This unit is ready for viewing and testing. Contact us to schedule an on-site inspection and discuss shipping options to your location.

SpecificationsValue
No.1075690
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1075690

Brand Name:

XCMG

Model Number:

XE135B

Year:

2021

Location:

Hunan China

Pub Date

Are you interested in this machine?

Please contact us
