2021 XCMG XE135B

1/5

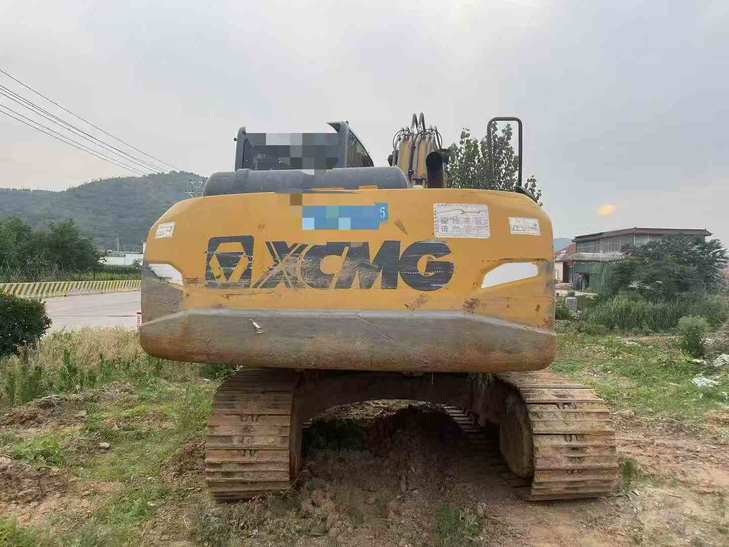

Buy XCMG XE135B Used Excavator / 1
Buy XCMG XE135B Used Excavator / 2
Buy XCMG XE135B Used Excavator / 3
Buy XCMG XE135B Used Excavator / 4
Buy XCMG XE135B Used Excavator / 5

Product Description

This 2021 XCMG XE135B crawler excavator represents a well-maintained mid-size machine from one of China's leading heavy equipment manufacturers. Currently located in Shandong, China, this unit features the high-configuration version with approximately 4,000 operational hours verified on the original meter—indicating moderate use with substantial service life remaining.

The XE135B is engineered for versatility across construction, earthmoving, and utility applications. Its 13.5-ton operating class delivers reliable performance for contractors seeking dependable equipment at competitive value.

  • Year of Manufacture: 2021
  • Operational Hours: 4,000+ (original meter)
  • Configuration: High-spec version
  • Current Location: Shandong Province, China
  • Condition: Used, well-maintained

Ideal for buyers seeking quality used excavation equipment with verified low hours. Inspection welcomed. Contact us for detailed specifications, additional imagery, and competitive export pricing.

SpecificationsValue
No.1091011
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.1091011

Brand Name:

XCMG

Model Number:

XE135B

Year:

2021

Location:

Shandong China

Pub Date
